Help to upgrade Suspension of 2005 Chevrolet 2500

Notices

Help to upgrade Suspension of 2005 Chevrolet 2500

Old 07-18-2018, 07:35 PM
  #1
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Feb 2001
Location: SE LA
Posts: 5,303
Received 404 Likes on 190 Posts
Default Help to upgrade Suspension of 2005 Chevrolet 2500

So earlier this year I bought a 2005 Chevrolet 2500 6.0L Gas 4x4. Use of the truck is only pulling the boat. The ride is terrible. It's not normal 3/4 terrible, it needs work. It also sits pretty low with the boat attached.

Does being lifted have anything to do with the terrible ride? Where do I start? What parts do I need to look for?

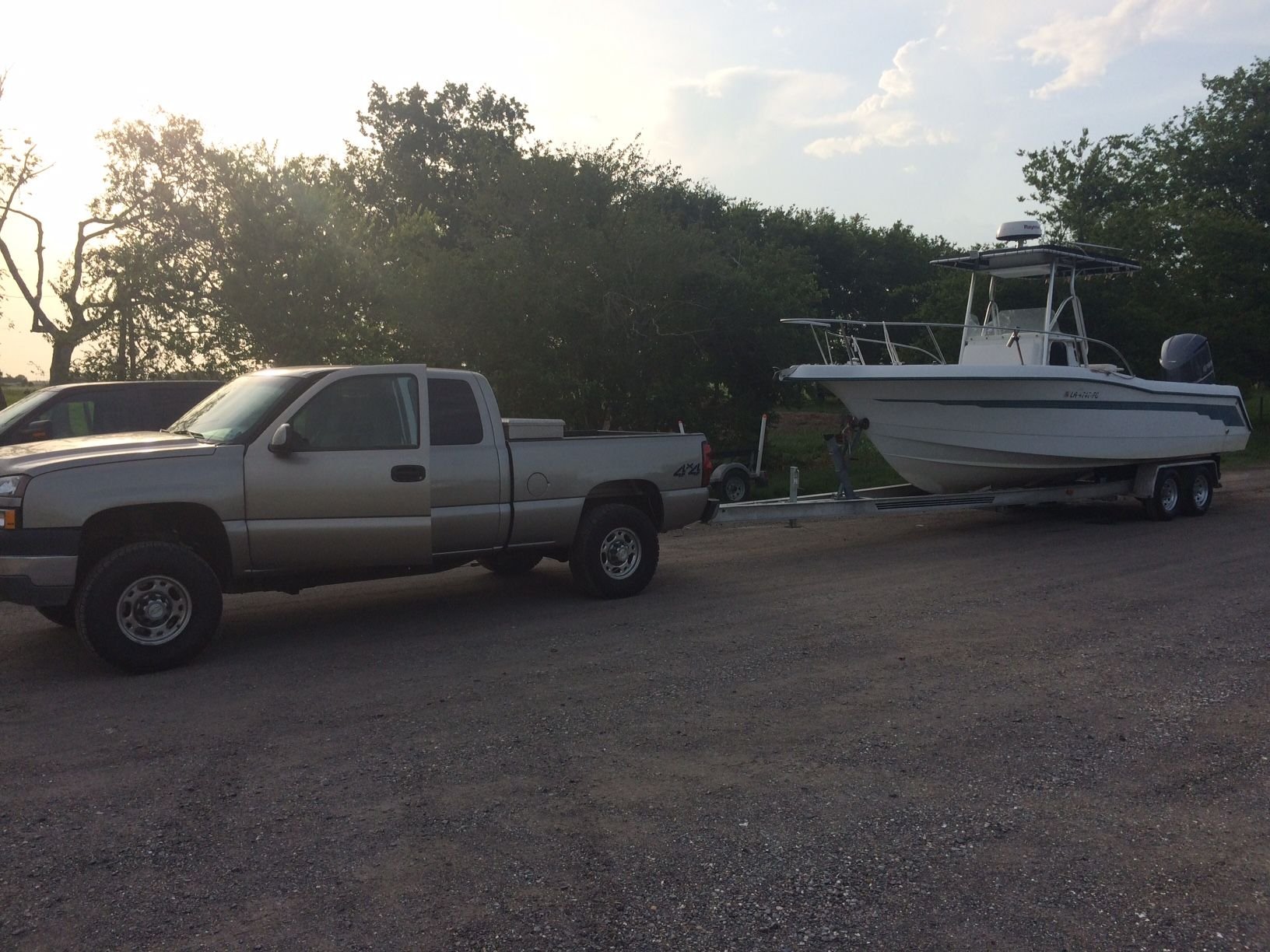

Here is a bad picture of it.
Old 07-18-2018, 08:10 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Aug 2017
Location: WI
Posts: 287
Received 972 Likes on 472 Posts
Default

Billstein shocks. Air down the tires.
Likes:
Old 07-18-2018, 08:20 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Jan 2013
Posts: 4,825
Received 585 Likes on 413 Posts
Default

Firestone air bags in the back. Bilstien 5100 shocks.
Old 07-19-2018, 03:12 AM
  #4
Senior Member

Join Date: Oct 2002
Location: Dryden/Ludington, MI - Steamboat, CO
Posts: 1,603
Received 432 Likes on 245 Posts
Default

I'm guessing torsion axles have been cranked to get front end up. That will definitely make it ride like hell. I have 2003 2500. 5100's on it and michilens made it ride alot better than stock, but it still rides like a brick compared to my half ton.
Old 07-19-2018, 04:41 AM
  #5
Senior Member

Join Date: May 2008
Location: Between Richmond and Williamsburg
Posts: 2,964
Likes: 0
Received 97 Likes on 43 Posts
Default

Doesn't appear to be lifted much. Check the torsion bar bolts, if they are bottomed out, the "pork chop" is cranked beyond were it should be, a cheap mans "lift"
Old 07-19-2018, 09:36 AM
  #6
Senior MemberCaptains Club Member

Join Date: Jan 2007
Location: Tampa Florida
Posts: 5,684
Received 2,791 Likes on 1,584 Posts
Default

bilstein shocks all the way around and air tires down a notch as mentioned before. also tires that are a few years old will stiffen and make the ride a little rougher.

other than that, its a 3/4 tun suspension so it will not be great by any means
Old 07-19-2018, 10:46 AM
  #7
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jun 2007
Location: Houston/Sargent, Texas
Posts: 5,404
Likes: 0
Received 733 Likes on 380 Posts
Default

I have done all the normal mods to 2500 and 3500 chevy's with the same result....a shit ride.

Until I learned about Norcal Nick and Cognito suspension for these trucks I thought I knew it all.

I would seriously consider putting a Cognito kit on the front. The change in the ride is just amazing. People can't believe how well my '16 one ton crew cab long bed rides.
Old 07-19-2018, 11:22 AM
  #8
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,565
Received 2,335 Likes on 1,177 Posts
Default

Also, if you're running 80 psi in the front tires, it WILL ride like shit. Rattle your teeth out. It's supposed to be 50 psi in front, 80 in rear. Check sticker inside of door.
Old 07-19-2018, 02:20 PM
  #9
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Feb 2001
Location: SE LA
Posts: 5,303
Received 404 Likes on 190 Posts
Default

Thanks everybody. Will check the tires and torsion bars.

How hard of a job is changing shocks?
Old 07-19-2018, 02:25 PM
  #10
Senior Member

HarleyFLHP's Avatar

Join Date: Jan 2012
Location: The great State of NC
Posts: 10,445
Likes: 0
Received 1,568 Likes on 720 Posts
Default

Originally Posted by Gmack View Post
Thanks everybody. Will check the tires and torsion bars.

How hard of a job is changing shocks?
A little harder than brushing your teeth.
Old 07-19-2018, 03:04 PM
  #11
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 7,843
Likes: 0
Received 3,774 Likes on 2,151 Posts
Default

My preference for a leveling kit is BDS with the Fox 2.0 shocks. From memory the 2006 range of those trucks need the airbags just like most 1/2 truck to tow.
Old 07-19-2018, 05:57 PM
  #12
Senior Member

Join Date: Oct 2002
Location: Dryden/Ludington, MI - Steamboat, CO
Posts: 1,603
Received 432 Likes on 245 Posts
Default

Best thing I did to get a better ride out if the 2500 is park a half ton next to it and drive that when 3/4 ain't needed.
Likes:
Joe
Old 07-19-2018, 07:40 PM
  #13
Admirals Club Admiral's Club Member

Join Date: Sep 2012
Location: South Florida
Posts: 573
Received 56 Likes on 35 Posts
Default

.
Old 07-20-2018, 07:08 AM
  #14
Senior MemberCaptains Club Member

Join Date: Mar 2004
Location: Fayetteville/Gloucester, NC
Posts: 1,363
Likes: 0
Received 157 Likes on 91 Posts
Default

The 2500's that I've owned, all stock trucks with no suspension mods, need at least 750 lbs. in the bed to smooth the ride. They're made to carry weight, and they just don't ride well empty.

As suggested, lowering the tire pressures will help also. No need to run 80 psi in the rear unless you're loaded.

But they still don't ride like a 1500.
Old 07-20-2018, 07:12 AM
  #15
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 23,971
Received 4,986 Likes on 3,202 Posts
Default

Originally Posted by Back-in-Black View Post
Also, if you're running 80 psi in the front tires, it WILL ride like shit. Rattle your teeth out. It's supposed to be 50 psi in front, 80 in rear. Check sticker inside of door.
I had my tire pressure monitor reset to 40#'s...huge difference in ride, tire wear is even.
Old 07-20-2018, 07:41 AM
  #16
Admirals Club Admiral's Club Member

Join Date: Jan 2013
Posts: 4,825
Received 585 Likes on 413 Posts
Default

Soak the shock nouts in PB blaster for a couple days, should be fairly straightforward.
Old 07-20-2018, 07:57 AM
  #17
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,565
Received 2,335 Likes on 1,177 Posts
Default

Originally Posted by avalonandl View Post
Soak the shock nouts in PB blaster for a couple days, should be fairly straightforward.
An impact wrench (electric or pneumatic) with a deep well socket is the ONLY way to do those top nuts on the shocks. They come off is seconds. Doing them by hand is a real PITA.
Old 07-20-2018, 04:38 PM
  #18
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Michigan
Posts: 673
Likes: 0
Received 35 Likes on 25 Posts
Default

Originally Posted by Salmonbum View Post
Best thing I did to get a better ride out if the 2500 is park a half ton next to it and drive that when 3/4 ain't needed.
I am in the process of doing this.... Actually going Yukon XL with a hefty pickup next to it...

May even go 350/3500...

Old 07-20-2018, 09:37 PM
  #19
Member

Join Date: Sep 2003
Location: Bristol CT
Posts: 37
Likes: 0
Received 9 Likes on 5 Posts
Default

When I add 500 pounds in the far rear of the bed to aid plowing in the winter, it transforms the ride but I don't feel that a solution for the other 9 months of the year. I have also aired down and bought 5100 bilsteins this week but have yet to install them. I've read good things about Solastic shackles but have not ridden in a vehicle equipped with them.
Old 07-21-2018, 06:55 AM
  #20
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 7,843
Likes: 0
Received 3,774 Likes on 2,151 Posts
Default

Originally Posted by billinstuart View Post
I had my tire pressure monitor reset to 40#'s...huge difference in ride, tire wear is even.
That seems a little low for a 2500, I run 50 in the front and 60 in the back of mine. It rides pretty good but hates the brick streets they have in the Tampa/ St Pete area.
