Leaf Spring Replacement Qs?

Old 11-29-2020, 10:56 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2014
Location: Florida
Posts: 1,848
Received 628 Likes on 339 Posts
Default Leaf Spring Replacement Qs?

Hello, my leaf springs are completely shot. Is replacement as simple as measuring from mounting bolt to mounting bolt and ordering by that length and number of leaves? Is there a specific brand that folks recommend? My axles are still in good condition, so don't plan on converting over to torsion axles or anything like that at this time. I assume since I have a 10k trailer, each spring should support 2.5k? Any other pro tips?

Thanks in advance.

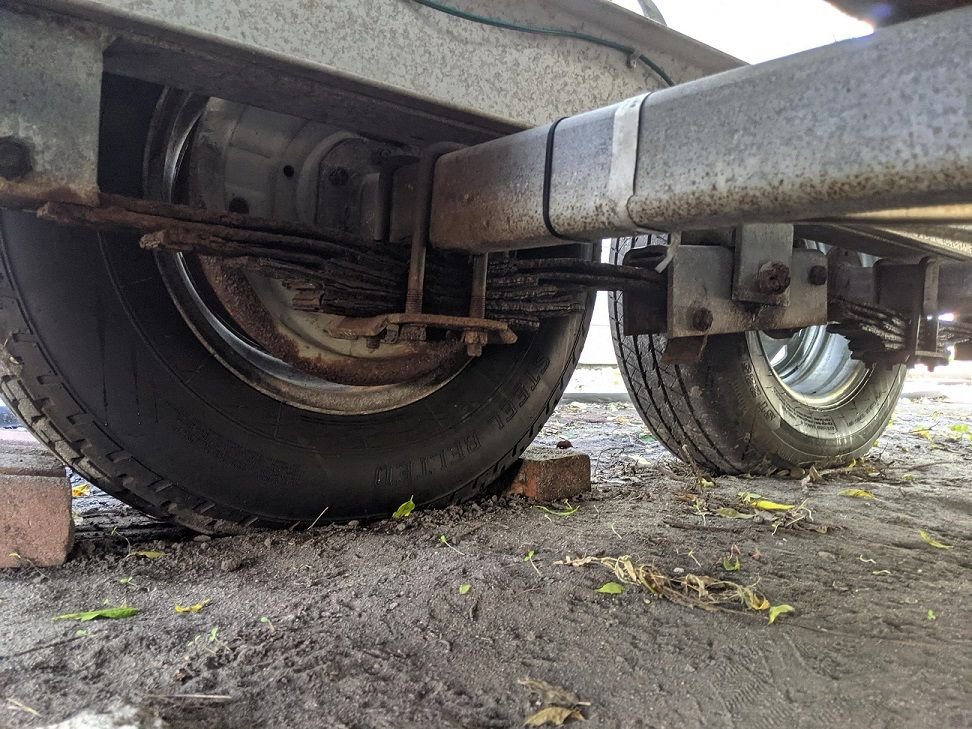

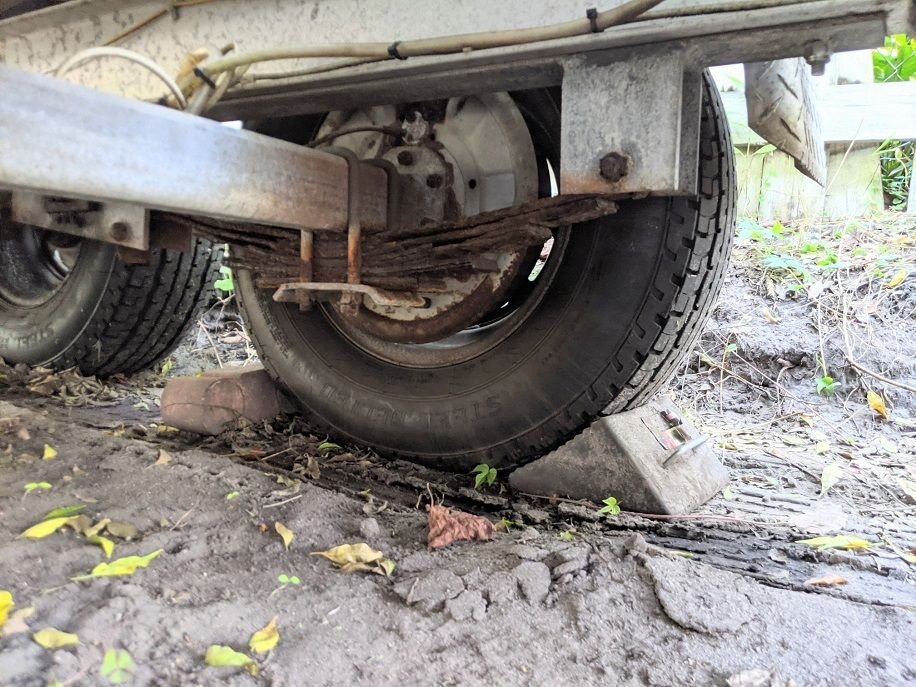

... Pictures because everyone likes pictures





Old 11-29-2020, 11:16 AM
  #2
Senior Member

Lprizman's Avatar

Join Date: May 2009
Location: Rhode island
Posts: 7,023
Received 4,792 Likes on 2,120 Posts
Default

Add a leaf....any local companies around?
Old 11-29-2020, 03:20 PM
  #3
Admirals Club Admiral's Club Member

Join Date: May 2017
Posts: 283
Likes: 0
Received 180 Likes on 83 Posts
Default

Do the research to learn what spring you have As the measurement between eyes,types of eyes or slipper type,number in stack,widths.get some new matching ones,u bolts,re- hab the plates etc looks like you could use a nice re-build under there once you start you have to address it all and put new life in her.trailer super store is your friend the oem stuff works too.
Old 11-30-2020, 07:48 AM
  #4
Senior Member

Join Date: Jul 2007
Location: SWFL
Posts: 2,754
Received 472 Likes on 273 Posts
Default

Yep, those look bad but at least they're still intact. I'd take the load off one of them and you need two measurements, the distance between the eyes, and the drop (from spring eyes to bottom of the pack). Yes, they need to be no less than 2500lbs each, and get new shackles and bolts and ensure the perch holes are not elongated. If you want to upgrade to torsion axles, i found the best price was at Davis Custom Trailers in Plant City.

Last edited by phillyg; 11-30-2020 at 07:56 AM.
Old 12-01-2020, 02:16 PM
  #5
Senior Member

Join Date: Jun 2009
Location: North of Boston
Posts: 4,365
Received 204 Likes on 139 Posts
Default

No affiliation, but these guys were great to work with when I rebuilt my last trailer. Made in USA!!

https://www.stengelbros.net/?gclid=C...RoCZ5cQAvD_BwE
Old 12-01-2020, 06:59 PM
  #6
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2014
Location: Florida
Posts: 1,848
Received 628 Likes on 339 Posts
Default

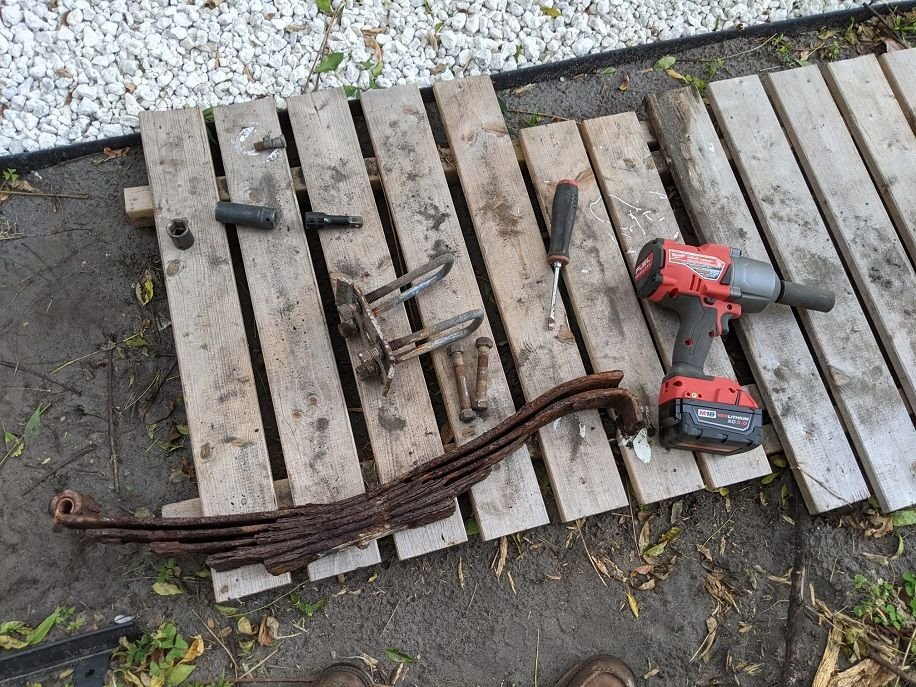

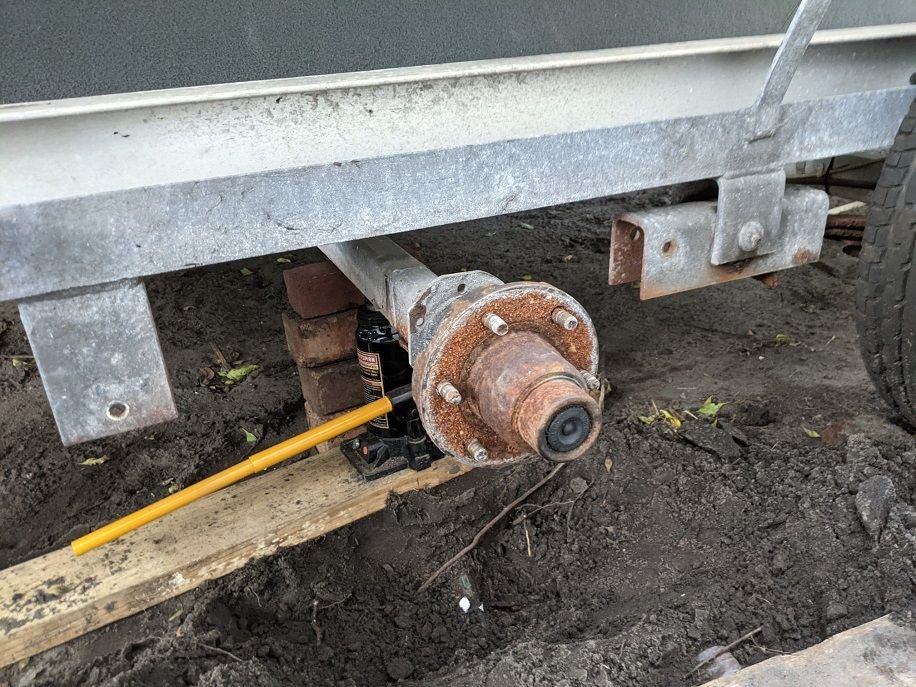

Took off one spring today and am going to the trailer supply store a few miles down the road to get the replacement parts to do the job. My Milwuakee high torque cordless impact made quick work of all the seized/rusted bolts. I'm amazed at the power in this thing.



Old 12-01-2020, 11:53 PM
  #7
Senior Member

Join Date: Aug 2011
Posts: 1,651
Received 365 Likes on 288 Posts
Default

For reference purposes, you can see what your springs should cost. Double Eye Trailer Springs at Champion Trailers

You should use new hardware, brakes and hubs while you're at it.
Old 12-02-2020, 12:35 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Beaverdam VA
Posts: 1,339
Received 569 Likes on 328 Posts
Default

Use a 50/50 mix of atf and acetone next time. Amazing stuff.
Old 12-02-2020, 12:43 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Beaverdam VA
Posts: 1,339
Received 569 Likes on 328 Posts
Default

Glad you got it off. Use a 50/50 mix of atf and acetone next time. Amazing stuff. Use a paint brush and mix immediately prior to use.
Old 12-02-2020, 12:43 PM
  #10
Senior MemberCaptains Club Member

Join Date: Jan 2002
Location: Out There....
Posts: 4,922
Received 579 Likes on 335 Posts
Default

Sawzall is your friend on those U bolts
Old 12-02-2020, 01:19 PM
  #11
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2014
Location: Florida
Posts: 1,848
Received 628 Likes on 339 Posts
Default

The u bolts and nuts are all in decent shape... I think I could even reuse them, but I'm not going to.

I went to the trailer store today and they measured my springs at 27". They said they were probably stretched because they were completely shot and said I could go with 26" springs. Of course they didn't have them in stock and the ordering lady was out... I ended up ordering some 2" x 26.5" springs online since that seemed to be the most common for a 5200 lb axle. The springs are open on one end so it seems like their is some allowable play.

Last edited by acteg; 12-02-2020 at 01:25 PM.
