Truck squats with trailer. Options . . .

Notices

Truck squats with trailer. Options . . .

Old 10-06-2020, 04:55 PM
  #41
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Originally Posted by JDinSWFL View Post
Trade your trailer in for a tri axle trailer . That much weight should be on a bigger trailer. Just my opinion of course but it would tow much better , safer and probably fix your problem. Another thought , how old is your truck/suspension ? Good luck and let us know what you do .
lol no way. Here in Miami, and even getting into my backyard, there are tons of tight turns. Id tear up a tri-axle in no time...it was actually cheaper than getting this trailer. I went with 7k pound axles putting me at 12k pound net capacity...which is perfect for this boat.

Truck and suspension are stock 2016.
Old 10-06-2020, 04:55 PM
  #42
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,982
Received 2,470 Likes on 1,353 Posts
Default

Originally Posted by danmanswag View Post
It tows great. Did 70 on the turnpike down to FL City and then 60 on the stretch. Like I said in the OP, truck drives and the trailer tows like a dream.

Having said that, it’s obviously squatting and I’d prefer to havE everything set up right.
How many miles are on the truck? Some F250's squat more than others with the same load.
Old 10-06-2020, 04:58 PM
  #43
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Originally Posted by Vantaredoc View Post
How many miles are on the truck? Some F250's squat more than others with the same load.
50k
Old 10-06-2020, 04:59 PM
  #44
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,982
Received 2,470 Likes on 1,353 Posts
Default

Originally Posted by danmanswag View Post
50k
Check the tongue weight and report back.
Old 10-06-2020, 05:00 PM
  #45
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Originally Posted by Vantaredoc View Post
When I set up a trailer, I measure to find what level is. I start adjusting ball height so trailer is level when all the weight is off the jack. It's much easier to get right when using weight distributing hitch. On a boat trailer or heavy tow vehicle when weight distribution is ineffective (like with automatic air ride suspension) my goal is to make sure all axles are carrying equal weight. I use a tongue scale and set it on a floor jack and it goes in the hole where the ball goes. I can dial it in from there. We also have portable electronic scales to dial in the load distribution




I think this is the best start. Going to buy a tongue scale and see where Im at and go from there.

Ideally Id like to just put some bags or a rear suspension upgrade, but dont want to do it unnecessarily.
Old 10-06-2020, 05:01 PM
  #46
Admirals Club Admiral's Club Member

Join Date: May 2017
Posts: 283
Likes: 0
Received 180 Likes on 83 Posts
Default

Go to a commercial spring shop that does heavy truck suspension repairs they can tear it down and add 2 leaves to make your rear a 1 ton stack.you might have to travel a bit to find one it will ride a bit rougher unloaded but nice when towing.you should check that tongue weight also but I do every truck in my fleet to tow 10-18k no problem.
Likes:
Old 10-07-2020, 08:41 AM
  #47
Senior MemberCaptains Club Member

Join Date: Jan 2007
Location: Tampa Florida
Posts: 6,718
Received 3,167 Likes on 1,814 Posts
Default

Originally Posted by JDinSWFL View Post
Trade your trailer in for a tri axle trailer . That much weight should be on a bigger trailer. Just my opinion of course but it would tow much better , safer and probably fix your problem. Another thought , how old is your truck/suspension ? Good luck and let us know what you do .
its absolutely silly to suggest another axle without know the weight of the boat and the capacity of the current trailer!

even with an extra axle, if he has too much tongue its still going to squat the truck!
Old 10-07-2020, 09:14 AM
  #48
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Vantaredoc I plan to purchase that same Sheerline tongue scale. Does that extend up to the ball or do I have to put some cinder blocks under to make my trailer level before checking the pressure?

I'm guessing I should buy the 2k pound capacity Sheerline since my truck is mean to handle under that? Basically, if it goes max, I know I'm tongue heavy.......or buy the 5k pound unit?
Old 10-07-2020, 09:34 AM
  #49
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,982
Received 2,470 Likes on 1,353 Posts
Default

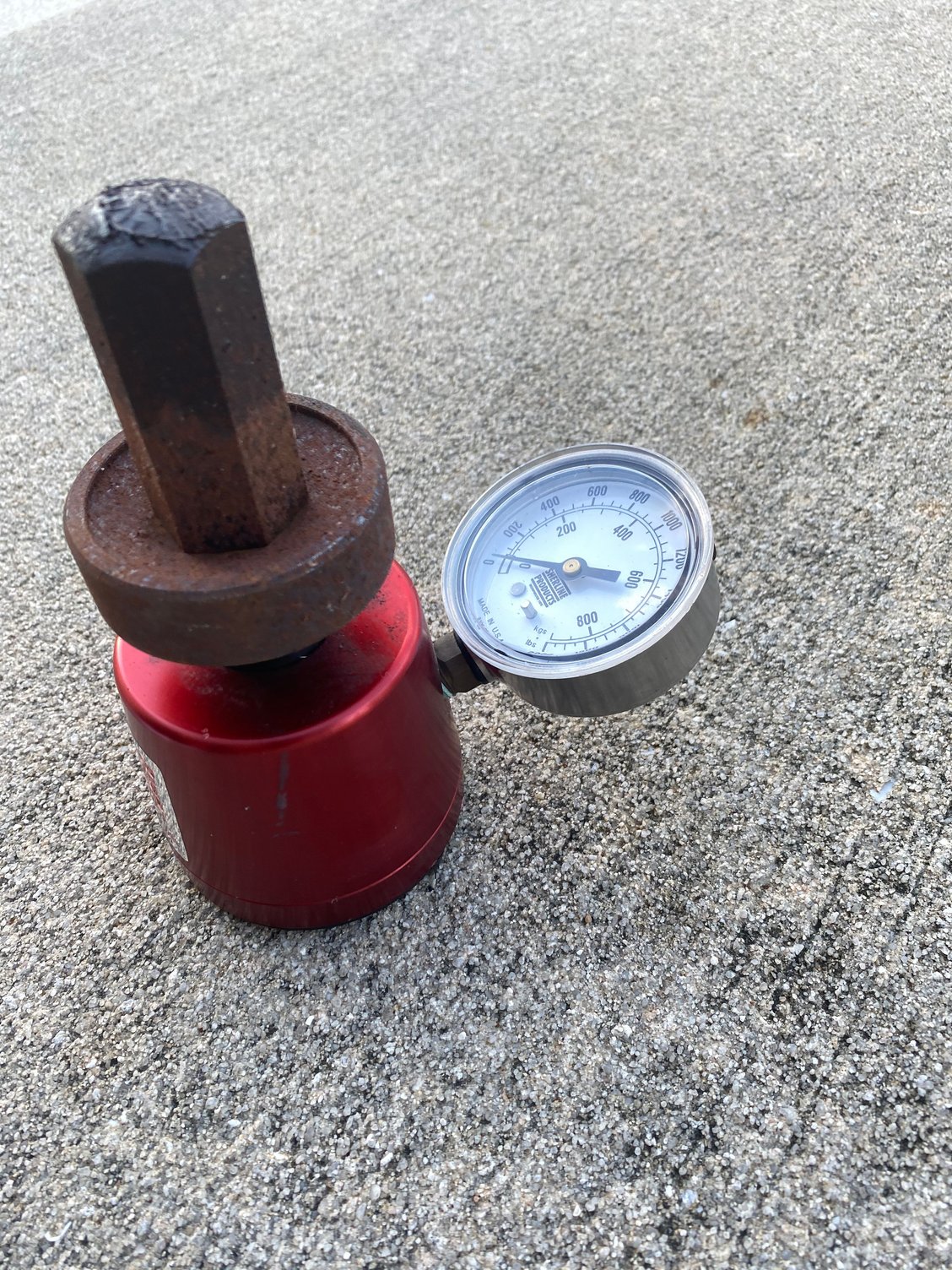

The 2k pound is plenty. I use a floor jack. I set the scale on the floor jack pad and jack it up til the scale touches the top of the housing where the ball goes. I then let the trailer tongue jack down until all the pressure is on the scale. If you want the actual weight of what your truck is carrying right now, measure to the bottom of the tongue while it is connected to the truck and squatting with no pressure on the trailer jack. Take it off the truck and then adjust your floor jack/blocks with the tongue scale located so the trailer tongue is at the same height as it was on your truck. So take to weight measurements. One with trailer level and one at the height when on the truck ball. Make sense??
Old 10-07-2020, 09:56 AM
  #50
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Originally Posted by Vantaredoc View Post
The 2k pound is plenty. I use a floor jack. I set the scale on the floor jack pad and jack it up til the scale touches the top of the housing where the ball goes. I then let the trailer tongue jack down until all the pressure is on the scale. If you want the actual weight of what your truck is carrying right now, measure to the bottom of the tongue while it is connected to the truck and squatting with no pressure on the trailer jack. Take it off the truck and then adjust your floor jack/blocks with the tongue scale located so the trailer tongue is at the same height as it was on your truck. So take to weight measurements. One with trailer level and one at the height when on the truck ball. Make sense??
Sure does. Simple enough. Appreciate the help.
Old 10-07-2020, 10:09 PM
  #51
Member

Join Date: Jul 2019
Posts: 89
Received 46 Likes on 27 Posts
Default

Originally Posted by autobaun70 View Post

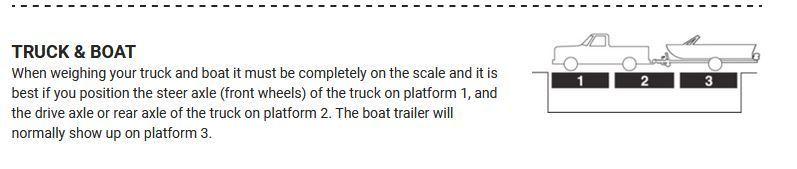

Go to your nearest CAT scale. You will need to weigh twice.





Weigh # 1 (truck + boat...load it up like you are going fishing), put steer tires on pad one, drive tires on pad two, and all boat axles on pad 3.

Weigh # 2 (truck only), put steer tires on pad one, and drives on pad two.

You will get a slip that shows total weight from each weigh, and a breakdown of the weight on each pad.

(Pad 1 + pad 2 (with boat)) - (pad 1 + pad two (w/out boat) = tongue weight.

Pad 3 (with boat) + Tongue weight = gross trailer weight

Gross combined weight is 1+2+3 with it all hooked up.
You have to unhook the boat to get the tongue weight. Did you leave that step out? You can just weigh the drive wheels with the trailer hooked up and then weigh them again with the tongue jack down (making sure it is not on the scale) and the tongue jacked up off the ball. That will give you the tongue weight.

Or just have the trailer wheels on the scale. Get that weight then put the tongue jack down and jack the tongue off the ball, making sure the jack is also on the scale. Subtract the first weight from the second one, that is your tongue weight. I have weighed out thousands of semis on truck scales, I know it works.

Last edited by Daddoi7; 10-07-2020 at 10:17 PM.
Old 10-07-2020, 11:49 PM
  #52
Admirals Club Admiral's Club Member

Join Date: Oct 2012
Location: Palm Beach County, FL
Posts: 1,563
Received 43 Likes on 29 Posts
Default

My guess is its your set up (tongue heavy) and not the truck. It looks like a LOT of boat and console in front of the wheels / axles.
If the rig was set up correctly, the truck should not drop that much.

Take Real X setup or "help" with a grain of salt and check it yourself. Trust me!
I had to move my boat position on the trailer about 7" on a 26' boat to get the right tongue weight right.

It seems like fixing the wrong problem to be adding bags to the truck.

Last edited by LouTiffs; 10-08-2020 at 12:06 AM.
Likes:
Old 10-08-2020, 04:19 AM
  #53
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jan 2005
Location: Suburb of Sugar Tit SC
Posts: 14,347
Received 9,224 Likes on 4,981 Posts
Default

Originally Posted by Daddoi7 View Post
You have to unhook the boat to get the tongue weight. Did you leave that step out? You can just weigh the drive wheels with the trailer hooked up and then weigh them again with the tongue jack down (making sure it is not on the scale) and the tongue jacked up off the ball. That will give you the tongue weight.

Or just have the trailer wheels on the scale. Get that weight then put the tongue jack down and jack the tongue off the ball, making sure the jack is also on the scale. Subtract the first weight from the second one, that is your tongue weight. I have weighed out thousands of semis on truck scales, I know it works.
you do not unhook or use the tongue jack for tongue weight on a truck scale. The difference in truck weight (pads 1+2) with and without the trailer hooked up will show the tongue weight every time.
Old 10-08-2020, 06:00 AM
  #54
Senior Member

Join Date: Apr 2019
Location: Space Coast FL
Posts: 410
Received 407 Likes on 152 Posts
Default

Originally Posted by head_hunter View Post
A leveling kit raises the front and would exaggerate the squat. Airbag kit for sure.
Originally Posted by danmanswag View Post
lol, I wouldn't get one for the front
I don't think you understand what a "leveling kit" is. A lift lifts the truck, A level kit specifically lifts the front the be level with the back. So in this case you would never level the truck to eliminate squat, that would do the opposite of what you want.

If you are only lifting the back you would never call that "leveling".
Likes:
Old 10-08-2020, 06:44 AM
  #55
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 8,435
Received 4,006 Likes on 2,265 Posts
Default

Originally Posted by danmanswag View Post
OK, so let's say you're right....12k or 13k lb boat should not make it squat and I have too much tongue weight. What's your suggestion?
First measure what it is and then move the axles to correct it. I'm not against the airbags to help the ride and stability but I would fix the problem first.
Old 10-08-2020, 07:04 AM
  #56
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Originally Posted by RLC2020 View Post
I don't think you understand what a "leveling kit" is. A lift lifts the truck, A level kit specifically lifts the front the be level with the back. So in this case you would never level the truck to eliminate squat, that would do the opposite of what you want.

If you are only lifting the back you would never call that "leveling".
I understand what a leveling kit is. I've had them on other trucks. My truck actually sits level right now...other 250s tend to sit up a little in the rear. Somebody actually mentioned this in this very thread...I guess I got one of the ones that sits lower. A rear kit would help, regardless of towing.

Thanks for your explanation
Old 10-08-2020, 07:05 AM
  #57
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Guys, I've got a plan...read the thread.

First thing is first, check the tongue weight....makes no sense to do anything other than that first. I'll report back when I do.

Likes:
LMK
Old 10-08-2020, 07:15 AM
  #58
Admirals Club Admiral's Club Member

Join Date: Sep 2017
Posts: 2,982
Received 2,470 Likes on 1,353 Posts
Default

Originally Posted by danmanswag View Post
Guys, I've got a plan...read the thread.

First thing is first, check the tongue weight....makes no sense to do anything other than that first. I'll report back when I do.
You might be surprised. I have seen plenty of F250's that were soft and would sag with 1100-1200 pounds on the ball.
Old 10-08-2020, 08:33 AM
  #59
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2011
Location: South Florida
Posts: 1,378
Received 333 Likes on 173 Posts
Default

Originally Posted by Vantaredoc View Post
You might be surprised. I have seen plenty of F250's that were soft and would sag with 1100-1200 pounds on the ball.
Exactly.

I obviously don't know until I check tongue weight, but my guess is that a little help in the rear suspension is going to solve this. I could be wrong, but I've noticed my trucks rear end sit lower than other F250s of the same model years.

That could be from a little abuse. I've hauled around many heavy pallets over the years along with 3 different boats with this truck.

I guess we'll find out when the scale arrives...should be next week, already ordered.
Old 10-08-2020, 10:12 AM
  #60
Admirals Club Admiral's Club Member

Join Date: Mar 2009
Location: Port St. Lucie, FL
Posts: 719
Received 143 Likes on 102 Posts
Default

Besides impressing the other bros, is there anything inherently wrong with squat? I'd be more concerned with axle weights, and more specifically how much weight has been lifted off the steering axle and how much added to the rear. The band-aids like airbags and magic springs don't put any weight back on the front axle, or remove any from the rear. In fact, they may do just the opposite.

Have you owned the truck since new? Maybe the truck already has a "level kit" on it?

The first thing to do is get the fully loaded rig on a scale to determine where you sit in regards to GVWRs, payload, axle weights, tongue weight, etc. Then you can adjust as necessary. The correct answers are probably a weight distribution hitch or moving the axles forward, or just living with it if it's not dangerous. A stock F250 should have no problem safely towing a 31 Contender.

https://catscale.com/cat-scale-locator/ Weigh the rig fully loaded, then weigh just the truck. That will give you all the info you need to get started. Just measuring the tongue weight doesn't tell you what the axles are loaded to.

Sweet rig, btw.
