Bow stop options... V vs Roller

Old 07-09-2020, 03:05 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Fish'nFool's Avatar

Join Date: Mar 2009
Location: Anywhere but here...
Posts: 25,992
Received 3,185 Likes on 1,701 Posts
Default Bow stop options... V vs Roller

I have a roller stop, at times depending on the ramp angle it can be a pain to get the bow snug. The strap is run under the stop and can sometimes rub up against the roller and pull the eye at a weird angle, again depending on the ramp angle.

I typically powerload the boat.

I don't have forward bunks if that matters.
​​
Got like the idea of these bow catchers/stops with the strap unencumbered by the stop.

is there any reason why I shouldn't change out my traditional wench/roller bow stop to one of these?


Last edited by Fish'nFool; 07-09-2020 at 05:01 PM.
Old 07-09-2020, 03:54 PM
  #2
Senior Member

Join Date: Aug 2006
Location: San Diego
Posts: 3,712
Received 495 Likes on 335 Posts
Default

I prefer a V-stop, and have always had them ... the carpeted wood bunk type. Check out this style: Looking for a particular bow stop model

Which type fits your trailer and boat best is up to you to figure out. The one you show may not solve the issue. If your trailer's tow bar is long enough, you can fit the two piece style for a custom fit and better separation of the V-stop and the bow ring. Of course there's always a custom welded design if you're really into it.


Old 07-10-2020, 07:49 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Jun 2011
Posts: 1,079
Received 211 Likes on 116 Posts
Default

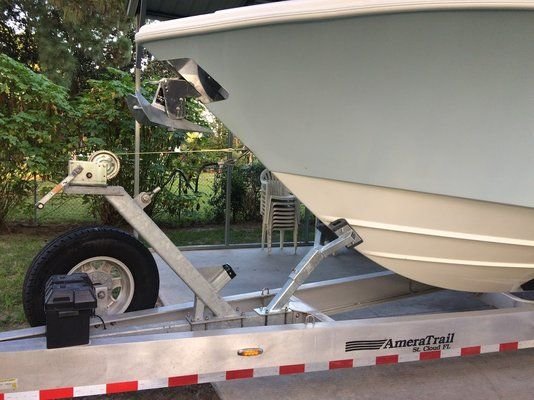

I had the same issues.Bought an Amertrail v- stop and it helps because there is no hang up between the eye and the strap.
Likes:
Old 07-11-2020, 05:29 PM
  #4
Senior Member

Join Date: Dec 2011
Location: Ft Myers/ West Palm Beach
Posts: 508
Received 23 Likes on 15 Posts
Default

Have the v stop. Get it tight, pull outta water, tap breaks, strap her down
Old 07-11-2020, 05:32 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Jul 2014
Location: Orlando, Florida
Posts: 463
Received 78 Likes on 42 Posts
Default

V stops. Forward bunks. You'll never have a trailer any other way.
Likes:
Old 07-12-2020, 03:59 PM
  #6
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 9,302
Received 1,026 Likes on 776 Posts
Default

A picture of your setup would help.
Old 07-12-2020, 04:05 PM
  #7
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 9,302
Received 1,026 Likes on 776 Posts
Default

The hook under the bow roller up to the bow eye keeps your boat from running over your truck in a sudden stopping situation.
Old 07-12-2020, 05:49 PM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Fish'nFool's Avatar

Join Date: Mar 2009
Location: Anywhere but here...
Posts: 25,992
Received 3,185 Likes on 1,701 Posts
Default

Originally Posted by Dacman View Post
A picture of your setup would help.

Old 07-12-2020, 06:44 PM
  #9
Senior MemberCaptains Club Member

Join Date: Jul 2004
Location: lutz,fl
Posts: 846
Received 104 Likes on 61 Posts
Default

I'd recommend the V bow-stop for your setup.
When I installed a windlass & anchor roller, the anchor would sometimes hang up on the V bow-stop.
I installed this version of a V and it works great.



Old 07-12-2020, 07:33 PM
  #10
Admirals Club Admiral's Club Member
Thread Starter

Fish'nFool's Avatar

Join Date: Mar 2009
Location: Anywhere but here...
Posts: 25,992
Received 3,185 Likes on 1,701 Posts
Default

Originally Posted by me00351 View Post
I'd recommend the V bow-stop for your setup.
When I installed a windlass & anchor roller, the anchor would sometimes hang up on the V bow-stop.
I installed this version of a V and it works great.


I like that. I think that design would work best on my trailer.

Who made your trailer?
Old 07-13-2020, 02:42 AM
  #11
Senior MemberCaptains Club Member

Join Date: Jul 2004
Location: lutz,fl
Posts: 846
Received 104 Likes on 61 Posts
Default

Originally Posted by Fish'nFool View Post
I like that. I think that design would work best on my trailer.

Who made your trailer?



Old 07-13-2020, 12:11 PM
  #12
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 9,302
Received 1,026 Likes on 776 Posts
Default

Originally Posted by Fish'nFool View Post
Your setup has the bow locked down with the eye and strap under the roller.
You could reverse wrap the strap under the winch spool for a better pulling angle.
If you go with the vee stop, I would definitely run two strong rachet straps to the frame as shown in post #2.
Old 07-13-2020, 07:17 PM
  #13
Admirals Club Admiral's Club Member
Thread Starter

Fish'nFool's Avatar

Join Date: Mar 2009
Location: Anywhere but here...
Posts: 25,992
Received 3,185 Likes on 1,701 Posts
Default

Originally Posted by Dacman View Post
Your setup has the bow locked down with the eye and strap under the roller.
You could reverse wrap the strap under the winch spool for a better pulling angle.
If you go with the vee stop, I would definitely run two strong rachet straps to the frame as shown in post #2.
Why would you def do two strong ratchet straps? I use a bow strap. I dont see how/why the requirement would change.
Old 07-14-2020, 03:58 PM
  #14
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 9,302
Received 1,026 Likes on 776 Posts
Default


Rachet straps here are holding the bow down to the vstop, secured

Nothing holding the bow down here , other than weight . Your relying on the transom straps only to keep it from moving forward and up on the v stops.
Likes:
Old 07-15-2020, 01:41 PM
  #15
Admirals Club Admiral's Club Member
Thread Starter

Fish'nFool's Avatar

Join Date: Mar 2009
Location: Anywhere but here...
Posts: 25,992
Received 3,185 Likes on 1,701 Posts
Default

Originally Posted by Dacman View Post

Rachet straps here are holding the bow down to the vstop, secured

Nothing holding the bow down here , other than weight . Your relying on the transom straps only to keep it from moving forward and up on the v stops.
I understand the purpose of a bow strap, I always strap my bow down and 10k lb ratchet strap over the stern. I was just curious why you were suggesting two ratchet straps with this particular configuration. I'll likely stay with a single bow strap.
Old 07-16-2020, 06:52 AM
  #16
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Green Bay, WI
Posts: 680
Received 169 Likes on 107 Posts
Default

Originally Posted by Fish'nFool View Post
Why would you def do two strong ratchet straps? I use a bow strap. I dont see how/why the requirement would change.
With your current configuration the winch strap running below the roller to the bow eye prevents the boat from riding up over the roller in the event you get into a rear end collision. If you replace the roller with a v-stop you will no longer have anything holding the bow of the boat down.

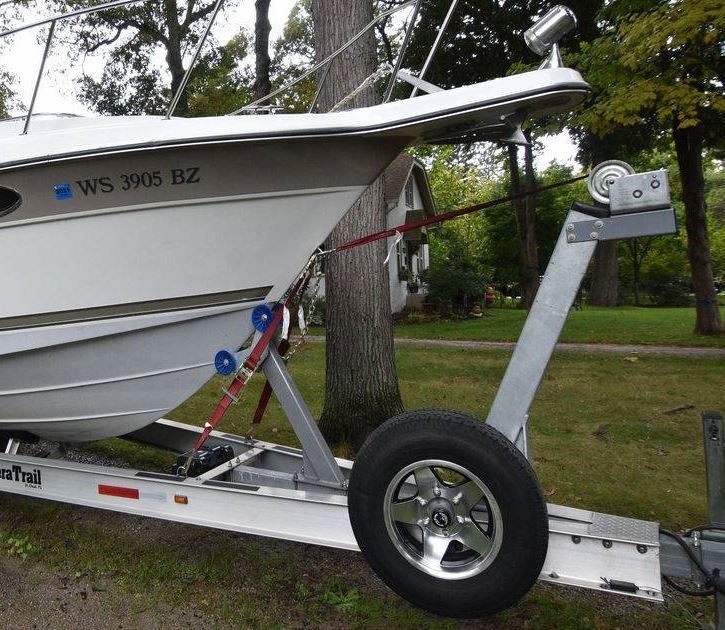

I changed my configuration because the anchor and bow pulpit would hit the roller when launching but I stayed with rollers to make it easier to winch the bow up far enough so it stayed tight against the stop when pulling out of the ramp.



Likes:
Old 07-16-2020, 08:35 AM
  #17
Senior Member

Join Date: Aug 2006
Location: San Diego
Posts: 3,712
Received 495 Likes on 335 Posts
Default

Originally Posted by Fish'nFool View Post
I was just curious why you were suggesting two ratchet straps with this particular configuration.
Two reasons.
Old 07-16-2020, 11:36 AM
  #18
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Jan 2006
Location: Lindenhurst, New York
Posts: 9,705
Received 1,912 Likes on 1,009 Posts
Default

we had to cut and weld one of those cow catchers to make full contact with the hull. there was just no adjusting it to work but they are nice set ups especially if you tow often.
for a couple times to the ramp and back annually not worth the trouble
Old 07-18-2020, 11:46 AM
  #19
Senior MemberCaptains Club Member

Join Date: Jul 2004
Location: lutz,fl
Posts: 846
Received 104 Likes on 61 Posts
Default



I use a bow tie-down so this should ease the nerves of some of the trailer police.
Old 07-18-2020, 12:29 PM
  #20
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 9,302
Received 1,026 Likes on 776 Posts
Default

Originally Posted by me00351 View Post


I use a bow tie-down so this should ease the nerves of some of the trailer police.
Why would you not use the two eyes you have right there ? with two straps at an aft angle?
Nerves still twitching. Ha ha, I don’t think it’s unsafe, just why not?
A straight up angle still gives some room for forward movements.
If gunnel strapped , I get it.

Last edited by Dacman; 07-18-2020 at 12:34 PM.
