Winch post base plate warping

Old 12-02-2019, 03:34 PM
  #1
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default Winch post base plate warping

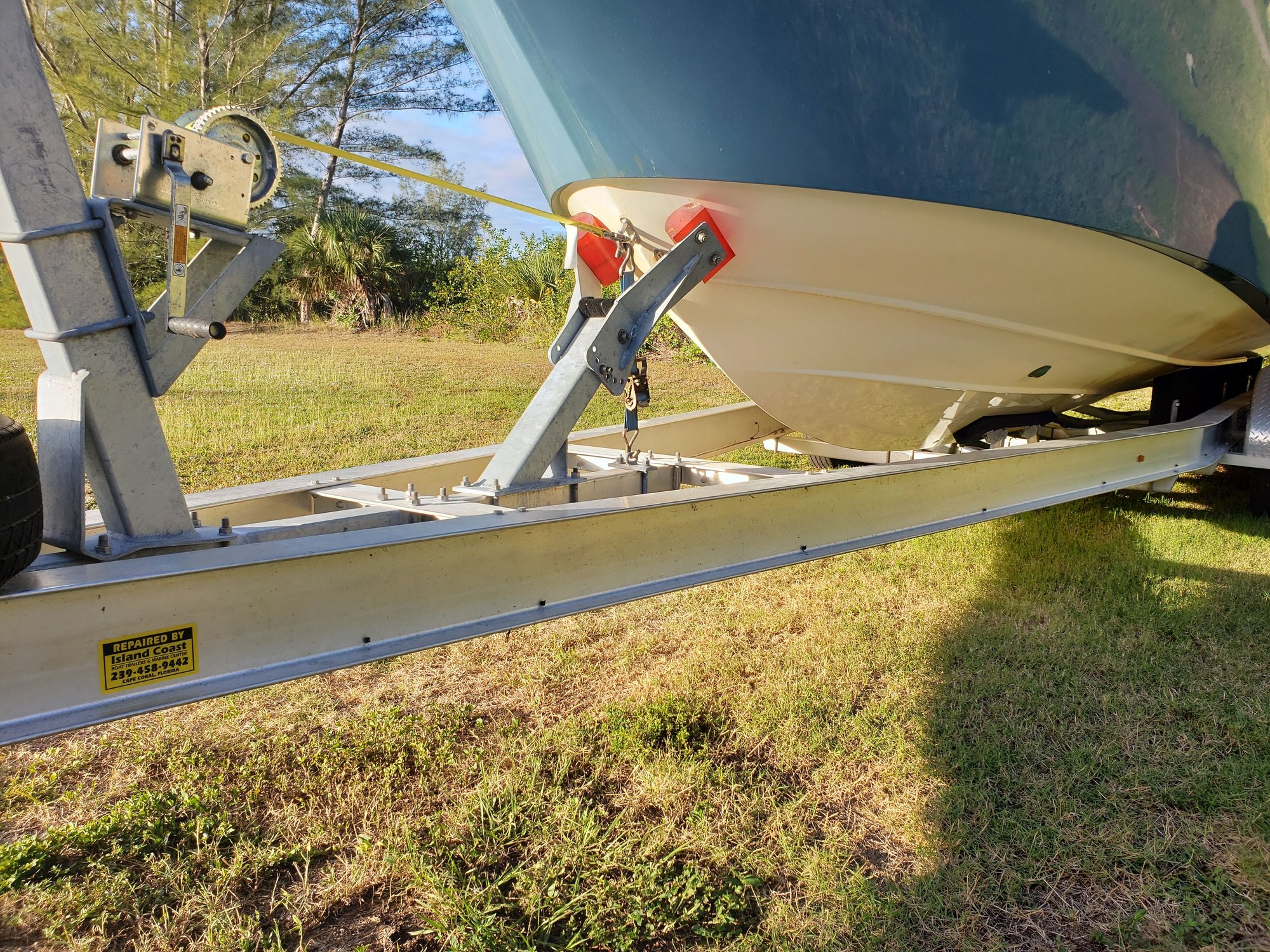

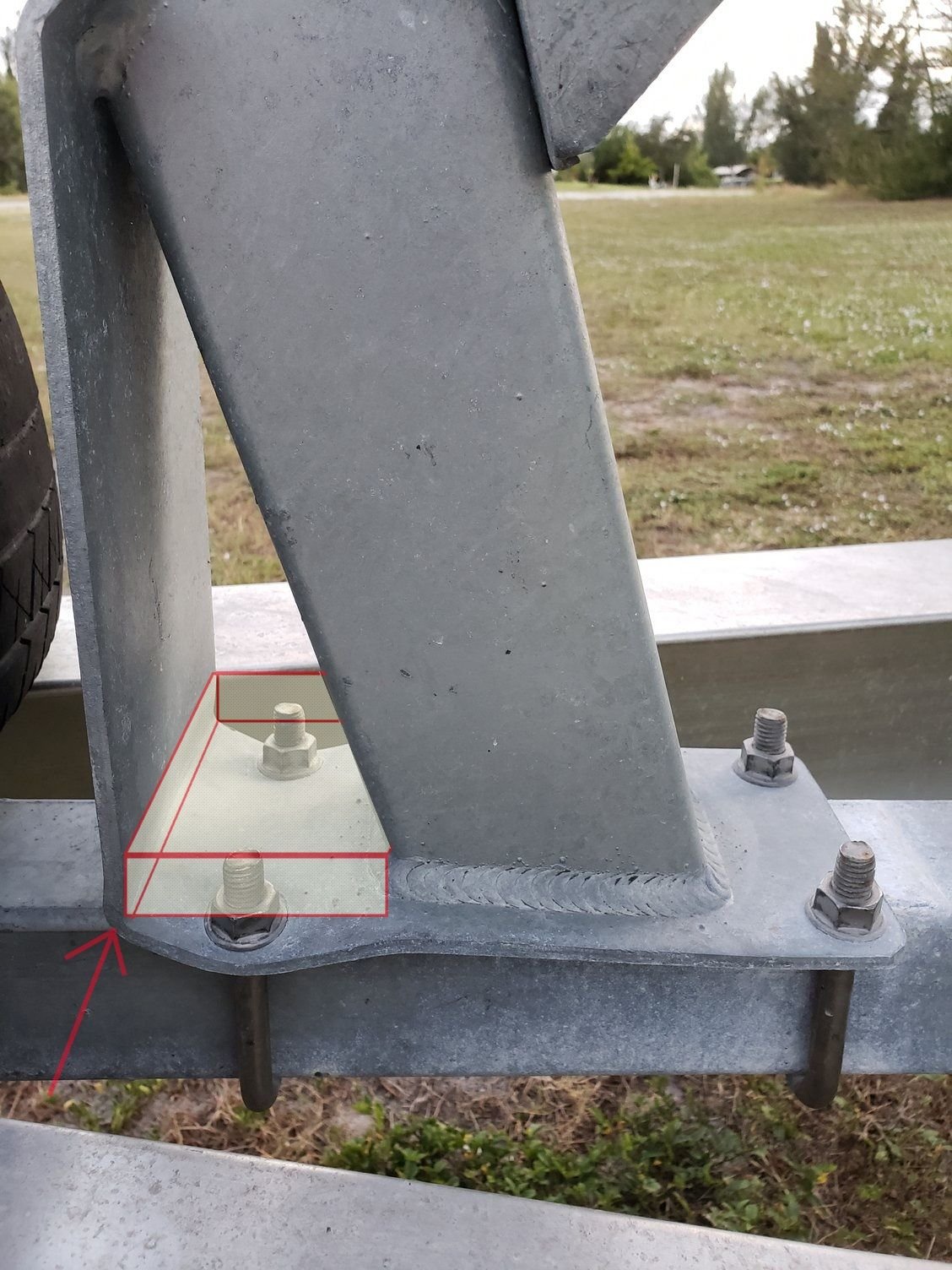

Here is a pic of the 5 month old winch post that was installed back in July. It has warped just like the previous one did last year when I purchased the trailer new. Should I expect this to continue with every post I install? If not, what is the fix. Base plate is 5x10 and its 32 inches tall


Last edited by rcurtis226; 12-02-2019 at 04:16 PM. Reason: Winch
Old 12-02-2019, 05:44 PM
  #2
Senior Member

Join Date: Apr 2013
Location: Sandy Hook Area, NJ
Posts: 254
Received 73 Likes on 52 Posts
Default

Steel deforms from too much stress. If this is the 2nd winch post to deform like this, something is wrong with your setup. The boat might be too heavy, the rollers causing too much drag or the trailer isn't adjusted properly. Also, maybe you are not putting the trailer in deep enough and cantilevering the boat at the rear of the trailer when retrieving the boat. Something is putting too much stress on that winch stand.
Old 12-02-2019, 06:19 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Beaverdam VA
Posts: 814
Received 428 Likes on 221 Posts
Default

Would you please back up a little and take another pic tomorrow?
Old 12-02-2019, 06:23 PM
  #4
Admirals Club Admiral's Club Member

Dacman's Avatar

Join Date: Oct 2014
Location: Summerville SC
Posts: 7,724
Received 574 Likes on 439 Posts
Default

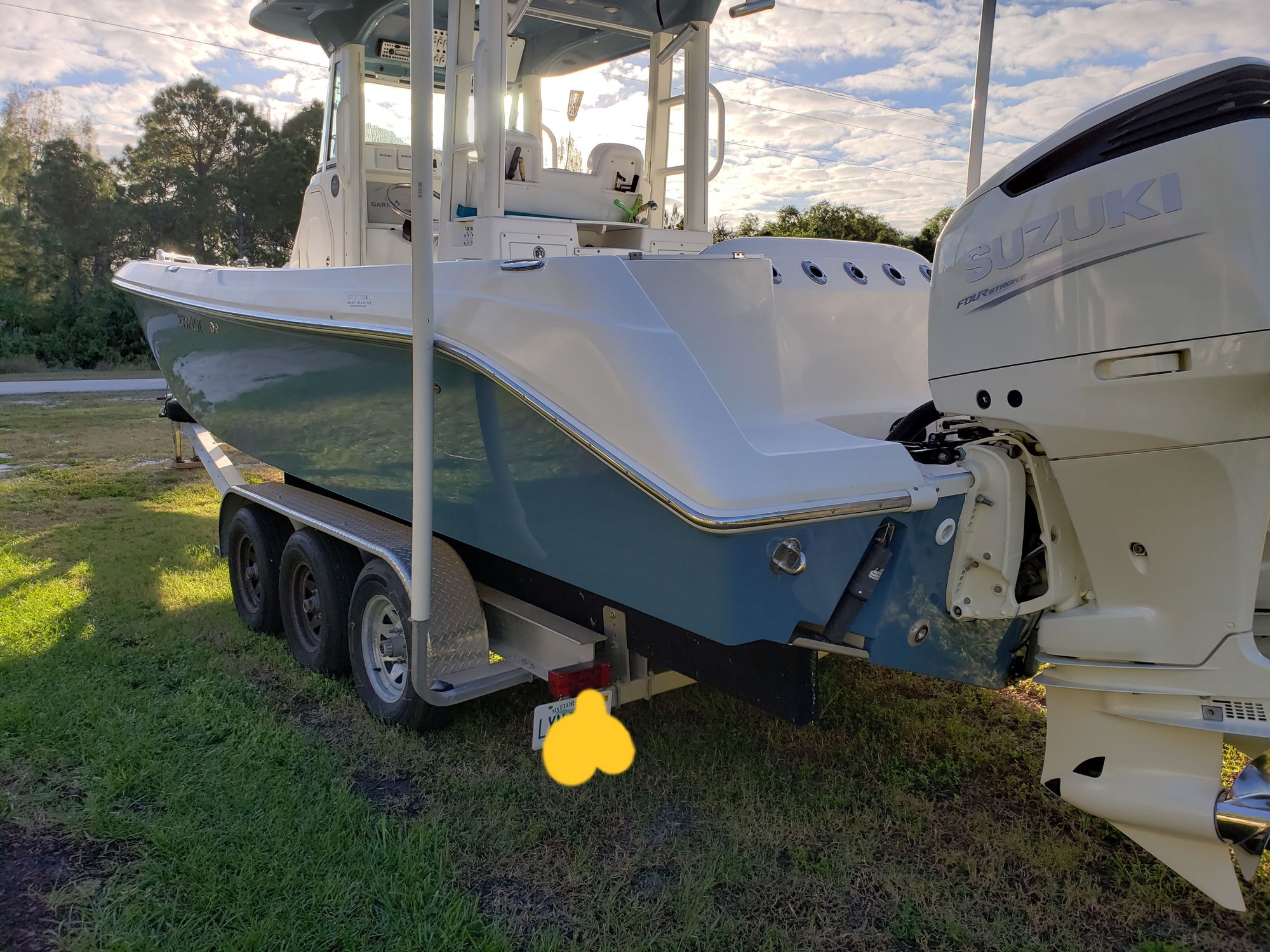

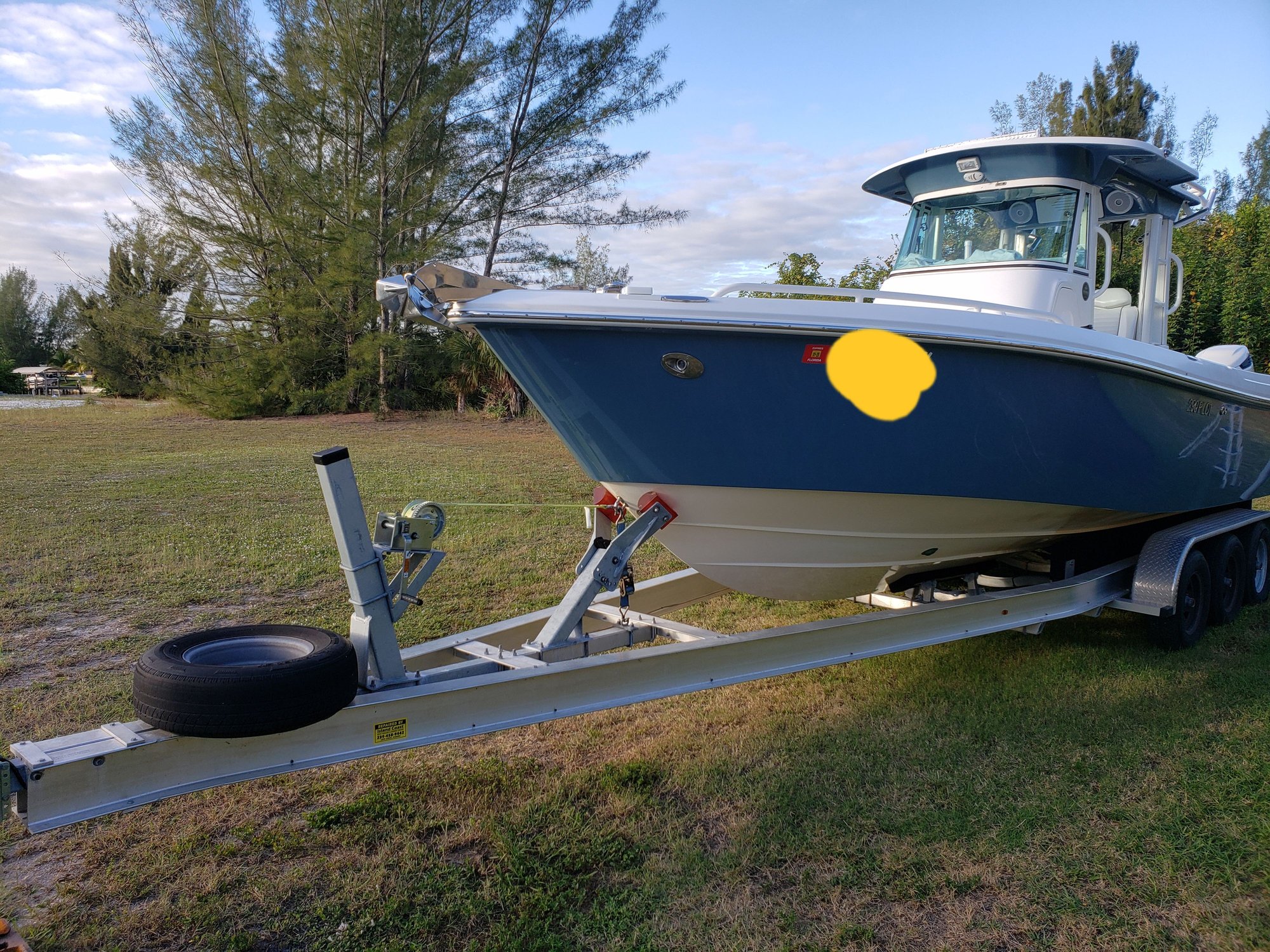

Show all parts of the rig. The boat is pushing on the stand way too much. Roller trailer? More Picts would help
Old 12-02-2019, 06:43 PM
  #5
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default

Thanks guys. I'll take pics in the morning
Old 12-02-2019, 09:19 PM
  #6
Senior MemberCaptains Club Member

Join Date: Nov 2002
Location: Pensacola, Fl
Posts: 11,620
Likes: 0
Received 319 Likes on 244 Posts
Default

You might prevent this by having two gussets welded between the back of the post and the single piece of metal forming the winch platform, forward strap and baseplate. There is way too much load on this winch post.
Old 12-02-2019, 09:53 PM
  #7
Senior MemberCaptains Club Member

Join Date: Dec 2002
Location: Fort Myers Beach, FL, USA
Posts: 2,992
Received 316 Likes on 206 Posts
Default

Not a job for 5# plate.
Old 12-03-2019, 04:42 AM
  #8
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default

Originally Posted by ocnslr View Post
Not a job for 5# plate.
what would be the next stronger plate, and who would have it.
Old 12-03-2019, 05:42 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Green Bay, WI
Posts: 609
Likes: 0
Received 124 Likes on 86 Posts
Default

Take a BFH and straighten it back out. Get a longer U-bolt and a thick piece of steel, 3/4" or 1". Paint it and bolt in the open area on the bottom. Make sure it is tight to the front lower corner. Be more careful winching the boat on.


Old 12-03-2019, 06:23 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Sep 2005
Location: Jacksonville, FL
Posts: 2,446
Likes: 0
Received 504 Likes on 309 Posts
Default

How do you load and unload your boat?
Old 12-03-2019, 06:42 AM
  #11
Senior Member

Join Date: Jun 2014
Location: skittleville fl
Posts: 8,581
Received 1,169 Likes on 625 Posts
Default

Double up the base plate and add another u bolt to the middle.
Old 12-03-2019, 06:50 AM
  #12
Senior Member

Join Date: Oct 2011
Location: Lake Camanche, CA
Posts: 328
Likes: 0
Received 115 Likes on 64 Posts
Default

Originally Posted by mitchell master View Post
Double up the base plate and add another u bolt to the middle.
Normally I'd agree; however, that plate appears to be the weakest point so by doubling and adding a plate, something else has got to give...maybe the Bow Eye (?) . Got to find the cause rather placing a band-aid.
Old 12-03-2019, 07:12 AM
  #13
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default





when I retrieve the boat at the ramp, we drive the boat up on the trailer til she's snug to the bow catcher, then cinch her down with the winch and a separate strap that is connected to the trailer directly below the eye. I think the problem is once we pull the boat out she's floating off the back of the trailer, and all of her weight is pulling on the winch. Does anyone have any other idea's.
Old 12-03-2019, 08:18 AM
  #14
Senior Member

Join Date: Jun 2009
Location: Ojai, Ca
Posts: 3,544
Likes: 0
Received 426 Likes on 271 Posts
Default

When you get the boat on the trailer, instead of winching it forward, just stop fast a few time and slide it forward
Old 12-03-2019, 08:43 AM
  #15
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Green Bay, WI
Posts: 609
Likes: 0
Received 124 Likes on 86 Posts
Default

Are you winching it up farther than where it is sitting in the pictures and then it slides back when you pull it out of the water? If so, try only winching it as far as what it is now, it looks like the top of the bow eye is even with the top of the bow stops. Don't over tighten the winch strap, only put just enough tension to hold it in place while you pull it out.
Old 12-03-2019, 08:46 AM
  #16
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default

Originally Posted by 805gregg View Post
When you get the boat on the trailer, instead of winching it forward, just stop fast a few time and slide it forward
I'm able to drive the boat up to the bowcatcher without any issue. And, once I snug the bow to the bowcatcher, I leave the motors running in forward idle to eliminate the need for the winch to have to drag the boat up bunks. Then I attach another strap immediately below the eye and on the trailer eye. I think the problem is there is too much of the boat that's floating when we begin to pull the boat and trailer out of the water. I just don't know how to eliminate that.
Old 12-03-2019, 08:50 AM
  #17
Junior Member

Join Date: Jul 2017
Location: Annapolis, MD
Posts: 11
Likes: 0
Received 1 Like on 1 Post
Default

If the whole boat is floating when you pull up the the catcher, and you snug up the winch in that position, when the boat sits down on the trailer it is going to slide back some. This will pull harder on your winch and bracket, and could cause the issue you are having.
Old 12-03-2019, 08:54 AM
  #18
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default

Originally Posted by jhackl View Post
Are you winching it up farther than where it is sitting in the pictures and then it slides back when you pull it out of the water? If so, try only winching it as far as what it is now, it looks like the top of the bow eye is even with the top of the bow stops. Don't over tighten the winch strap, only put just enough tension to hold it in place while you pull it out.
once she's driven up to the bowcatcher, and cinched by the winch and the vertical strap, sometimes she'll back off of the bow at her pads by 1/4 to 1/2 inch if we haven't cinched the winch tight enough. Or I guess the winch and strap are tight enough, it's just the winch post bends and creates the gap. Although, I think that's unlikely because I just took the winch strap off, and the post plate still looks warped. So, disregard that theory.
Old 12-03-2019, 08:55 AM
  #19
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default

Originally Posted by AnnapGrady View Post
If the whole boat is floating when you pull up the the catcher, and you snug up the winch in that position, when the boat sits down on the trailer it is going to slide back some. This will pull harder on your winch and bracket, and could cause the issue you are having.
I agree. But, how do I eliminate that issue?
Old 12-03-2019, 08:57 AM
  #20
Senior Member
Thread Starter

Join Date: Mar 2017
Location: cape coral fl
Posts: 262
Likes: 0
Received 12 Likes on 11 Posts
Default

If that winch post snaps, I imagine it will impale whatever is in it's way, to include the bow.
