To trailer with motors tilted up??

Old 10-28-2019, 05:21 PM
  #1
Member
Thread Starter

Join Date: Jun 2017
Posts: 34
Likes: 0
Received 1 Like on 1 Post
Default To trailer with motors tilted up??

I will be trailering my Edgewater 265cc (2) 225 Yamaha's to Florida. My question, which I know people have many opinions, but should I tilt the motors all the way up ?
Old 10-28-2019, 05:30 PM
  #2
Admirals Club Admiral's Club Member
THT sponsor

triumphrick's Avatar

Join Date: Aug 2008
Location: Masaryktown, Fl
Posts: 18,605
Received 4,549 Likes on 1,990 Posts
Default

No. IMHO...

I use a redneck transom saver...raise the motors enough that you can get a piece of 2X4 to rest it against when you go to lower it. I actually use 5/4" engineered deck board cut a little wider that the distance between the rams.

When I lower the motor, I hold the board against the rams, perfect spot to hold the motors up but not too high.

You can get fancy and buy the tubes that drop down over the rams...will do the same thing..
Likes:
Old 10-28-2019, 06:00 PM
  #3
RCL
Senior Member

Join Date: Dec 2015
Location: Central Florida
Posts: 1,440
Received 231 Likes on 169 Posts
Default

Check with the manufacturer of your engines for the best advice. Some say up, some will us a trailer lock, some a wedge type device. If I remember correctly, Yams either need what was posted above, or a wedge type device.
Old 10-28-2019, 06:40 PM
  #4
Senior MemberCaptains Club Member

Join Date: Nov 2002
Location: Pensacola, Fl
Posts: 11,887
Received 427 Likes on 325 Posts
Default

Leave the engine turned to one side, to avoid stress on the hydraulic system. I have usually used the wood brace--but have also used a "Transom Saver" strut to the trailer, and one of the hard rubber MY wedge. Currently my boat allows me to trailer with the motor fully down. A lot easier
Old 10-29-2019, 05:14 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 8,249
Likes: 0
Received 3,949 Likes on 2,227 Posts
Default

I have the tubes that clip over the rams but have used a piece of wood in the past; either works fine. But if the boat has a jackplate I trim the motors down and the jackplate up.
Likes:
Old 10-29-2019, 11:36 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Sep 2005
Location: Jacksonville, FL
Posts: 2,797
Received 606 Likes on 389 Posts
Default

Get M-y wedges for both engines.
Old 10-29-2019, 12:09 PM
  #7
Senior MemberCaptains Club Member

Join Date: Mar 2002
Location: East Hampton Ct
Posts: 3,354
Received 450 Likes on 281 Posts
Default

My '06 Johnson 115 has a transom saver built in that flips down into a notch on the mount. It also has a smaller rolling block that rotates down on to the top of the transom that holds the motor up higher.
Old 10-29-2019, 12:15 PM
  #8
Senior Member

Join Date: Jul 2010
Location: Largo, FL
Posts: 2,025
Received 262 Likes on 216 Posts
Default

Originally Posted by Rm1387 View Post
I will be trailering my Edgewater 265cc (2) 225 Yamaha's to Florida. My question, which I know people have many opinions, but should I tilt the motors all the way up ?
It all depends on your configuration. I would imagine for that size boat, that you have sufficient clearance to leave your engines down. I trailer with mine down all the time, as there is plenty of clearance on my trailer.

It's usually the smaller boats and trailers that need to tilt them up.
Likes:
Old 10-30-2019, 04:21 AM
  #9
Senior Member

Join Date: Sep 2019
Location: NJ
Posts: 114
Received 194 Likes on 91 Posts
Default

Please forgive me if this question seems silly as that is not my intent. Is the concern for the hydraulics on the trim system, the transom or both? My Mercury has a lock once the motor is tilted all the way up which takes the pressure off of the trim system but certainly not the transom.

Thank you...
Old 10-30-2019, 05:39 AM
  #10
Member
Thread Starter

Join Date: Jun 2017
Posts: 34
Likes: 0
Received 1 Like on 1 Post
Default

I don't think anything can take the pressure off the transom, other then removing the motors. I was thinking if I tilted the motors all the way and used the latch that would take the pressure off the hydraulics . Then there are items to attach to the rams or blocks of wood. I'm just trying to figure out whats the best and safest way.
Old 10-30-2019, 05:42 AM
  #11
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Marblehead, Ohio
Posts: 10,135
Received 2,201 Likes on 1,137 Posts
Default

What TriumphRick said.
Old 10-30-2019, 07:06 AM
  #12
Senior Member

Join Date: Jul 2010
Location: Largo, FL
Posts: 2,025
Received 262 Likes on 216 Posts
Default

Originally Posted by jbacc View Post
Please forgive me if this question seems silly as that is not my intent. Is the concern for the hydraulics on the trim system, the transom or both? My Mercury has a lock once the motor is tilted all the way up which takes the pressure off of the trim system but certainly not the transom.
You may want to check the manual on that lock. My Mercs also have a lock as do many other motors. However, most (if not all) manufacturers add them for use during maintenance. They are not intended to support the engine while trailering.
Old 10-30-2019, 09:08 AM
  #13
Member
Thread Starter

Join Date: Jun 2017
Posts: 34
Likes: 0
Received 1 Like on 1 Post
Default


is this the right way to block it?
Old 10-30-2019, 09:35 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Oct 2012
Location: Magothy River Arnold, MD
Posts: 428
Received 62 Likes on 40 Posts
Default

Not an expert by any means but this is my thoughts on this, if you trim them all the way up the weight of the motor(s) is over the transom where they typically never are (unless at rest on a mooring) with the trailer going down the road hitting some bumps pot holes etc. that is a lot of weight and what I would call backwards positioning on the transom and engine brackets.
I have always trimmed mine up a bit to make sure the bottom of the skegs clear the lowest part of the trailer, if you are going to hit something it will more than likely hit the trailer first. Regarding using a wedge or tube etc to keep pressure off the hydraulics, I dont see the need for that as when in forward gear moving the boat along on plane the amount of force on the rams is huge. The motors are pushing down on them constantly and they are made for that.
Think of running at 4500 rpm and smooth sea's you trim up to get more boat out of the water, that is a ton of weight on the rams.
I would not recommend going 4 wheelin' the the motors resting on the rams, but it will not hurt them going down the highway. Typically the side mounted lock in the up position arm is for doing maintenance, a few good road bounces and I could see that snapping
Old 10-30-2019, 10:36 AM
  #15
Senior MemberCaptains Club Member

Join Date: Mar 2002
Location: East Hampton Ct
Posts: 3,354
Received 450 Likes on 281 Posts
Default

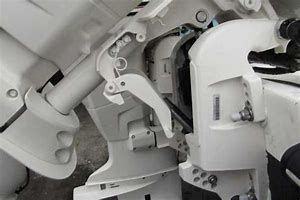

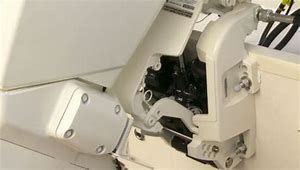

This is the arms that rotate down on my 115 Johnson for holding the motor about halfway up for trailering. There is also a small cam like block that rotates down and holds the motor almost at the top of it's range for maintenance.


Old 10-30-2019, 11:03 AM
  #16
Senior MemberCaptains Club Member

Join Date: Aug 2002
Location: St. Augustine, Fl
Posts: 22,385
Received 4,468 Likes on 1,800 Posts
Default

If your motors can be trailered in the down position or almost down that is the best way, less bounce and fatigue as long as the skews have good clearance.

I lower my twins down till the start in the slow trim range and trailer them in that position. In 35 plus years of towing boats (7 of them for a living, everyday) never an issue..
Likes:
Old 10-30-2019, 11:14 AM
  #17
Senior Member

Join Date: Nov 2010
Location: OBX
Posts: 2,903
Received 202 Likes on 133 Posts
Default

Originally Posted by KeithS View Post
This is the arms that rotate down on my 115 Johnson for holding the motor about halfway up for trailering. There is also a small cam like block that rotates down and holds the motor almost at the top of it's range for maintenance.

Other manufacturers don't use big beefy brackets like OMC/Evinrude did/does. The smallish stamped metal arms on many Yamahas aren't designed for anything but maintenance and certainly can bend while trailering.
Old 10-31-2019, 03:34 AM
  #18
Admirals Club Admiral's Club Member

Join Date: Jul 2013
Location: N.E. Tennessee
Posts: 453
Received 475 Likes on 203 Posts
Default

I trailer my 175 ETec with the brackets like in the pictures that KeithS posted. Whether they are made for that or not, I do not know.
I think a block of wood would allow a bit of cushion in there in case of a bump.
Old 11-03-2019, 05:34 AM
  #19
Member
Thread Starter

Join Date: Jun 2017
Posts: 34
Likes: 0
Received 1 Like on 1 Post
Default

After reading all the opinions I have decided to turn the motors to one side and lower the motors until they contact the trim rams. A good point was made as compared to the motors running at trim , trailering shouldn't put nearly the stress on the systems. I wish that Yamaha would have a trailer lock out but they don't . again as usual a lot of good information.
Likes:
Old 11-03-2019, 09:02 AM
  #20
Senior Member

Join Date: Jan 2002
Location: Lusby, MD
Posts: 1,124
Received 326 Likes on 203 Posts
Default

When I had an OMC, I used the bracket.

I have a Yamaha now and use a block of wood. I put the wood below the trim rams, not above like in Rm1387's picture
