Is my Class V hitch bent?

Old 10-12-2019, 06:59 AM
  #1
Senior Member
Thread Starter

Join Date: Dec 2014
Location: Denver, CO / Hobe Sound, FL
Posts: 1,021
Received 248 Likes on 133 Posts
Default Is my Class V hitch bent?

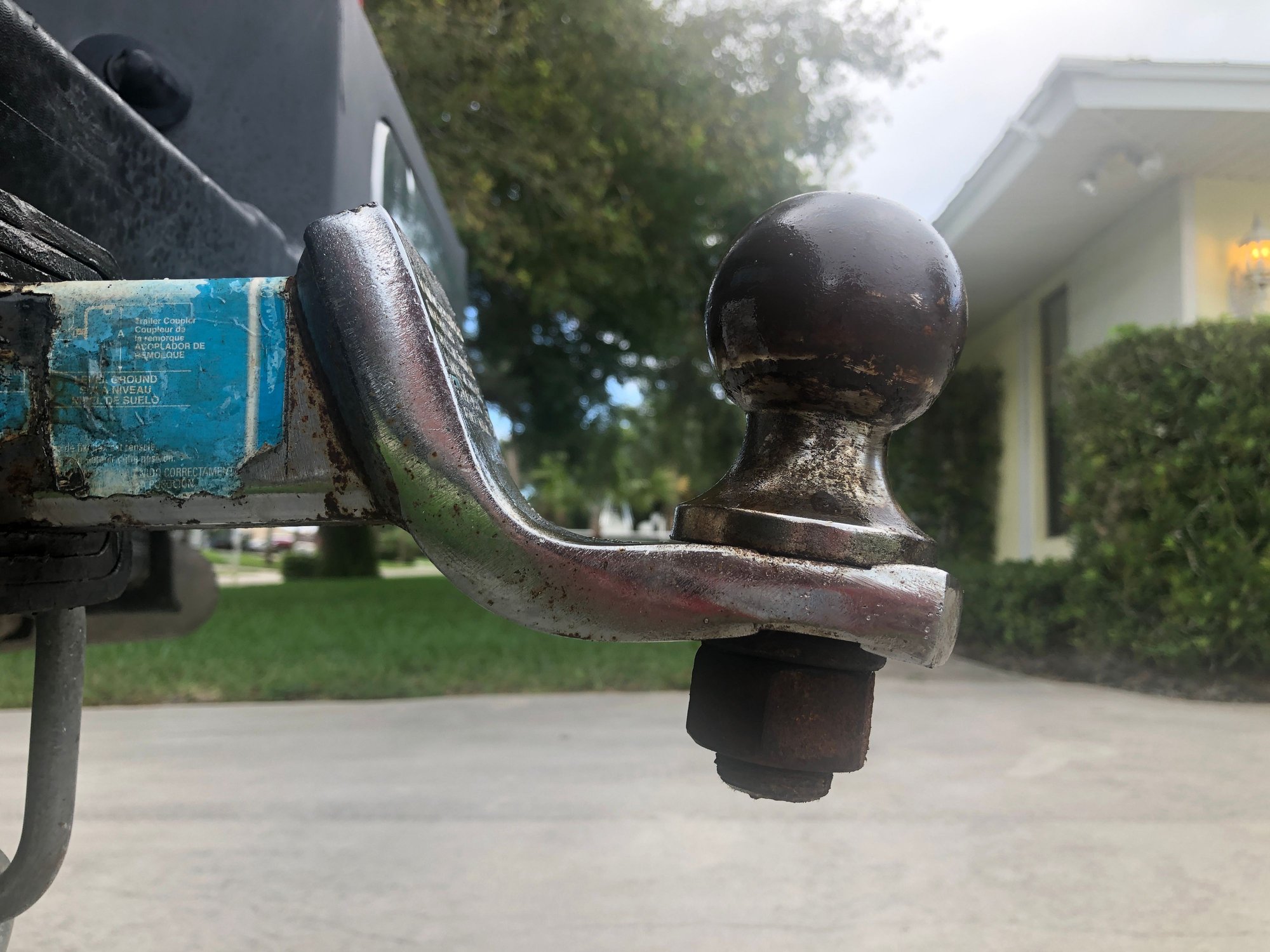

My hitch looks a bit cockeyed. Am I seeing things? Not sure how this could’ve happened unless someone hit it in a parking lot or slowly over time?





Old 10-12-2019, 07:01 AM
  #2
THT Sponsor Admiral's Club Member
THT sponsor

Join Date: Feb 2018
Location: Boynton Beach FL
Posts: 1,563
Received 356 Likes on 211 Posts
Default

Bent for sure, probably too much tongue weight and you not slowing down over RR tracks
Old 10-12-2019, 07:02 AM
  #3
Senior Member

Join Date: Jan 2008
Location: Cedar Key, FL
Posts: 1,118
Received 200 Likes on 135 Posts
Default

It looks bent to me also. How much weight where you towing and what was the tongue weight?

I don't believe you have a class V hitch. Class V hitches are rated for 12,000 pounds and 1700 pounds of tongue weight.
Old 10-12-2019, 07:04 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Oct 2003
Location: Broadway/Snead's Ferry,NC
Posts: 4,462
Received 89 Likes on 54 Posts
Default

Thats a class III hitch. Either way it's shot.
Old 10-12-2019, 07:49 AM
  #5
gf
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2001
Location: North of Boston
Posts: 13,355
Received 385 Likes on 280 Posts
Default

Technically, that's a "drawbar" or "ball mount" and yes, it is bent. The hitch is what is on your truck.
Likes:
Old 10-12-2019, 07:53 AM
  #6
Senior Member Admiral's Club Member
THT sponsor

Join Date: Aug 2014
Location: Eastern Shore MD
Posts: 2,310
Likes: 0
Received 546 Likes on 311 Posts
Default

That's the quality you get when these ball mounts are made from recycled old rusty Toyotas anymore. I had one bent way worse then that.
Likes:
Old 10-12-2019, 08:02 AM
  #7
Senior Member

Join Date: Jul 2010
Location: Largo, FL
Posts: 2,025
Received 262 Likes on 216 Posts
Default

Doesn’t look like you got hit. If you did, I would expect it to be bent the other way. Looks to me like the load is too much for the drawbar, and probably the ball as well. What are you towing with that?

They do sell components rated for a lot more than 6000 lbs. They may be tough to find in most local stores, though. For instance, the drawbar I’m using is rated for 16,000 lbs / 2400 lb tongue, ball is rated for 14,000 lbs, coupler on the trailer splits the difference at 15,000 lbs. Probably overkill for a towed weight of 8500-9500 lbs max, but I really don’t want the trailer to get separated from the truck.

Replace the drawbar and ball for one rated higher. Ball may be OK, but it looks like a small shank. Hole on the HD drawbar is usually made for a 1 1/4” shank.
Old 10-12-2019, 03:33 PM
  #8
Senior Member
Thread Starter

Join Date: Dec 2014
Location: Denver, CO / Hobe Sound, FL
Posts: 1,021
Received 248 Likes on 133 Posts
Default

So... is the general consensus that this one is done? The metal is fatigued and time for new?
Old 10-12-2019, 03:37 PM
  #9
Senior Member

Join Date: Jul 2014
Posts: 1,868
Received 375 Likes on 228 Posts
Default

Yep
Old 10-12-2019, 03:39 PM
  #10
Senior Member

Join Date: Jan 2008
Location: Cedar Key, FL
Posts: 1,118
Received 200 Likes on 135 Posts
Default

Originally Posted by Denver Dave View Post
So... is the general consensus that this one is done? The metal is fatigued and time for new?
If it were mine, I'd replace it before towing again.

Are you overloading the 6,000/600 lb rating?
Old 10-12-2019, 03:42 PM
  #11
Senior Member

Join Date: Apr 2010
Location: Southern California
Posts: 2,758
Received 626 Likes on 324 Posts
Default

As others have said, that is not a class V hitch, class V requires a 2 1/2 draw bar, anyhow whatever it is it looks shot, the draw bar that is.

Last edited by Reel 007; 10-12-2019 at 05:08 PM.
Old 10-12-2019, 04:03 PM
  #12
Admirals Club Admiral's Club Member

Join Date: Aug 2010
Posts: 98
Received 20 Likes on 13 Posts
Default

Originally Posted by Denver Dave View Post
So... is the general consensus that this one is done? The metal is fatigued and time for new?
Throw it away, do not use it!!!!!!!!!!!!!!
Old 10-12-2019, 04:11 PM
  #13
Admirals Club Admiral's Club Member

Join Date: May 2011
Location: Louisiana and Morehead City N.C.
Posts: 12,332
Received 1,219 Likes on 874 Posts
Default

wonder why it says V5 on it?
Old 10-12-2019, 05:18 PM
  #14
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 25,063
Received 5,348 Likes on 3,420 Posts
Default

600# tongue weight is all it is rated
Old 10-13-2019, 07:22 AM
  #15
Senior Member

Join Date: Mar 2010
Posts: 1,472
Likes: 0
Received 500 Likes on 296 Posts
Default

I recently did the same thing with my 7000 lb ball mount.

Anyone Ever Bend a Ball Mount?

Mine happened when trying to pull out a bush at my neighbors house. We ended up having to dig it out, but tried pulling it before we did any digging. The results were a bent ball mount. Any time I get lucky bending or breaking something and no one gets hurt, it’s time to upgrade to overkill!
Old 10-13-2019, 04:35 PM
  #16
Admirals Club Admiral's Club Member

Join Date: Oct 2012
Location: Boca Grande,FL
Posts: 2,059
Received 492 Likes on 260 Posts
Default

Originally Posted by captain28570 View Post
wonder why it says V5 on it?
V-5 is the test protocol. Has nothing to do with capacity.
Likes:
Old 10-13-2019, 07:53 PM
  #17
Admirals Club Admiral's Club Member

Join Date: Oct 2014
Location: Long Island NY
Posts: 84
Received 55 Likes on 27 Posts
Default

So what are you towing?
Old 10-13-2019, 08:03 PM
  #18
Senior Member

Join Date: Sep 2008
Location: Satellite Beach, FL
Posts: 1,690
Received 2,173 Likes on 1,043 Posts
Default

"Is my Class V hitch bent?"


No, but your Class III is fubar.
Old 10-13-2019, 08:27 PM
  #19
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,582
Received 1,132 Likes on 588 Posts
Default

Many of us have been there. Trash and replace it.
Old 10-13-2019, 08:28 PM
  #20
Admirals Club Admiral's Club Member

Join Date: May 2016
Posts: 344
Likes: 0
Received 65 Likes on 36 Posts
Default

Originally Posted by ChrisW21 View Post
"Is my Class V hitch bent?"


No, but your Class III is fubar.

lmao!!

fact! And we still haven’t figured out what he is towing
