Contender T-Top Light Wiring

Old 02-14-2011, 10:11 AM
  #1
Senior Member
THT sponsor
Thread Starter

Join Date: Jul 2010
Location: Dularge, LA
Posts: 652
Default Contender T-Top Light Wiring

Any suggestions on how to wire this neatly? I'd like to do it without removing the T-Top

Impulse Fishing is offline
Old 02-14-2011, 10:57 AM
  #2
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,137
Default

I did mine several years ago. Best thing I could come up with was to use lots of tie wraps and bring it back to one of the holes on top of the 2 main posts. Not the way I wanted to do it but it came out looking ok. I hid the wire wherever I could. You should be able to get away with a pretty small wire w/ LED. Maybe 18-22 ga?
Back-in-Black is offline
Old 02-14-2011, 02:21 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Jul 2009
Location: The Floaters
Posts: 6,133
Default

why not run the wire inside the tube? That's what i did.
Miss Trial is offline
Old 02-14-2011, 02:40 PM
  #4
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,137
Default

don't know if the intersection of the tubes is drilled. Don't think it was on mine or I'd have done that too.
Back-in-Black is offline
Old 02-14-2011, 02:49 PM
  #5
Senior Member
THT sponsor
Thread Starter

Join Date: Jul 2010
Location: Dularge, LA
Posts: 652
Default

Like this?

Impulse Fishing is offline
Old 02-14-2011, 02:53 PM
  #6
Senior Member

Join Date: Jan 2011
Location: Oregon Inlet NC
Posts: 1,043
Default

I would get some pex plumbing pipe or 3/8 tubing and run it through that. You can paint it black, I think it would look better than loose wiring
Night Crawler is offline
Old 02-14-2011, 03:20 PM
  #7
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,137
Default

Originally Posted by Dreamboat Captain View Post
Like this?


No. Go straight back from the front. Don't drop down on the horizontal brace. If you slide your finger between the top fabric and the aluminum right above the front post (1 of 4 that go straight to the console by the rod holders) you will feel a hole that you can feed the wire down into the post and thru the post into the console.

It may be easier if you peel the top fabric back but it can be done w/o doing that.
Back-in-Black is offline
Old 02-14-2011, 03:25 PM
  #8
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,137
Default

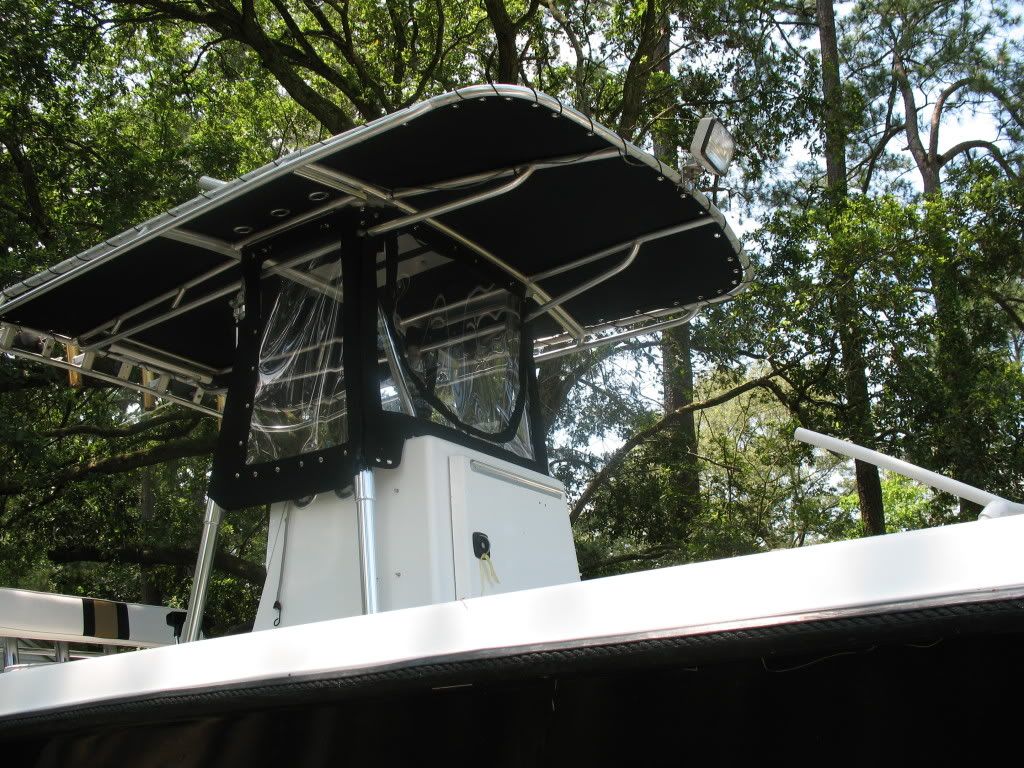

Not sure if you can see my wire in this pic but it's on the stbd side. Look close. I can get better pics tomorrow if you still need help.

The best way to do it is like Miss Trial said but if the intersection of the pipes is not already drilled out, ain't no way to do it like that. They have to drill those intersections before the weld the T-top frame together.

Back-in-Black is offline
Old 02-14-2011, 03:46 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Jul 2009
Location: The Floaters
Posts: 6,133
Default

I ran mine straight back to where the wires for the gps and radar go down and went down with them.
Miss Trial is offline
Old 02-14-2011, 03:55 PM
  #10
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 11,137
Default

Originally Posted by Miss Trial View Post
I ran mine straight back to where the wires for the gps and radar go down and went down with them.

That's what I'm talking about. I thought you were saying that you ran them inside the small horizontal tube that runs straight to the front and then inside the "hoop" to the center where the light is. That would be a VERY difficult pull even if the intersections are drilled.
Back-in-Black is offline
Old 02-14-2011, 03:56 PM
  #11
Senior MemberCaptains Club Member

Join Date: Nov 2003
Posts: 958
Default light install

Does your t-top have a anchor light in the back of it. Look where the power is coming through to light it. I bet it's coming through the top bow of the t-top. Look inside the console and locate the wire going to the switch. It should come out one of the leg supports of your t-top. The top bow should be free of obstructions other than the wire going through for your anchor light, etc.. Use a punch with a sharp point and create a detent in the tube in the front under the light and drill a hole big enough for the wire you need. Get some light twine (hemp type) feed it into the hole you made and use a vacuum at the end the wire is going to come out through the leg. The twine will find its way through the top bow and down the leg that is pre-drilled for that purpose. Double check always before drilling.
good luck
paraman is offline
Old 02-14-2011, 05:52 PM
  #12
Admirals ClubCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: Jul 2006
Location: Greenville, SC
Posts: 2,751
Default

Take more pics of the top. Run it inside the tubes. You should be able to do this. I was able to run all wires in the tubes of my boat.

Whip antenna, stiff wire, string and a fishing hook will do just about every job. []
Scoutin 4 Goodies is offline
