Is this correct placement for totalscan transducer ?

Old 11-25-2018, 04:56 PM
Thread Starter
Join Date: Feb 2018
Posts: 50
Default Is this correct placement for totalscan transducer ?

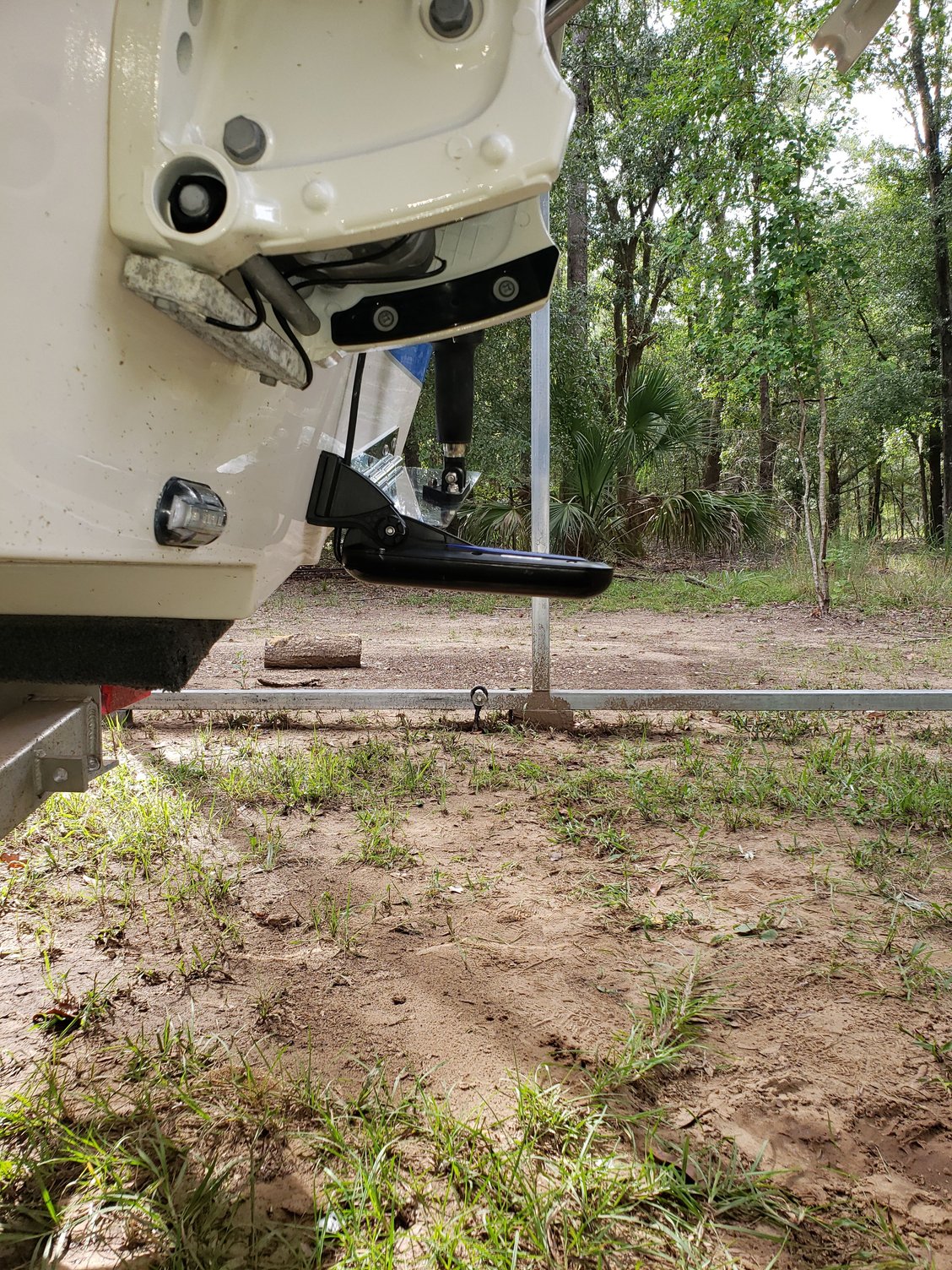

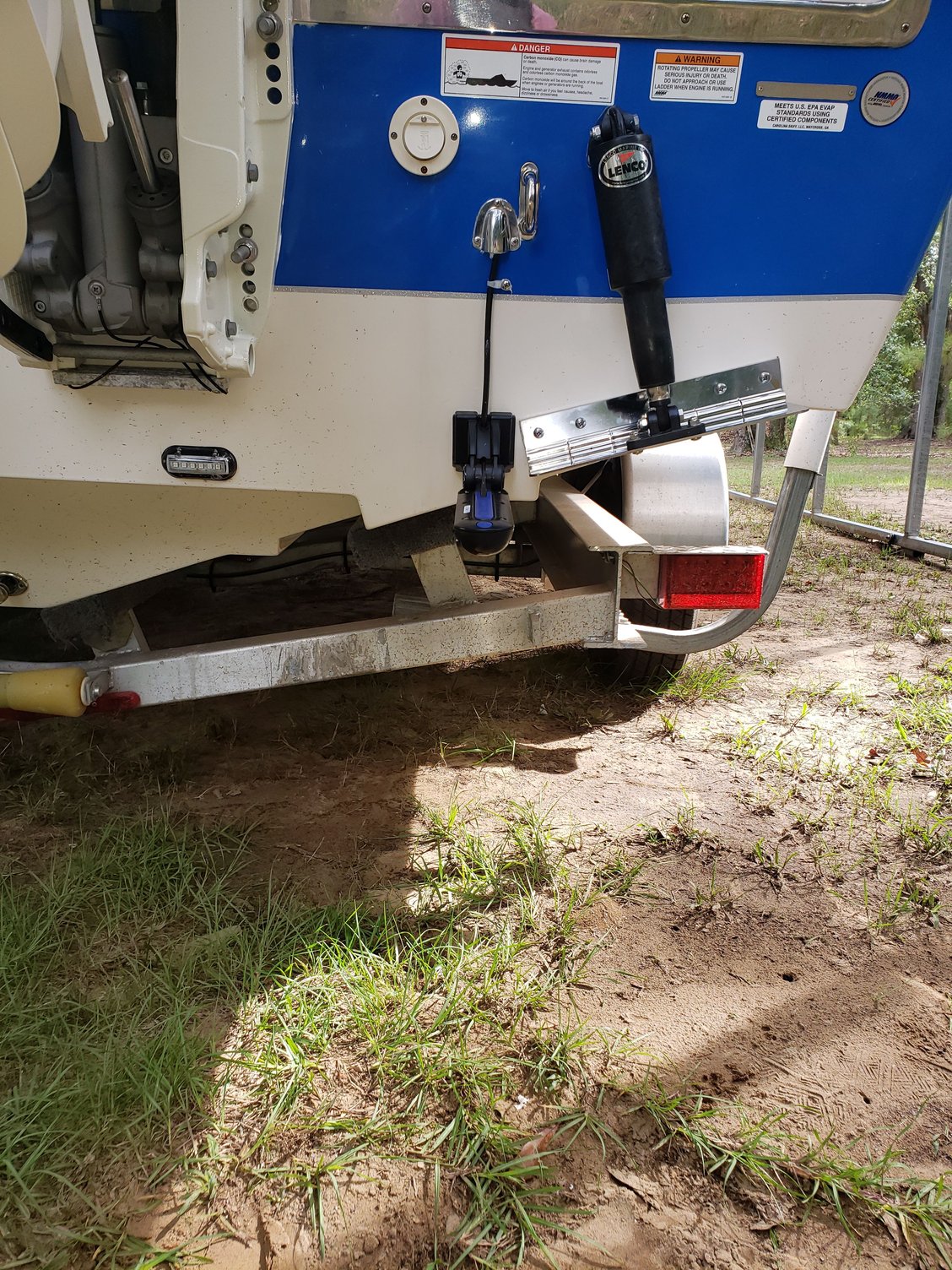

System is a Simrad 12 nss evo3 with totalscan transducer. It's not reading bottom over like 20mph. Does this look like the correct placement ? Or is something else causing interference. Thanks for any advice

Sunny and 75 is offline
Old 11-25-2018, 05:57 PM
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Join Date: Oct 2009
Posts: 21,657

Name:  aJKgs0.jpg
Views: 233
Size:  342.4 KB

Many like to put the side scan ducers near the drain the inset/step.
semperfifishing is offline
