New Garmin 1242xsv Touch in stock

Old 02-22-2018, 02:09 PM
  #1
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default New Garmin 1242xsv Touch in stock

Name:  5B1Dsg.jpg
Views: 596
Size:  30.2 KB

PM me here on THT
Gil Travis 1-800-925-0341

travis.g@sbcglobal.net for Sales and technical support


https://www.thehulltruth.com/semperf...cer-sales-135/
Link to my forum




Name:  xYQExo.jpg
Views: 600
Size:  34.8 KB


Garmin GPSMAP1242xsv Touch 12" Chartplotter/Sonar Combo Preloaded with BlueChart g2 charts and LakeVü HD

( New touch also in: 1242, 1222, 1222XSV)

Pre order:
Model: 010-01917-13....$2799.99 shipped.....in stock



Add a GT-51-TM for $395
PM me for other Transducer options.


1 kW single-channel CHIRP sonar provides crystal-clear images with remarkable target separation and definition
ClearVü and SideVü scanning sonars deliver nearly photographic images of what is below, around and to the sides of your boat
Fully network capable to build your marine system; network sharing allows you to share data among all compatible units connected to the network
Compatible with optional BlueChart® g2 Vision® HD charts and LakeVü HD Ultra maps for Auto Guidance and more
Supports Panoptix™ all-seeing sonar

Preloaded BlueChart® g2 charts and LakeVü HD maps include market-leading features such as Depth Range Shading and Shallow Water Shading
GPSMAP 1242xsv Touch is the ideal choice for the coastal fisherman who wants to step up to a big, bright 12" touchscreen combo. It includes built-in 1 kW single-channel CHIRP plus ClearVü and SideVü scanning sonars, and it’s compatible with Panoptix all-seeing sonar. Preloaded BlueChart g2 HD charts and LakeVü HD maps provide market-leading features such as Depth Range Shading and Shallow Water Shading. It features full networking capabilities to build your marine system with radar, autopilot, sonar modules and sensors. It also supports FLIR cameras, GRID™ keypad, GXM™ 53 marine weather receiver, FUSION-Link™ audio system, VIRB® camera streaming and more. Network sharing allows you to share data among all compatible units connected to the network. Plus, it has built-in Wi-Fi® to support the ActiveCaptain™ app.

Access some amazing sonar capabilities — all you add are transducers. GPSMAP 1242xsv Touch comes with built-in Garmin 1 kW CHIRP sonar and CHIRP ClearVü and SideVü scanning sonars. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

You get both LakeVü HD inland waters mapping and BlueChart g2 coastal charts covering the coastal U.S.

LakeVü HD provides highly detailed freshwater maps that include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 13,000 HD lakes with up to 1’ contours. Upgrade to LakeVü HD Ultra with Max Def Lakes to access the Auto Guidance feature, sonar imagery and more.

BlueChart g2 covers the East Coast, West Coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes. It includes basic coastal charts, tidal and current stations, depth contours, IALA nav symbols and fishing charts. Upgrade to BlueChart® g2 Vision® HD to access Auto Guidance and more.

Instantly create personalized HD fishing maps onscreen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community.

The touchscreen combo is fully networked using the Garmin Marine Network, NMEA 2000®/NMEA 0183, J1939 and built-in ANT® connectivity, so you can build your marine system with radar, autopilot, sonar modules, instruments, sensors, FLIR cameras, FUSION-Link, VIRB camera streaming and more. Network sharing allows you to share data among all compatible units connected to the network.

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

To help you gain a wind-maximizing competitive edge, your chartplotter features a prerace guidance page. It shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

The fast, responsive 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. Now, it’s quick and easy to drop up to 5,000 accurate waypoints and find your way back to them.

Auto Guidance is for planning purposes only and does not replace safe navigation operations

Specifications
General
Display type WXGA display
Display size 10.3" x 6.4" (26.2 x 16.3 mm)
Display size 10.3" x 6.4" (26.2 x 16.3 mm)
Display resolution 1280 x 800 pixels
Antenna Internal or external over NMEA 2000
Mounting options Bail or flush
Receiver 10 Hz high-sensitivity
Maps & Memory
Accepts data cards 2 SD™ cards
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks
Preloaded maps BlueChart® g2 (coastal maps) and LakeVü HD (inland maps)
Outdoor Recreation Features
Tide tables Yes
Chartplotter Features
Garmin Radar compatible Yes
Garmin Sonar compatible Yes (built-in)
Garmin SmartMode compatible (customizable monitor presets) Yes
Supports AIS (tracks target ships position) Yes
Supports DSC (displays position data from DSC-capable VHF radio) Yes
Garmin Meteor™ Audio System compatible Yes
Supports FUSION-Link™ compatible radios Yes
GSD™ Black Box sonar support Yes
GCV™ Black Box sonar support Yes
BlueChart® Mobile (planning) compatible Yes
Garmin Helm compatible Yes
GRID™ (Garmin Remote Input Device) compatible Yes
Wireless remote compatible Yes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable Yes
Dual-beam (77/200 kHz) sonar capable Yes
Frequencies supported Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü/SideVü (260/455/800 kHz)
(dependent on transducer)
Transmit power 1 kW traditional; 1 kW single channel CHIRP
CHIRP sonar technology Yes (Built-in)
ClearVü Yes with CHIRP (built-in)
SideVü Yes with CHIRP (built-in)
Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up) Yes
Water temperature log and graph Yes
Sonar recording Yes
Sonar history rewind Yes
Connections
NMEA 2000® compatible Yes
Transducer pin numbers 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Video input ports 1 BNC
Video output ports 1 HDMI
Wireless connectivity Yes
J1939 Yes
Garmin Marine Network™ ports 2
Input Voltage 12vDC
Input Draw Max power usage at 10 Vdc: 36.5 W
Typical current draw at 12 Vdc: 2.4 A
Max current draw at 12 Vdc: 3.0 A
Dimensions 13" x 8.9" x 3.1" (33.0 x 22.6 x 7.9 cm)

What's in the Box:
GPSMAP 1242xsv Touch chartplotter
Power/data cable
NMEA 2000® T-connector
NMEA 2000 drop cable (2 meters)
Bail mount kit with knobs
Flush mount kit with gasket
8-pin transducer to 12-pin sounder adapter cable
Protective cover
Trim piece snap covers
Documentation

Last edited by semperfifishing; 09-30-2018 at 11:07 AM.
semperfifishing is offline
Old 02-25-2018, 05:13 PM
  #2
Senior Member

Join Date: Mar 2010
Posts: 185
Default

Gill
I am contemplating purchasing tis unit ofr a modified Hull boat. Will be primary fishing in areas no more than 150 feet. Most of the time around 40 to 60 feet. Looking for a Transducer that will work very good for traditional sonar as well as downscan and especially sidescan.
What would you recommend?
Thanks
ahane is offline
Old 02-25-2018, 09:02 PM
  #3
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

The GT52HW will work....add to the 1242xsv touch for $175


Name:  XovUOv.jpg
Views: 2475
Size:  307.3 KB

Name:  SAhBvT.jpg
Views: 2495
Size:  295.2 KB

.
semperfifishing is offline
Old 02-26-2018, 05:51 AM
  #4
Senior Member

Join Date: Mar 2010
Posts: 185
Default

Thanks Gill.
So no need for a thru hull? Will I still get good chrip quality sonar, downscan.?
Forgive my ignorance
Thanks
ahane is offline
Old 02-26-2018, 11:47 AM
  #5
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

Originally Posted by ahane View Post
Thanks Gill.
So no need for a thru hull? Will I still get good chrip quality sonar, downscan.?
Forgive my ignorance
Thanks
the GT52Hw is CHIRP Traditional, CHIRP side and CHIRP down.

just like the screen shots I posted.
semperfifishing is offline
Old 02-26-2018, 12:53 PM
  #6
Senior Member

Join Date: Mar 2010
Posts: 185
Default

Thank You.
ahane is offline
Old 02-28-2018, 01:06 PM
  #7
Junior Member

Join Date: May 2017
Posts: 4
Default

Hi Gil
Would it be possible for you to make a brief rundown of the difference between the 1242XSV touch and the 7612XSV ? Was salivating over the 7612XSV but am curious why this one is cheaper.

Thanks in advance for your time.
Tim Osuna
Front242 is offline
Old 02-28-2018, 04:56 PM
  #8
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

Originally Posted by Front242 View Post
Hi Gil
Would it be possible for you to make a brief rundown of the difference between the 1242XSV touch and the 7612XSV ? Was salivating over the 7612XSV but am curious why this one is cheaper.

Thanks in advance for your time.
Tim Osuna
The 7612xsv has 2 transducer ports
It can fire two different ducers at the same time..or fire a single dual band ducer.
And one can be a side and down scan


The 1242xsv has 1 transducer port.
It can fire only 1 ducer .
And it has to be a single band..or a Side and Down scan etc.
semperfifishing is offline
Old 03-14-2018, 08:48 AM
  #9
Junior Member

Join Date: May 2017
Posts: 4
Default

Thanks Gil!

Tim
Front242 is offline
Old 03-14-2018, 12:08 PM
  #10
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

Originally Posted by Front242 View Post
Thanks Gil!

Tim
We ship both....but for those only need 1 ducer..you save a ton of $ on the 1242 xsv touch..or not touch..over the 7612xsv.



Gil
semperfifishing is offline
Old 03-17-2018, 06:15 AM
  #11
Member

Join Date: Sep 2015
Location: Massachusetts - North Shore
Posts: 96
Default

The Garmin site shows that this new touch chart plotter is compatible with the new GCV 20 Ultra HD sonar system. If you install that system are you still only able to use one transducer, the transom mount that is designed for the GCV unit? If so, would you be giving up the higher running speed Performance of a thru-hull transducer? Would you also sacrifice performance beyond a certain depth?
Reel Estate Broker is offline
Old 03-17-2018, 09:37 AM
  #12
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

Originally Posted by Reel Estate Broker View Post
The Garmin site shows that this new touch chart plotter is compatible with the new GCV 20 Ultra HD sonar system. If you install that system are you still only able to use one transducer, the transom mount that is designed for the GCV unit? If so, would you be giving up the higher running speed Performance of a thru-hull transducer? Would you also sacrifice performance beyond a certain depth?
The new GCV20 uses the network port...just like the GSD26 and GCV10...

So..


That still allows one to use the normal transducer port....you then have a very wide selection of traditional transducer options.

and also use the side and down scan of the GCV 20 at the same time.



Gil


.
semperfifishing is offline
Old 04-20-2018, 10:12 PM
  #13
Member

Join Date: Jul 2010
Location: W WA
Posts: 41
Default

Gil, boat and repair and taxes are done..... Getting ready to order, when is your 'quiet time' when you'd rather not get calls?
We talked about the 942xvs but I leaning toward the 1042 with the taller display. Bundeled with ?? TD

Shoot thru would be nice but bilge access is limited

Do you handle VHF antennae or have a source for a good 8' Digital?
GregE is offline
Old 04-21-2018, 09:33 AM
  #14
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

Originally Posted by GregE View Post
Gil, boat and repair and taxes are done..... Getting ready to order, when is your 'quiet time' when you'd rather not get calls?
We talked about the 942xvs but I leaning toward the 1042 with the taller display. Bundeled with ?? TD

Shoot thru would be nice but bilge access is limited

Do you handle VHF antennae or have a source for a good 8' Digital?

Call anytime..working 7 days a week now... phew!

1 800 925 0341


Gil
semperfifishing is offline
Old 05-01-2018, 12:30 PM
  #15
Member

Join Date: Jul 2010
Location: W WA
Posts: 41

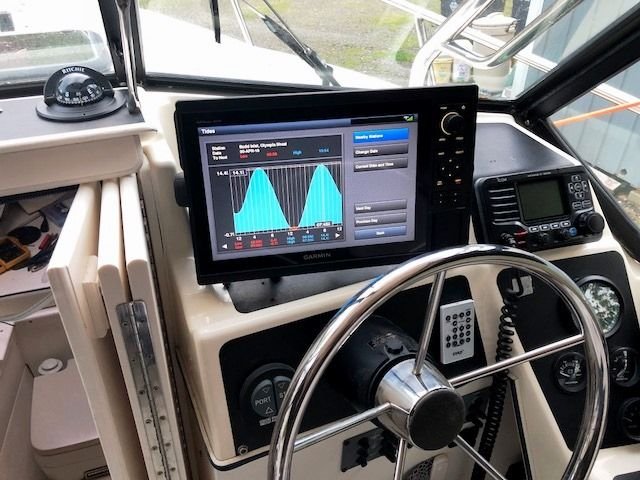

Default Arima Sea Legend 22 dash

Thanks Gil. I ordered the Garmin 1242 xsv last Monday along with the Arirmar T 185 M 1 KW transducer. The Garmin arrived last Friday and the trransuder today ( Monday ). Very impressive delivery time and free to me also. I'll report on the transducer when I get it mounted and wet.

G


GregE is offline
Old 05-26-2018, 05:07 PM
  #16
Senior MemberCaptains Club Member

Join Date: Mar 2001
Location: Jupiter, Fla
Posts: 708
Default

hey Gil, Can you connect an underwater camera to this screen?
Matt B is offline
Old 05-26-2018, 08:21 PM
  #17
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

The unit has a video BNC input port....so most cameras will work
semperfifishing is offline
Old 04-13-2019, 07:23 PM
  #18
Junior Member

Join Date: Nov 2018
Posts: 2
Default

What makes the garmin gpsmap the higher end unit compared to the new garmin echomap ultra series in a comparable screen? I notice the ultra can run the UHD without a black box. Also, both have two garmin marine network connections. screen resolution looks the same. what sets the gpsmap series apart? Is there difference in hardware? I will not be connecting radar or anything as I fish 100% inland lakes. Networking units is a selling point, but its not that huge for me. I know i can use helm with the gpsmap series, but that would only be beneficial to me if I could run two separate views at the same time, not just mirroring.

Trying to decide on a 1242xvs or whatever the new echomap ultra is that is a 12" that runs sonar.

I think only the 8XXX series can run the UHD without a black box..I would assume that means hardware changes to make it run without a black box.
pharmfun2006 is offline
Old 04-14-2019, 08:29 AM
  #19
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser
Thread Starter

Join Date: Oct 2009
Posts: 21,572
Default

For 100 % lakes..the new ultra is the ticket.


The Garmin Ultra is designed for use of the full line of Panoptix system....no black boxes required.
LiveScope built in.
Ultra High Def built in.
Built in Wifi allows use of ActiveCaptain.
Networkable to other 10"/12" Ultra units or to the Garmin 94sv/74sv Plus units.
600 watt CHIRP




A GPSMAP such as the 8610xsv...also has the Live Scope built in but also is radar capable, and also can fire a single or dual band 1 kw CHRP transducers.
and is full networkable to other GPSMAP units.

Last edited by semperfifishing; 04-14-2019 at 08:44 AM.
semperfifishing is offline
Old 04-16-2019, 04:48 PM
  #20
Senior MemberCaptains Club Member

Join Date: Mar 2001
Location: Odessa, Florida 33556
Posts: 1,326
Default

I have a thru hull transducer in my boat, can I just plug that in to this unit and rock on? I understand that I will not have the advanced capabilities, but would be nice to just mount this unit and go, save any big work for the fall.
John is offline
