Default Garmin 840/741 GVC 10 Screen Shots

My thanks to my friend Tom for sharing his screen shots and videos with us on my forum.

Gil


.........................

The units are connected to a TM150 and two GT30TM transducers.







Here are some screen shots .....

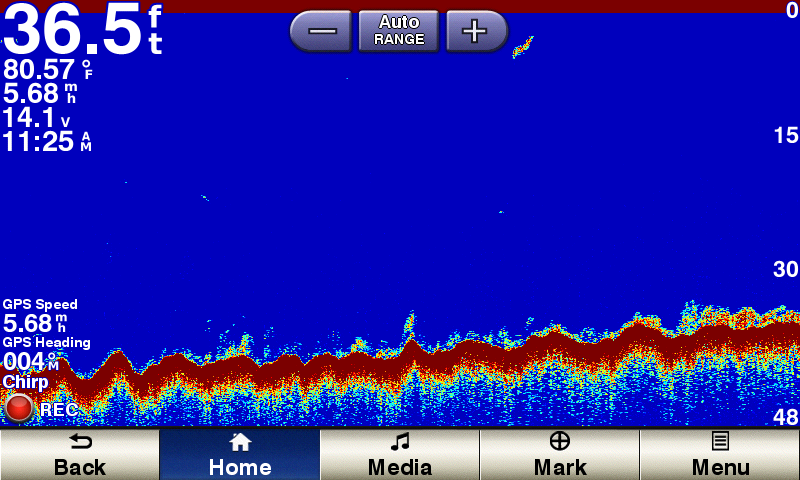

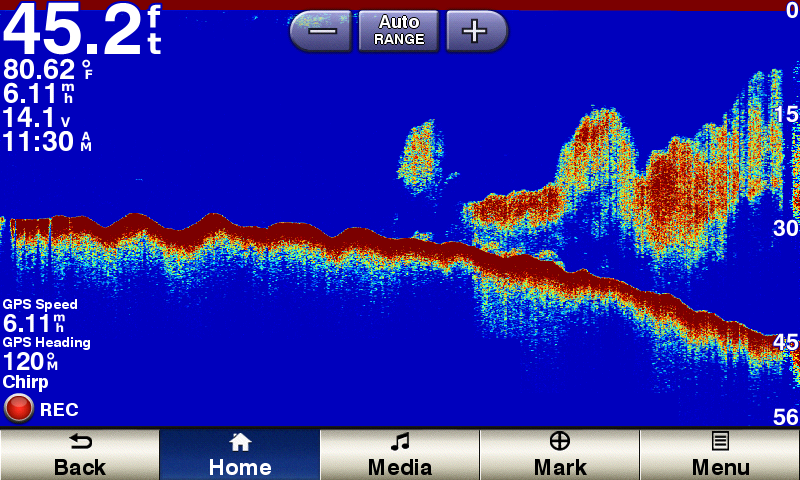

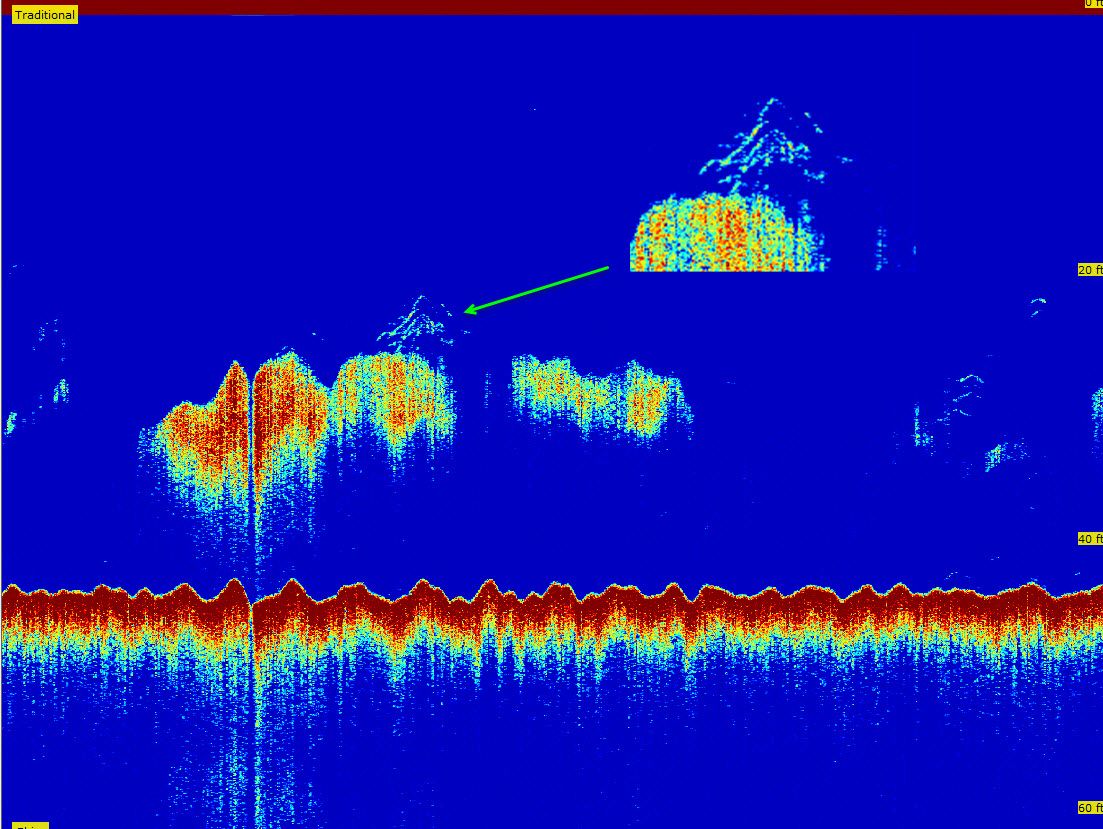

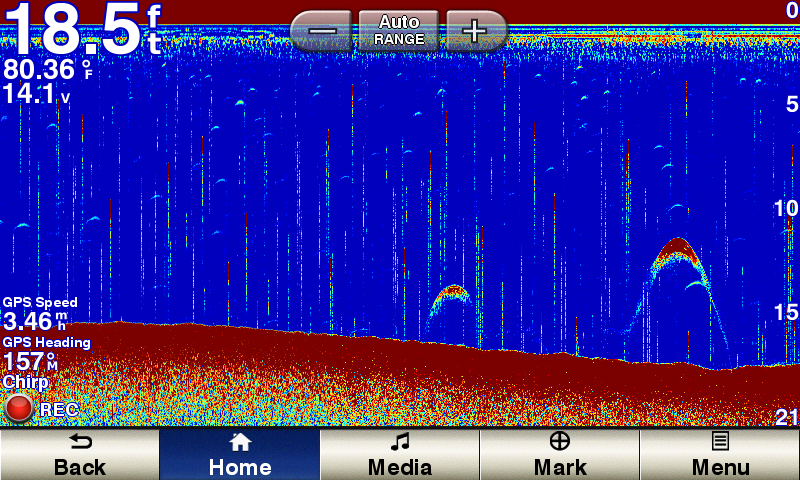

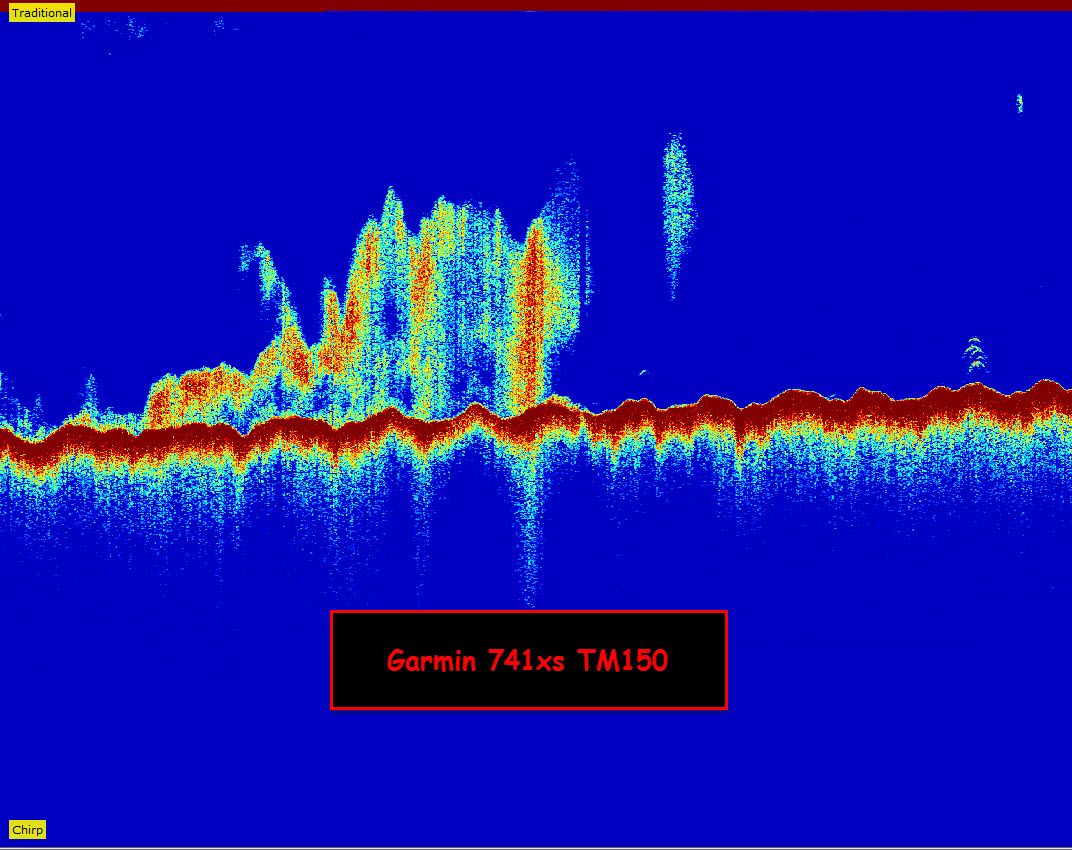

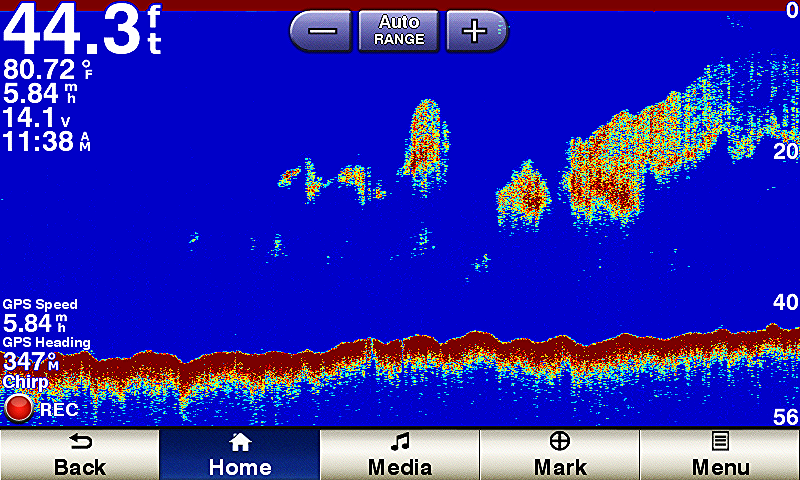

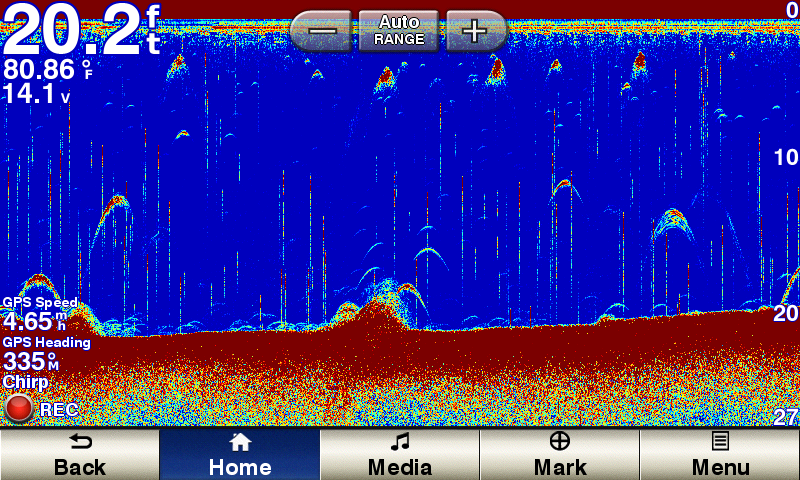

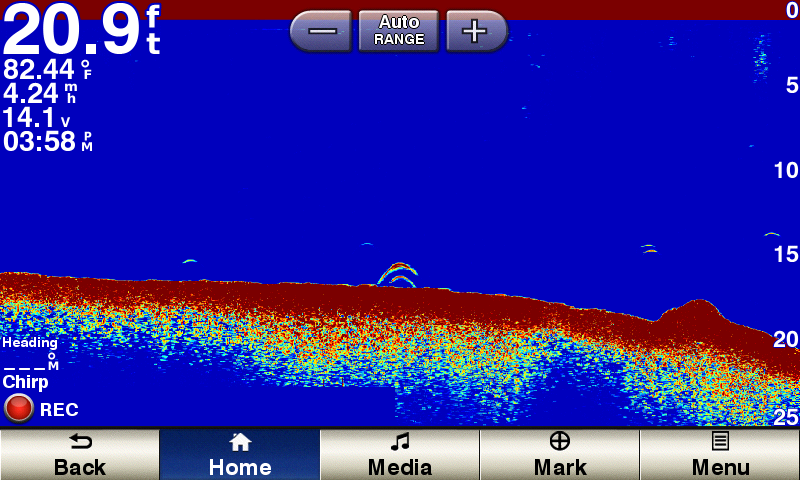

Traditional display ..... (chirp)

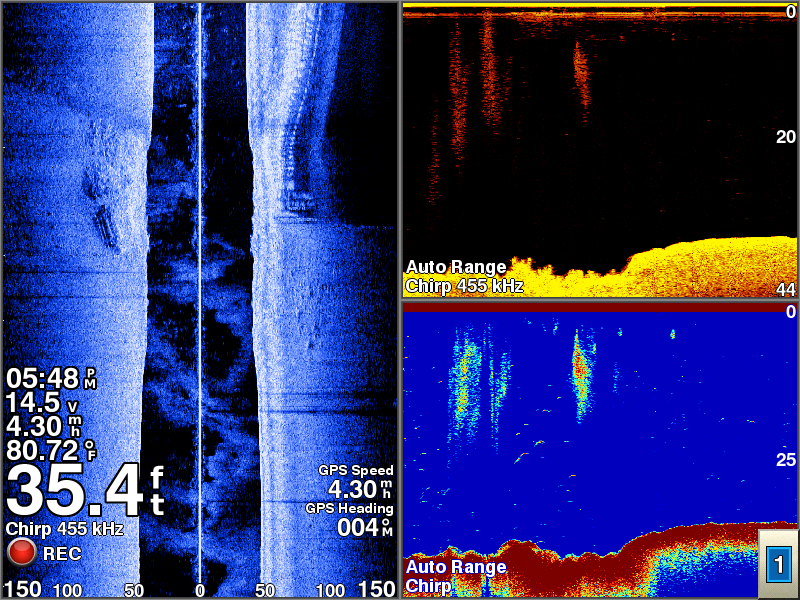

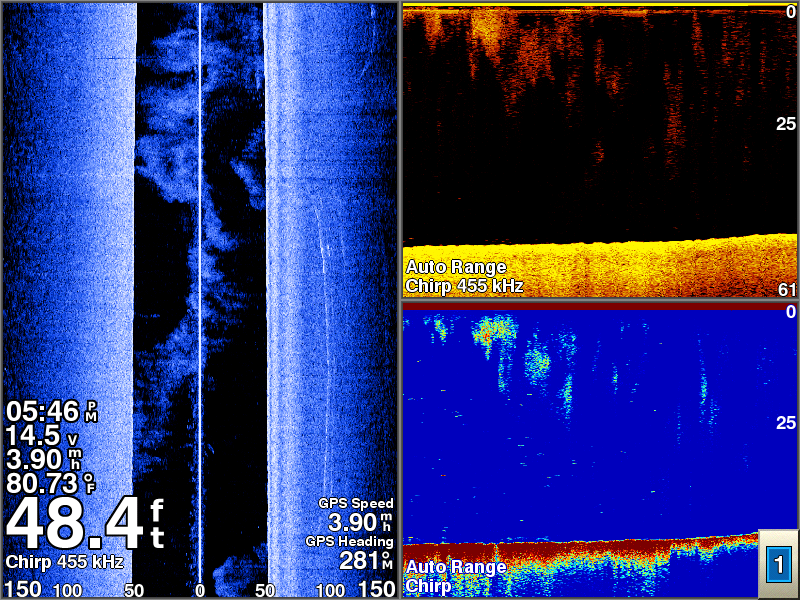

Down and Side Vu displays .....

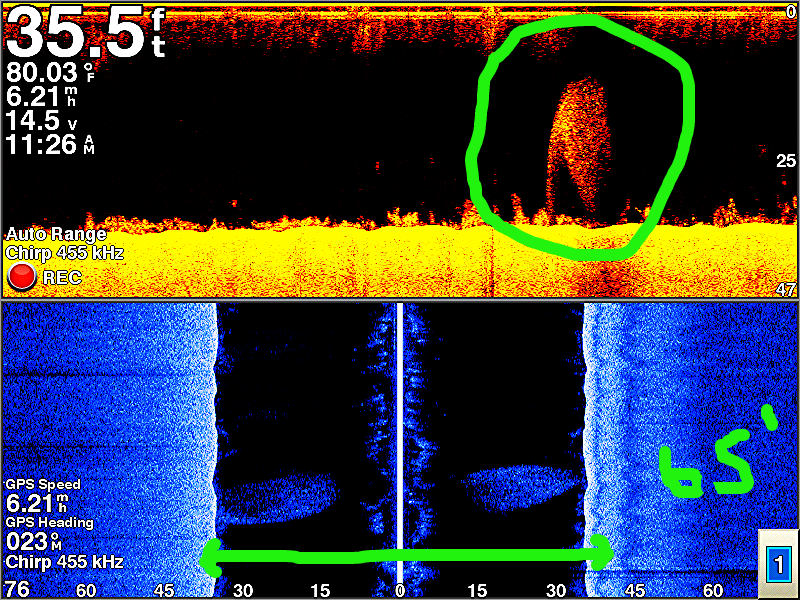

Note: The horizontal width of the side view display is programable in other words you can enter the value you want to see.

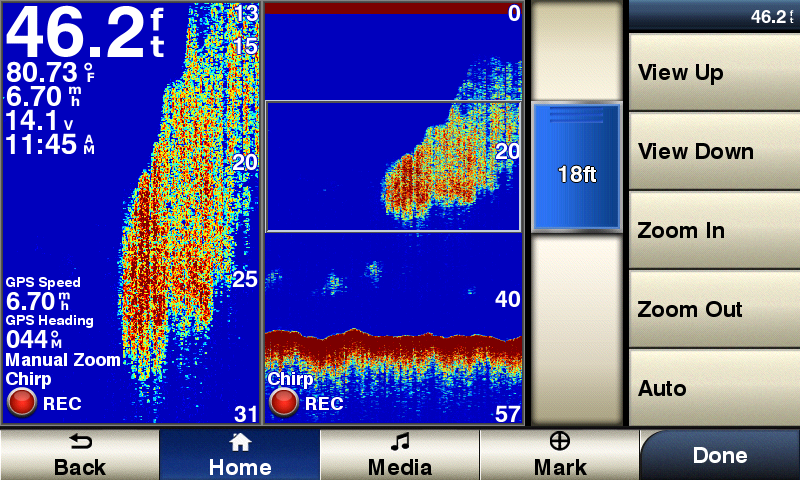

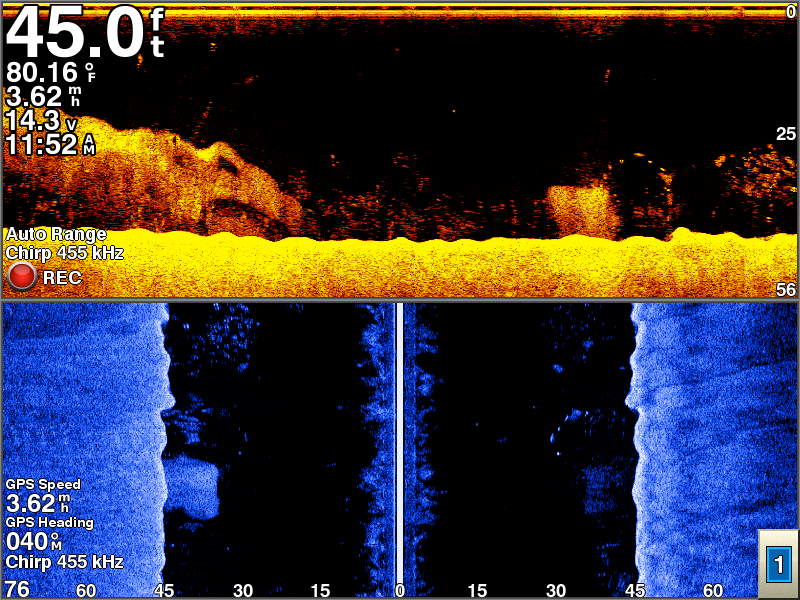

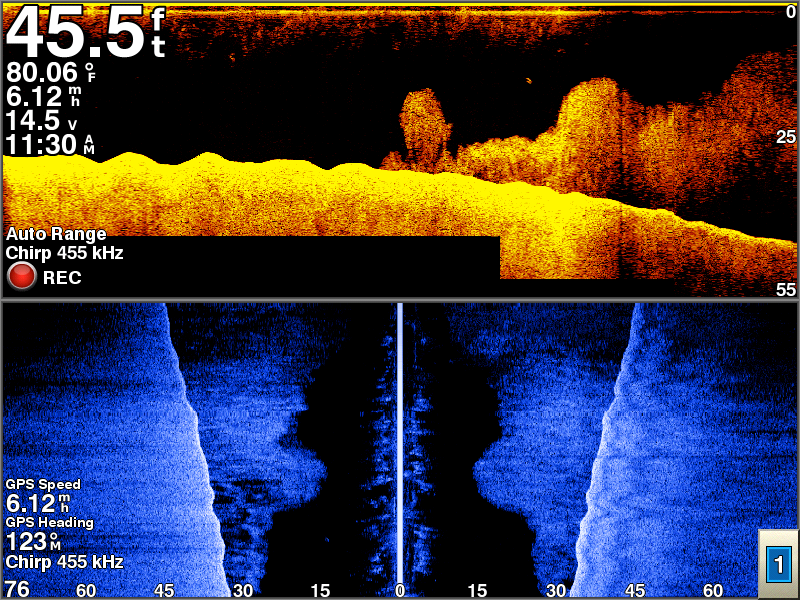

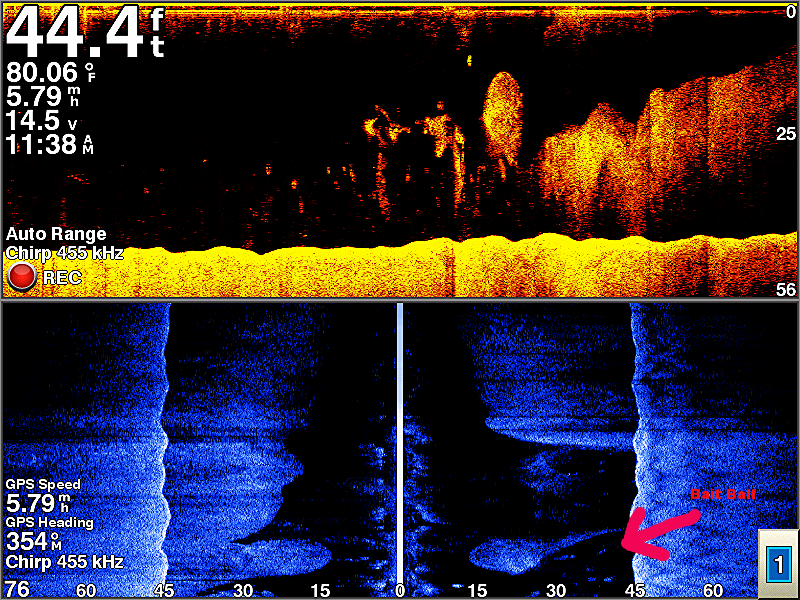

Down/Side Vu and Traditional

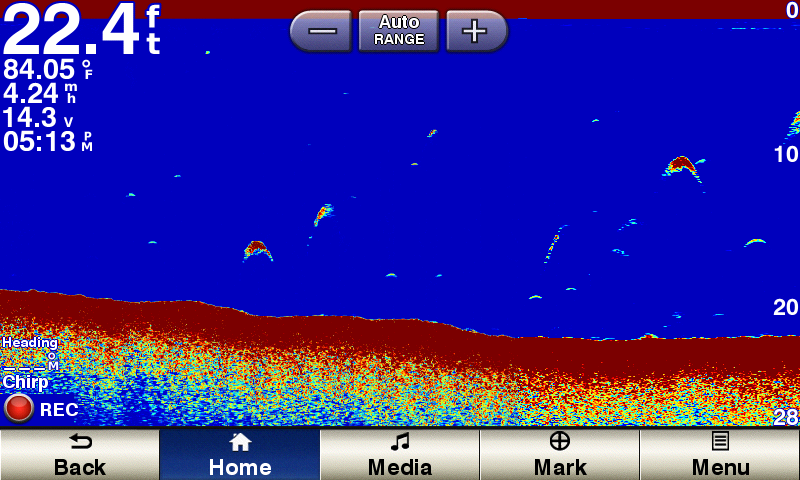

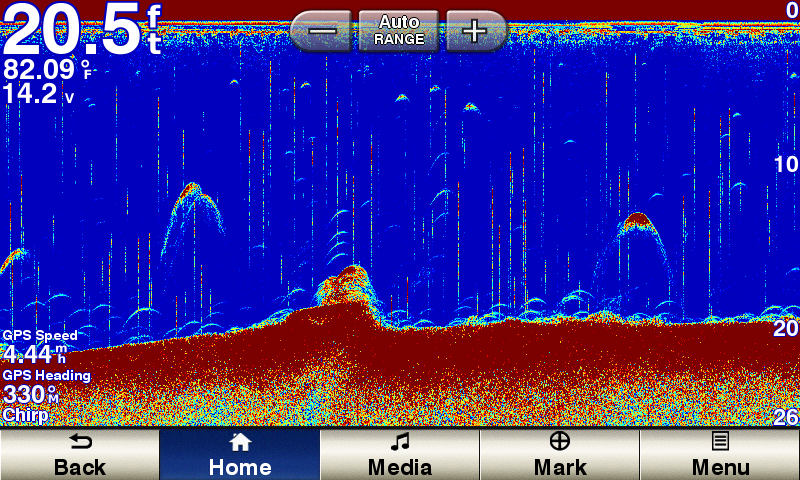

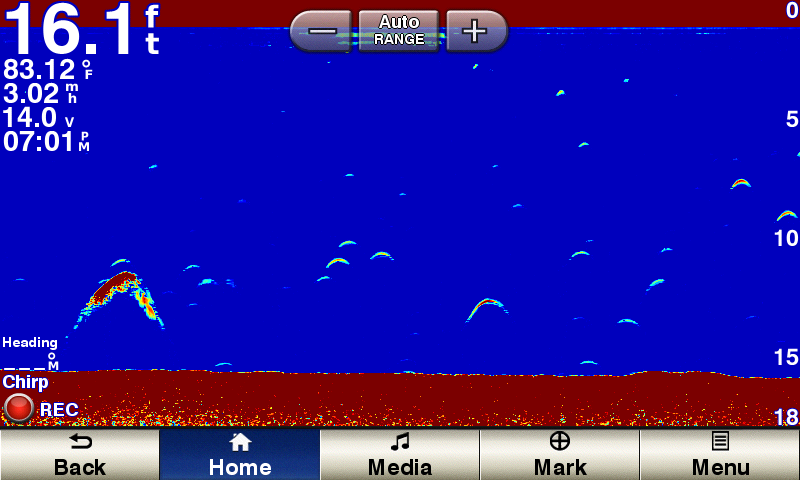

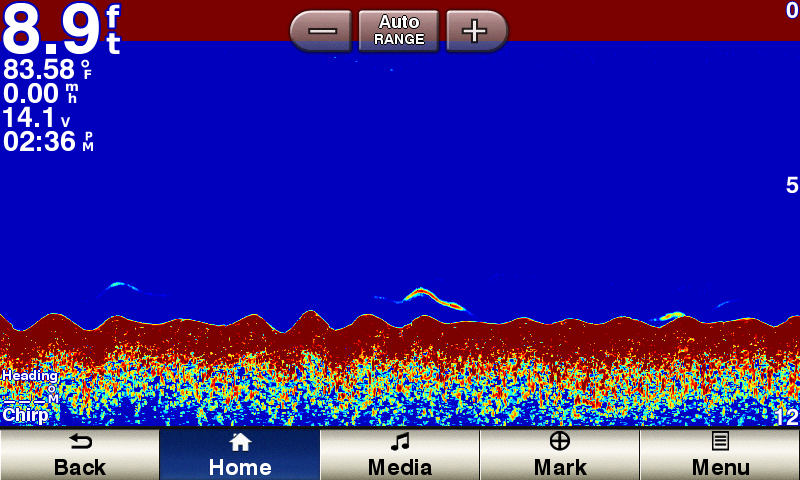

Shallow brackish water .......
















Last edited by semperfifishing; 02-07-2015 at 12:31 AM.
bluewaterpirate is offline
Old 01-26-2015, 09:13 AM
  #2
Senior MemberCaptains Club MemberPLEDGER
Thread Starter

Join Date: Jul 2004
Location:
Posts: 7,887
Arrow

Some underway video Morehead City NC shipping channel .... a lot of dirty water due to tide flow.

http://vimeo.com/103672241

http://bluewaterpirate.phanfare.com/6104541_6989530

http://vimeo.com/103668524

https://vimeo.com/103670173

https://vimeo.com/101873734

https://vimeo.com/100012647

https://vimeo.com/100012647

https://vimeo.com/100012647

All these great equipment will get you this .....

https://vimeo.com/96619275

Last edited by semperfifishing; 03-09-2015 at 10:56 AM.
bluewaterpirate is offline
Old 01-26-2015, 02:56 PM
  #3
Senior MemberCaptains Club Member

Join Date: Jul 2006
Location: Holden Beach/BruCo
Posts: 3,610
Default

Thanks Tom. Great stuff as always.
I am currently running an 840 and TM150. Wife gave me a GCV10 for Xmas (no ducer), so I am planning to add the GT30TH and maybe even a 741 as second unit very soon.
CAP1 is offline
Old 01-26-2015, 10:21 PM
  #4
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 21,657
Default

At 100' depth you can read out to 300 to 400' plus on each side with the Garmin units.
And we just got in the newly released GT51M transducers...for even greater capability.












Even at speed they do moderately well....39.9 MPH





HERE IS ONE AT 50 MPH..NO REAL DETaiL BUT STILL HOLDING BOTTOM.

Last edited by semperfifishing; 02-14-2015 at 01:14 PM.
semperfifishing is offline
Old 02-04-2015, 04:20 AM
  #5
Junior Member

Join Date: Sep 2012
Location: Bull Island, VA
Posts: 18
Default

Curious - why do you need two GT30TM transducers? I am about to go with the same setup and trying to figure all of this out. Also, what is needed to get the radar overlay?
Salty Ducks is offline
Old 02-04-2015, 11:53 AM
  #6
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 21,657
Default

Originally Posted by Salty Ducks View Post
Curious - why do you need two GT30TM transducers? I am about to go with the same setup and trying to figure all of this out. Also, what is needed to get the radar overlay?

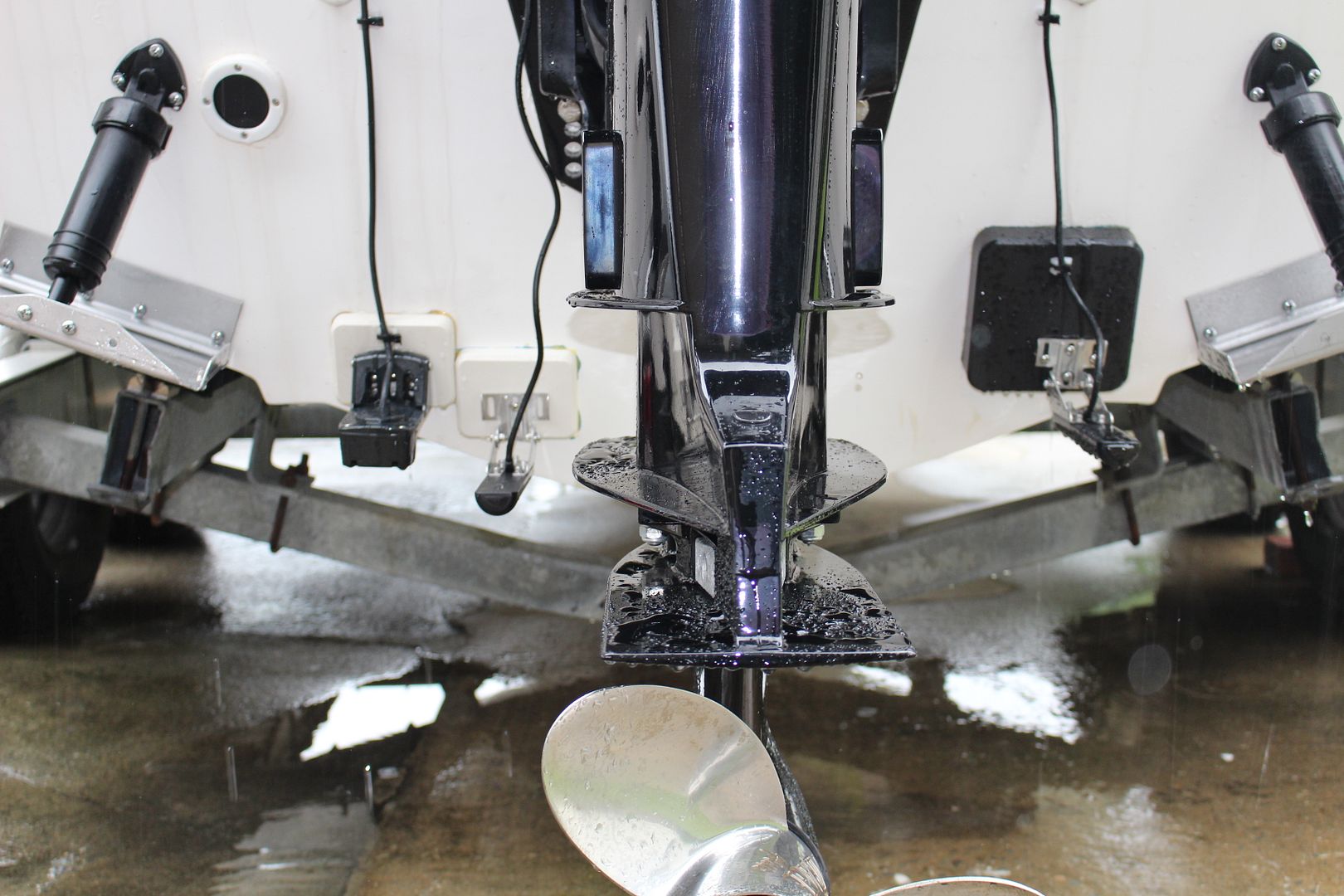

I sold Tom the pair because he wanted to make certain the engine did not shadow the side scan if he only mounted the single.

It all depends on the transom and engine design..many time a single GT30 is fine..but in some situations a pair is need.
semperfifishing is offline
