Default Garmin Help



Gill,

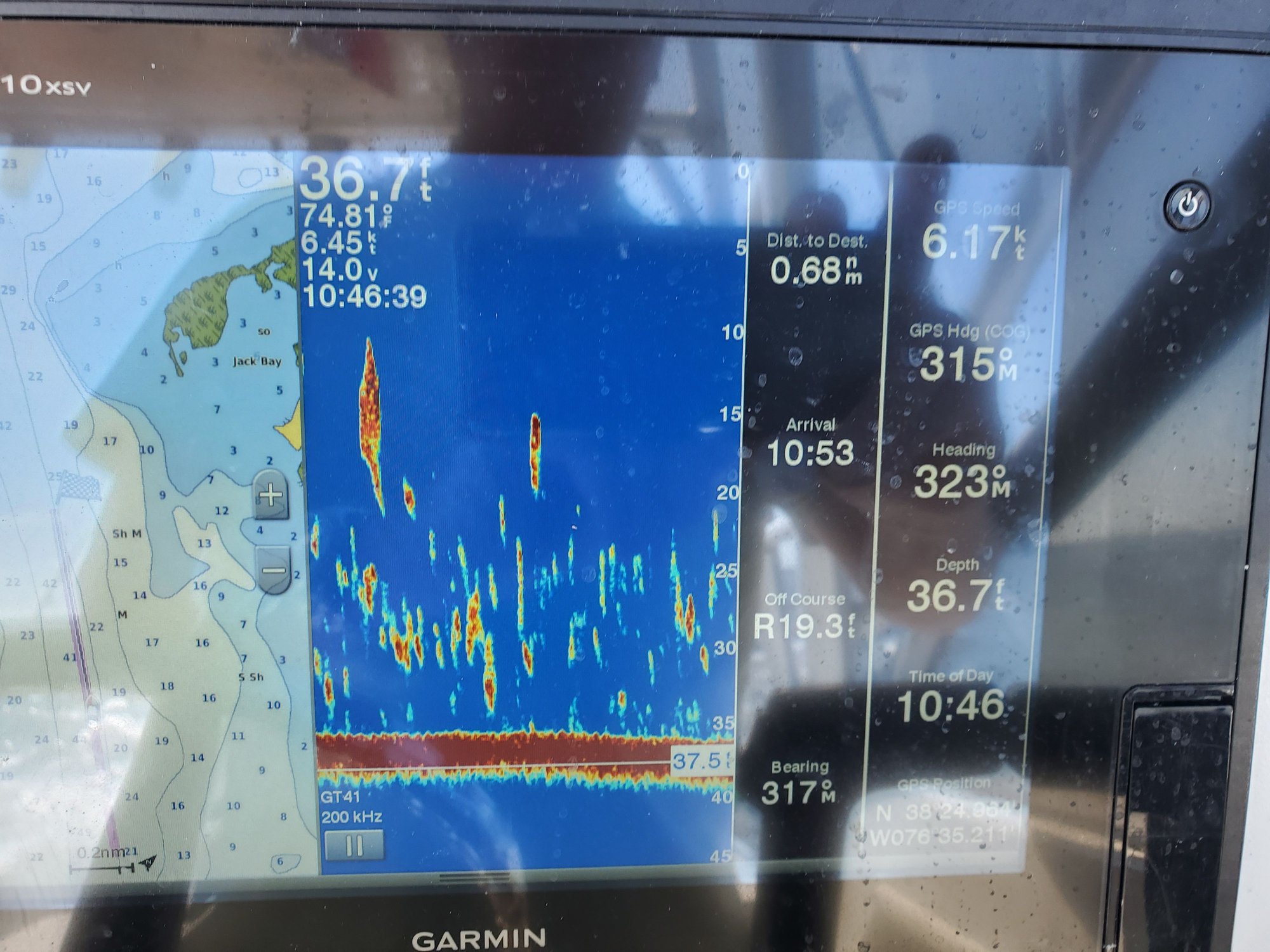

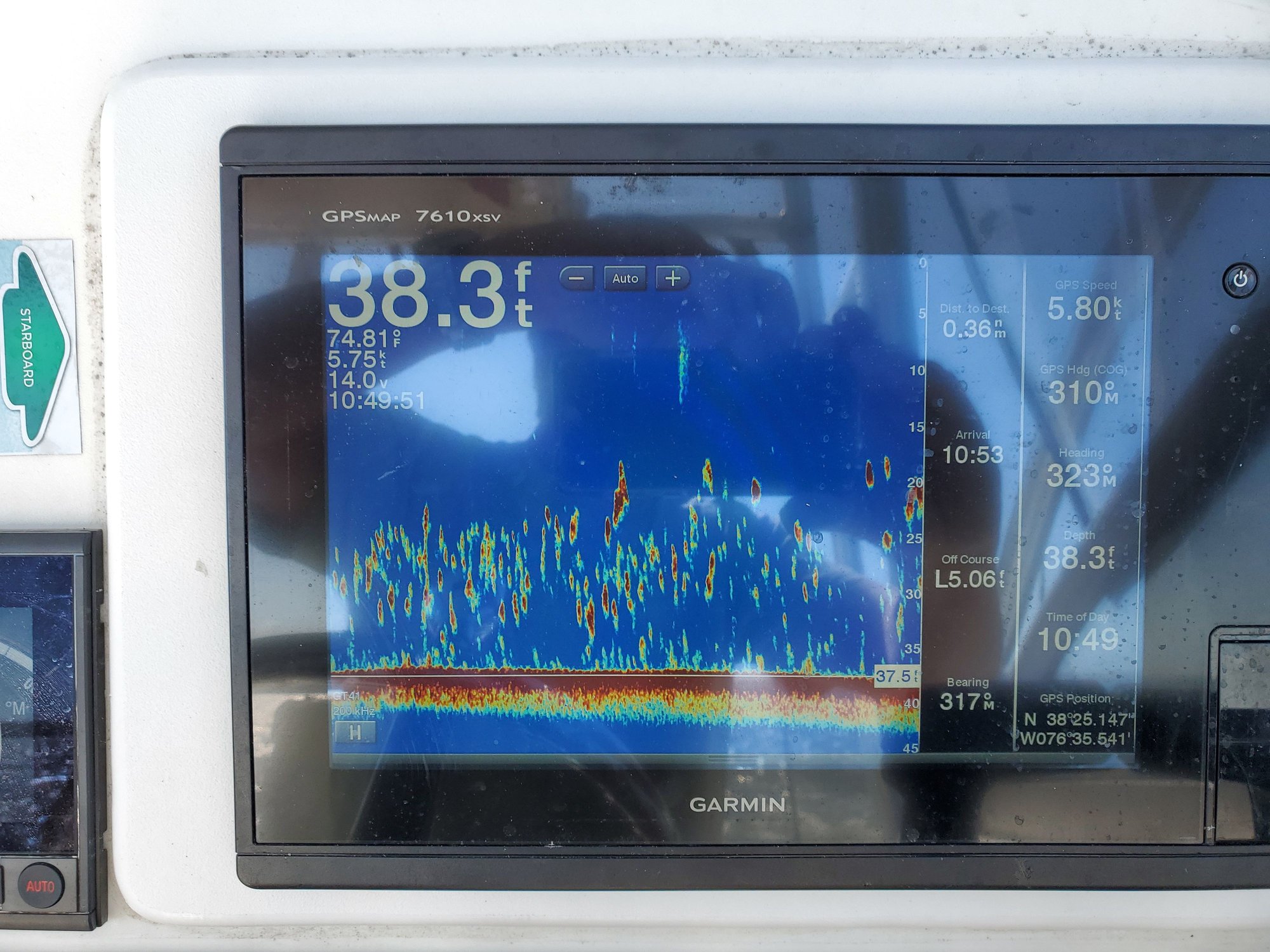

I having an issue with a Garmin 7610. I bought this boat in Apr and the display does not look right. I can not see the "eye brow" for fish even though Im catching Spanish macs and strippers here in the Chesapeake bay. Can you tell if I have a transducer problem? The transducer was painted and I did remove the paint but it did not help. All I see is what on the display but I know the big fish are there because I'm catching them.
Thanks,

Dave
Fishinreeltime is offline
Old 10-07-2019, 10:43 AM
  #2
Member

Join Date: Feb 2012
Location: Long Island Sound
Posts: 71
Default

Looks like you are getting fish What are those images if not fish
petercummins is offline
Old 10-07-2019, 11:20 AM
  #3
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 22,029
Default

Name:  G0zNgX.jpg
Views: 36
Size:  21.5 KB



You have very good targets on your screen.....those are fish!


....

just as in the screen shots below..those are fish

Name:  B03t4o.jpg
Views: 71
Size:  78.5 KB

Name:  G4Nr8a.jpg
Views: 71
Size:  117.7 KB


and here is a very high end $4000. transducer.......those are fish also.
Name:  g2pG2R.jpg
Views: 72
Size:  118.1 KB

Last edited by semperfifishing; 10-08-2019 at 09:36 PM.
semperfifishing is offline
Old 10-07-2019, 03:35 PM
  #4
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2013
Location: Lexington park MD
Posts: 154
Default

Originally Posted by semperfifishing View Post
You have very good targets on your screen.....those are fish!


....

just as in the screen shots below..those are fish

Attachment 1105746

Attachment 1105747


and here is a very high end $4000. transducer.......those are fish also.
Attachment 1105748
Thanks Gill. I guess I was expecting a better picture. What an I see at the bottom? Am I looking at bait balls? Im going to see if I can find a tutorial on how to read my Garmin.
Fishinreeltime is offline
Old 10-07-2019, 07:00 PM
  #5
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 22,029
Default

Name:  G0zNgX.jpg
Views: 36
Size:  21.5 KB


Your returns are very good..they are showing some nice sized fish...keep in mind what you are seeing is the return from the fishes bladder...

And the GT41 you are using is not a CHIRP unit.....you might want to upgrade to a GT51.

Last edited by semperfifishing; 10-08-2019 at 09:36 PM.
semperfifishing is offline
Old 10-08-2019, 08:02 AM
  #6
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2013
Location: Lexington park MD
Posts: 154
Default

Can you give me a price on a 51? And I think I need some splash shields if you have them. My current transducer throws water on the side of my outboard. Also I think I was expecting a return from the whole fish. I didn't know it was just the swim bladder.

GT51..$479 shipped

Last edited by semperfifishing; 10-08-2019 at 04:33 PM.
Fishinreeltime is offline
Old 10-08-2019, 04:30 PM
  #7
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 22,029
Default

Originally Posted by Fishinreeltime View Post
I think I was expecting a return from the whole fish. I didn't know it was just the swim bladder.
Name:  G0zNgX.jpg
Views: 36
Size:  21.5 KB

FYI ...Learning about Transducers..and How They work

Last edited by semperfifishing; 10-08-2019 at 09:37 PM.
semperfifishing is offline
Old 10-08-2019, 06:54 PM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2013
Location: Lexington park MD
Posts: 154
Default

Sounds good and thanks for the link. Can you send me an invoice or a website link?
Dave

Last edited by semperfifishing; 10-08-2019 at 09:35 PM.
Fishinreeltime is offline
Old 10-08-2019, 09:34 PM
  #9
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 22,029
Default

Name:  G0zNgX.jpg
Views: 36
Size:  21.5 KB

Paypal sent.
semperfifishing is offline
Old 10-09-2019, 05:00 AM
  #10
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2013
Location: Lexington park MD
Posts: 154
Default

Gill,

I took a look at some of my old screen shots from my other boat. The Garmin on my old boat did have the 51 transducer. That is what I was expecting to see. The chirp makes a BIG difference.
Fishinreeltime is offline
Old 10-09-2019, 05:03 AM
  #11
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2013
Location: Lexington park MD
Posts: 154
Default

Payment sent
Fishinreeltime is offline
Old 10-09-2019, 08:56 AM
  #12
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2013
Location: Lexington park MD
Posts: 154
Default


This is what I was expecting to see. The main difference is the transducer. I wish I had kept it instead of selling it with the boat.
