Default The Line-X Ultra Advantage

Like everything that ventures out into our loved mother ocean aluminum is under immediate attack. The ocean is always trying to separate compounds and take us back to zero. I am going to explain our shops Line-X system and the advantages over other coating systems. Why what's underneath counts and what repairability means to you.

Corrosion scientific explanation -
Corrosion by sea water, aqueous corrosion, is an electrochemical process, and all metals and alloys when in contact with sea water have a specific electrical potential (or corrosion potential) at a specific level of sea water acidity or alkalinity - the pH.

Most corrosion resistant metals rely on an oxide film to provide protection against corrosion. If the oxide is tightly adherent, stable and self healing, as on many stainless steels and titanium, then the metal will be highly resistant or immune to corrosion. If the film is loose, powdery, easily damaged and non self repairing, such as rust on steel, then corrosion will continue unchecked. Even so, the most stable oxides may be attacked when aggressive concentrations of hydrochloric acid are formed in chloride environments. These environments start in the crevices which are the hardest places to protect.
The Line-X XPM Primer is a super high-quality red oxide based primer system. I established it's aluminum adhesion properties years ago while spraying ice skater landing ramps for Disney on Ice. As you read above the oxide helps a ton for corrosion control.
Below are some pictures from 2007 of the in-house testing our shop performed to find the best adhesion methods for applying Line-X materials to aluminum.


Name:  Image080.jpg
Views: 596
Size:  141.9 KB
Test Results With Two Clear Winners!
Name:  Image083.jpg
Views: 602
Size:  86.5 KB

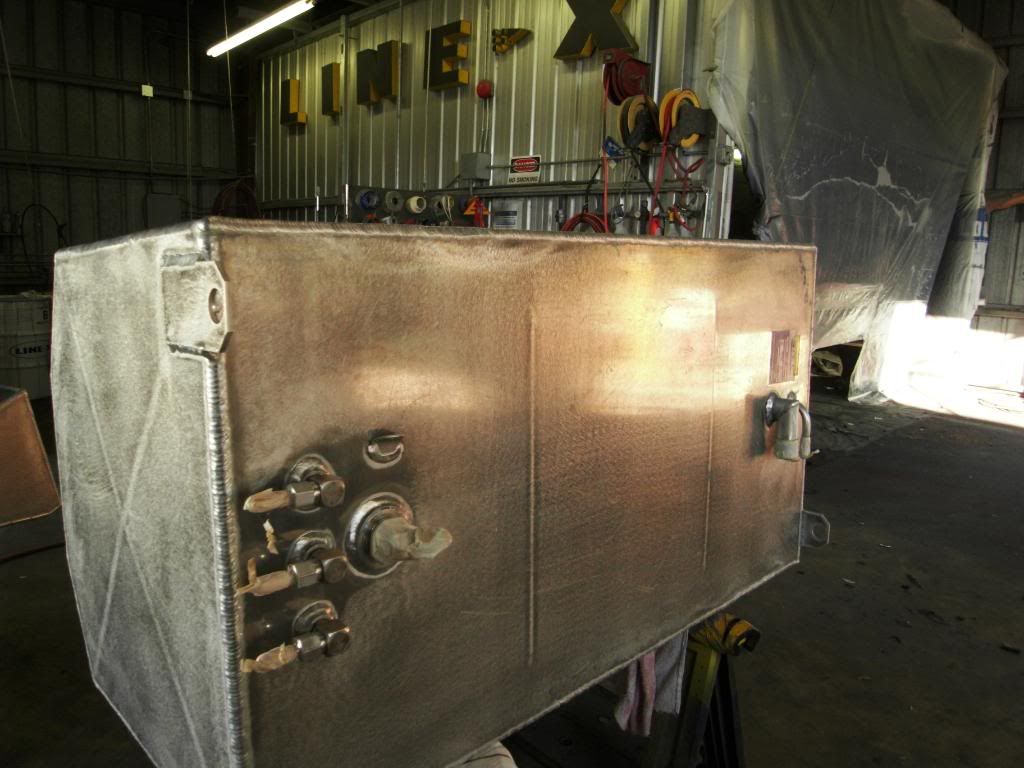

Name:  Andros32FuelTanks001.jpg
Views: 604
Size:  107.3 KB.

Name:  Andros32FuelTanks010.jpg
Views: 604
Size:  89.2 KB
Sarasota Line X is offline   Reply With Quote
Old 05-11-2017, 07:59 PM   #2
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

We beef up our primer coat to provide the utmost in corrosion control should you damage the Line-X. This provides a suitable layer to perform repairs to without the corrosion spread you see with powder coating systems. You can use the exact same materials we use to spray as a repair! Because they have zero solvents we can ship this material to all 50 states.
Name:  2624EAE3-EDCC-4665-B33E-46992E19E8B4_zpsl9ehdaxc.jpg
Views: 610
Size:  315.2 KB
Name:  4AB0BF21-DE65-4D8A-8991-51F16D179403_zps0ajlqefe.jpg
Views: 613
Size:  146.7 KB

We are constantly trying to improve to better the end user performance on our systems. Our primer methods and application specs are always under the microscope for us to decrease future issues providing long-term protection for our customers. For instance, our White Ultra application has been updated recently to provide a much-improved cleanability. The recent Freeman 42 was our first boat utilizing this.
Name:  0BE0453F-1E4D-4D7A-9205-268F77124711_zps3n7kimst.jpg
Views: 605
Size:  174.4 KB
Name:  FFFD78C2-F79B-428F-A6FB-93F0ACA9CE3C_zps0sw8lwmm.jpg
Views: 609
Size:  115.8 KB
Name:  A134CF42-EC41-4AFE-9ED5-CA1DE6E44B8A_zpshvec9bv5.jpg
Views: 611
Size:  153.6 KB
Name:  3ED3479A-E846-4A07-9EB3-F303C75FE2C1_zpsdxxm6oz0.jpg
Views: 613
Size:  111.3 KB
Sarasota Line X is offline   Reply With Quote
Old 05-11-2017, 08:08 PM   #3
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Finally, I would like to show you a recent Barker Boatworks second station that needed modification to accommodate a blown hip by the customer. We needed to grind back the Ultra to allow the frame to be modified. I took a few pictures as this shows the Line-X Ultra system we install in full. You can see the corrosion and impact protection provided in these pics.
Name:  DB30C395-DEF8-41A7-9432-F3F4ED76959C_zpsa4smrdqr.jpg
Views: 602
Size:  234.0 KB
Name:  D59E8610-FC44-4C5D-83EE-0EFA5839885F_zpsbhfeu7at.jpg
Views: 612
Size:  168.2 KB
Name:  18B1F38E-C0D1-4D0F-8124-548947C03C66_zpsyr7popwg.jpg
Views: 595
Size:  208.7 KB
Name:  08C67977-873A-4D97-820D-41ECF31522F6_zpssy1zm2dm.jpg
Views: 602
Size:  141.9 KB
Sarasota Line X is offline   Reply With Quote
Old 05-11-2017, 08:25 PM   #4
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Our goal is to keep getting better to provide you the best system available on the market. The look and feel of Ultra are completely different then Line-X truck bed liners. I have been communicating with our scientist product engineers at Line-X and we have even more improvements coming.
Name:  A2F9CE84-82BA-48E2-8568-023240FB0899_zpssoxhbf8h.jpg
Views: 602
Size:  226.3 KB
Sarasota Line X is offline   Reply With Quote
Old 05-13-2017, 08:32 PM   #5
Admirals Club

Join Date: Mar 2009
Posts: 8,442
Default

great stuff
Rod27 is offline   Reply With Quote
Old 05-17-2017, 03:06 PM   #6
Senior MemberCaptains Club Member

Join Date: Jul 2001
Location: Sarasota, Fl.
Posts: 4,221
Default

Informative, thanks.
JDBer94 is offline   Reply With Quote
Old 10-23-2017, 03:22 PM   #7
Senior Member

Join Date: Apr 2014
Posts: 151
Default

how does Ultra differ from XS-650?

Thanks
itchn2go is offline   Reply With Quote
Old 10-24-2017, 07:03 PM   #8
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Quote:
Originally Posted by itchn2go View Post
how does Ultra differ from XS-650?

Thanks
Sorry for the delay. I just got home from the shop. Both are full thickness uv materials. The main differences are in thickness and texture. Ultra is smooth (sexy) and limited to 30-35 mils. 650 is not thickness limited and textures rougher which makes it a non skid while Ultra is great for aluminum parts.
Sarasota Line X is offline   Reply With Quote
Old 10-24-2017, 07:05 PM   #9
Senior Member

Join Date: Apr 2014
Posts: 151
Default

So an Armstrong Engine Bracket would be done in Ultra?


Quote:
Originally Posted by Sarasota Line X View Post
Sorry for the delay. I just got home from the shop. Both are full thickness uv materials. The main differences are in thickness and texture. Ultra is smooth (sexy) and limited to 30-35 mils. 650 is not thickness limited and textures rougher which makes it a non skid while Ultra is great for aluminum parts.
itchn2go is offline   Reply With Quote
Old 10-24-2017, 07:50 PM   #10
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Quote:
Originally Posted by itchn2go View Post
So an Armstrong Engine Bracket would be done in Ultra?
In general we use 650 on them. We glass out the lower section and texture the top. They turn out awesome.
Sarasota Line X is offline   Reply With Quote
Old 10-24-2017, 08:06 PM   #11
Admirals Club

Join Date: Aug 2013
Posts: 37
Default

Sub
fallrun is offline   Reply With Quote
Old 10-25-2017, 04:12 AM   #12
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Quote:
Originally Posted by itchn2go View Post
So an Armstrong Engine Bracket would be done in Ultra?
I found pictures of a bracket we completed with 650-
Name:  F41FEFCA-6936-4B21-8F6A-30F9CE87DA15_zpszrqbop8a.jpg
Views: 493
Size:  192.0 KB
Name:  28DCC75B-CEFE-462C-B0EF-3DBBE19D5998_zpsnfqwixoh.jpg
Views: 492
Size:  112.0 KB
Name:  BBBF28B3-E727-48DB-82D5-52B69E76E77F_zpsusrmnfmy.jpg
Views: 495
Size:  192.2 KB
Name:  DB5CA97C-4CB7-4572-8607-3B364B877164_zpsfyapdybb.jpg
Views: 493
Size:  174.7 KB
Sarasota Line X is offline   Reply With Quote
Old 10-27-2017, 09:19 PM   #13
Senior Member

Join Date: Apr 2014
Posts: 151
Default

thanks. now i have to get mine off the boat
itchn2go is offline   Reply With Quote
Old 10-28-2017, 06:12 AM   #14
Senior Member

Join Date: May 2010
Posts: 471
Default

Quote:
Originally Posted by itchn2go View Post
thanks. now i have to get mine off the boat
Do it. Had my bracket done when I was building my WW instead of the standard powdercoating. Looks great and washes off easily. 2 years now.
Sarasota Line X likes this.
the 66 kid is offline   Reply With Quote
Old 10-28-2017, 06:52 AM   #15
Senior Member

Join Date: Jun 2003
Location: Stuart, FL
Posts: 3,286
Default

Will any boats at the FTL show other than the Freeman's have the Ultra on them?
Lazy Bones is offline   Reply With Quote
Old 10-28-2017, 07:59 AM   #16
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Quote:
Originally Posted by Lazy Bones View Post
Will any boats at the FTL show other than the Freeman's have the Ultra on them?
We delivered our first Seavee setup but I think itís not going to be done in time. Iíll check with Beavertail & Barker
Lazy Bones likes this.
Sarasota Line X is offline   Reply With Quote
Old 11-04-2017, 08:19 PM   #17
Senior Member

Join Date: Jun 2003
Location: Stuart, FL
Posts: 3,286
Default

What was on the leaning post, grab rail, and rod holders on the Billfish 24?
Lazy Bones is offline   Reply With Quote
Old 11-05-2017, 02:24 AM   #18
Senior Member
Marine Advertiser
Thread Starter

Join Date: Nov 2012
Posts: 1,848
Default

Quote:
Originally Posted by Lazy Bones View Post
What was on the leaning post, grab rail, and rod holders on the Billfish 24?
White Ultra we did for a fellow thtír
Sarasota Line X is offline   Reply With Quote
Old 11-05-2017, 12:24 PM   #19
Admirals Club

Join Date: Nov 2011
Posts: 120
Default

Can you color match any gelcoat colors?
harper44 is offline   Reply With Quote
Old 11-05-2017, 03:47 PM   #20
Senior Member

Join Date: Jun 2003
Location: Stuart, FL
Posts: 3,286
Default

Quote:
Originally Posted by Sarasota Line X View Post
White Ultra we did for a fellow thtír
Looked good
