Gauge not reading anything

Old 07-14-2020, 06:55 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2012
Location: Boca Raton, FL
Posts: 385
Received 10 Likes on 9 Posts
Default Gauge not reading anything


Port

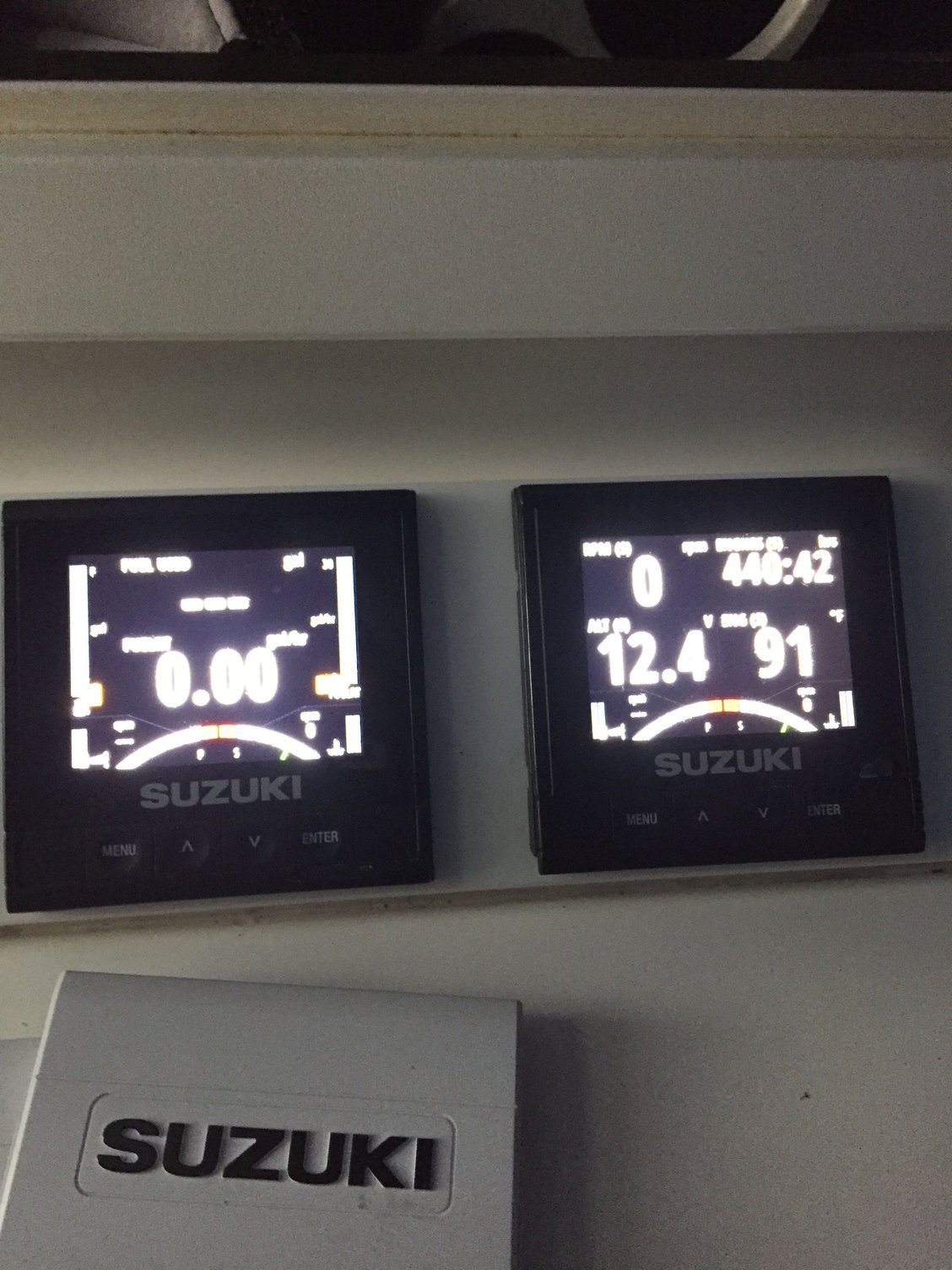

went to check the hours on my 2 350 and the port gauge didn’t display any numbers I also noticed when I tried to trim the port motor the trim indicator didn’t show up either. Starboard motor gauge works fine as far as the display. I have 3 gauges total one for each motor and a third for general info and fuel burn
Old 07-16-2020, 03:59 AM
  #2
Junior Member

Join Date: Jan 2005
Location: North Shore MA
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Default

Each c10 display is tied into a nmea 2000 backbone. This where it gets all it data from the motor.
check the connection from that c10 first. make sure it’s a good connection point.
Old 07-16-2020, 04:10 AM
  #3
Junior Member

Join Date: Jan 2005
Location: North Shore MA
Posts: 29
Likes: 0
Received 0 Likes on 0 Posts
Default

Hey,
I just found another post about engine data not reading on a c10. Aside from checking the nmea 2000 connection.


Search on “DF300 c10 no info” for the whole string but below was the fix.


ychtcptn , 04-26-2020 06:39 AM
Senior MemberCaptains Club Member
Select menu/system/sources then auto select sources
warning comes up warning all sources will be reset, select yes.
I guess it lost the source connection for some reason
Old 07-16-2020, 06:53 PM
  #4
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2012
Location: Boca Raton, FL
Posts: 385
Received 10 Likes on 9 Posts
Default

Thanks Mike for taking the time to walk me through the process of resetting it over the phone.
