2007 Suzuki DF 225 flywheel rubbing on fuel line

Old 07-29-2019, 03:08 PM
  #1
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 23
Default 2007 Suzuki DF 225 flywheel rubbing on fuel line

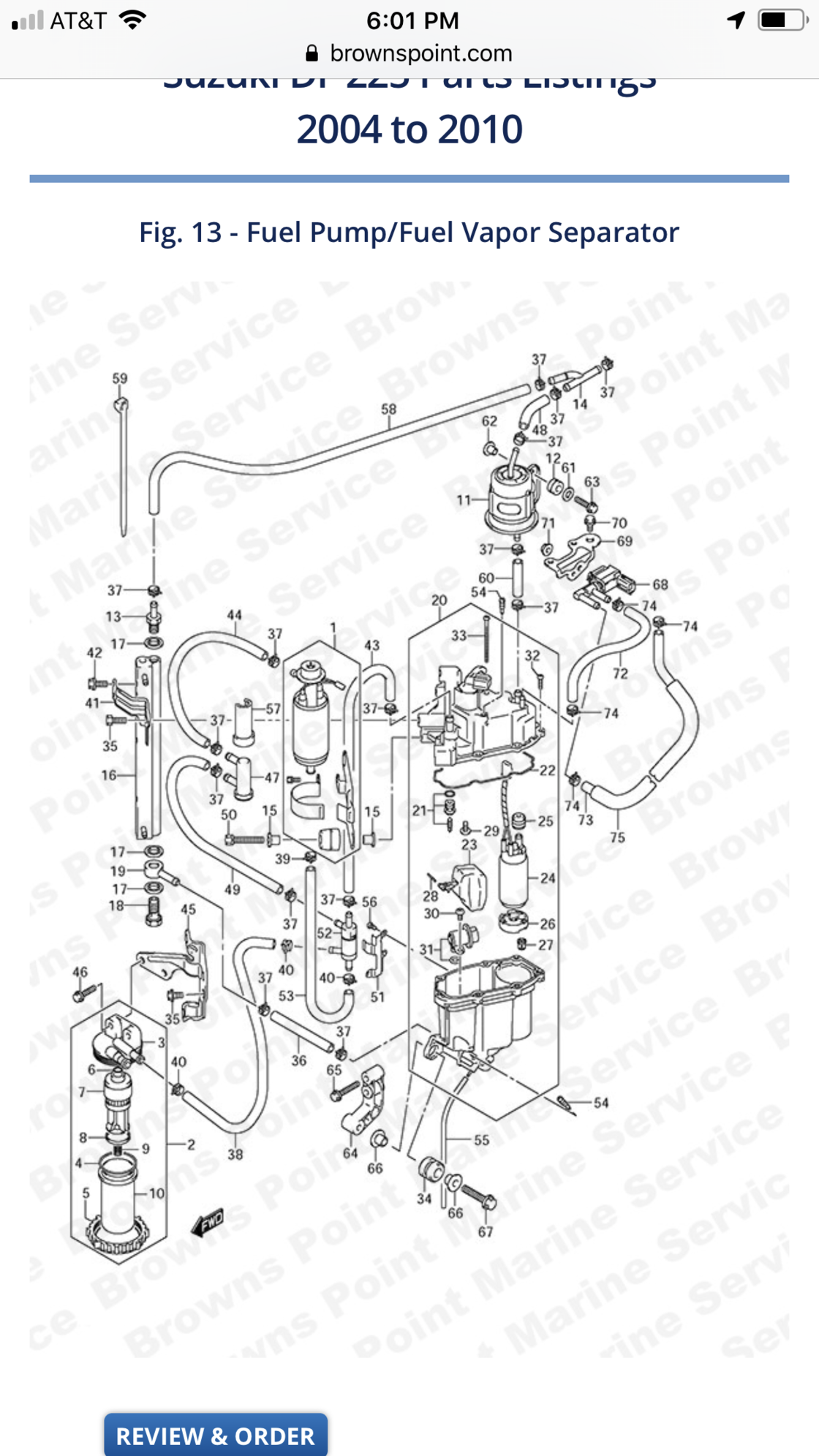

Hope everything is going well. I am wondering if anyone has had this same issue and some solutions they might have had for it. I recently had part number 58 the high pressure fuel line split due to rubbing on the flywheel. I noticed on both my engines the line is run directly underneath it however it manages to contact the flywheel causing it to be slowly cut away. When I tried to re route the line it does not properly seal around the 3 way union causing a leak. Any ideas and suggestions would be greatly appreciated.

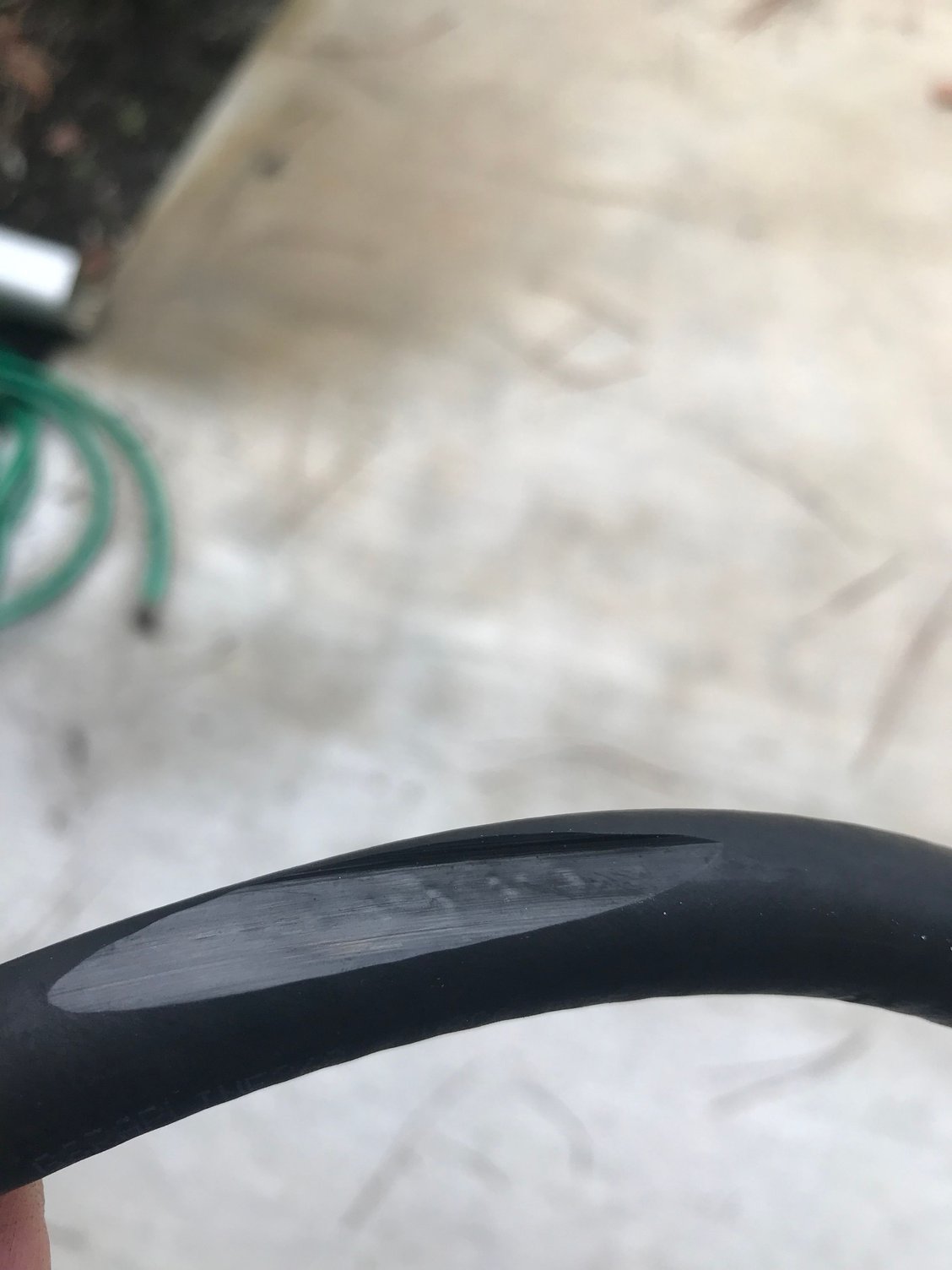

This is what’s left of the good hose I replaced.
