Question radar

question for the experts i need to install a18'' radar on top of my parker pilothouse i should add a bracket or install it directly on the roof ..?? i realize i need to put a big probably 2'' hole in it not to happy about that ...!!
any other suggestions
thanks
Old 06-08-2019, 03:30 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Feb 2010
Location: Long Island, New York
Posts: 2,696
Likes: 0
Received 668 Likes on 344 Posts
Default

What’s the roof made of, and why on earth would you need a 2” hole for a dome?
Old 06-08-2019, 03:36 PM
  #3
Senior Member

Join Date: Dec 2017
Posts: 602
Likes: 0
Received 539 Likes on 248 Posts
Default

5" aft leaning riser. Look at seaview website. You can get an anchor light riser for them as well and 2 wires is all you have penetrating the roof. They come with a rain boot, but use marine silicone where wires penetrate roof.

If you ever plan to put a raft in a canister up there, go with the 10" riser instrad



Last edited by JonisMist; 06-08-2019 at 03:43 PM.
Likes:
Old 06-08-2019, 06:03 PM
  #4
C3D
Senior Member

Join Date: Jul 2017
Posts: 1,241
Received 1,154 Likes on 543 Posts
Default

Originally Posted by JonisMist View Post
5" aft leaning riser. Look at seaview website. You can get an anchor light riser for them as well and 2 wires is all you have penetrating the roof. They come with a rain boot, but use marine silicone where wires penetrate roof.

If you ever plan to put a raft in a canister up there, go with the 10" riser instrad

That's the same mount I use, height under bridges is a minimal add and the bracket lets the radar work well.

Likes:
Old 06-08-2019, 06:57 PM
  #5
Senior Member

Join Date: Sep 2013
Location: mass
Posts: 2,242
Received 186 Likes on 122 Posts
Default

I went the cheapo route. Mounted directly to the top with about 1" of plastic refrigerator washers on the back 2 bolts between the top and radar to give it the forward rake required

Last edited by scarab63; 06-09-2019 at 05:26 AM.
Likes:
Old 06-08-2019, 07:14 PM
  #6
Senior Member
Thread Starter

Join Date: Sep 2008
Location: nashua n.h. usa & rome italy
Posts: 306
Likes: 0
Received 5 Likes on 3 Posts
Default

Originally Posted by sharktripper View Post
What’s the roof made of, and why on earth would you need a 2” hole for a dome?
roof is very solid i am thinking plywood wrap with fiberglass i can stand on it not problem 2" hole to putt the connector true it
Old 06-08-2019, 07:20 PM
  #7
Senior Member
Thread Starter

Join Date: Sep 2008
Location: nashua n.h. usa & rome italy
Posts: 306
Likes: 0
Received 5 Likes on 3 Posts
Default

Originally Posted by JonisMist View Post
5" aft leaning riser. Look at seaview website. You can get an anchor light riser for them as well and 2 wires is all you have penetrating the roof. They come with a rain boot, but use marine silicone where wires penetrate roof.

If you ever plan to put a raft in a canister up there, go with the 10" riser instrad

great idea thanks they will fit a garmin ? and how you like the radar??
Old 06-08-2019, 07:38 PM
  #8
Senior Member

Join Date: Nov 2014
Location: Hammonton, NJ
Posts: 830
Likes: 0
Received 133 Likes on 105 Posts
Default

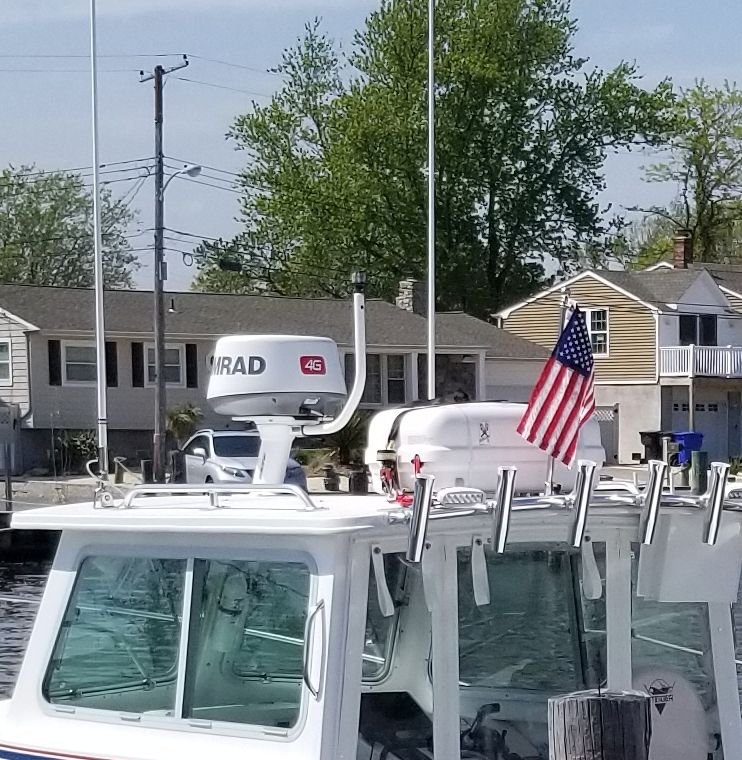

Mine is the white one
Likes:
Old 06-09-2019, 04:27 AM
  #9
Senior MemberCaptains Club Member

Join Date: Feb 2005
Location: Falmouth, MA
Posts: 5,815
Received 488 Likes on 314 Posts
Default

Definitely don’t need a 2” hole!
Old 06-09-2019, 04:49 AM
  #10
Senior Member

Join Date: Aug 2009
Location: CT
Posts: 4,904
Received 2,927 Likes on 1,396 Posts
Default

Originally Posted by JonisMist View Post
5" aft leaning riser. Look at seaview website. You can get an anchor light riser for them as well and 2 wires is all you have penetrating the roof. They come with a rain boot, but use marine silicone where wires penetrate roof.

If you ever plan to put a raft in a canister up there, go with the 10" riser instrad

I’ve had a similar set up for about 10 years. Absolutely love it and RADAR performance is excellent......

Likes:
Old 06-09-2019, 07:09 AM
  #11
Admirals Club Admiral's Club Member

Join Date: May 2018
Posts: 123
Received 14 Likes on 13 Posts
Default

Hole for connector should be 1”
Old 06-09-2019, 09:21 AM
  #12
Admirals Club Admiral's Club Member

Join Date: Nov 2017
Location: New Jersey
Posts: 169
Likes: 0
Received 17 Likes on 12 Posts
Default

You could always cut and reterminate the cable too. They just advise it to stay full length when possible.
Likes:
Old 06-09-2019, 10:11 AM
  #13
Senior MemberCaptains Club MemberPLEDGER

Join Date: Sep 2002
Location: Seaside NJ
Posts: 2,023
Received 372 Likes on 169 Posts
Default

Definitely elevate it, might need a bit of pitch as well, depends on the attitude at different running speeds. Elevating the radar will help get the beam over your rocket launcher aft and the bow rail forward as well as clearance over your skull. I mounted mine with a 5" aft raked Sea View with a stern light on my 23 Steiger. Hole for the Garmin plug was 1 1/4", no need for a 2" hole. The hard top on your parker is plywood cored, drill your hole and then seal the raw edge with epoxy before running the cables and attaching the mount
Likes:
Old 06-09-2019, 10:19 AM
  #14
Senior MemberCaptains Club MemberPLEDGER

Join Date: Sep 2002
Location: Seaside NJ
Posts: 2,023
Received 372 Likes on 169 Posts
Default

Different brand of boat but some good info in this thread when I asked the same question as yourself. The process should be identical for your Parker

Adding radar to hard top
Likes:
Old 06-10-2019, 07:10 PM
  #15
Senior Member
Thread Starter

Join Date: Sep 2008
Location: nashua n.h. usa & rome italy
Posts: 306
Likes: 0
Received 5 Likes on 3 Posts
Default

thanks to all for all the great info ...i like the mount with a search light on the front ...i will start look online ..!
Old 06-10-2019, 07:39 PM
  #16
Admirals Club Admiral's Club Member

fireisland1's Avatar

Join Date: Jun 2011
Posts: 5,013
Received 2,473 Likes on 1,092 Posts
Default

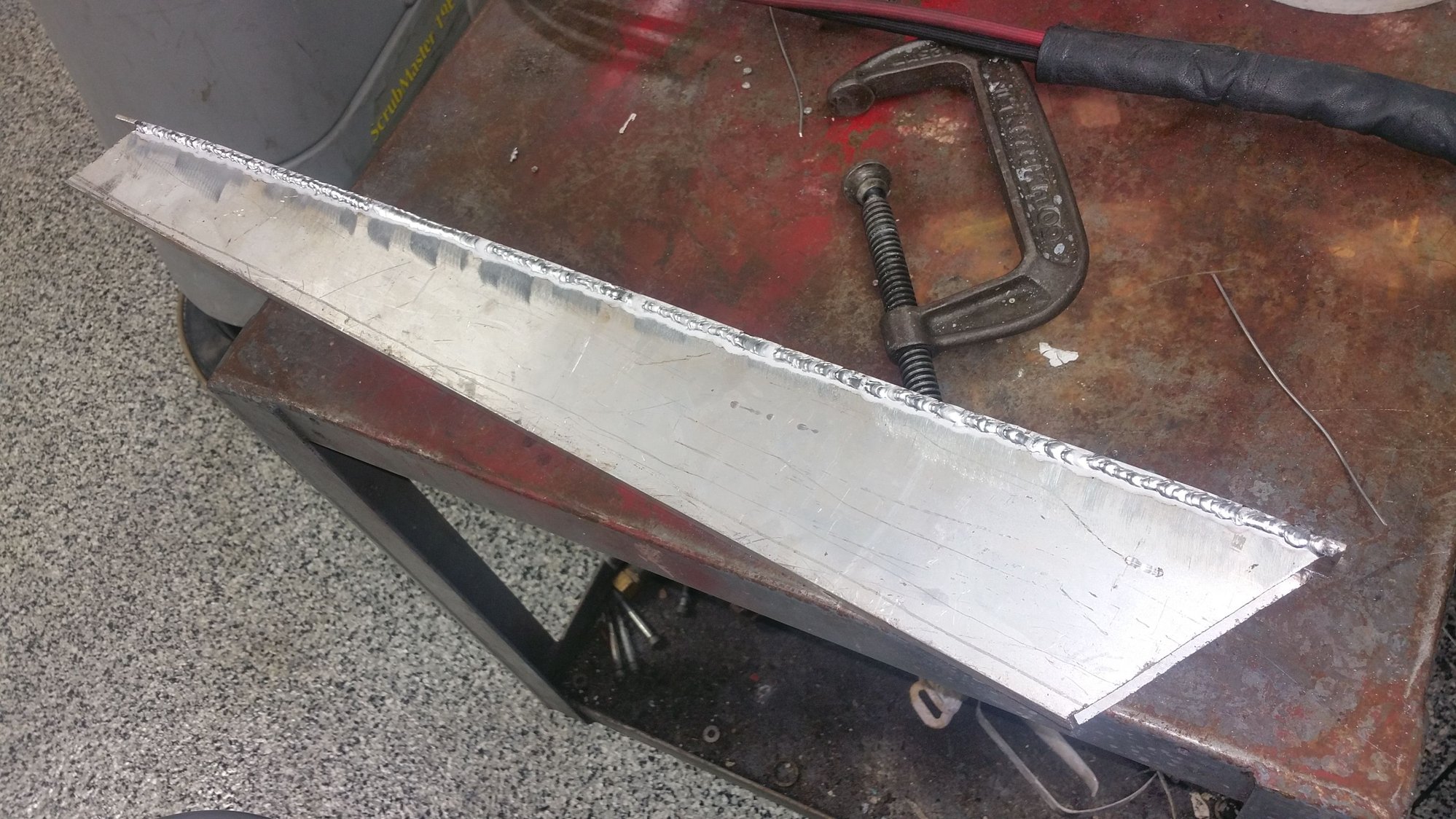

Old 06-10-2019, 08:07 PM
  #17
Admirals Club Admiral's Club Member

fireisland1's Avatar

Join Date: Jun 2011
Posts: 5,013
Received 2,473 Likes on 1,092 Posts
Default

Likes:
Old 06-11-2019, 07:54 AM
  #18
Senior MemberCaptains Club Member

Join Date: Feb 2005
Location: Falmouth, MA
Posts: 5,815
Received 488 Likes on 314 Posts
Default

Originally Posted by dillydilly5 View Post
I would definitely not cut and re terminate. These are high frequency and the connection being as designed is very important for performance (radio frequency engineer)
huh? it is a standard cat 5 cable & connector w/crossover pinout carrying low level digital data signals. all analog RF signals are in the unit itself. very easy to cut & crimp a new connector on. best to do it on the 'display' end to leave the factory connector intact on the radar end which will be more weatherproof.
Likes:
Old 06-11-2019, 03:13 PM
  #19
Senior Member

Join Date: Aug 2011
Location: North Shore, MA
Posts: 2,471
Received 2,706 Likes on 1,140 Posts
Default

Agree with Chainsaw. Get yourself a RJ-45 terminating kit and it's a breeze. The only trick is getting the cable lined up correctly in the jack before crimping. You definitely want your radar up and angled unless you never get on plane.

The mounts above are very nice but I've always wondered why you don't you get a blind spot having the bracket higher than the dome and so close? Is it too close to interfere? I went with a Scanstrut tower for my install and my dome is higher than everything except my downriggers when they are in the "way up" position.
Old 06-11-2019, 05:46 PM
  #20
Senior Member

Join Date: Nov 2014
Location: Hammonton, NJ
Posts: 830
Likes: 0
Received 133 Likes on 105 Posts
Default

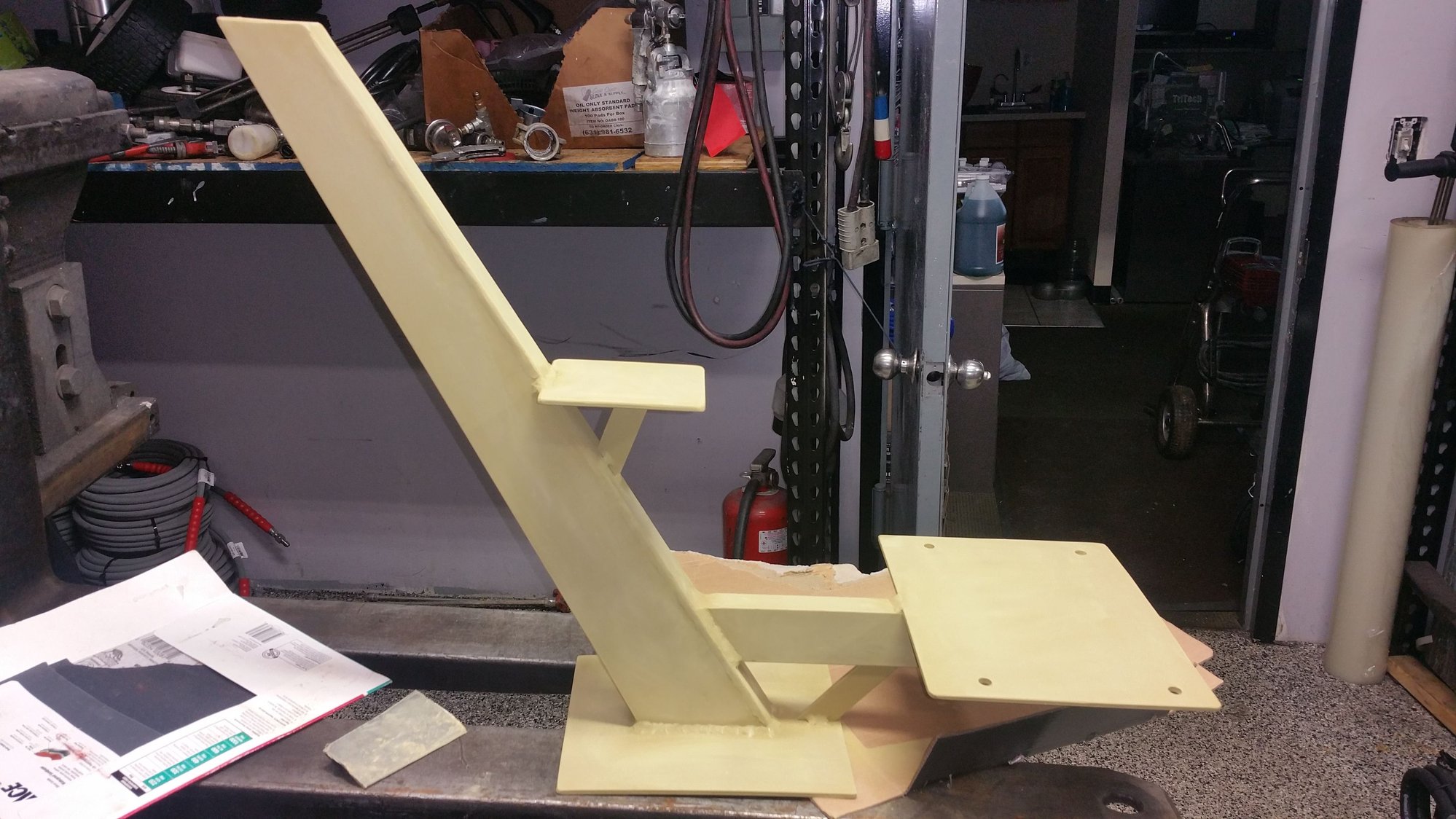

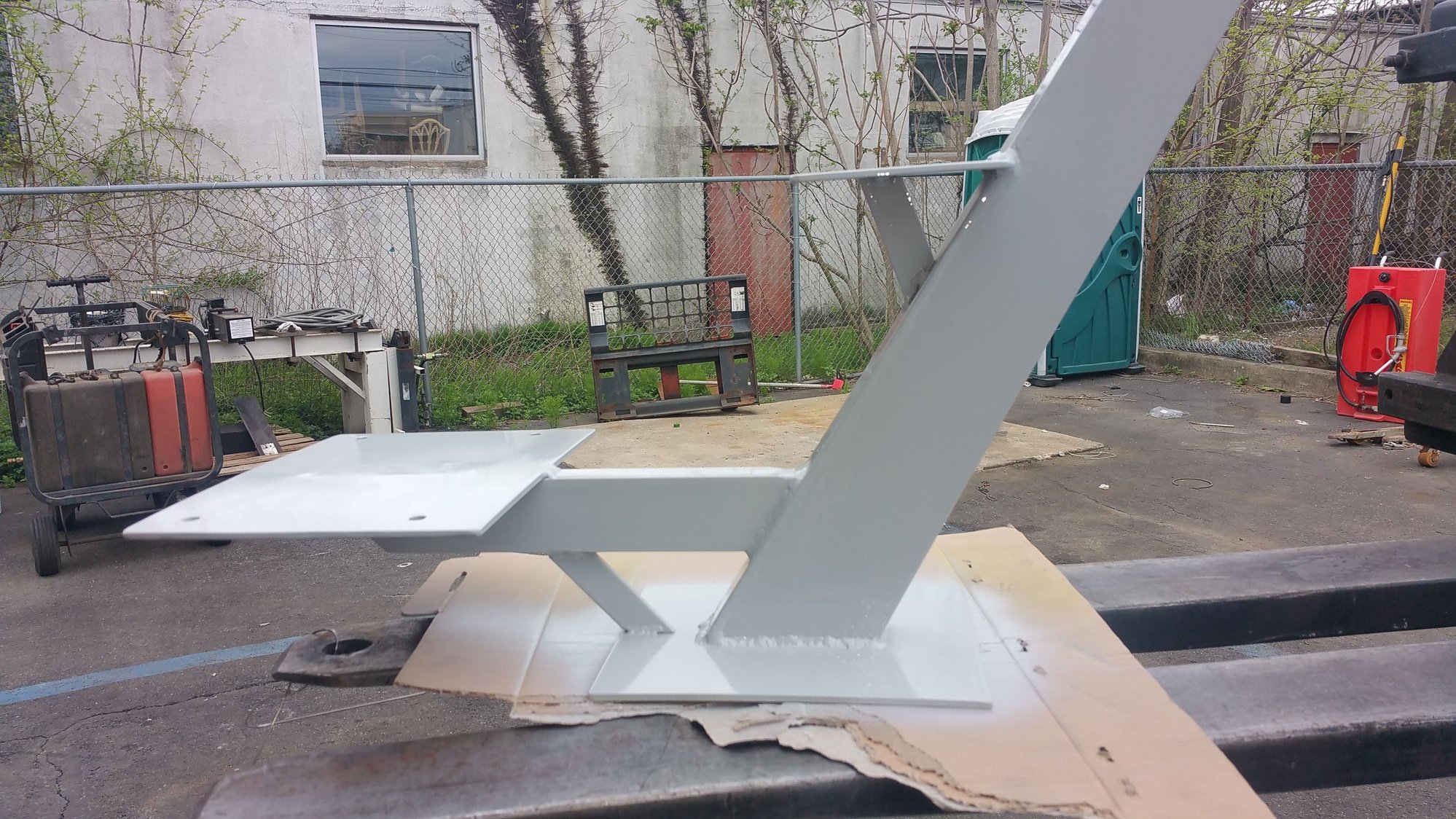

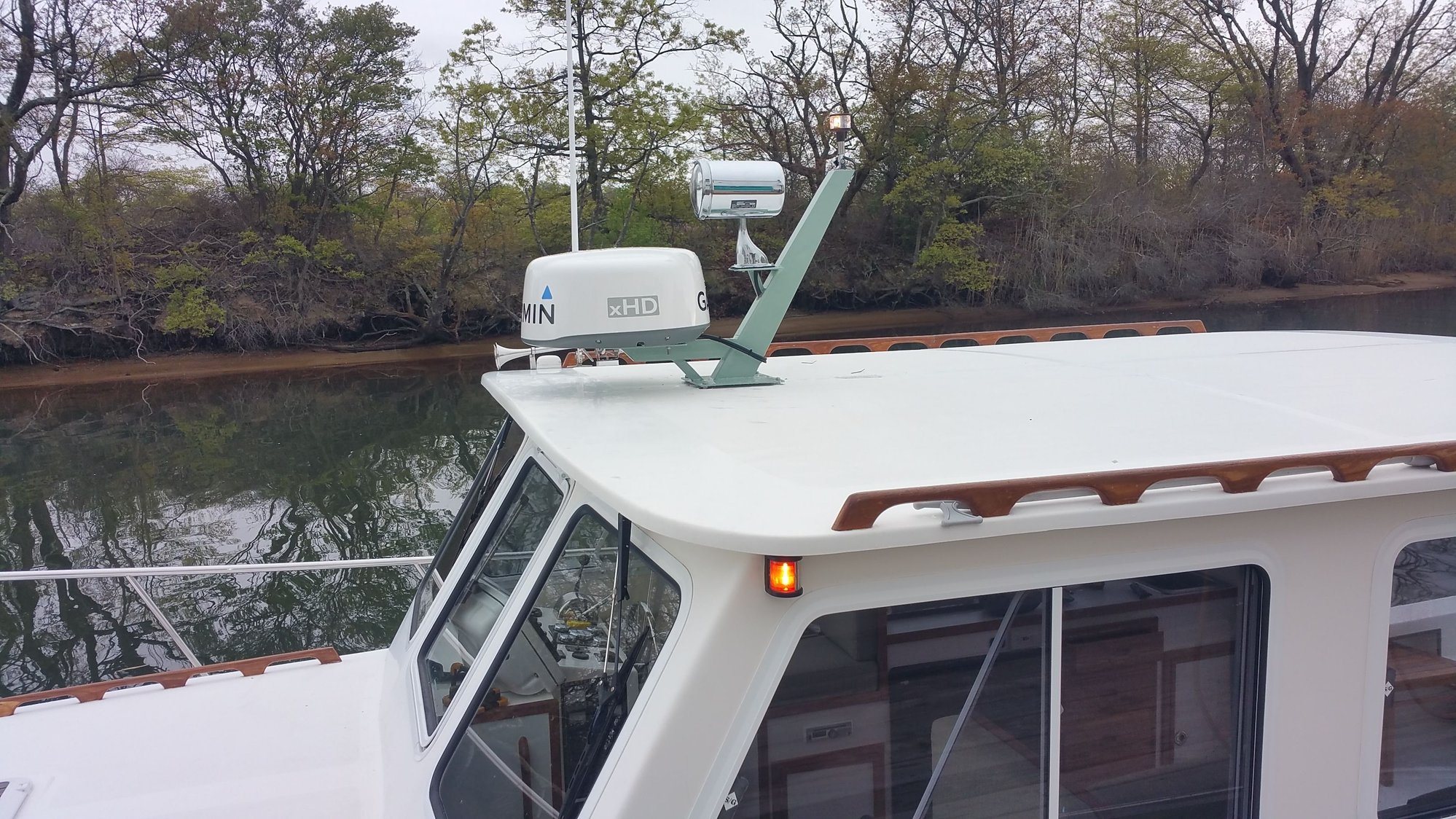

I went with the Scanstrut composite because I heard that the 18xHD was loud and I felt that a metal one would transmit the sound into the PH would be less. Like I said I absolutely love the mount but don't like the light off to the side. Most people don't even notice but I do. Fireisland1 that one you made is awesome, you have some talent there! I actually didn't have to drill any extra holes all of the cables went through the existing anchor light hole. AS I have posted in previous threads, my radar improved greatly with a 4 degree wedge.
