NEW custom switch panel photos - TONS of images

Notices

NEW custom switch panel photos - TONS of images

Old 05-22-2014, 07:01 PM
  #1
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default NEW custom switch panel photos - TONS of images

This has been a crazy couple of months for New Wire Marine... really seeing tons of orders and many from right here on THT. I finally scrapped together enough time to get a post with a few of our recent switch panel projects.

We are really doing a lot of custom etched and backlit rockers lately. It's a really neat product and has a lot of benefits. We're also doing quite a bit of larger dash panels with cutouts for both gauges and larger electronics. We can precision CNC holes for chartplotter units and others with just the PDF of the mounting template.

Check these out:

This is a THT member we've done several switch panels for on several boats... these are custom etched rocker switches:

Name:  customrockerswitches_zpsc2e713cf.png
Views: 3017
Size:  844.3 KB

Here's a nice little switch panel set with both illuminated rockers and a backlit logo. We also cut his ignition hole on this guy. The second tiny little panel features both a rocker and an engraved symbol... all of this possible on a variety or material colors and prints (this one happens to be carbon fiber):

Name:  custompanelwithbacklightedlogo_zpscd6d8f2e.png
Views: 3030
Size:  800.4 KB

This was an interesting little project. This customer had an old panel with only 4 or so toggle switches, plus all these gauges... we packed 8 (larger) rocker switches in this thing. You can really fit a lot in a small space if you try:

Name:  Donziboatdashpanel_zps07624d46.jpg
Views: 2896
Size:  23.4 KB

This customer wanted BLING! backlights galore, custom switches... he's competing with another member of a popular forum for most decked out boat. We hope this helps push him into the lead. This was one of 2 linked together switch panels, when the nav lights come on - BAM - 6 backlit images and 18 switches pop on. But I'm getting ahead of myself, backlit photos to follow down this thread:



This is a backlit matching panel set in carbon fiber. This customer is going to install an existing ignition switch over the plug on the smaller panel. The blank dash panel is to cover a hole in his console with a matching material.

Name:  customrockerpanelsetwithactuators_zpsd228ef8e.png
Views: 3357
Size:  503.7 KB

Here's a large dash panel with Garmin cutout like I mentioned before:

Name:  custommarinedashpanel_zpse10b0b41.png
Views: 2942
Size:  327.9 KB

Some more backlit switches on our carbon fiber material:

Name:  Custommadeilluminatedrockerswitches_zps29168984.png
Views: 2929
Size:  504.5 KB

Again, custom cut rocker switches on carbon fiber... I think it really looks great in a glossy finish.

Name:  carbonfibermarinerockerswitchpanel_zps632b92c2.png
Views: 6977
Size:  1,023.6 KB

Here's that switch panel with the boat name engraved w/o the lights on or logo lit up:

Name:  custombacklitswitchpanelwithlogo_zps3029c328.png
Views: 2950
Size:  703.2 KB

Another carbon panel shot:

Name:  customcarbonfiberrockerswitchpanel_zps10b40a25.png
Views: 2891
Size:  347.9 KB

That tall skinny panel again:

Name:  customboatelectricalpanel_zps96289e51.png
Views: 2896
Size:  340.5 KB

OK, this one is interesting. This is actually Carling MS series toggle switches. This was a specific customer request. These toggle switches actually have a built in circuit breaker, and trip to a center position when current is exceeded. They are kind of like A-Series mechanical breakers from Carling, but have the standard toggle look. They also feature a gasket around both the shank and the retaining (shock screw carling calls it) screw to really waterproof the thing.

These have the same width as the A-series too, so we were able to use our 150A buss bars in the back... this thing is built like a beast:

Name:  boattoggleswitchpanel_zps61e0e741.png
Views: 3347
Size:  916.3 KB

This image, compared to the first has none of the switches on... see the indicators are off?

NewWireMarine is offline
Old 05-22-2014, 07:10 PM
  #2
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

Alright... still going here. This dash panel has holes for gauges and custom cut and backlit rocker switches... told you they were popular:

Name:  boatgaugepanel_zps49b80a75.png
Views: 2843
Size:  846.2 KB

Here's the one with the logo backlights on! Pic didnt turn out the best, but you get the picture:

Name:  Custombacklitrockerswitchpanel_zpsa9510335.jpg
Views: 2747
Size:  27.0 KB

In this image of the Four Play panel (haha... four play... get it?) the backlit boat name is not on, but the night time switch indicators are. Notice that the nav switch is lit up at both the top and the bottom. That's b/c it's a Double Pole Double Throw that turns both the bow running lights and stern all round light on. In the down position it's in anchor only mode:

Name:  boatilluminatedrockerpanel_zpsbe8c6796.png
Views: 2832
Size:  769.1 KB


A nice switch panel with breakers. These circuit breakers being assembled into the panel make installing really easy. We wire everything up so there is only one power input and outputs are labelled with heat shrink label according to the switch label:

Name:  boatswitches_zps85a1b689.png
Views: 3316
Size:  505.0 KB


a metallic panel with chartplotter and gauge cutouts (and rocker switches):

Name:  boatswitchpanelwithcustomswitches_zpsf7313d86.png
Views: 2810
Size:  553.3 KB

This one was for a Donzi boat:

Name:  boatdashpanelwithlogo_zps2e178d91.png
Views: 2821
Size:  451.8 KB

A large dash panel here:

Name:  boatgaugepanelwithswitches_zpsc1045f06.png
Views: 2784
Size:  301.4 KB

ah... here you can see the pre-cut holes for the electronics better:

Name:  boatdashpanel_zps2d287231.png
Views: 2901
Size:  536.2 KB

Another boat switch panel with lighted rockers

Name:  boatelectricalpanel_zps332fb5d9.png
Views: 2966
Size:  386.9 KB

In this shot you can see the switches with the lights on:

Name:  backlitcustomrockerswitchpanels_zps2d56e2b7.png
Views: 4434
Size:  508.7 KB
NewWireMarine is offline
Old 05-22-2014, 07:24 PM
  #3
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

This switch panel set was made for a custom built center console. I like the non-square, but still symmetrical look these two panels bring to the console. I'll see if I can get him to get me a picture installed in the boat.

This set has matching red backlit logo engravings:

Name:  barracudaboatworks_zpscf970110.png
Views: 2801
Size:  326.3 KB

Another view of them:

Name:  logobacklightingonswitchpanel_zps5fef8818.png
Views: 2789
Size:  395.2 KB

This has been posted before, but with different switches on:

Name:  backlitboatswitchpanel_zps134b2d18.png
Views: 2859
Size:  715.3 KB

This electrical panel picture has the backlights going... really readable at night:

Name:  lightedrockerswitchpanel_zps5b65c937.png
Views: 2801
Size:  881.7 KB

This is a neat photo b/c it was pretty dark. See how easy it is to read the labels?

Name:  backlitcarbonfiberelectricalpanel_zpsc6df81ef.png
Views: 2779
Size:  367.3 KB

This is a blank panel set we did for a guy in wood grain material. These were REALLY strange shapes we had to duplicate. We were able to send him proofs to cutout and test fit. He never even had to mail us a thing:

Name:  woodgrainboatswitchpanel_zps082e3d9d.png
Views: 2782
Size:  459.2 KB

I actually really like the look of custom actuators on a white panel:

Name:  whiteswitchpanelwithcustomrockers_zps9e31be85.png
Views: 2755
Size:  315.8 KB

looks great when lit up too:

Name:  switchpanelreadableatnight_zpsaa1f1e8c.png
Views: 2753
Size:  342.3 KB

an even darker image lit up for night time reading of your switch loads:

Name:  electricalpanelatnight_zps1098c193.png
Views: 2791
Size:  291.5 KB

Talk about a unique shape!

Name:  boatswitchpanelwithgaugeholes_zps05caaee8.png
Views: 2798
Size:  444.4 KB

These were actually not fully custom panels, but this customer made them himself on our Design-A-Panel tool:

Name:  setofmarineelectricalpanels_zps692dae39.png
Views: 2997
Size:  505.4 KB

A white panel with gauge cutouts:

Name:  customboatswitchpanelinwhite_zps8d54ed95.png
Views: 2974
Size:  440.6 KB

Well that's all I've got for now. Please check out our website and contact us if you have any questions.

You can also get an instant online price estimate day or night on your own custom boat switch panel right here: http://newwiremarine.com/fully-custom-panels/
NewWireMarine is offline
Old 06-10-2014, 05:23 PM
  #4
Senior Member

Join Date: Nov 2011
Location: Boynton Beach, FL
Posts: 1,287
Default

Man these look great, and I am about to look to get some for my venture. However what is the turn around time?

I want the switches in "Landscape Mode" so sideways. Basically on my boat the switches run up the both sides of my console. What do I need to do to have the orientation rotated 90 degrees?

Last edited by brittonv; 06-10-2014 at 05:34 PM.
brittonv is offline
Old 06-12-2014, 09:26 AM
  #5
Senior Member

Join Date: Apr 2010
Location: South Fl.
Posts: 538
Default

Originally Posted by brittonv View Post
Man these look great, and I am about to look to get some for my venture. However what is the turn around time?

I want the switches in "Landscape Mode" so sideways. Basically on my boat the switches run up the both sides of my console. What do I need to do to have the orientation rotated 90 degrees?
I too am interested.
finbuster1 is offline
Old 06-12-2014, 10:00 AM
  #6
Junior Member

Join Date: Jun 2014
Posts: 1
Default Stainless rocker switch panels?

Does anyone know of where to get stainless rocker switch panels? Just like standard rectangular ones. I have Tiara Pursuit for salmon fishing and I'm looking for some switch panels for my downriggers. I don't need anything fancy just durable as the plastic ones that I have been using keep cracking!

Thanks for the help!
Intheboat1 is offline
Old 06-12-2014, 12:57 PM
  #7
Admirals Club Admiral's Club Member

Navatech's Avatar

Join Date: Apr 2013
Location: Miami Gardens FL
Posts: 5,933
Default

Question, currently my boat is 32 volt... Sometime in the future I will have to rewire for 24 volt... Are the switches you provide OK with both voltages?!... To be specific, the EXACT same switch is capable of working with both 32 and 24 volt?!...

The reason I ask is that I want to avoid having to redo any panels I want made after I change over to 24 volt...
Navatech is offline
Old 06-14-2014, 11:59 AM
  #8
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

Originally Posted by brittonv View Post
Man these look great, and I am about to look to get some for my venture. However what is the turn around time?
Sorry, just checking this thread... If you don't see a response right away, feel free to email me at esteele@newwiremarine.com and tell me to get over here and respond!

lead times vary some depending on work load... even in the Spring rush right now though, we're spending between 0 and 4 days or so of iteration with your panel designer, then about 1 week production lead time from date of payment until we ship it to you.

Originally Posted by brittonv View Post
I want the switches in "Landscape Mode" so sideways. Basically on my boat the switches run up the both sides of my console. What do I need to do to have the orientation rotated 90 degrees?
We pre-print onto standard vertical switch configurations, but like many examples on this thread we can also custom etch switches. When we do this we can set it up in nearly any configuration you can imagine, 45deg or 90deg or whatever you need! All that will be worked out during the custom panel design process... remember each customer gets a proof of both the panel and switches for review/comment/revision, or print out and test fit!

Thanks for asking!
NewWireMarine is offline
Old 06-14-2014, 12:05 PM
  #9
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

Originally Posted by Navatech View Post
Question, currently my boat is 32 volt... Sometime in the future I will have to rewire for 24 volt... Are the switches you provide OK with both voltages?!... To be specific, the EXACT same switch is capable of working with both 32 and 24 volt?!...

The reason I ask is that I want to avoid having to redo any panels I want made after I change over to 24 volt...
In this case the switches we typically use would not work for you. I'd probably suggest using carling A-series switchable circuit breakers on this one and engraving the panel with labels. Usually the problem with switching voltages is the light in the switch can't handle it, not the contacts.

thanks!
NewWireMarine is offline
Old 06-14-2014, 12:13 PM
  #10
Admirals Club Admiral's Club Member

Navatech's Avatar

Join Date: Apr 2013
Location: Miami Gardens FL
Posts: 5,933
Default

Originally Posted by NewWireMarine View Post
In this case the switches we typically use would not work for you. I'd probably suggest using carling A-series switchable circuit breakers on this one and engraving the panel with labels. Usually the problem with switching voltages is the light in the switch can't handle it, not the contacts.
Thanks for your answer... I guess the new panels will have to wait until I rewire the boat for 12/24 volts and replace the current 12/32 volts setup...
Navatech is offline
Old 06-14-2014, 12:31 PM
  #11
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

We're really excited about these. We've been working some some new technology that allows some really large... really bright backlights on our switch panels. This is one of the first working models we've done, and are really impressed with the way it came out.

This is going to open up a ton of options for boats, from simply a larger backlights than we previously could have done, to even easier to red text, to superbright, custom cut courtesy lights... the list goes on.

We're excited to start offering this for those really looking to jazz-up their boats with truly custom, super bright lights.

Name:  largebacklitswitchpanel_zps466d8e43.png
Views: 2787
Size:  644.6 KB

Name:  backlitlogoonswitchpanel_zpsd557593c.png
Views: 2812
Size:  574.1 KB
NewWireMarine is offline
Old 09-01-2014, 07:30 PM
  #12
Senior MemberCaptains Club Member

Join Date: Aug 2007
Location: New Kent, VA
Posts: 2,273
Default

New Wire Marine did my panels, exceptional work and service, I would not hesitate to use them again, Eric and I have some plans for some cool stuff soon!
TripleCrownNC is offline
Old 09-10-2014, 06:19 AM
  #13
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Apr 2013
Location: Baton Rouge, LA
Posts: 4,692
Default

Do you have any pictures of a panel you have done with toggle switches and backlit labels on the panel? We are about to start 2 Fountain CC rewires, and are in need of more water resistant switches than the current rockers.
davidwademarine is offline
Old 09-16-2014, 02:25 PM
  #14
Senior Member

Join Date: Jun 2009
Location: Port Neches,TX & Dallas,TX
Posts: 390
Default

Originally Posted by davidwademarine View Post
Do you have any pictures of a panel you have done with toggle switches and backlit labels on the panel? We are about to start 2 Fountain CC rewires, and are in need of more water resistant switches than the current rockers.
x2!! My rockers last about half a season.
No Promises is offline
Old 09-17-2014, 03:27 PM
  #15
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

Originally Posted by davidwademarine View Post
Do you have any pictures of a panel you have done with toggle switches and backlit labels on the panel? We are about to start 2 Fountain CC rewires, and are in need of more water resistant switches than the current rockers.

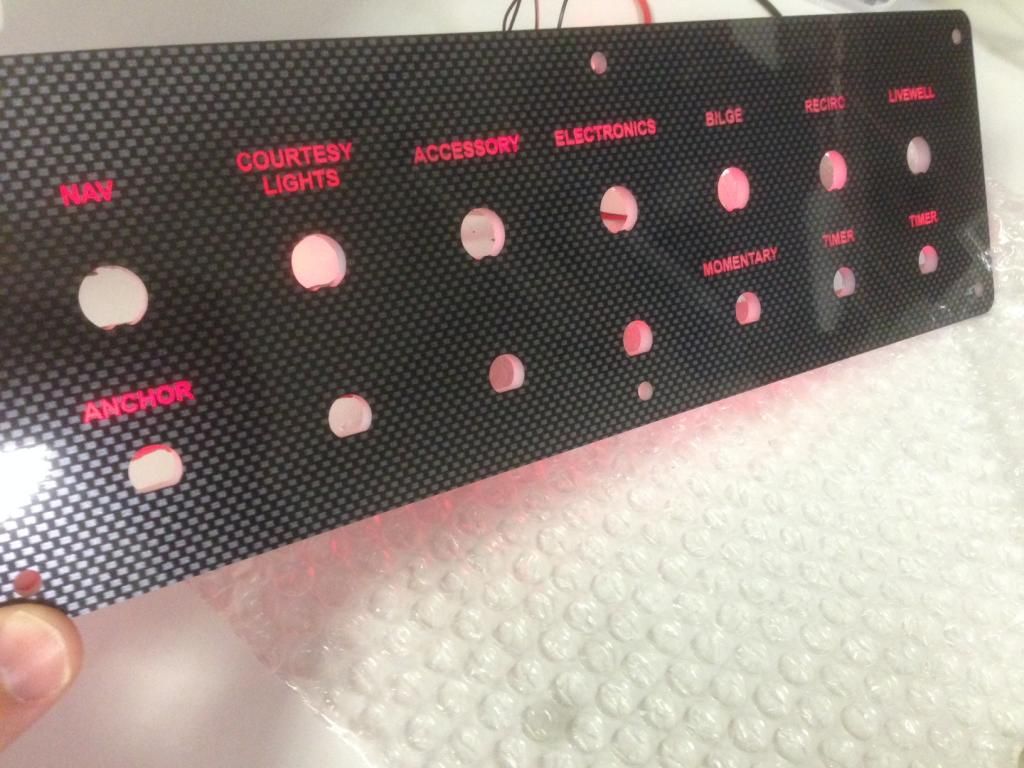

We don't do a ton of those, but happen to actually have one being assembled right now... not finished yet, but here's a shot of red backlighting on our carbon fiber print material.

Name:  photo5_zps6b29e11c.jpg
Views: 2793
Size:  102.6 KB

I'm wondering though what switches you're using? You know Carling does make a non-sealed variety too. We use the sealed type of course rated at IP68... I've never heard of someone consistently having quality issues with these switches.
NewWireMarine is offline
Old 10-03-2014, 11:17 AM
  #16
Senior Member

Join Date: Apr 2010
Location: South Fl.
Posts: 538
Default

Originally Posted by NewWireMarine View Post
We don't do a ton of those, but happen to actually have one being assembled right now... not finished yet, but here's a shot of red backlighting on our carbon fiber print material.



I'm wondering though what switches you're using? You know Carling does make a non-sealed variety too. We use the sealed type of course rated at IP68... I've never heard of someone consistently having quality issues with these switches.
this is what im looking for but ..... can it be done in white carbon fiber?
finbuster1 is offline
Old 10-12-2014, 09:17 AM
  #17
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Posts: 190
Default

Originally Posted by finbuster1 View Post
this is what im looking for but ..... can it be done in white carbon fiber?
Theoretically it could be done. Lighter material doesn't lend itself well though to engraving and backlighting b/c the substrate must be light in color for the light to pass through.

You end up with labels that you can't read well during the day... would look fine at night, but most folks want readability both day and night.

Contact us on our website if you'd like to discuss your particular case: http://newwiremarine.com/contact/

thanks!
NewWireMarine is offline
Old 11-15-2016, 03:37 PM
  #18
Admirals Club Admiral's Club Member

Join Date: Apr 2012
Posts: 81
Default

I am looking at the website and only see on style of cover. I do not see the style above. I just see the red background with white overlay pic...

Am I missing something?
SquidBrand is offline
Old 12-21-2016, 12:19 PM
  #19
Admirals Club Admiral's Club Member

Join Date: Mar 2007
Location: Central, NJ
Posts: 576
Default Panel

looking to get a panel to replace this one.
size is 8.5"W x 11.5"L.
I prefer black or carbon fiber look with white engraving.
Pre-wired with LED indicators and push button switches.
Attached Images
MTS Sportfishing is offline
Old 12-21-2016, 03:19 PM
  #20
Junior Member

Join Date: Jan 2016
Posts: 5
Default

Subscribed...I don't want to lose this thread!
Dave123 is offline

Thread Tools
Search this Thread
