New Blacked out dash style

Old 01-10-2020, 12:17 PM
  #21
Senior Member

Join Date: Jun 2003
Location: Stuart, FL
Posts: 3,923
Received 516 Likes on 245 Posts
Default

do you also supply a template for drilling holes for the studs.

fwiw, I bought a switch panel and a couple of cover up panels from you a few years ago and yall were great to deal witj.
Old 01-11-2020, 07:32 AM
  #22
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

Originally Posted by Lazy Bones View Post
do you also supply a template for drilling holes for the studs.

fwiw, I bought a switch panel and a couple of cover up panels from you a few years ago and yall were great to deal witj.
Sure, absolutely we can make a template - either paper or wood. Thanks!
Old 01-13-2020, 08:15 PM
  #23
Senior Member

Join Date: Aug 2019
Location: Your moms house
Posts: 114
Received 46 Likes on 34 Posts
Default

Awesome looking panels !
Old 01-14-2020, 05:43 AM
  #24
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

Originally Posted by Karl1971 View Post
Awesome looking panels !
Thanks!

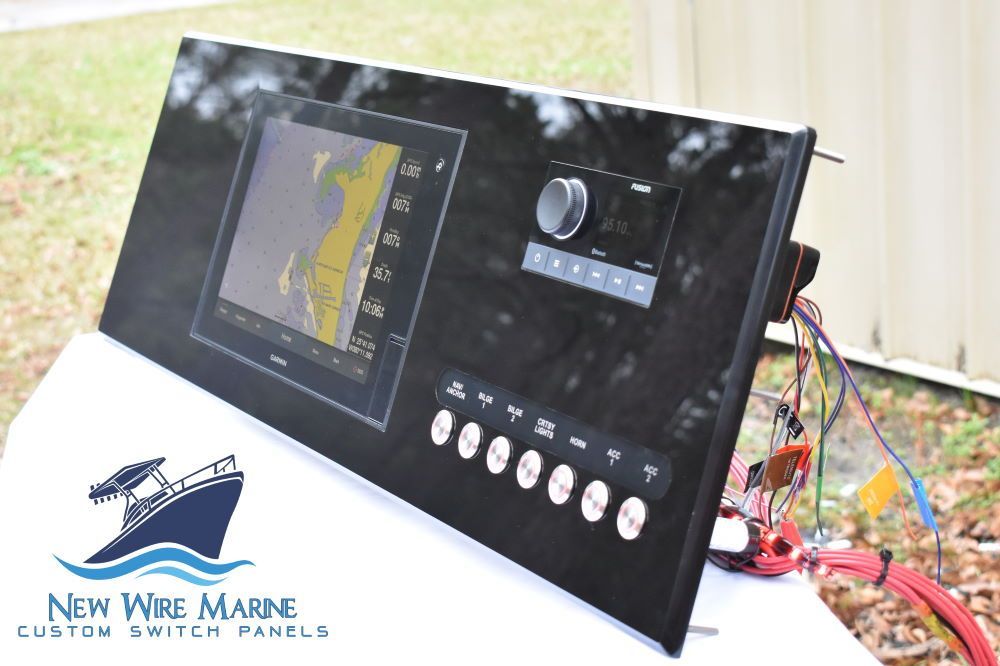

Here's another one that went out yesterday... a Boston Whaler dash panel. 1/2" marine acrylic. Bocatech resettable switches (red rings), backlit text... and Reverse Flush Mount Garmin and Fustion unit. Came out really nice.


Acrylic Dash Panel - Whaler w/ push button switches
Old 01-28-2020, 07:18 AM
  #25
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

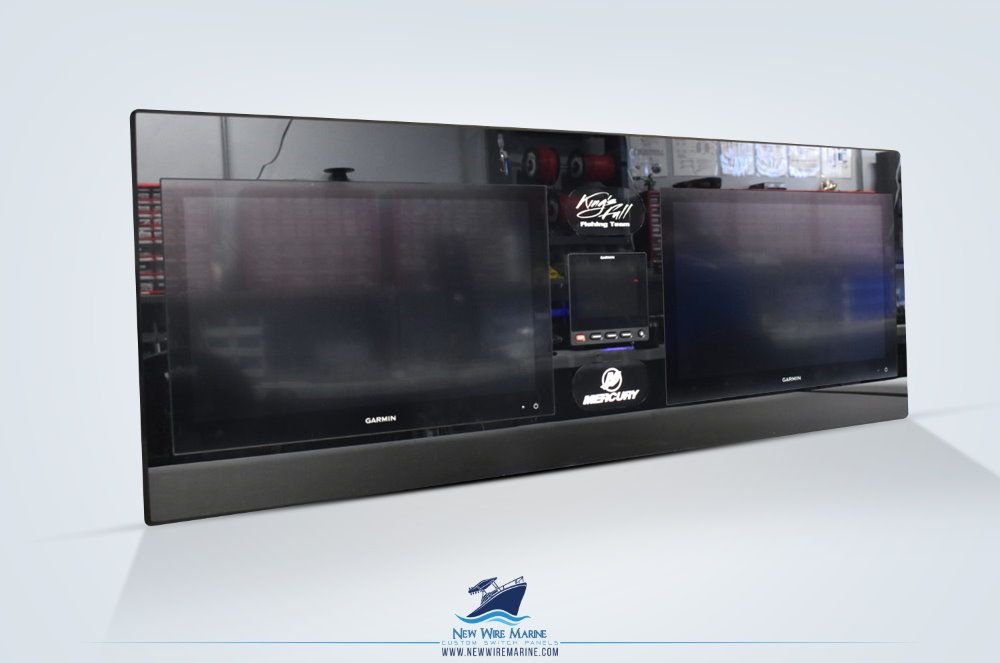

One more... this was for a Bluewater. Two backlit logo etchings. Twin Garmin 8616's using the "Reverse Flush" mounting method we developed (see graphic above) to make the screens all flush.

Even Reverse Flushed the AP - which is thicker than the acrylic so needed a custom bracket. We're the place to go if you want this style dash.

This was also stud mounted with 12 stainless studs. If you tried to use reverse painted clear acrylic, you would have had to glue this in, and could not Reverse Flush the instruments... we're really developing a unique offering on these dashes, which are becoming really popular.


Boat dash panel in acrylic with two Garmin 8616's - all true "reverse flush" mount
Old 01-28-2020, 07:44 AM
  #26
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

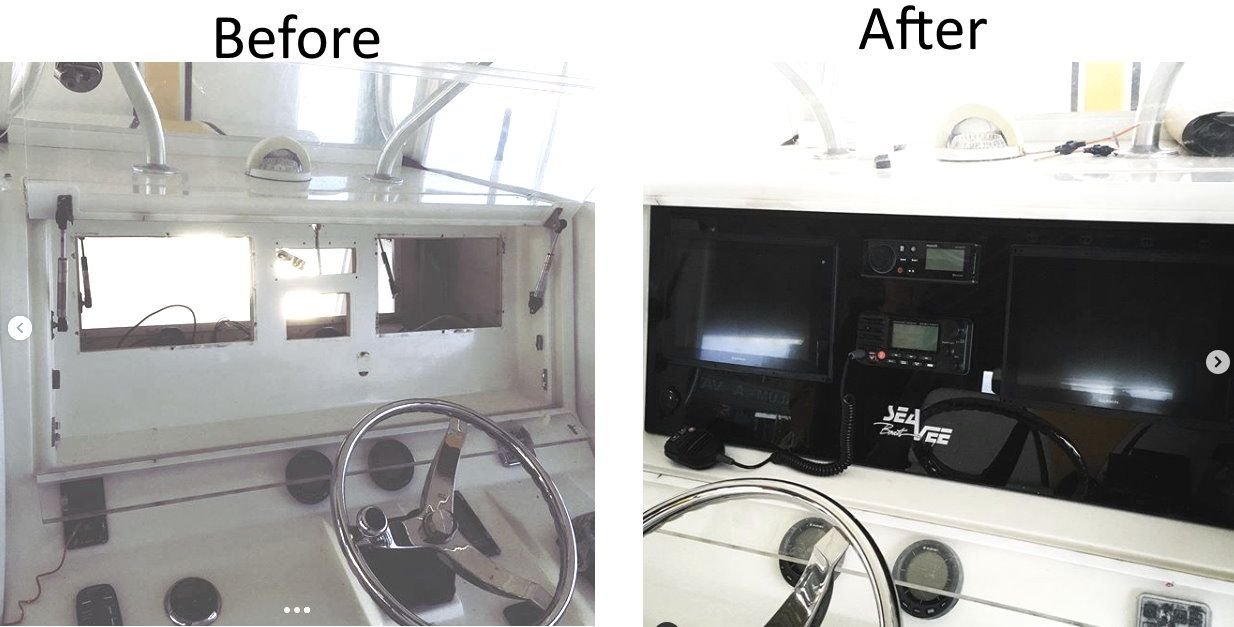

Another one going in this week right here in Charleston on a SeaVee... Contact us for a quote today.

Don't delay - spring is coming

SeaVee Dash Panel Replacement
Likes:
Old 02-06-2020, 03:09 PM
  #27
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

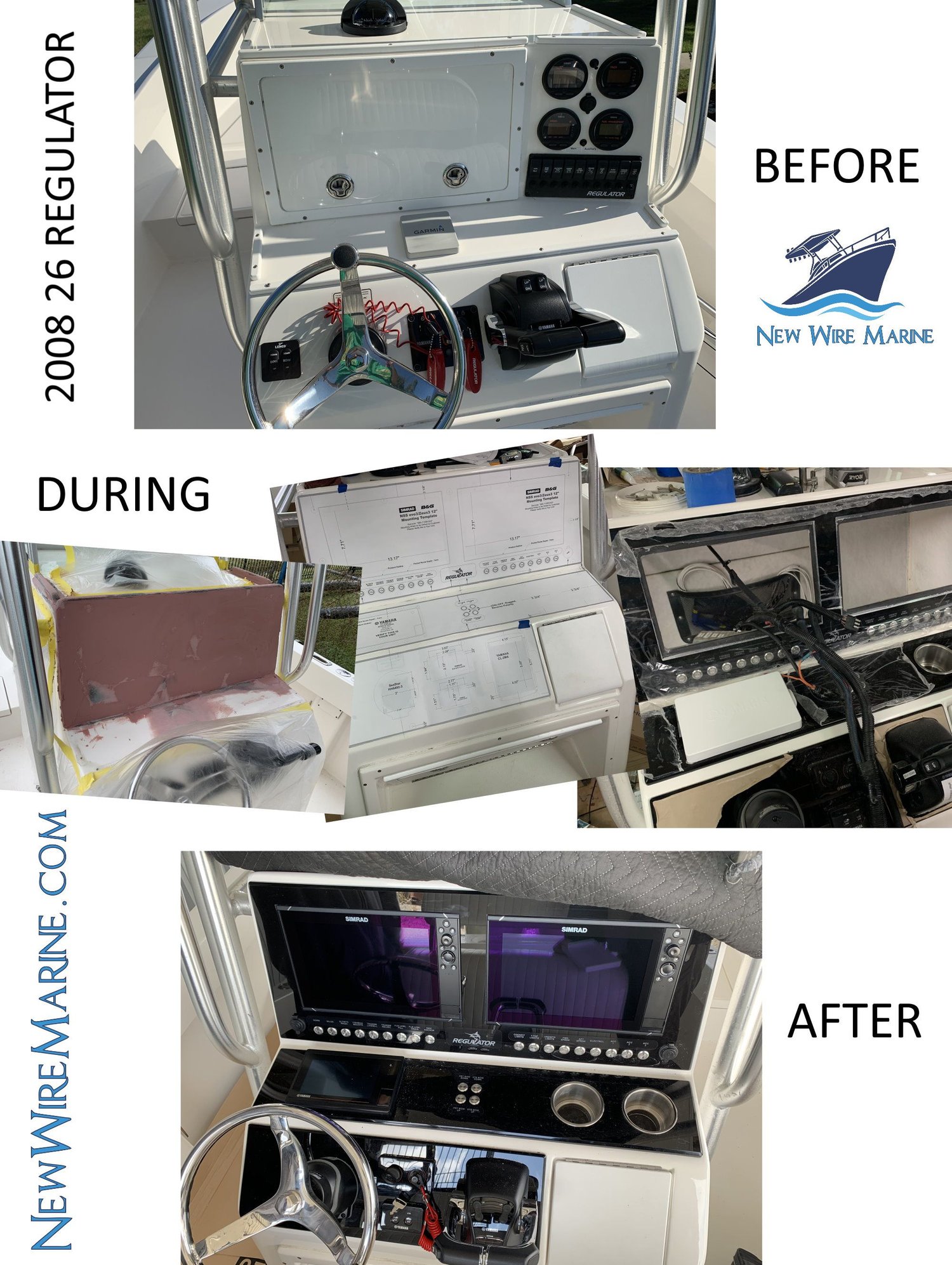

Here's a really neat project we did for a 26 Reg. 3 Piece dash panels... including trim tabs. Checkout how we were able to get the proof printed at kinkos to verify fit and layout during the proof review process.


2008 26 Regulator Dash Remodel
Likes:
Old 02-16-2020, 09:37 PM
  #28
Admirals Club Admiral's Club Member

Join Date: Jul 2019
Location: Greenport, NY
Posts: 410
Received 118 Likes on 78 Posts
Default

Do you guys have templates for boats you've used in the past? I have a 1999 Pursuit 3000 Express and the dash seems to be slightly off symetrically with many rounded corners that I can't seem to get a perfectly accurate template of to draw up on AutoCAD. I wanted to send in your RFQ sheet with a template to get a price and some options but I don't want to send bad information on sizing.
Old 02-17-2020, 07:49 AM
  #29
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

Originally Posted by Gali View Post
Do you guys have templates for boats you've used in the past?
Gali :

A - Yes, sometimes we do have previous panels on file
B - Even if we do, we were reliant on a previous customer's measurements - so it needs to be verified by you
C - We don't have a Pursuit 300 Express yet.

So - when it comes to verifying an odd shape we can work from a template you make and mail. Or the old panel if you can stand having your boat non-functioning for a few weeks. Or, sometimes it's not super critical, and a "less-odd-shaped" panel will still work. Also, all our proofs are to scale, and can be taken to a Kinkos or Office Depot and printed out in full size to verify. Or, we can even cut a plywood version to mail and verify. Or sometimes you can take measurements every 2" or so and we can mimic the curves from that. or, or or...

... point is, we have done this thousands of times, and have a variety of tools we can use to work with you to capture the shape well enough to look awesome. Send a picture of your dash and our estimators will work with you on how to proceed.

Exact shape is not necessary to get a quote though. So if you just send the picture, and max height and width... and description of what you're looking for, we can get you an estimate or quote. Please include that you will need an odd shape duplicated if that's the case, so we can estimate accurately. It helps as well to know the tolerances allowable. (eg: +/- 1/8" | +/- 1/4", etc).
Old 02-18-2020, 06:25 AM
  #30
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

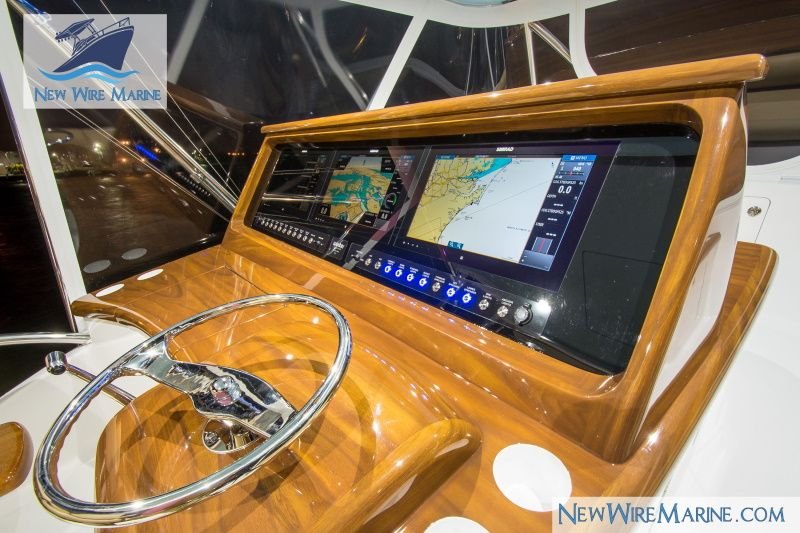

Here's another acrylic panel on a custom built NC sportfish. Three reverse flush Simrads.


Glass Helm Pilot Station
Old 02-18-2020, 07:11 AM
  #31
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

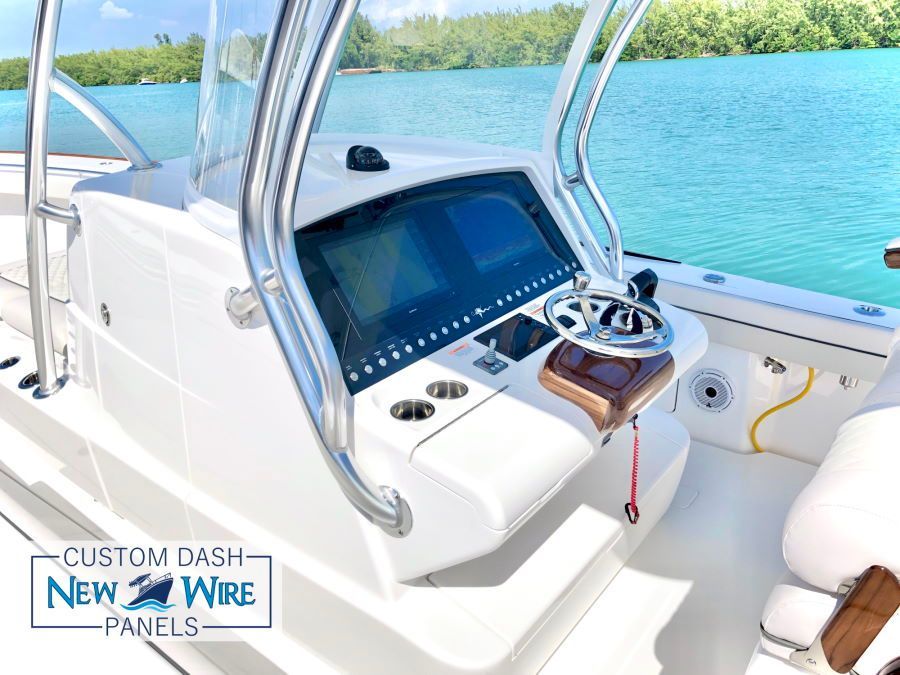

Here's one of our dash panels on a brand new Valhalla at the Miami boat show last week:


Acrylic dash panel - Valhalla Boatworks
Old 03-13-2020, 01:12 PM
  #32
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

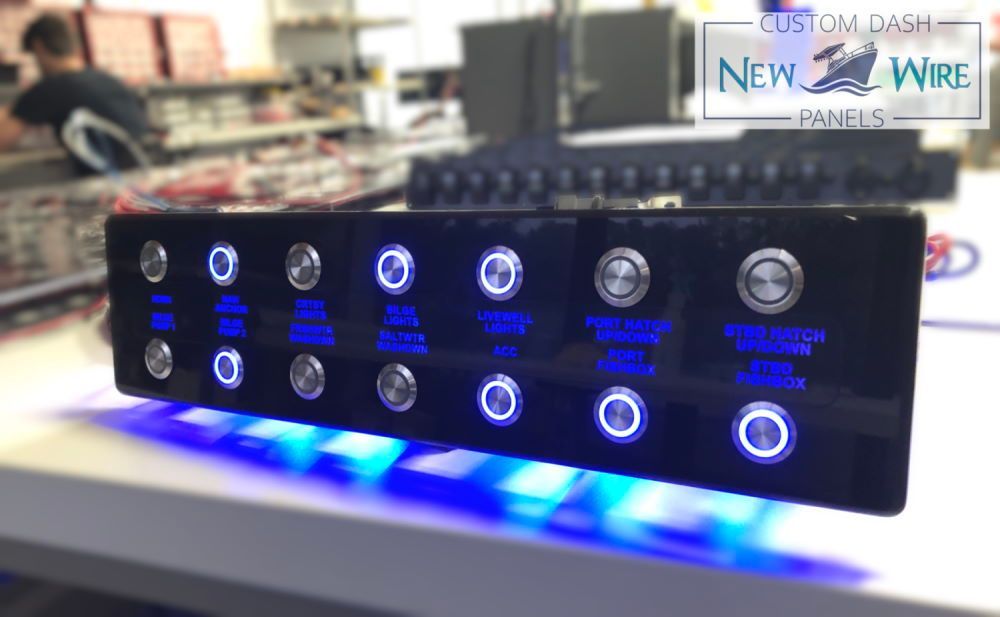

The panels don't have to be large... here's a small little gloss acrylic panel that went out today:


acrylic switch panel with push buttons
Old 03-13-2020, 01:54 PM
  #33
Admirals Club Admiral's Club Member

Join Date: May 2016
Location: Spring hill, FL
Posts: 407
Received 80 Likes on 44 Posts
Default

Love mine nice job thank you.
Old 03-13-2020, 02:30 PM
  #34
Member

Join Date: Jun 2013
Posts: 90
Received 27 Likes on 20 Posts
Default

The gloss black isn't hard on the eyes when out in the sun?
Old 03-16-2020, 02:27 PM
  #35
Admirals Club Admiral's Club Member

Join Date: May 2019
Posts: 92
Received 19 Likes on 12 Posts
Default

subbed. I like the look of the reverse flush mount.

I have twin simrad 12", autopilot and will possible add a vessel view. I might be in contact when I get to the dash. Whats the lead time and cost like?
Old 03-16-2020, 03:18 PM
  #36
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

Lovegettinsnooked - I saw that one come through... such a cool logo, makes me happy.

Hull and Void - It's pretty much a mirror - so yeah, I'd take that into consideration if you're considering acrylic... reality I guess is that most of the area is pretty much screens, which are glossy anyway.

RichardK. - Lead time varies through the year... we're maintaining 2 weeks right now, which is pretty good for mid march in the boat business I think. Cost varies really widely depending on scope, email us some pics and measurements: sales@newwiremarine.com - for this look probably $500 is the low end - $5k is high end with a dozens of switches, logos, backlighting, etching, wiring, etc.
Old 03-17-2020, 01:21 PM
  #37
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

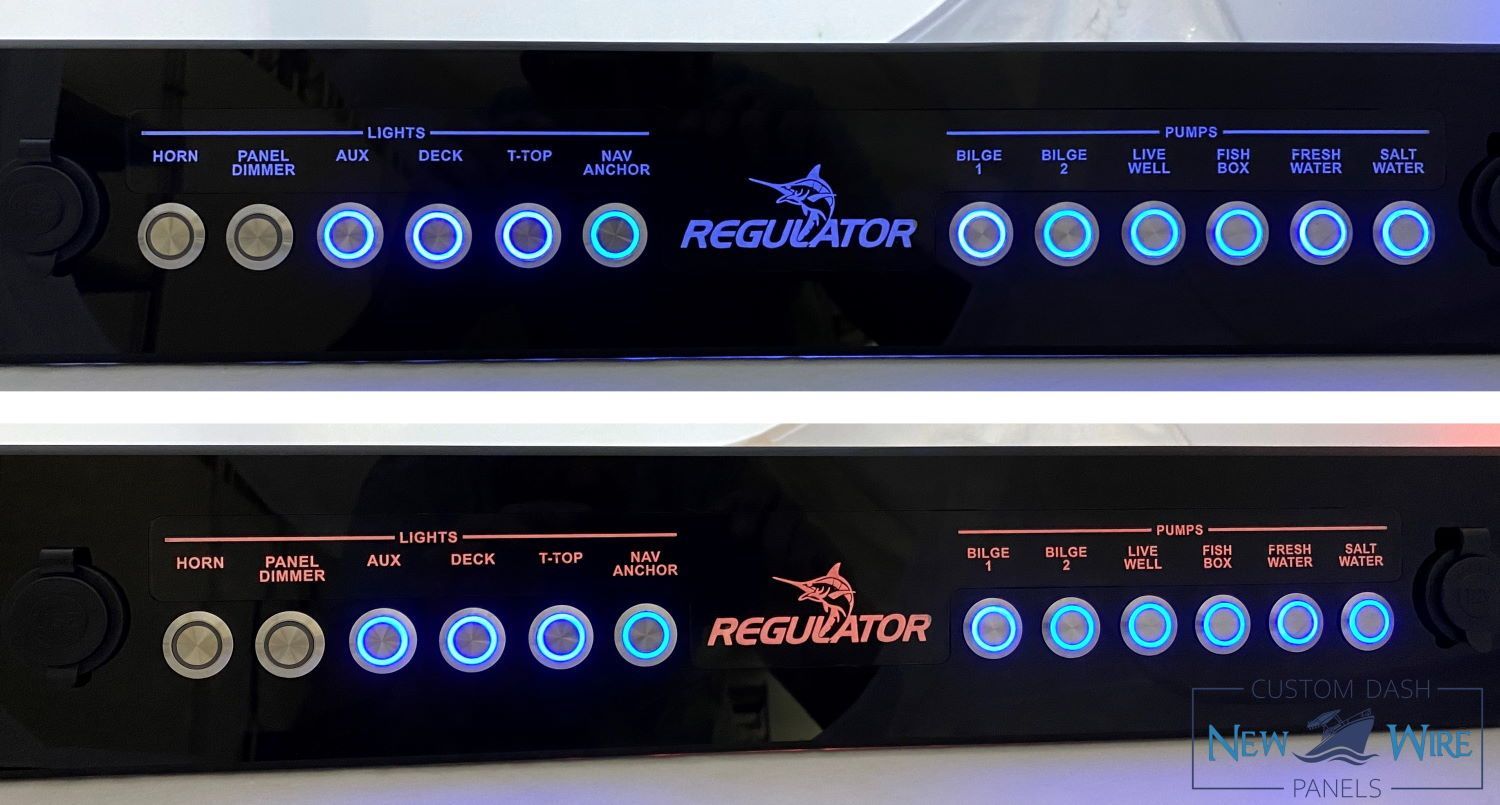

Another Regulator panel going out today with RGB color changing backlights, and push button switches:


RGB color changing switch panel backlighting
Old 04-08-2020, 07:43 PM
  #38
Admirals Club Admiral's Club Member

Join Date: Feb 2008
Location: Dayton, Maryland
Posts: 648
Received 9 Likes on 8 Posts
Default

Looks great! Have you reverse flush mounted an ICOM or Standard Horizon VHF? I'm interested to see how it would look given that their front trim has a taper to it...
Old 04-09-2020, 05:51 AM
  #39
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

Originally Posted by viperkiller View Post
Looks great! Have you reverse flush mounted an ICOM or Standard Horizon VHF? I'm interested to see how it would look given that their front trim has a taper to it...
viperkiller - Yeah, we've looked at at ICOM anyway (and RA70s)... does not work the same way. Since it has a draft / taper it leaves a big crack between the panel face and the unit and just kind of ruins the look IMO. I prefer to surface mount those things... or if you've just got to have everything reverse flushed, move the VHF to another area and put a remote mic where you can reach it.
Old 04-09-2020, 05:52 AM
  #40
Senior Member
Marine Advertiser
Thread Starter

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 412
Received 64 Likes on 45 Posts
Default

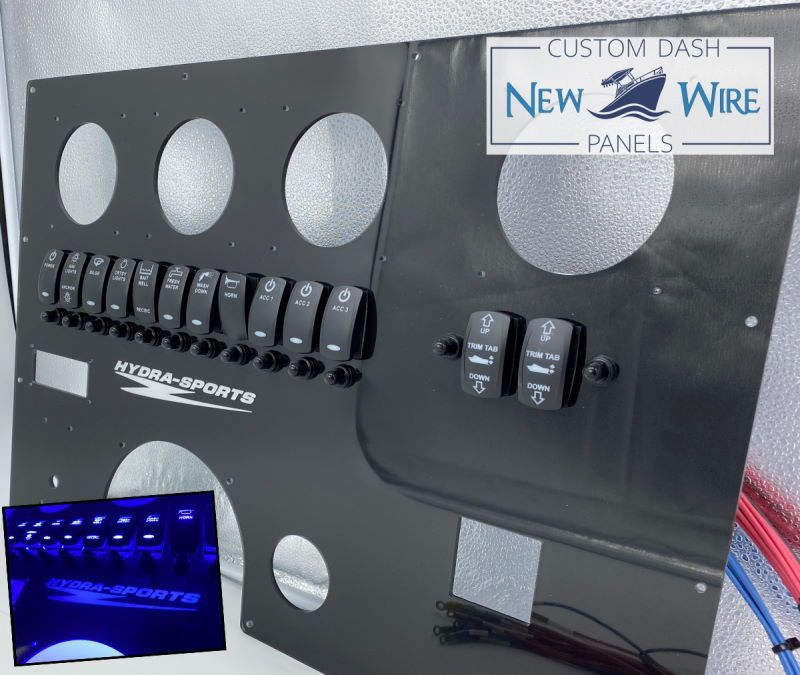

Here's another one for a Hydra Sport with rockers (blue LED).

I try to grab pictures of any gloss black panels with rockers I catch before going out b/c this style seems to attract people who also want the push button look... but rockers really work great with it too!


Hydra-Sports Replacement Dash Panel - blue backlit

Last edited by NewWireMarine; 04-09-2020 at 06:06 AM.
