Question for new wire!

Old 08-11-2019, 02:32 PM
  #1
Senior Member
Thread Starter

Join Date: Apr 2011
Posts: 139
Likes: 0
Received 2 Likes on 2 Posts
Default Question for new wire!

I just had New Wire redo my switch panel. Looks great! But now i want to redo my helm. Get a panel made with new cutouts for my new electronics in that glossy acrylic. My question is. Is there a way to not see the screws? Like can it have bolts coming off the back instead of screws?
Likes:
Old 10-02-2019, 10:13 PM
  #2
Junior Member

Join Date: Oct 2019
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Default Glue flathead studs on the rear side of your panel.

Glue flathead studs on the rear side of your panel.
make thru holes on the console and secure on the rear with Stainless Nylon-Locked Washered Wing-nuts.
Better if you use plastic hardware to avoid corrosion, sizing, and short circuits with wet metal on the inside.
Old 10-03-2019, 02:33 AM
  #3
Senior Member

Join Date: Oct 2013
Posts: 2,308
Received 498 Likes on 284 Posts
Default

Hello, you can glue the studs or if the material is thick enough, drill a hole and run a tap into it, then use threaded bar on the back with washers and nuts, either stainless or even brass. You could also drill shallow and glue nuts into the holes and use short bolts or threaded bar. If your material is thick enough use plastic trim clips, in fact you could glue the trim clips to flat surface and push them into pre-drilled holes. Hope this helps.
Old 10-17-2019, 07:15 AM
  #4
Senior Member
Marine Advertiser

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 377
Received 50 Likes on 32 Posts
Default

Wow, sorry for the delay!

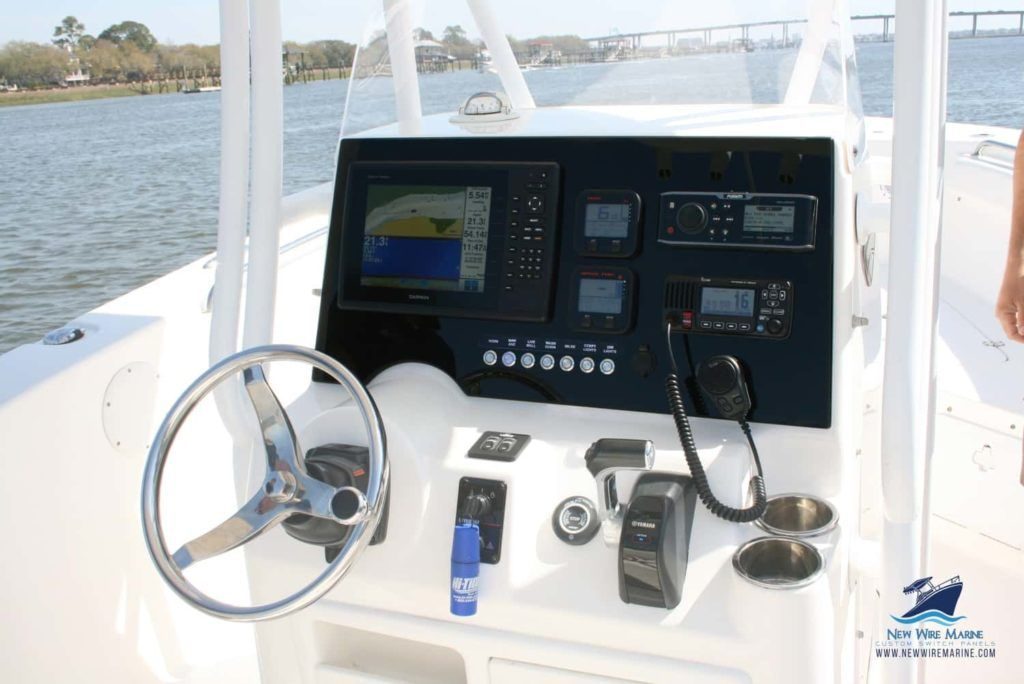

We can complete 'glass bridge' look dash assemblies with zero fastener mounting. Just let us know (https://newwiremarine.com/contact/) Example below:


1/2" acrylic Tidewater dash


Old 10-17-2019, 07:17 AM
  #5
Senior Member
Marine Advertiser

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 377
Received 50 Likes on 32 Posts
Default


39' Yellowfin Glass Bridge Dash with flush MFDs and push button switches

42' Yellowfish Dash Remodel
Old 10-24-2019, 05:49 PM
  #6
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Location: metairie, louisiana
Posts: 287
Received 9 Likes on 9 Posts
Default

Originally Posted by NewWireMarine View Post

39' Yellowfin Glass Bridge Dash with flush MFDs and push button switches

42' Yellowfish Dash Remodel
what does something like that cost? I am redoing a panel on my boat that is 22 1/2” wide by 11 1/2” tall with 3 cutouts.
Thanks in advance
Old 10-25-2019, 06:15 AM
  #7
Senior Member
Marine Advertiser

Join Date: May 2013
Location: Charleston, SC - but ship worldwide
Posts: 377
Received 50 Likes on 32 Posts
Default

Originally Posted by dave504 View Post

what does something like that cost? I am redoing a panel on my boat that is 22 1/2” wide by 11 1/2” tall with 3 cutouts.
Thanks in advance
Varies widely. Is this just the panel? Do you require acrylic or ABS? Do you know the difference? Will the instruments be true flush mounted? Mounting Studs? Do you need a mounting template? Switches? Breakers? Chargers? Batt Switches? Logo etching? Backlighting? Wiring?

A precision routed ABS dash plate might be $150. A complete acrylic "remodel/rewire in a box" might be $3k. So please contact us, and we'd be happy to talk through your specifics (no obligation of coarse)!

Here's a good place to start to learn about how that works: Switch Panel Buyer's Guide. Or just send us an email: sales@newwiremarine.com. Or fill out our e-RFQ here. Or use our Contact Form. Or call (843) 297-8348

Old 10-25-2019, 10:08 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Location: metairie, louisiana
Posts: 287
Received 9 Likes on 9 Posts
Default

Originally Posted by NewWireMarine View Post
Varies widely. Is this just the panel? Do you require acrylic or ABS? Do you know the difference? Will the instruments be true flush mounted? Mounting Studs? Do you need a mounting template? Switches? Breakers? Chargers? Batt Switches? Logo etching? Backlighting? Wiring?

A precision routed ABS dash plate might be $150. A complete acrylic "remodel/rewire in a box" might be $3k. So please contact us, and we'd be happy to talk through your specifics (no obligation of coarse)!

Here's a good place to start to learn about how that works: Switch Panel Buyer's Guide. Or just send us an email: sales@newwiremarine.com. Or fill out our e-RFQ here. Or use our Contact Form. Or call (843) 297-8348
sent an email a few hours ago with all info and pictures. Thanks!
