Raymarine Element 9 vs. Lowrance Live 9

Old 03-19-2019, 10:51 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2018
Location: Lake Erie
Posts: 226
Received 104 Likes on 58 Posts
Default Raymarine Element 9 vs. Lowrance Live 9

Trying to figure out which of these to get. I have Raymarine gear on my BW, but most folks around here run Lowrance (Lake Erie). Gonna be fishing a lot for Walleye, Smallmouth and Musky - using side scan sonar a lot.

Has anyone played with an Element yet? Thoughts? I know it doesn't have a touch screen, but I'm more interested in how well it marks fish.

Thanks!
Old 03-19-2019, 11:19 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Nov 2014
Posts: 1,090
Received 178 Likes on 112 Posts
Default

I have been testing first the Element 9 since December and then the 12 for the last 6 weeks.They are very nice machines at a great price point.Some anglers this is all you need.It is not networkable.It does have Engine enterface capibility.It is a GPS chartplotter that will run Navionics or C-map.It has 4 differnt sonars. Traditional chirp,Sidevision,downvision and 3d.You can switch from 350kh to 1.2 MH for clearer images in sidevision,downvision..Our machines were installed with one of the first thru hulls.It works great.The Element runs on Raymarines new Lighthouse sport software.It is very easy to learn. It is very similar to Lighthouse 3 on the Axiom XL,Axiom,Axiom pro and GS,ES series.I purposely did not read the manual.Had everything figured out in a hour.It marks fish and structure very nice.It has manual or auto,Gain,density and surface filter.I regulary have mine up when viewing a Axiom XL22 with a CP470,CP370 and a RVX1000 all at the same time.It is a great little machine.Raymarine has been advertising the Element since November 18.It was early,even before we started testing them.They were released to the public about a week to 10 days ago.They will start showing up very soon..Capt.Mike
Likes:
CME
Old 03-19-2019, 12:15 PM
  #3
Senior Member

Join Date: Feb 2005
Location: Norway
Posts: 16,354
Likes: 0
Received 1,116 Likes on 906 Posts
Default

Lowrance HDS Live is comparable to Axiom Pro, not Element. Element is a button operated Sonar - Chart plotter combo unit without Ethernet, not a networkable touch MFD like HDS Live.

Elite Ti2 is the Lowrance unit in the same segment as Element. Elite Ti2 has touch and wireless networking.
Likes:
Old 03-19-2019, 07:34 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Nov 2013
Posts: 444
Likes: 0
Received 37 Likes on 36 Posts
Default

I'd have to sy Lowrance HDS Live all day long. In my opinion the best unit out there right now. Quad4 processor, solar max screen (screen doesn't absorb sunlight and get hot, great screen quality in direct sun from all angles, very high resolution images, HDMI In, great 2d sonar, side/down scan. With the quality of the 3in1 active image transducer, I can even run 800khz on side scan and get high quality detail at the distance required for side scan (150ft either side of boat). Before, you were usually running 455khz for side scan, which gives you a bigger cone size, but less detail. Awesome!........ Solid option on the market right now!





Old 03-20-2019, 08:39 PM
  #5
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2018
Location: Lake Erie
Posts: 226
Received 104 Likes on 58 Posts
Default

Originally Posted by abbor View Post
Lowrance HDS Live is comparable to Axiom Pro, not Element. Element is a button operated Sonar - Chart plotter combo unit without Ethernet, not a networkable touch MFD like HDS Live.

Elite Ti2 is the Lowrance unit in the same segment as Element. Elite Ti2 has touch and wireless networking.
To clarify, I don't need networking and I don't care too much about touch screen or button. My main concern is identifying fish.
Old 03-21-2019, 02:14 AM
  #6
Senior Member

Join Date: Feb 2005
Location: Norway
Posts: 16,354
Likes: 0
Received 1,116 Likes on 906 Posts
Default

Then look at Lowrance Elite Ti2 .
Old 03-21-2019, 07:26 AM
  #7
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2018
Location: Lake Erie
Posts: 226
Received 104 Likes on 58 Posts
Default

Ended up buying the Lowrance Live 9. I like Raymarine products - they're pro team just doesn't give enough information on how to use them for fishing. The Elite Ti2 bezel looks like crap on a fiberglass center console flush mount - it's too big.
Old 03-21-2019, 03:44 PM
  #8
Admirals Club Admiral's Club Member

Join Date: Nov 2014
Posts: 1,090
Received 178 Likes on 112 Posts
Default

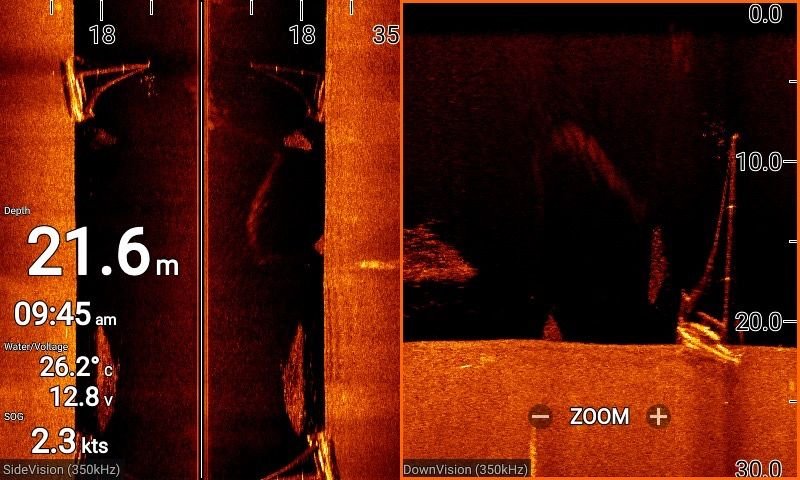

CME, I only have one of the Element.Water was rough.Not a great picture.Capt.Mike

This is what hard bottom looks like on the Element with sidevision.
Old 09-16-2019, 04:17 AM
  #9
Senior Member

Join Date: Sep 2011
Posts: 2,801
Received 198 Likes on 153 Posts
Default

Originally Posted by Daybreaker1 View Post
I have been testing first the Element 9 since December and then the 12 for the last 6 weeks.They are very nice machines at a great price point.Some anglers this is all you need.It is not networkable.It does have Engine enterface capibility.It is a GPS chartplotter that will run Navionics or C-map.It has 4 differnt sonars. Traditional chirp,Sidevision,downvision and 3d.You can switch from 350kh to 1.2 MH for clearer images in sidevision,downvision..Our machines were installed with one of the first thru hulls.It works great.The Element runs on Raymarines new Lighthouse sport software.It is very easy to learn. It is very similar to Lighthouse 3 on the Axiom XL,Axiom,Axiom pro and GS,ES series.I purposely did not read the manual.Had everything figured out in a hour.It marks fish and structure very nice.It has manual or auto,Gain,density and surface filter.I regulary have mine up when viewing a Axiom XL22 with a CP470,CP370 and a RVX1000 all at the same time.It is a great little machine.Raymarine has been advertising the Element since November 18.It was early,even before we started testing them.They were released to the public about a week to 10 days ago.They will start showing up very soon..Capt.Mike
Do you have screen shots from your Element?
Old 09-18-2019, 04:11 AM
  #10
Senior Member

Join Date: Sep 2011
Posts: 2,801
Received 198 Likes on 153 Posts
Default

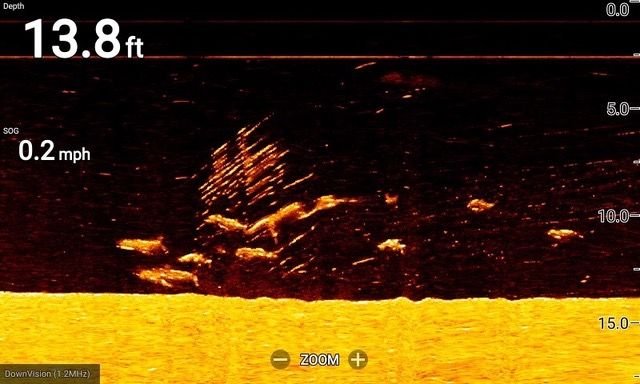

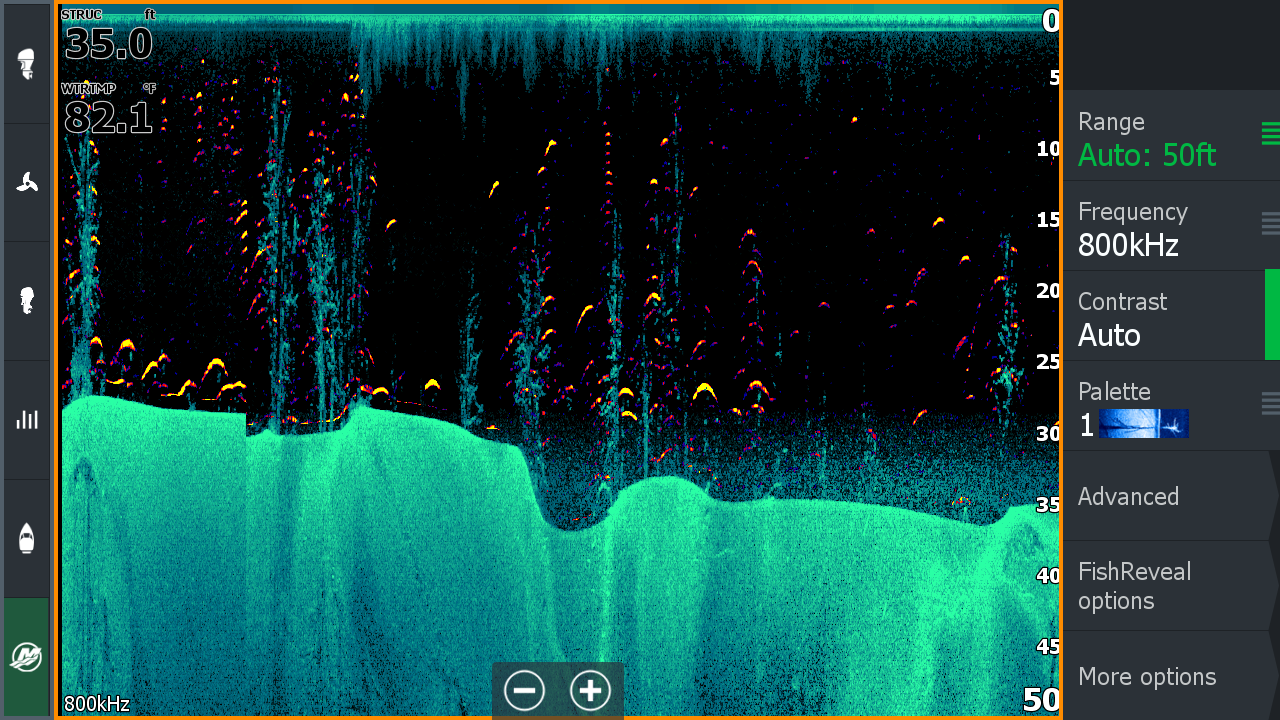

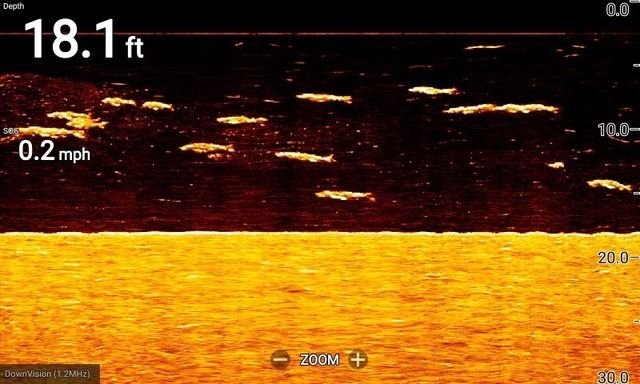

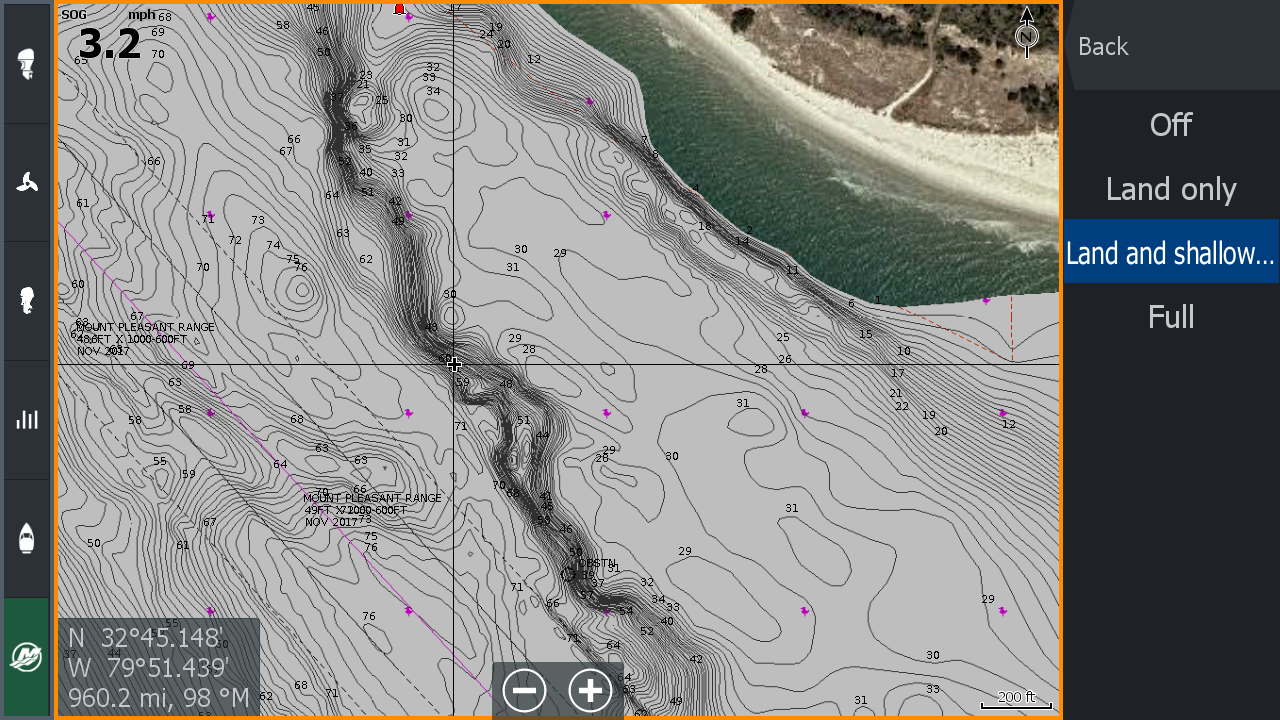

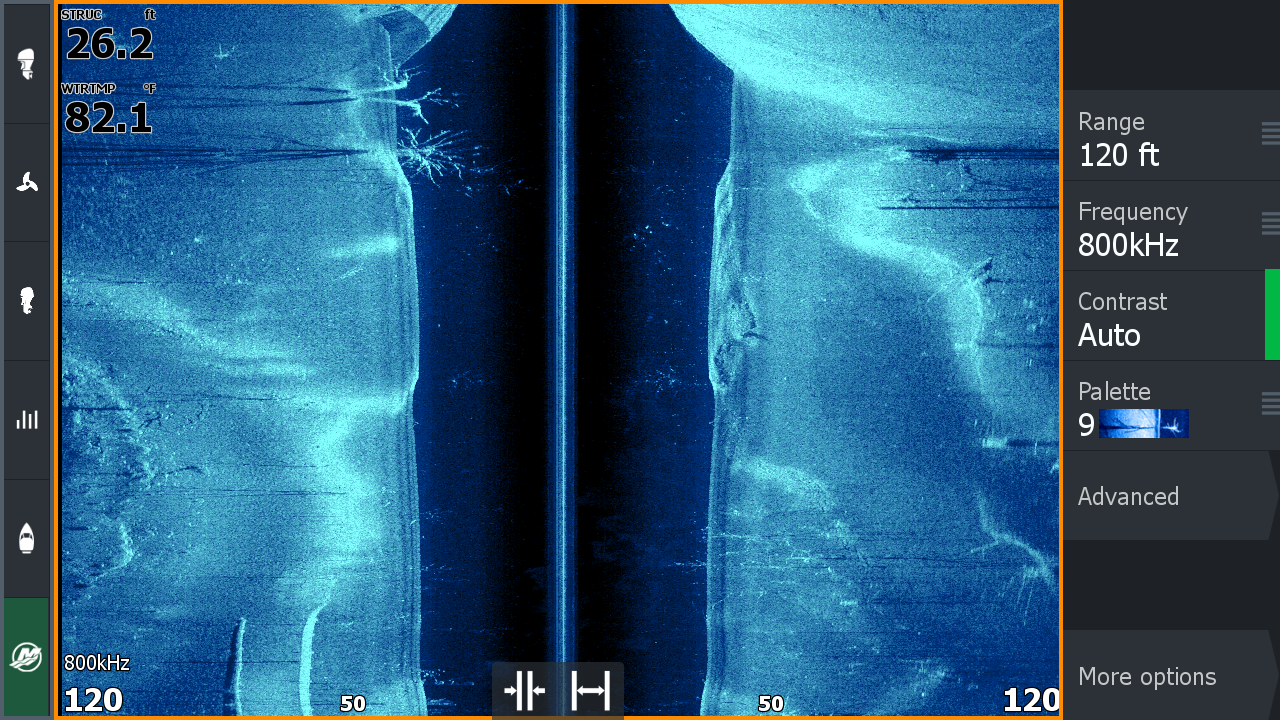

I posted these on another thread. Element pics
