Simrad Autopilot Pump - everyone said they suck

Old 03-12-2019, 06:08 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2012
Location: San Diego, CA
Posts: 1,321
Default Simrad Autopilot Pump - everyone said they suck

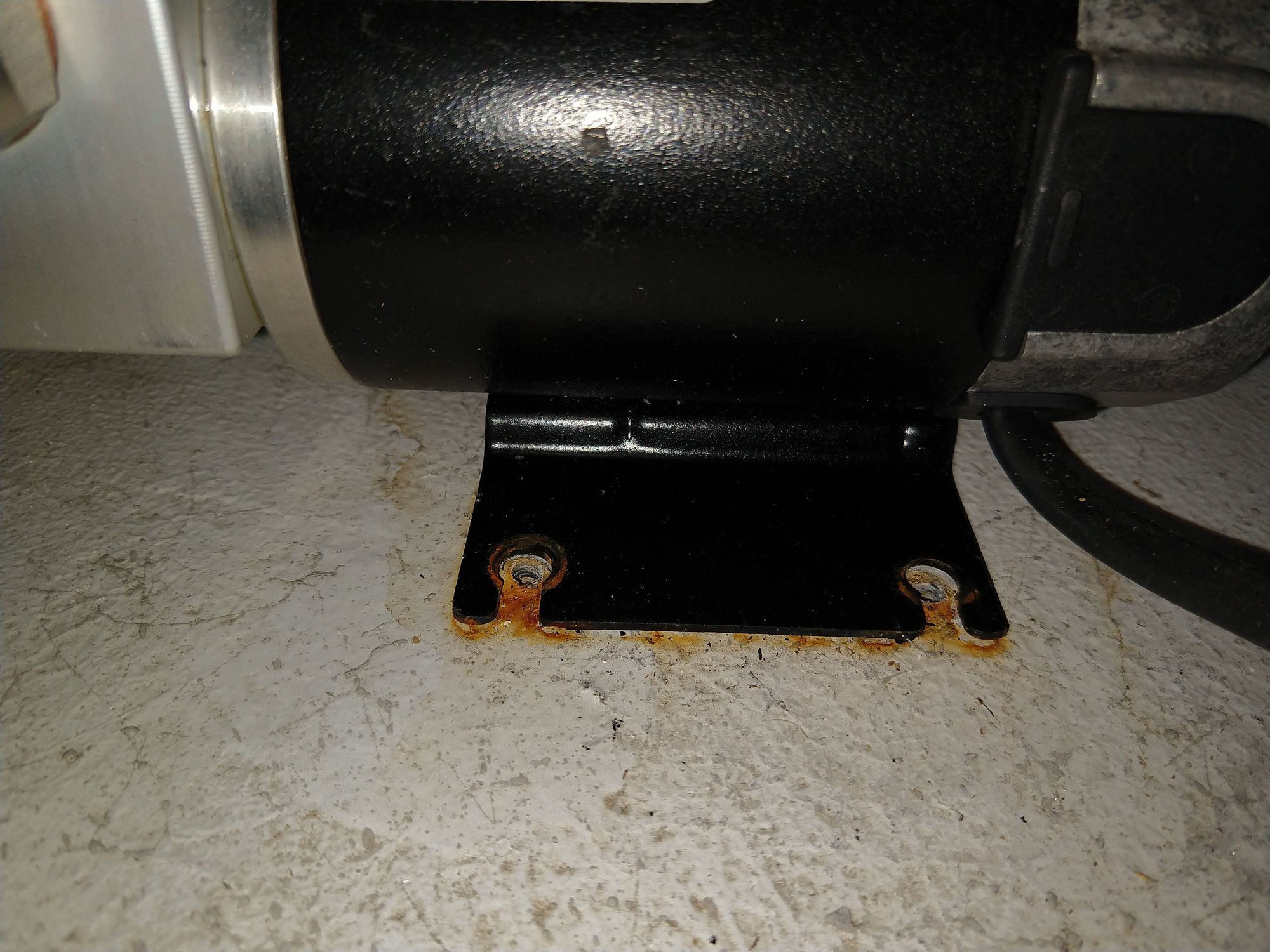

I installed it inline with my steering and haven't even had a chance to look it up - it's already rusting! It's only been a few months. What a quality metal and/or coating they use for these (I know, they buy them somewhere and don't manufacturer themselves)

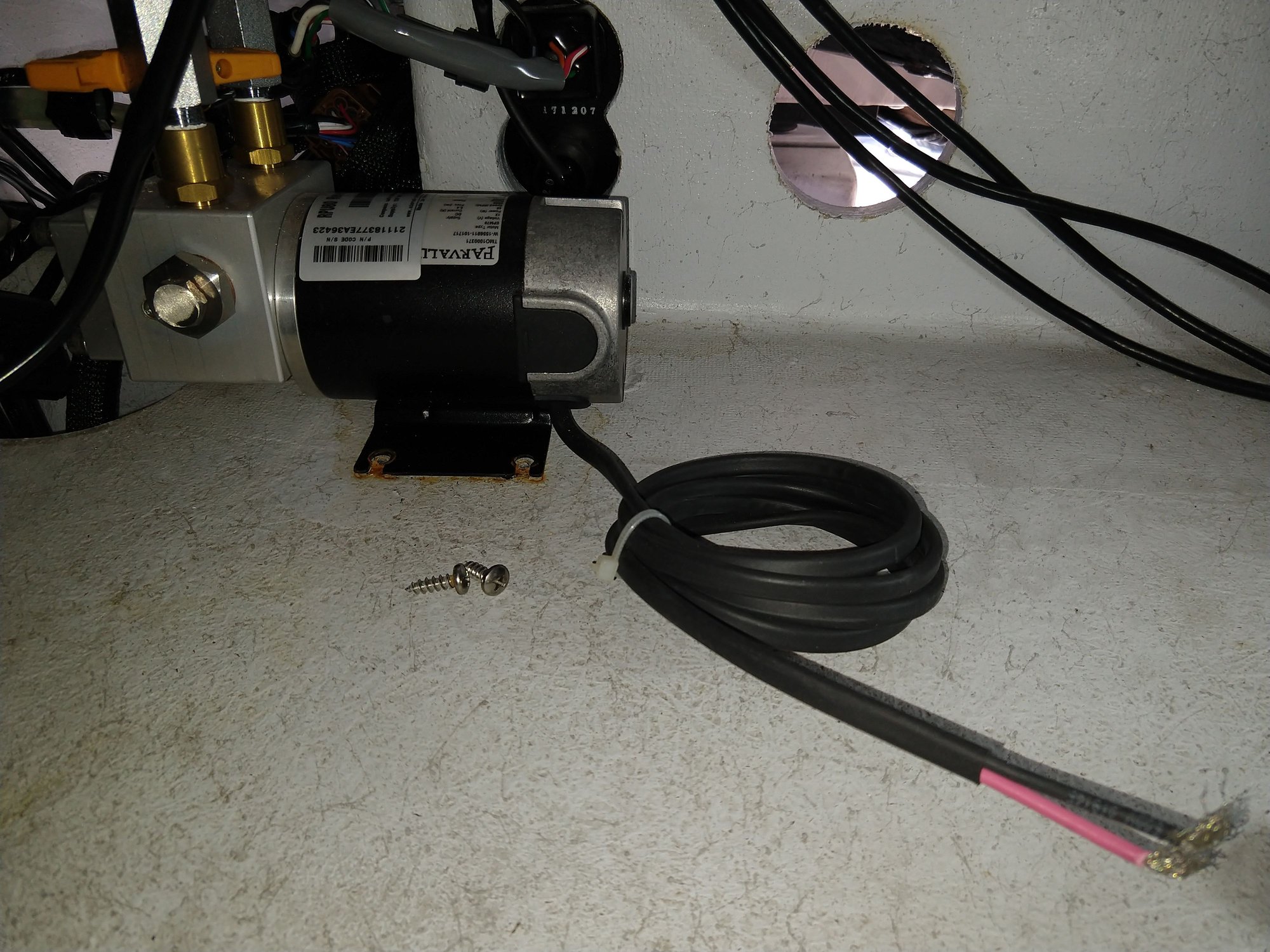

This is behind the dash of a pilothouse boat that lives on a trailer.



Last edited by starbright55; 03-12-2019 at 06:22 PM.
starbright55 is offline
Old 03-12-2019, 06:11 PM
  #2
Senior MemberCaptains Club Member

Join Date: Sep 2001
Location: Jacksonville, FL.
Posts: 10,799
Default

Gotta get it up off the floor. Before doing that, going to have to clean it up and try spray paint to fight back the rust.
starbright55 likes this.
JAGSARE1 is offline
Old 03-12-2019, 11:18 PM
  #3
Senior MemberCaptains Club Member

Join Date: Feb 2003
Location: M.Vineyard, MA
Posts: 14,083
Default

After neutralizing the rust , application of a light coating of grease or at at least Corrosion Block will protect it. Same as on washdown pumps.
TTaxi is offline
Old 03-12-2019, 11:52 PM
  #4
Senior Member

Join Date: Feb 2005
Location: Norway
Posts: 14,174
Default

The pump house is a Simrad design originating from the Robertson days. The pump house manufacturing and final assembly is still done at the previous Robertson factory in Norway. The motors have over the years been sourced from three different manufacturers, currently Parvalux motors are used.

As previously stated get it up from the floor, I give the pump a spray of CRC 666 Marine a couple of times a year to avoid corrosion.
abbor is offline
Old 03-13-2019, 03:44 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Sienna Plantation, TX.
Posts: 2,385
Default

I'm sure the dissimilar metals in the fasteners was not helping either.
maxadvance likes this.
popeyeiii is offline
Old 03-13-2019, 03:54 AM
  #6
Senior Member

Join Date: Sep 2005
Location:
Posts: 686
Default

Should have rubber feet, (grommets) on the mounting plate too. Same as on a washdown pump. I'd put a spacer under it. Get some 1/2" or 3/4" Azek, (PVC lumber).
catch232 is offline
Old 03-13-2019, 06:49 AM
  #7
Senior Member

Join Date: Feb 2005
Location: Norway
Posts: 14,174
Default

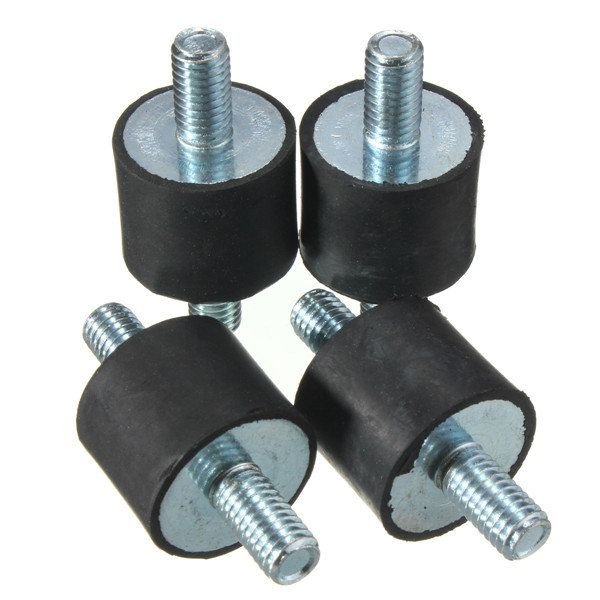

I prefer to mount the pumps on a bulkhead, I mount a water resistant plywood plate to the bulkhead, I use some rubber door stoppers between the GRP and the plywood to reduce vibration transmission. The pump I mount to the plywood plate using vibration isolators. In this way I get the pump up from the floor and I avoid having vibrations from the pump causing structural vibrations (noise) in the boat.

starbright55 likes this.
abbor is offline
Old 03-13-2019, 09:40 AM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2012
Location: San Diego, CA
Posts: 1,321
Default

I've got some POR-15 I could brush on it and some thin plastic washers I can use to lift it a little and then use between the screws and the metal base. Unfortunately, I can't raise it too much - as it sits, I'm keeping a slight rise from the transom to the helm pump and any higher and I'd make the autopilot the high point in the hydraulic system.

I just though it odd that a few month in a dry (but probably high humidity location since I live within a mile of the coast) that this thing is rusting already.
starbright55 is offline
Old 03-13-2019, 02:41 PM
  #9
Member

Join Date: May 2014
Posts: 45
Default

By the look of the last picture I would say the rust originated from those screws. You can probably just wipe off the rust off that bracket and get some nylon washers to separate different metals.
terrin is offline
Old 03-13-2019, 06:13 PM
  #10
Senior MemberCaptains Club Member

Join Date: Sep 2001
Location: Jacksonville, FL.
Posts: 10,799
Default

Originally Posted by terrin View Post
By the look of the last picture I would say the rust originated from those screws. You can probably just wipe off the rust off that bracket and get some nylon washers to separate different metals.
The edges of the plate the screws go through typically are bare and un-protected and will rust immediately in a salt water environment.
starbright55 likes this.
JAGSARE1 is offline
Old 03-14-2019, 04:51 AM
  #11
Senior Member

Join Date: Aug 2010
Location: Cape May Point, NJ
Posts: 505
Default

Clearly, your pump is mounted in a wet or very damp location if it's rusting like that so quickly. The pumps from the other manufactures have similar mounts made of steel and will also rust, so I wouldn't be so quick to blame simrad. As others have said, either mount it on a bulkhead or at least elevate it above the wet floor using rubber or nylon washers, pvc, starboard, etc.
kurtzr is offline
Old 03-14-2019, 05:57 AM
  #12
Senior MemberCaptains Club Member

Join Date: Feb 2005
Location: Falmouth, MA
Posts: 5,529
Default

Originally Posted by kurtzr View Post
Clearly, your pump is mounted in a wet or very damp location if it's rusting like that so quickly. The pumps from the other manufactures have similar mounts made of steel and will also rust, so I wouldn't be so quick to blame simrad. As others have said, either mount it on a bulkhead or at least elevate it above the wet floor using rubber or nylon washers, pvc, starboard, etc.
Damp?? are you joking?? it's a boat, it's on the water, it's going to be damp!!
chainsaw42 is offline
Old 03-14-2019, 10:28 AM
  #13
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2012
Location: San Diego, CA
Posts: 1,321
Default

Originally Posted by kurtzr View Post
Clearly, your pump is mounted in a wet or very damp location if it's rusting like that so quickly. The pumps from the other manufactures have similar mounts made of steel and will also rust, so I wouldn't be so quick to blame simrad. As others have said, either mount it on a bulkhead or at least elevate it above the wet floor using rubber or nylon washers, pvc, starboard, etc.
Originally Posted by chainsaw42 View Post
Damp?? are you joking?? it's a boat, it's on the water, it's going to be damp!!
It was on the water a few times at the end of summer (pump was installed late Aug). Since then, it's sat on the trailer - I'm just finishing up all of the house wiring right now.

I agree, some water must have gotten in there to cause the rust but it's definitely not in a "damp location" - it's in an open backed pilothouse (with drop curtains that stay closed) and the dash is 6 ft. from the door.
starbright55 is offline
Old 03-14-2019, 12:46 PM
  #14
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Sienna Plantation, TX.
Posts: 2,385
Default

Originally Posted by chainsaw42 View Post
Damp?? are you joking?? it's a boat, it's on the water, it's going to be damp!!
He lives in San Diego, so probably not accustomed to real humidity... Whenever I go to my boat in the morning, it's covered in water like it just rained... And it's inside!
popeyeiii is offline
Old 03-14-2019, 01:10 PM
  #15
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2012
Location: San Diego, CA
Posts: 1,321
Default

Originally Posted by popeyeiii View Post
He lives in San Diego, so probably not accustomed to real humidity... Whenever I go to my boat in the morning, it's covered in water like it just rained... And it's inside!
We don't have humidity but more than 50% of the time, my boat (and cars & trucks) are completely covered in water in the morning just from dew.
starbright55 is offline
Old 03-14-2019, 02:07 PM
  #16
Senior Member

Join Date: Apr 2012
Posts: 503
Default

The only rust I see is where the paint was scraped off by the screws, it doesn't take much to rust bare, mild steel. Clean it up, install the proper rubber isolators and spray it down (the entire unit) with Corrosion X.
cdrhoek is offline
Old 03-16-2019, 03:17 PM
  #17
Senior MemberCaptains Club Member

Join Date: Feb 2005
Location: Falmouth, MA
Posts: 5,529
Default

Originally Posted by starbright55 View Post
We don't have humidity but more than 50% of the time, my boat (and cars & trucks) are completely covered in water in the morning just from dew.
dew only occurs with humidity, just FYI
starbright55 likes this.
chainsaw42 is offline
Old 03-17-2019, 03:45 AM
  #18
Admirals Club Admiral's Club Member
THT sponsor

Join Date: Apr 2013
Location: Baton Rouge, LA
Posts: 5,095
Default

Originally Posted by abbor View Post
I prefer to mount the pumps on a bulkhead, I mount a water resistant plywood plate to the bulkhead, I use some rubber door stoppers between the GRP and the plywood to reduce vibration transmission. The pump I mount to the plywood plate using vibration isolators. In this way I get the pump up from the floor and I avoid having vibrations from the pump causing structural vibrations (noise) in the boat.

Putting each screw through a small piece (less than 1”) of 5/16” fuel line between the pump and floor make great isolators.
BCTony and starbright55 like this.
davidwademarine is offline
