Angry Garmin 404 - error code (radar not working)

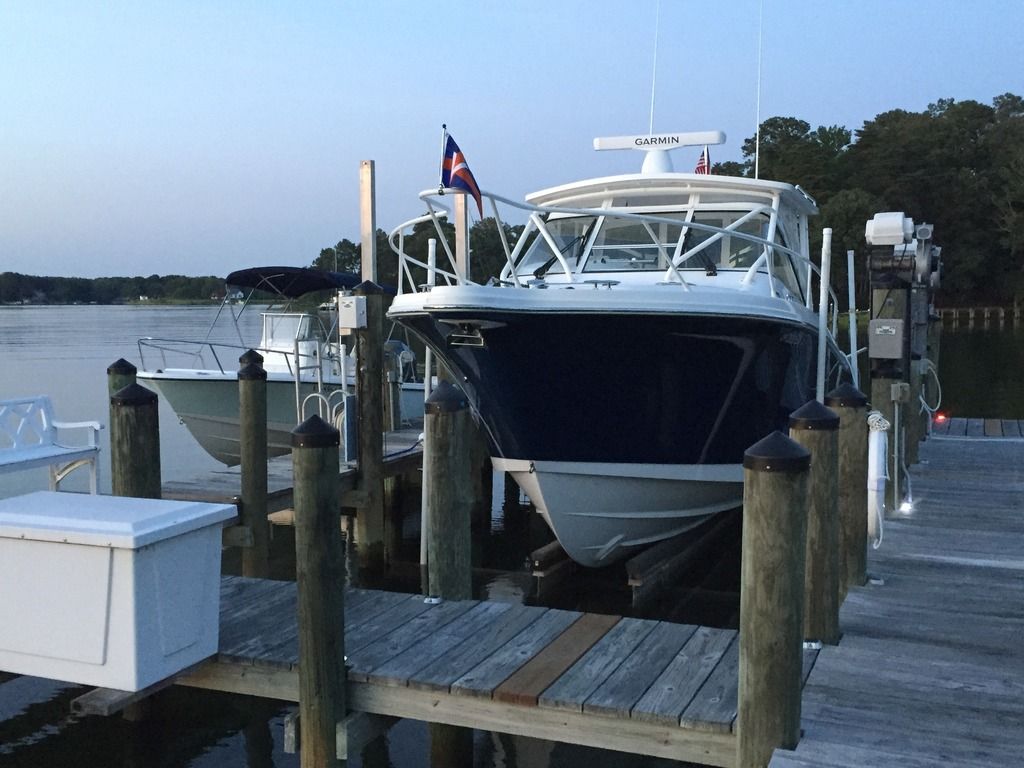

We have a inoperable Garmin 404 (approximately 3 years old - install date) mounted on a 2015 35 Edgewater. Boat is in Virginia. Have been told the unit is out of warranty, Garmin will not service, and Garmin does not support with parts to outside vendors. It threw an error code (7 or 8 if I recall). The capacitor was replaced a year ago and the unit worked.
Question: Is there someone that can effectively work on these units that knows what they are doing?
Was told a replacement unit was $4K ($2K for dome model).
Much appreciate any and all help.
Chris (Dad's boat)

[IMG][/IMG]
twoburgers is offline   Reply With Quote
Old 09-10-2015, 05:15 AM   #2
Senior MemberCaptains Club Member

Join Date: Sep 2002
Posts: 733
Default

Not sure where you are in VA, but I just went through a similar issue (error code 6), was out of warranty, so decided to replace with something else (Furuno). Anyway, Mid-Shore Electronics our of Cambridge, MD is an authorized Garmin warranty/repair center. I would suggest you give them a call to discuss your issue. This will be the second install they have done for me on 2 different boats. They do great work!
bluefin2na is offline   Reply With Quote
Old 09-10-2015, 09:18 AM   #3
Senior Member
Thread Starter

Join Date: May 2014
Posts: 238
Default

Quote:
Originally Posted by bluefin2na View Post
Not sure where you are in VA, but I just went through a similar issue (error code 6), was out of warranty, so decided to replace with something else (Furuno). Anyway, Mid-Shore Electronics our of Cambridge, MD is an authorized Garmin warranty/repair center. I would suggest you give them a call to discuss your issue. This will be the second install they have done for me on 2 different boats. They do great work!
Thanks for the reply bluefin2na.
The boat is kept in White Stone. We are receiving error code 8 at the Garmin head unit. What gets me is the boat has less than 20 hours and the unit craps out. My father has an electronics guy he likes, and it appears he is going to replace the unit with a Garmin dome unit. Very disappointing...
twoburgers is offline   Reply With Quote
Old 09-19-2015, 06:30 AM   #4
Admirals Club

Join Date: Nov 2007
Location: Long Island, NY
Posts: 8,113
Default

That 404 was introduced in 2004, and they stopped making it in 2009 (so it couldn't have been "new" in 2012 as you suggest) when they went to the xHD , which they stopped making in 2013 when they started the xHD2.
Most manufacturers stop supporting product when the parts supply is exhausted, and that appears to have happened with your 404.
LI32 is offline   Reply With Quote
Old 09-20-2015, 08:24 AM   #5
Senior Member

Join Date: Sep 2015
Location: South Australia
Posts: 2,055
Default

I believe error cade 8 is failed scanner motor.
It knows this due to not getting the ships heading flash signal from a reed switch triggered by a magnet on the rotary joint.
The usual culprit is worn out brushes which are easy to replace.
However if you are adamant the radar has only done 20 hours it must be something else but look anyway.
Usually there are 2 brush holders on the side of the motor, you may even find spares taped to the motor as they are a consumable item.
isitstuffed is offline   Reply With Quote
Old 09-21-2015, 07:29 AM   #6
Senior Member

Join Date: Apr 2011
Posts: 408
Default

Error-
Code - Description --------------------------- Notes
0 ------ Antenna rotation error -------------- Antenna has stopped rotating or is rotating at the wrong speed.
1 ------ Magnetron heater current error -- The heater current is either too high or too low.
2 ------ Magnetron current error ------------ The anode current is out of specification.
3 ------ Over temperature error ------------- The circuit board temperature is too hot.
4 ------ Limiter error --------------------------- The diodes in the receiver limiter circuit have failed.
5 ------ AFC error ------------------------------- The software has been unable to tune the receiver for maximum sensitivity.
6 ------ Magnetron high voltage error ----- The high voltage power supply for the magnetron is out of specification.
7 ------ 36 volt dc-dc converter error ------- The voltage from the external voltage converter is too low.
8 ------ Motor error
9 ------ Motor stall error
10 ---- Motor hardware error
11 ---- Motor start error
12 ---- Motor stop error
13 ---- General motor fault
trit21 is offline   Reply With Quote
Old 09-21-2015, 05:33 PM   #7
Senior MemberCaptains Club Member

Join Date: Jan 2005
Location:
Posts: 2,684
Default

The Garmin 404 has been out of manufacture for a long time. So that GMR 404 of yours is certainly much older than 3 years. In fact the replacement to the GMR 404 the xHD has been replaced by the xHD2 as well.

So you have a really old machine . I believe Garmin will still fix that pedestal for a fixed fee, have you called Garmin and to get the cost to repair the GMR 404?

Jim

Last edited by jfwireless; 09-21-2015 at 05:43 PM.
jfwireless is offline   Reply With Quote
Old 09-21-2015, 06:13 PM   #8
Senior Member

Join Date: Sep 2015
Location: South Australia
Posts: 2,055
Default

As the age seems questionable does the scanner rotate at all after the warm up period. If only for a couple of revolutions. Is the scanner loose when lifting up and down at one end indicating worn rotary joint bearings? Has it electronically parked itself at zero degrees as per your photo, facing forward? Has any work been done on boat that could have damaged the radar cable?

Would like to help and give you some basic DYI procedures.
isitstuffed is offline   Reply With Quote
Old 09-21-2015, 06:15 PM   #9
Admirals Club
THT sponsor

Join Date: Jul 2010
Posts: 3,970
Default

This thread has me thinking...Welcome to the Garmin mentality - yup, you spent $4000 of your hard earned money on a radar, how dare you expect it to last more than 5 years. I would tell dad to keep the Garmin as a chartplotter, make the radar an anchor, and buy a 10 old Furuno Navnet 1 w/6kw open array. Not only will he be impressed with the clarity, sensitivity, and detail, but it will last a very very long time.

All jokes aside, this is the reality of a lot of these newer electronics, and unless you're buying the JRC-made HD-digital radars that Simrad has out or a Furuno, don't expect them to last a long time...they don't.
mstyle8517 is online now   Reply With Quote
Old 09-22-2015, 01:53 PM   #10
Senior MemberCaptains Club Member

Join Date: Jan 2005
Location:
Posts: 2,684
Default

Quote:
Originally Posted by mstyle8517 View Post
This thread has me thinking...Welcome to the Garmin mentality - yup, you spent $4000 of your hard earned money on a radar, how dare you expect it to last more than 5 years. I would tell dad to keep the Garmin as a chartplotter, make the radar an anchor, and buy a 10 old Furuno Navnet 1 w/6kw open array. Not only will he be impressed with the clarity, sensitivity, and detail, but it will last a very very long time.

All jokes aside, this is the reality of a lot of these newer electronics, and unless you're buying the JRC-made HD-digital radars that Simrad has out or a Furuno, don't expect them to last a long time...they don't.
This radar is a lot older than 5 years. most likely more than 10 years old.

Jim
jfwireless is offline   Reply With Quote
Old 09-22-2015, 04:13 PM   #11
Senior MemberCaptains Club Member
iTrader: (1)

Join Date: Feb 2005
Location: Falmouth, MA
Posts: 4,421
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by jfwireless View Post
This radar is a lot older than 5 years. most likely more than 10 years old.

Jim
Garmin has not even been making open array units for 10 years. You certainly could have bought a 404 brand new 5 years ago.

Garmin radar reliability is an issue, nothing to get defensive about...it's well known and documented.
chainsaw42 is online now   Reply With Quote
