Garmin vs Simrad weather display

Old 02-27-2015, 05:36 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2010
Posts: 434
Likes: 0
Received 2 Likes on 2 Posts
Default Garmin vs Simrad weather display

Hi All - To you Sirius weather users out there does anyone have any (Pics to contrast the two) opinions on who displays it better? (I have a Garmin 1040 and Simrad NSS8)
Simrad HW being more expensive.

Thanks
Old 02-27-2015, 06:12 AM
  #2
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,720
Received 489 Likes on 323 Posts
Default

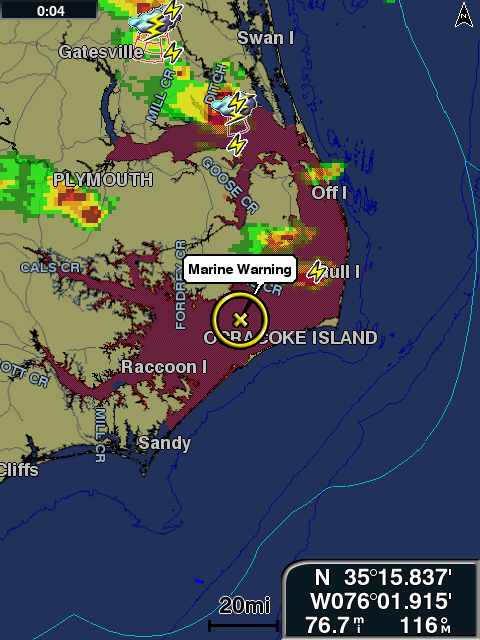

Both vendors now use Sirius to deleiver the weather but both use different weather delivery vendors. Garmin has the best animation and warning area displays while Simrad has better SST inf Garmin is right on their heels.

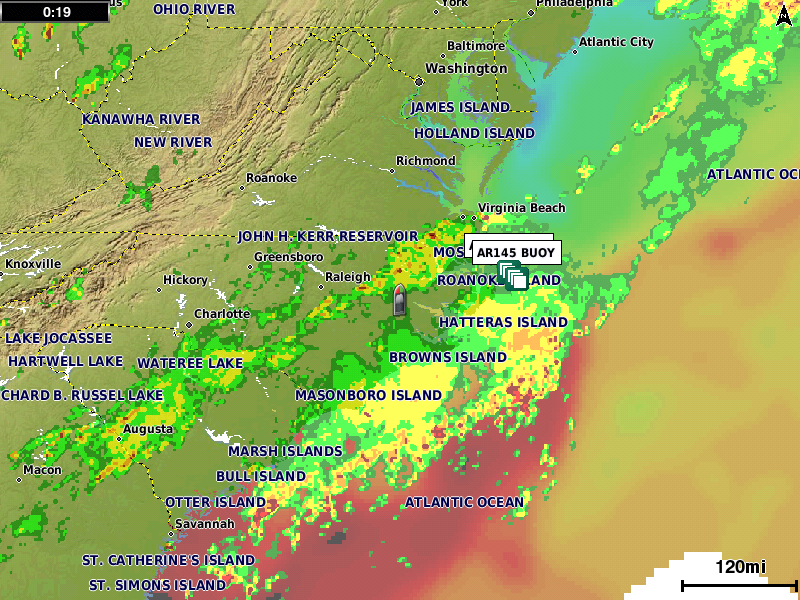

This is the new Garmin SST displays using the GXM 52 ...... video

https://vimeo.com/86897668

https://vimeo.com/85531096

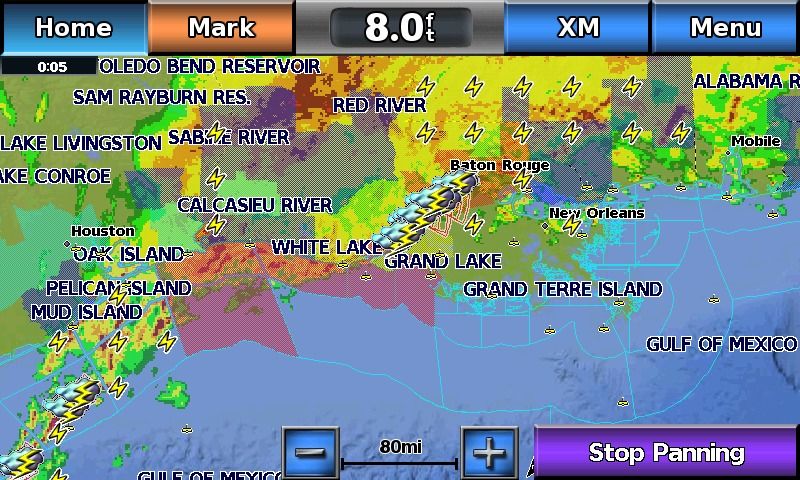

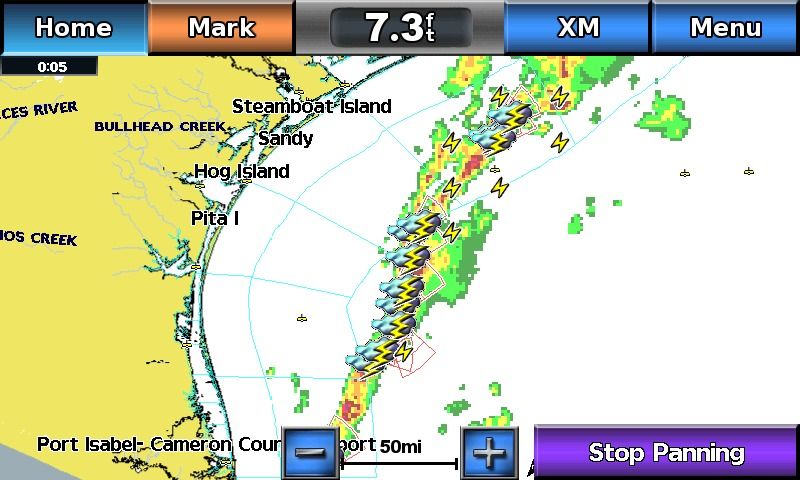

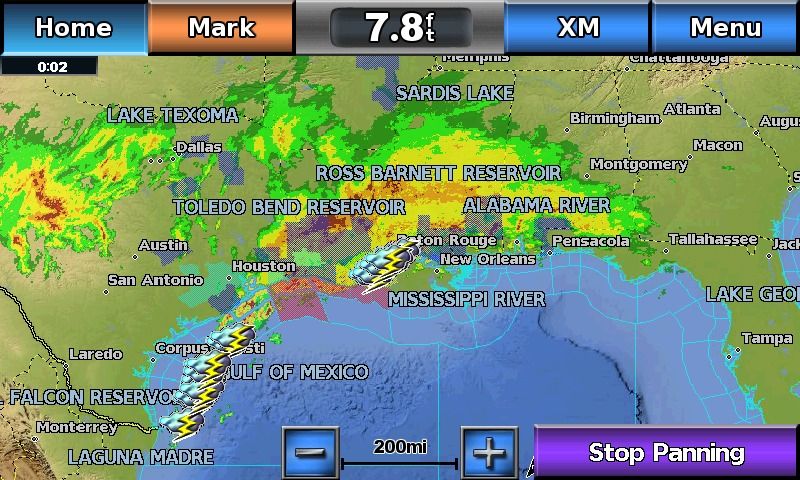

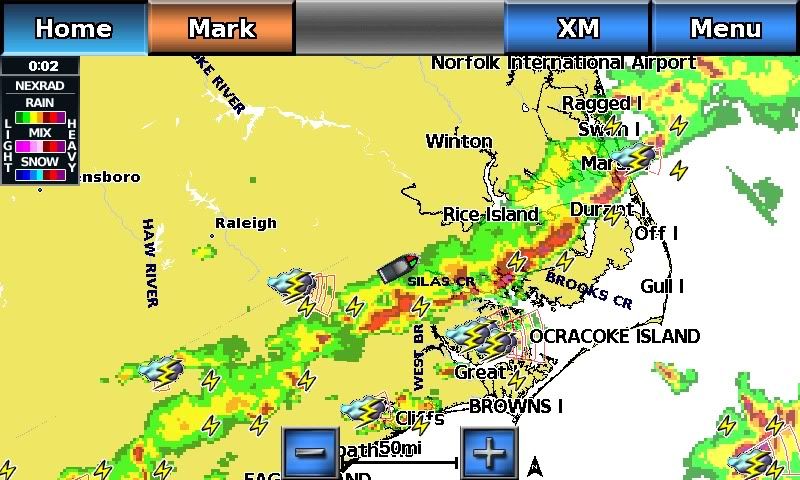

NEXRAD animation ....

https://vimeo.com/85384471



Garmin GXM 52

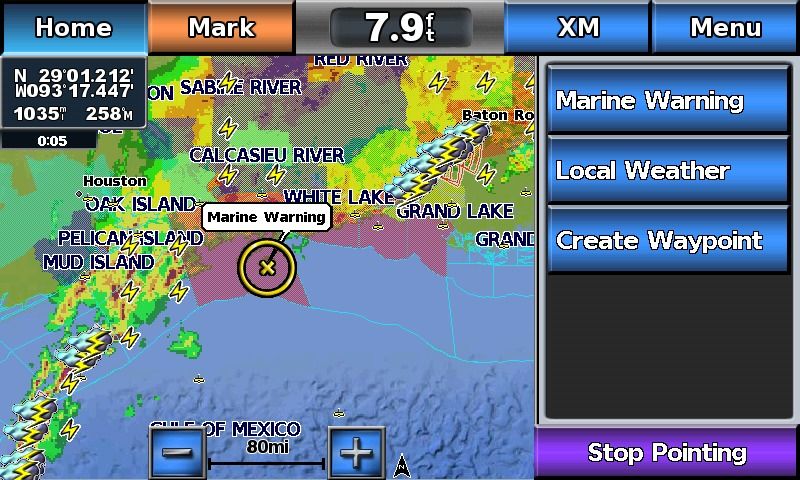

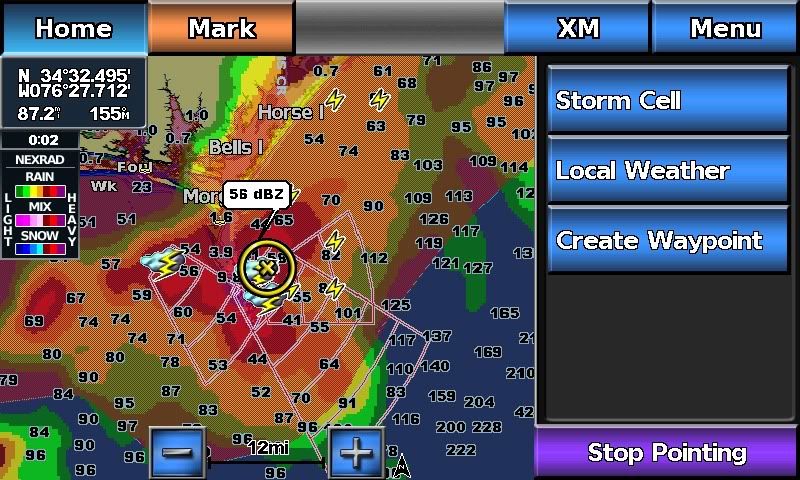

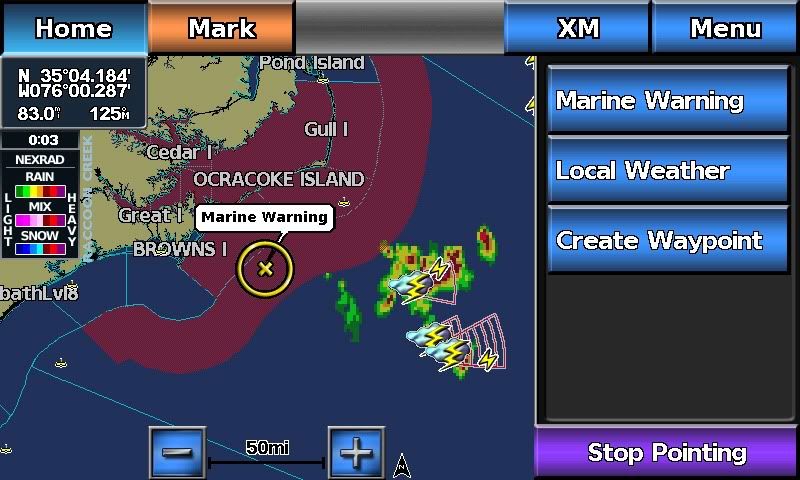

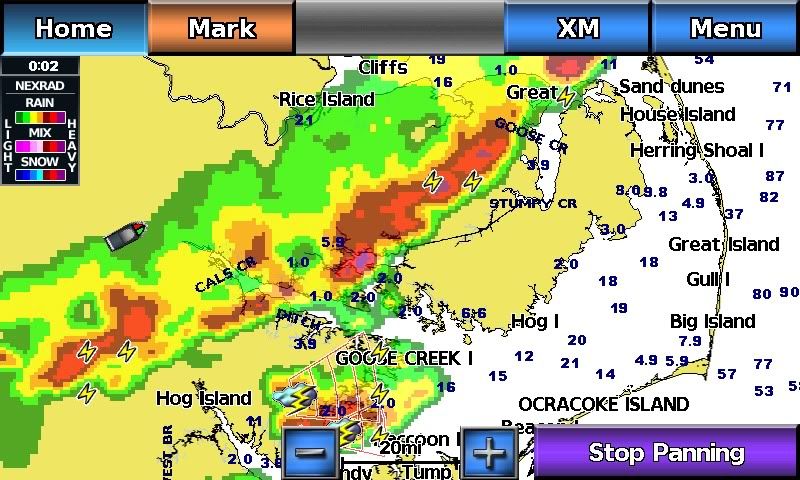

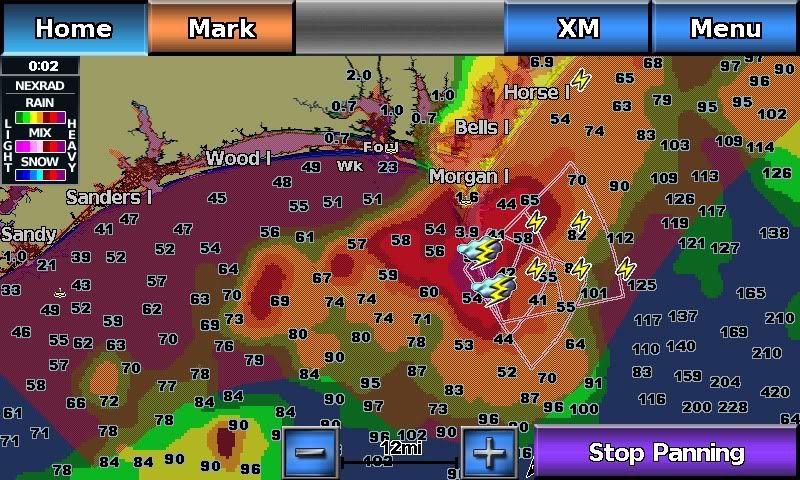

Video ... Garmin 840 and 741 NEXRAD

http://vid676.photobucket.com/albums...s/MVI_0353.mp4

http://vid676.photobucket.com/albums...s/MVI_0352.mp4

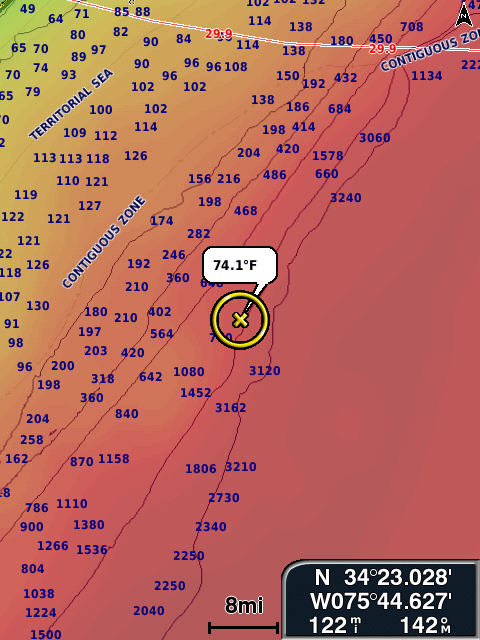

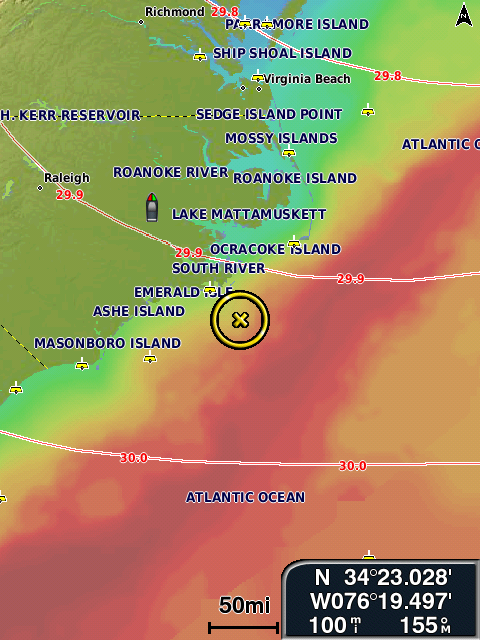

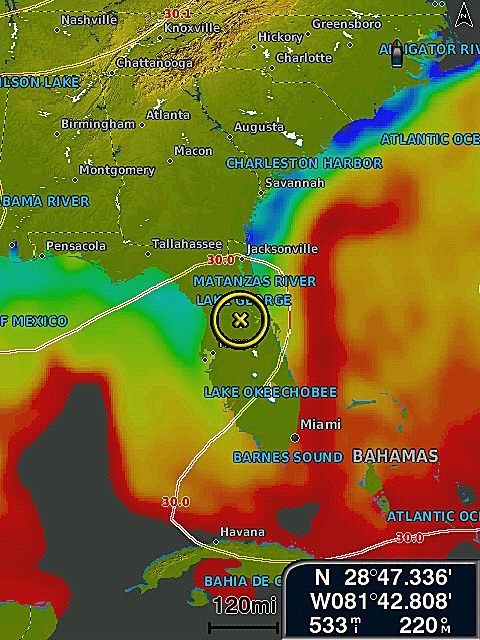

SST ...

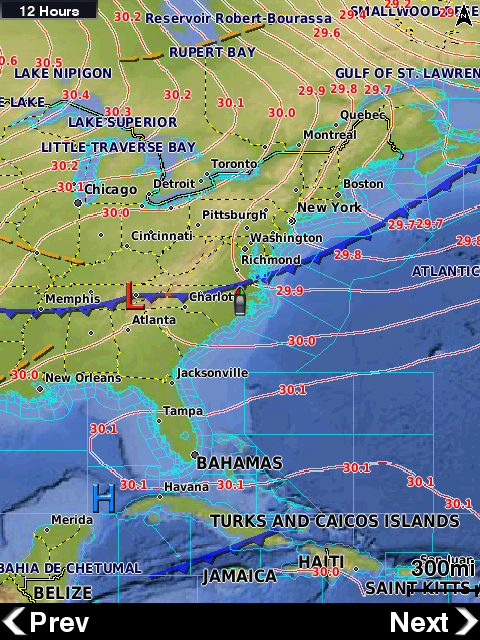

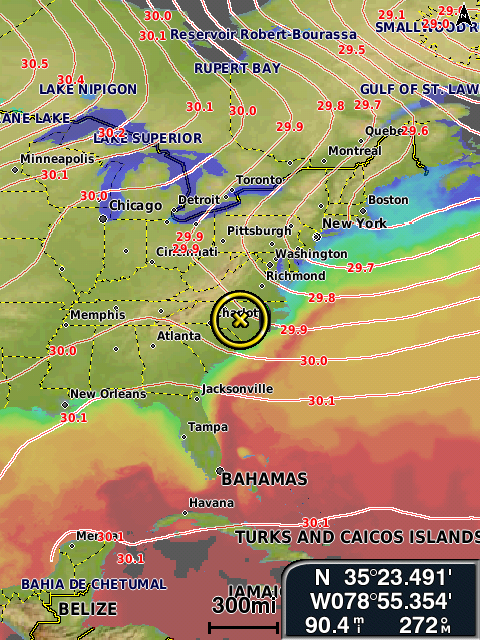

Surface Map

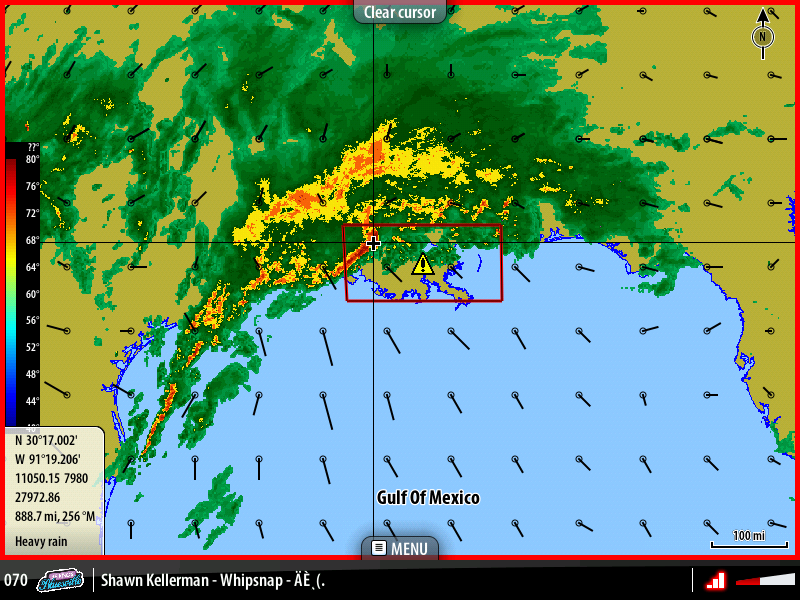

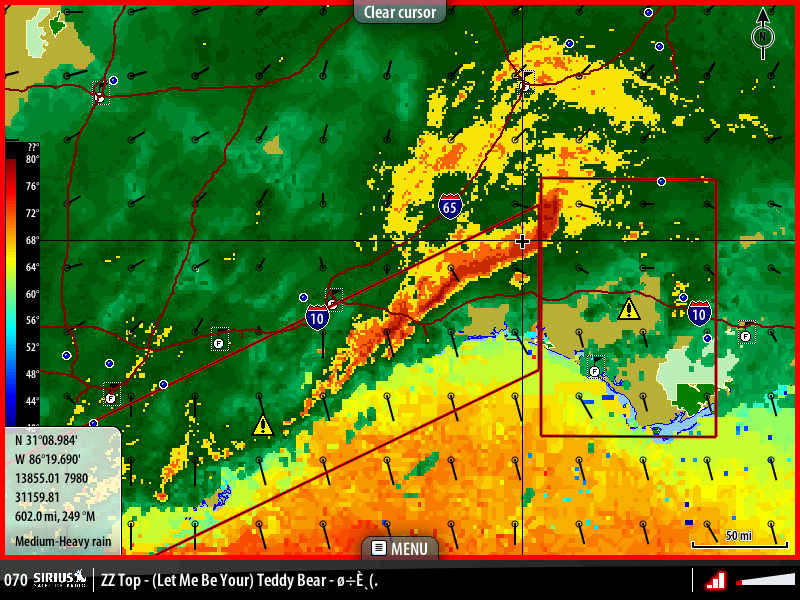

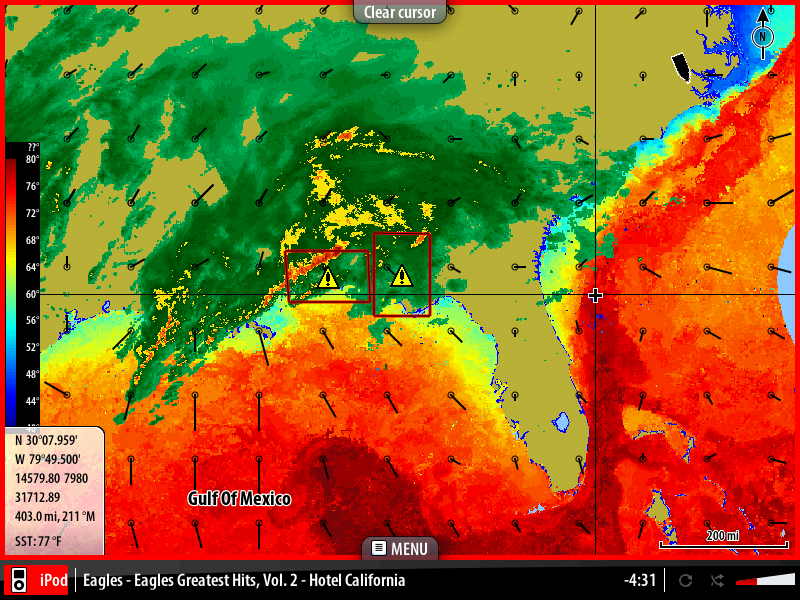

Simrad NSS8 Sirus Weather WM2 ....

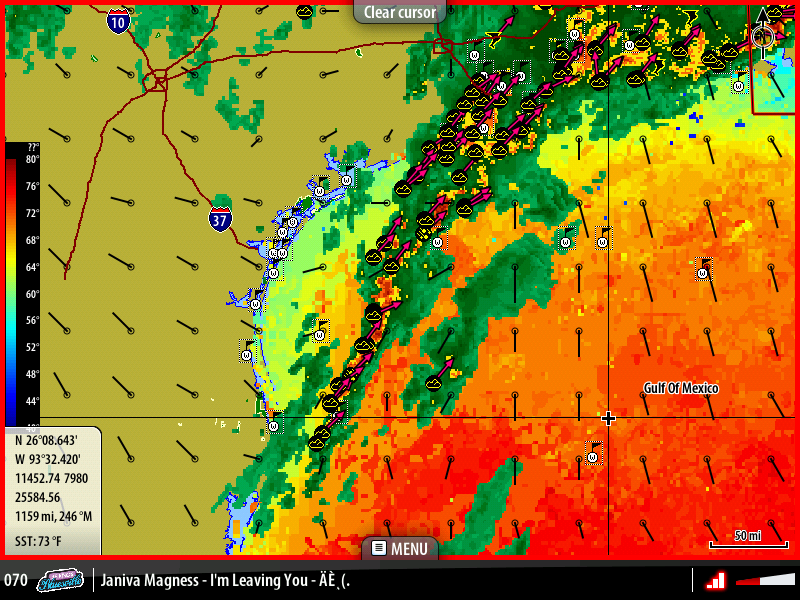

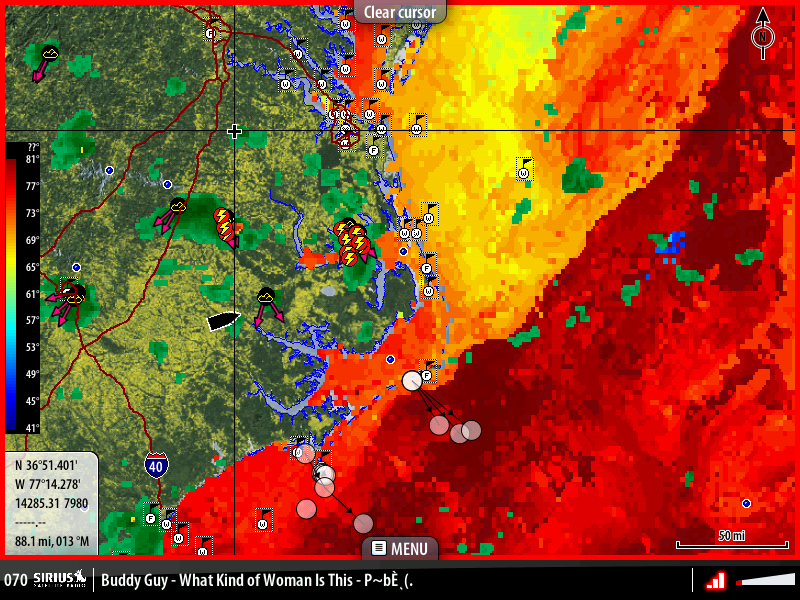

SST






















Last edited by bluewaterpirate; 02-27-2015 at 06:35 AM.
Old 02-27-2015, 11:17 AM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2010
Posts: 434
Likes: 0
Received 2 Likes on 2 Posts
Default

Hi Tom - Thanks for the tremendous amount of info !
I particularly like your comment about Simrad showing SST better, more helpful to find where the bait may be lurking?

Here's one for everyone, since both "antennas" are communicating NMEA200 is it (wishfull thinking) that either my Garmin or Simrad could get data from whatever antenna I choose?

Andrew
Old 02-27-2015, 11:24 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,720
Received 489 Likes on 323 Posts
Default

Each system will see the others Sirius antenna but cannot use them. The SST info is min 6 -8 hours time late. Garmins animation in the NEXRAD vs NOWRAD is superior.
Old 02-27-2015, 08:09 PM
  #5
Senior Member

Join Date: Jul 2003
Location:
Posts: 1,435
Received 212 Likes on 139 Posts
Default

Originally Posted by bluewaterpirate View Post
The SST info is min 6 -8 hours time late..
Great post, I was wondering where or how you determined this? I am certain it's not 100 percent realtime but mine seems to update at 630am 1030am and 230am. Sometimes it seems like I more updates than others.
