Marine Electronics Forum

icom vs standard horizon

Old 08-25-2014, 08:04 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2002
Location: north carolina
Posts: 2,791
Likes: 0
Received 4 Likes on 3 Posts
Default icom vs standard horizon

icom 506 vs the gx 2200
pretty good diff in price, looks like the same features?
thoughts ?
Old 08-25-2014, 08:06 PM
  #2
Admirals Club Admiral's Club Member
THT sponsor

InternationalMarineMike's Avatar

Join Date: Feb 2014
Posts: 8,338
Received 203 Likes on 96 Posts
Default

For the money I would go for the gx2200. We install quite a few and have never had a complaint.
Old 08-25-2014, 08:54 PM
  #3
THT SponsorCaptains Club Member
THT sponsor

Join Date: May 2005
Location: savannah, ga
Posts: 3,638
Likes: 0
Received 51 Likes on 33 Posts
Default

I prefer the standard horizon as well
Old 08-26-2014, 05:23 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,187
Likes: 0
Received 325 Likes on 207 Posts
Default

I've had both the SH 2200 and the ICOM 506 both are terrific radios. I prefer the ICOM 506 because of the Command Mic. You'll pay more for the ICOM it's n2k certified. Here's the ICOM 506 in action.

https://vimeo.com/103703480

Last edited by bluewaterpirate; 08-26-2014 at 06:53 AM.
Old 08-26-2014, 06:50 AM
  #5
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,187
Likes: 0
Received 325 Likes on 207 Posts
Default

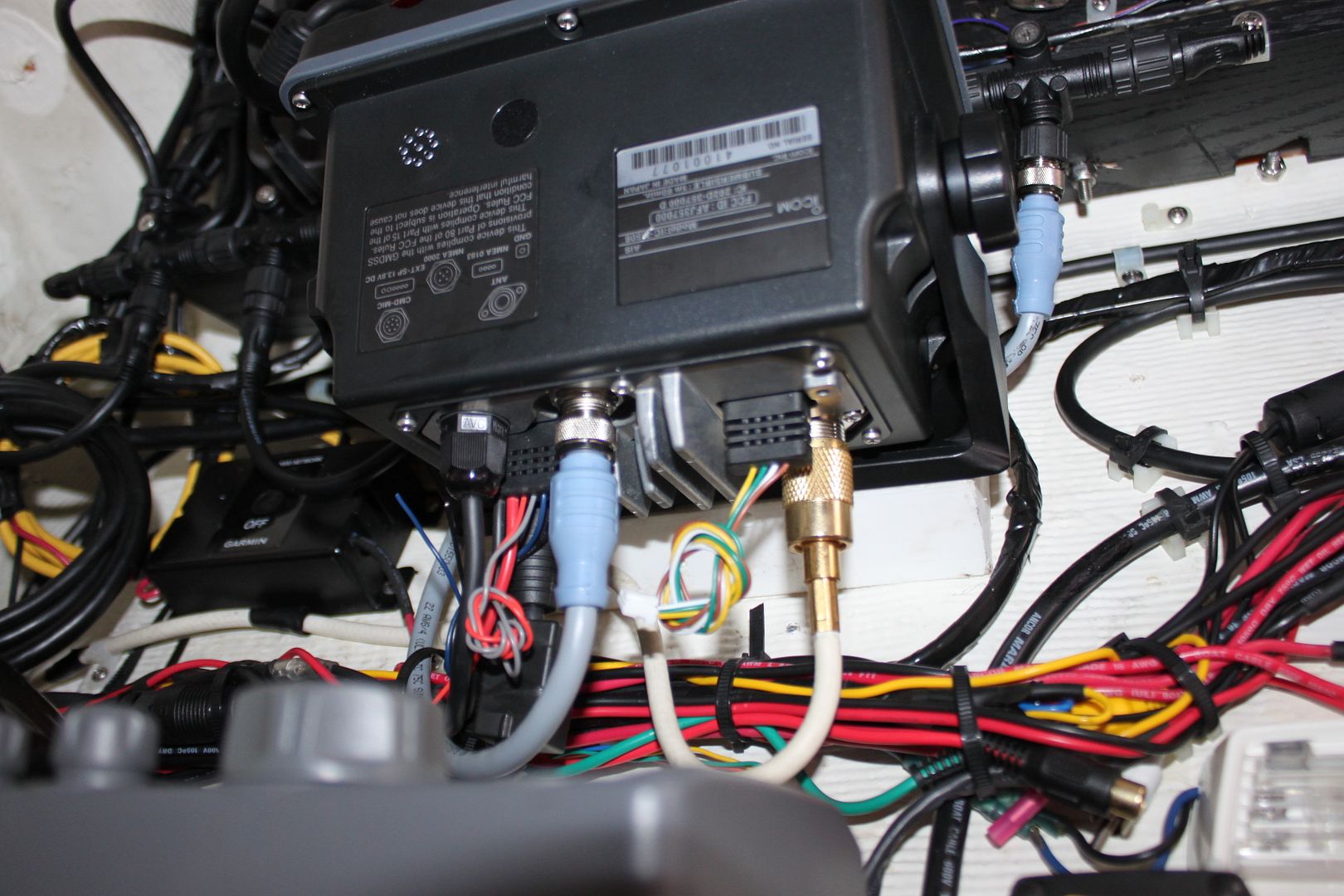

Here some pictures of my M506 install. I have the rear mic version installed in my helm enclosure.

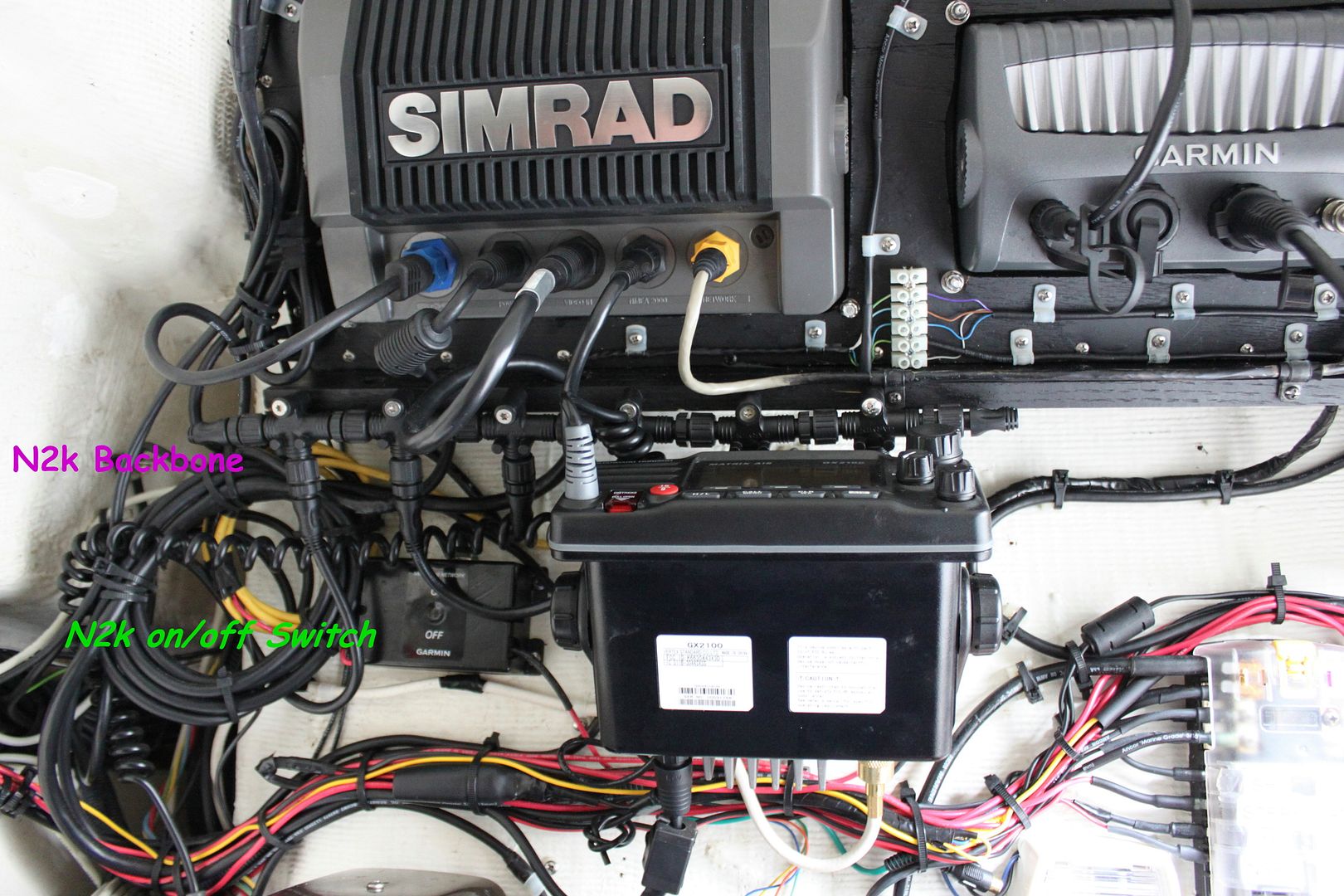

The cable with the blue connector is the N2k cable it connects into my N2k backbone. The nice thing with N2k it's plug and play.






The VHF under the M506 is an ICOM M504


Old 08-26-2014, 09:13 AM
  #6
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2002
Location: north carolina
Posts: 2,791
Likes: 0
Received 4 Likes on 3 Posts
Default

Originally Posted by bluewaterpirate View Post
I've had both the SH 2200 and the ICOM 506 both are terrific radios. I prefer the ICOM 506 because of the Command Mic. You'll pay more for the ICOM it's n2k certified. Here's the ICOM 506 in action.

https://vimeo.com/103703480

the sh wont tie into my n2k network ?
Old 08-26-2014, 09:47 AM
  #7
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,187
Likes: 0
Received 325 Likes on 207 Posts
Default

No the 2200 is not N2k certified ....
Old 08-26-2014, 01:48 PM
  #8
Senior Member

Join Date: Jun 2010
Posts: 4,458
Likes: 0
Received 23 Likes on 16 Posts
Default

The white coax cable going to the gold-plated PL259 is bent in much too small a radius curve...coax needs very gradual bends.

Just my opinion, but I have been doing coax projects for over four decades, and this is a "fail".

~3/8" OD coax needs a minimum of 1.9" radius, which is almost a 4" diameter loop. Heavier coax needs an even bigger loop.

If you need a sharper bend, use a 90* UHF-series adapter, like this:



http://www.amazon.com/PL259-SO239-Female-Right-Adapter/dp/B005UURCIS http://www.amazon.com/PL259-SO239-Female-Right-Adapter/dp/B005UURCIS
Old 08-26-2014, 02:27 PM
  #9
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,187
Likes: 0
Received 325 Likes on 207 Posts
Default

Been bent like that for 5 years serviced an ICOM 504 & SH 2150 before the 506. There is no tension on the connector but that's good solid input.




Last edited by bluewaterpirate; 08-26-2014 at 03:29 PM.
