Light gauge wires for DSC connection

Old 02-25-2013, 09:43 AM
  #1
Senior Member
Thread Starter

Join Date: Aug 2012
Location: Palm Bay, FL
Posts: 1,171
Default Light gauge wires for DSC connection

I would really appreciate some pics of your connections for these light gauge wires. I used some telephone wire connectors from Home Depot as a temporary fix but need a Better solution. I was thinking about a terminal block but am not aware of any ring terminals for wire that small.
Bubba60tackle is offline
Old 02-25-2013, 09:46 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Feb 2011
Location: Right Coast of Florida/E.Tennessee
Posts: 6,379
Default

Originally Posted by Bubba60tackle View Post
I would really appreciate some pics of your connections for these light gauge wires. I used some telephone wire connectors from Home Depot as a temporary fix but need a Better solution. I was thinking about a terminal block but am not aware of any ring terminals for wire that small.
I used terminal blocks... and 16-18 ring lugs but doubled the wire back on itself. Anyone can do it if you have the right stuff you could always tin the connection and use heat shrink... lota work for a few connections.

Mine's in service for years... never a problem.

Last edited by DavenFla; 02-25-2013 at 09:47 AM. Reason: grammer
DavenFla is offline
Old 02-25-2013, 10:00 AM
  #3
Senior Member

Join Date: Sep 2008
Location: NE CT
Posts: 1,108
Default

Sorry, no pics. Boat in storage until spring. Used connectors at first, but didn't really secure the small 22/24G wires even folded. Made perm soldering with heat shrink and ScotchKote.
frugal boater is offline
Old 02-25-2013, 10:57 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 7,802
Default

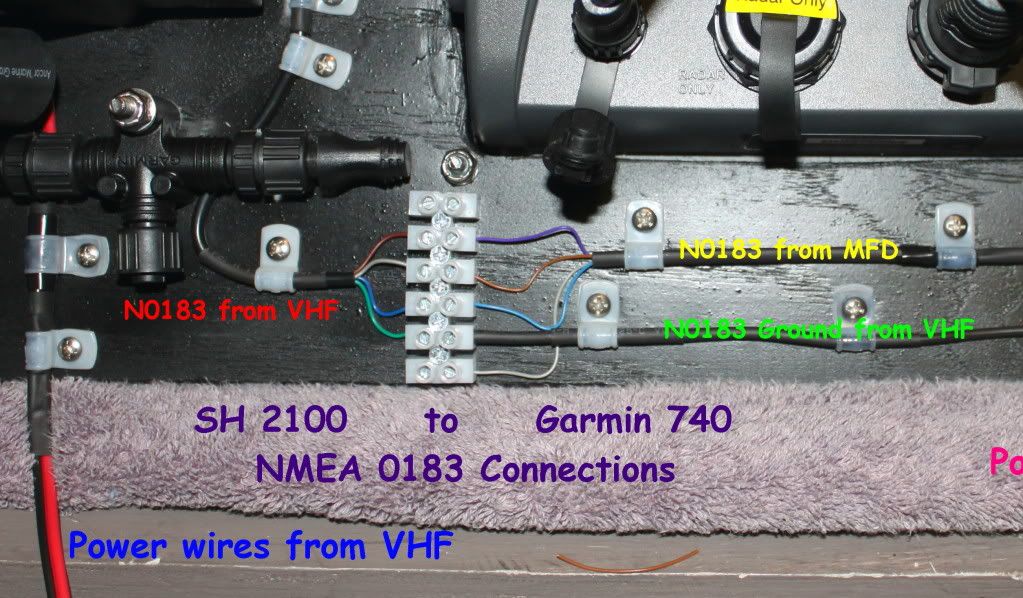

I've used the Euro Mini Terminal strips from Radio Shack. Been usiing them since 2004 without any issues.

Here's the link to Radio Shack .... $3.49.

You can cut them to the # of connectors needed for your particular install.





http://www.radioshack.com/product/in...Terminal+strip

Here's some pictures.



Name:  5-1-1.jpg
Views: 49
Size:  265.3 KB



bluewaterpirate is offline
Old 02-25-2013, 11:31 AM
  #5
Senior MemberCaptains Club Member

Join Date: Dec 2007
Location:
Posts: 10,903
Default

Barrier strips are another option.

Name:  IMG_0780.jpg
Views: 39
Size:  73.7 KB
Back-in-Black is offline
Old 02-25-2013, 02:37 PM
  #6
Senior MemberCaptains Club Member

Join Date: Nov 2004
Location: Media, PA and Brigantine, NJ
Posts: 983
Default

http://www.posi-lock.com/positwist.html

Heard these work well, gonna try it next weekend.
TimC2520 is offline
Old 02-25-2013, 03:10 PM
  #7
Senior Member
Thread Starter

Join Date: Aug 2012
Location: Palm Bay, FL
Posts: 1,171
Default

Blue water pirate have you had any corrosion issues with the radio shack terminal? My location definitely sees more moisture than I would care for it to.


Back in black, where did you find those spade connectors with the holes for terminal block heat shrink? Or is that generic heat shrink around a standard spade connector?



I think this is stupid how a connection on a piece of emergency equipment is so weak, I have half a mind to return the unit and go get one that connects to NMEA 2000 or has a built in GPS. Thanks for all of the ideas!
Bubba60tackle is offline
Old 02-25-2013, 03:14 PM
  #8
Senior MemberCaptains Club Member

Join Date: Jan 2005
Location: Asheville, NC
Posts: 6,399
Default

Radio Shack has heat shrink 18-22 ga connectors. That is what I used.
Attached Images

Last edited by HeadHunt; 02-25-2013 at 05:13 PM.
HeadHunt is offline
Old 02-25-2013, 05:27 PM
  #9
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 7,802
Default

No problem with corrosion. I use dielectric grease on the terminals after I get everything connected.
