Garmin 740 with SH GX2100

Old 02-28-2012, 01:21 PM
  #1
Senior Member
Thread Starter

Join Date: Aug 2011
Location: So. NH
Posts: 425
Likes: 0
Received 1 Like on 1 Post
Default Garmin 740 with SH GX2100

SH web site has a wiring diagram for connecting the 2 together.
http://http://www.standardhorizon.co...lication%2Fpdf

My questions:
Is this a straight wiring connection?
Or does it need NMEA 2000 network cables?

Any recommendations for a VHF antenna for a 21' bowrider?
I will be adding Garmin XM weather. Is there a minimum distance to keep these 2 seperated?

I'm learning a lot here. Just hope I can remember it later

Thank You ALL
Old 02-28-2012, 03:52 PM
  #2
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,738
Received 493 Likes on 326 Posts
Default

I have the exact setup on my Whaler. Here's what it looks like. My SH GX2100 is connected to an 8' Digital antenna. Try to keep 3' between your vhf antenna and Garmin 740.

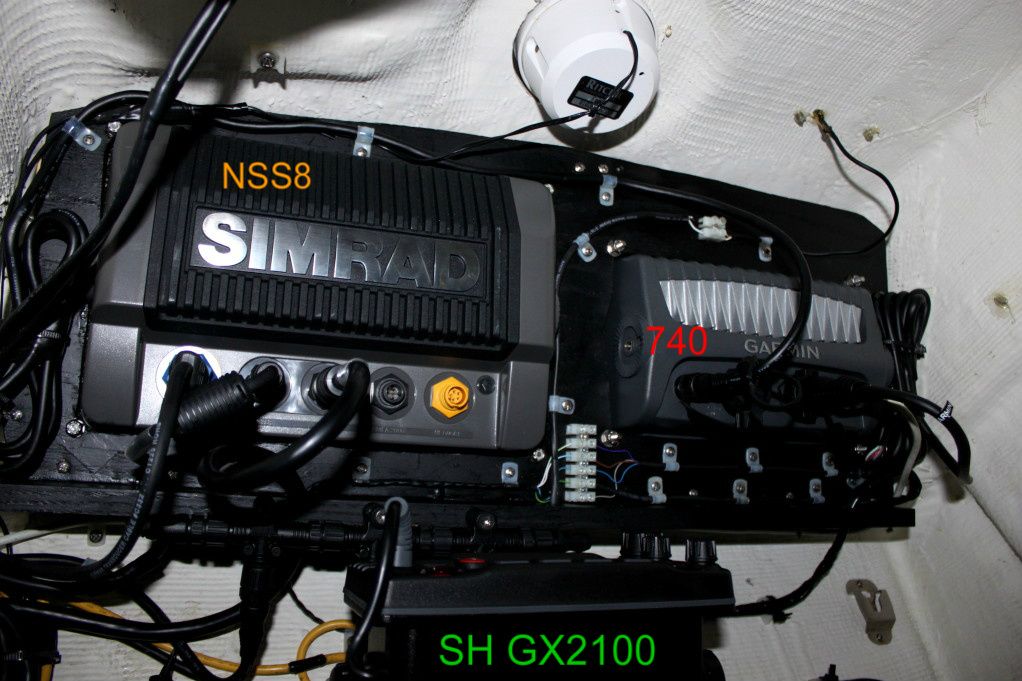

This is my previous helm setup .....

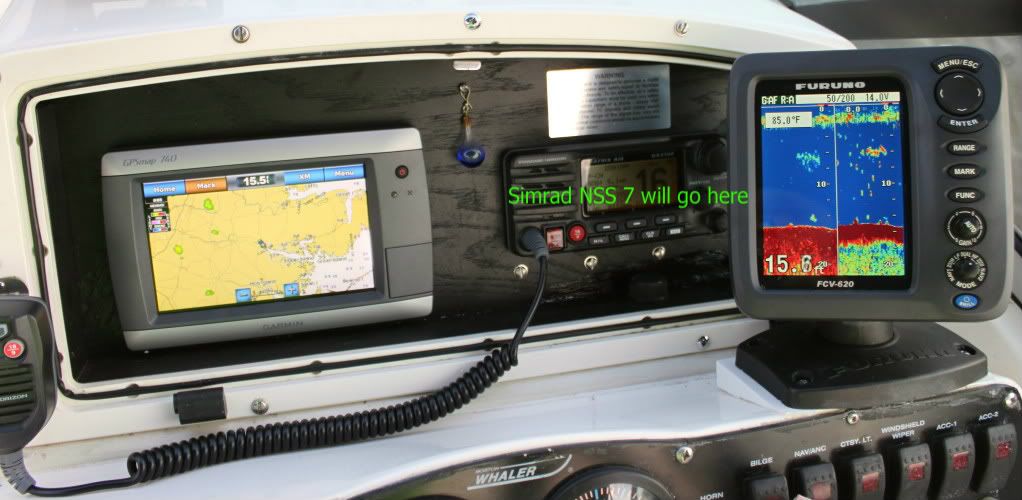

Current look .....

Old 02-28-2012, 05:02 PM
  #3
Senior Member
Thread Starter

Join Date: Aug 2011
Location: So. NH
Posts: 425
Likes: 0
Received 1 Like on 1 Post
Default

Just what the Dr. ordered. Thank You.

Do you also have Garmin XM weather, like the GXM51?
Old 02-28-2012, 06:14 PM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,738
Received 493 Likes on 326 Posts
Default

Yes I have XM Weather ......







Old 02-28-2012, 07:01 PM
  #5
Senior Member
Thread Starter

Join Date: Aug 2011
Location: So. NH
Posts: 425
Likes: 0
Received 1 Like on 1 Post
Default

One Picture is worth a thousand questions. Thanks Again.

Be Safe!!!
Old 02-29-2012, 11:15 AM
  #6
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,738
Received 493 Likes on 326 Posts
Default

Here's what your GX51 antenna stuff looks like out of the box.
