Garmin GXM51 mounting

Old 08-21-2011, 11:33 AM
  #1
Joe
Senior MemberCaptains Club Member
Thread Starter

Join Date: Mar 2001
Location: Libertalia
Posts: 17,432
Received 1,408 Likes on 796 Posts
Default Garmin GXM51 mounting

Does anyone have their GXM51 mounted under a hard top, or under any other covering? What kind of reception are you getting with it?

I currently have mine mounted on a pole (that extends above my radar dome), and due to my hardtop not having a "liner", I can't change it to be flush mounted to my hard top.

I want to change it off the pole mount. Where do y'all have yours mounted?
Old 08-21-2011, 11:42 AM
  #2
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,743
Received 494 Likes on 327 Posts
Default

I have mine mounted on my helm console under a bimini top. I have installed quite a few under T-Tops even put one inside an electronics box. All installs work as advertised.

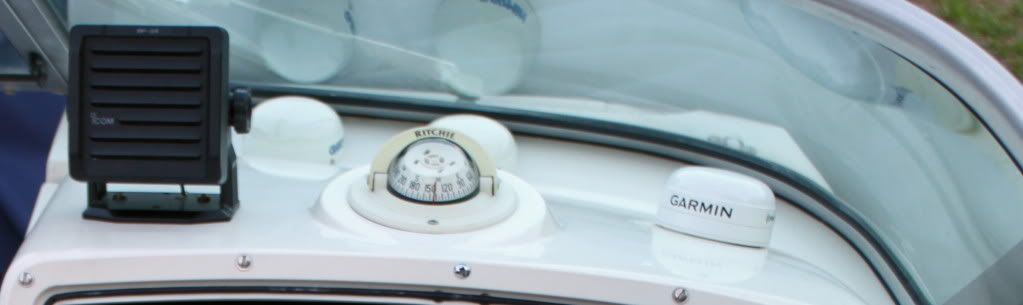

Here's my install. I use 5200 to attach it to the surface.

Old 08-22-2011, 07:49 PM
  #3
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2005
Location: Kent Narrows, MD
Posts: 7,146
Received 775 Likes on 367 Posts
Default

Mine is mounted in a bracket inside the console. I also have a hardtop, so it is receiving through 2 layers of fiberglass. Overall pretty good with some minor interruptions when listening to music
Old 11-15-2012, 06:22 PM
  #4
Senior Member

Join Date: Aug 2006
Location: Houston
Posts: 282
Likes: 0
Received 0 Likes on 0 Posts
Default GXM51 T Top and Compass

On a center console if you mount on the under side of the dash electronics box that will see satellites? Mine has thick wood for mounting things on the top.

Any concerns about the compass above. My boat is a Contender
Old 11-25-2012, 09:15 AM
  #5
Member

Join Date: Sep 2011
Location: FL
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Default

Mine is under the console with the supplied bracket, no problem with weather reception XM will fade in and out if something like a drink can or tool is over the antenna on top of the console.
Old 11-25-2012, 07:17 PM
  #6
Senior Member

Join Date: Aug 2006
Location: Houston
Posts: 282
Likes: 0
Received 0 Likes on 0 Posts
Default

Why take it off the pole? I'm putting mine on a pole above the radar after having issues with my 30A.

The XM techs told me its best to have a clear sky since the weather is heavy data transfer. Ok to hide it for audio. Garmin says its ok if its wood or fiberglass covering it. The weather signal comes from the southern sky and a full N,E and W will not get full bars if S is blocked.

I tested it a little. With full bars i covered the unit with granite, hardy plank and particle board one at a time. Only the granite caused loss of bars. The others appeared to be invisible with no change in bars.
Old 11-26-2012, 10:23 AM
  #7
Joe
Senior MemberCaptains Club Member
Thread Starter

Join Date: Mar 2001
Location: Libertalia
Posts: 17,432
Received 1,408 Likes on 796 Posts
Default

I wanted to take it off teh pole so I wouldn;t have to climb up and down to raise and lower it.

I have this GXM51 for sale now..was going to use it on the new boat but went with Lowrance instead.
Old 11-26-2012, 10:45 AM
  #8
Admirals Club Admiral's Club Member

2tofly's Avatar

Join Date: Jun 2011
Posts: 182
Likes: 0
Received 0 Likes on 0 Posts
Default

PM sent
