Default VHF and Antenna Recommendations

Will be taking delivery of a new boat this spring (Seapro 22 WA) and will of course be installing some instrumentation, including a VHF. Based on the info received from this forum I am leaning towards an Icom 402 with a digital antenna. My fishing/cruising area is Long Island Sound and vacinity with the occasional run off shore. My question: The digital antenna I am leaning towards is 4 ft. with a gain of 4.5 db. Will this give me the performance I need? I know a 6 ft. antenna will give better gain, but I don't want the extra height if I don't need it. Would appreciate any and all comments. Thanks.
george2431 is offline
Old 01-31-2003, 05:03 PM
  #2
Senior MemberCaptains Club Member

Join Date: Jun 2002
Location: Seattle, WA
Posts: 3,026
Default VHF and Antenna Recommendations

I run the 4' Digital on my 21 CC and I think it does a better job transmitting in rough sea states, at least no one ever asks me to repeat messages due to broken transmission. Ultimate range will be a little less though, I would imagine.

28' Maxcat w/twin Honda 225's
Chaps is offline
Old 01-31-2003, 05:22 PM
  #3
Senior MemberCaptains Club MemberPLEDGER

Join Date: May 2002
Location: Skaneateles, New York
Posts: 5,483
Default VHF and Antenna Recommendations

I have an 8' Antenna on top of the T-top...NEVER a problem. You're right on the mark as to manufactures, though. Higher is better. Those smaller DB antennas were designed primarially for sailboats that are healed over most of the time. In rough water, I'll bet the average direction of an antenna is UP. When it's calm it's always up. Some day, hopefully not, you'll need that extra range. It's all line of sight...higher is better. Now, if you actually have physical constraints...your into compermise!

"Never enough time to do it right; ALWAYS enough time to do it over." Boston Whaler, "MUMBLER", 24' Outrage (1996), twin 175 HP Evinrude Ocean Pros.
Mumblerone is offline
Old 02-01-2003, 07:42 AM
  #4
MemberCaptains Club Member
Thread Starter

Join Date: Jan 2003
Location: Niantic, Clinton CT
Posts: 83
Default VHF and Antenna Recommendations

Thanks to Chaps and Mumblerone for your reply's. I'll go with an 8 ft. if it's possible.

George
george2431 is offline
Old 02-01-2003, 08:01 AM
  #5
Senior MemberCaptains Club Member

Join Date: Feb 2001
Location: West Virginia
Posts: 3,877
Default VHF and Antenna Recommendations

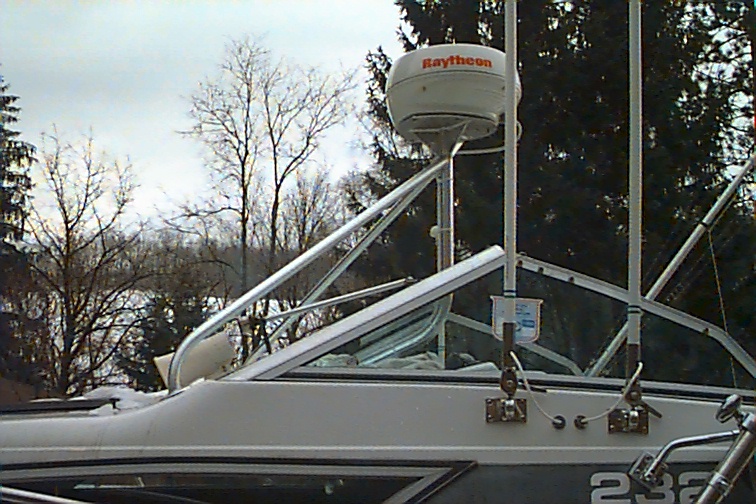

The overall length of the antenna has nothing to do with gain. Get all the antenna, lengthwise, you can carry. If its not in the way there is no advantage at all to having a short antenna and with a walk around boat there is no reason why it would ever be in the way. So the limitation you should be concerned about is that it be properly supported. Beyond that get it as high up as you can and then get it as long as you can. Here's one way:



Thom

"For every complex question, there's a simple answer. And it's wrong."
(--H. L. Mencken)
Thom is offline
Old 02-01-2003, 08:31 AM
  #6
Senior MemberCaptains Club Member

Join Date: Feb 2001
Location: Manassas Va USA
Posts: 4,386
Default VHF and Antenna Recommendations

I don't know why height would be a problem. There are ratchet mount to lower them down when needed. I would go 8' 6 db digital if money was no object. Shakespeare 5225 is a fine antenna for the money.



Hawkeye
Hawkeye is offline
Old 02-01-2003, 09:04 AM
  #7
Senior MemberCaptains Club MemberPLEDGER

Join Date: May 2002
Location: Skaneateles, New York
Posts: 5,483
Default VHF and Antenna Recommendations

Here's is another PIC. You'll note the antenna is leaning a little forward at rest...when running, it's straight up. Not a big item!

"Never enough time to do it right; ALWAYS enough time to do it over." Boston Whaler, "MUMBLER", 24' Outrage (1996), twin 175 HP Evinrude Ocean Pros.
Mumblerone is offline
Old 02-01-2003, 01:49 PM
  #8
Senior Member

Join Date: Nov 2001
Location: North Carolina
Posts: 148
Default VHF and Antenna Recommendations

I have the Icom M402 mated to the Digital 528V.

I don't think you will be dissappointed. Mount the antenna high on a swivel base.

Mine is mounted on the console rail. I can turn it town for trailering or to get under that low ICW bridge.
Lead_Head is offline
Old 02-03-2003, 03:09 PM
  #9
Senior MemberCaptains Club Member

Join Date: Jan 2003
Location: Westchester Co., NY
Posts: 105
Default VHF and Antenna Recommendations

Thom,

Should you have a drip loop in those cables?

Bill

Incommunicado
20' Grady White
225 Yamaha
BSartist is offline
Old 02-03-2003, 04:56 PM
  #10
Senior MemberCaptains Club Member

Join Date: Jun 2002
Location: Seattle, WA
Posts: 3,026
Default VHF and Antenna Recommendations

As long as we are picking on Thom's boat, isn't that radome backwards?

OOPS . . . excuse me, after looking at Mumblerone's top I see now that raytheon domes are offset to the rear . . . open mouth, insert foot

28' Maxcat w/twin Honda 225's
Chaps is offline
Old 02-03-2003, 05:12 PM
  #11
Member

Join Date: Mar 2002
Location: Grove City, Ohio, USA
Posts: 33
Default VHF and Antenna Recommendations

Lead_Head, are you satisifed with the Icom 402 you have? I will be installing a new VHF and looked at the 402 with DSC and the optional Command Mic for my 34' Silverton Convertible. Thanks.
Planeguy is offline
Old 02-04-2003, 06:47 AM
  #12
Senior Member

Join Date: Nov 2001
Location: North Carolina
Posts: 148
Default VHF and Antenna Recommendations

Planeguy,

Very satified. I do not thave the command mic. The 402 gets GPS information from my Garmin 182. Im not sure DSC is something that effective, but I guess it's better than not having it. There was a long thread about DSC here a few months ago, you might want to read. At that time the Coast Guard did not have much monitoring coverage for DSC, and I think there was some uncertanty about how or if they might build out their monitoring capability.
Lead_Head is offline
Old 02-04-2003, 08:19 AM
  #13
Senior MemberCaptains Club Member

Join Date: Sep 2002
Location: On the wild side !!
Posts: 5,700
Default VHF and Antenna Recommendations

Just purchased a Digital 528 V from boatfix.com.

$111.00. Cheap insurance IMHO.
BW23 is offline
Old 02-05-2003, 01:31 PM
  #14
Senior MemberCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: May 2002
Location: Brookhaven, LI, NY
Posts: 15,755
Default VHF and Antenna Recommendations

Planeguy,
I also have an M402 VHF, and I have the Commander mic in the cabin. Works great. I have the 4' Digital 528 antenna and love that.

The only complaint I have with the M402 is that you can not turn on the VHF from the commander mic. You have to have the main VHF unit powered on to be able to turn on and use the commander mic. They should change that so the main power can be turned on from the commander mic.

Birdman, Capt of
Birdman is offline
Old 02-05-2003, 04:21 PM
  #15
Member

Join Date: Mar 2002
Location: Grove City, Ohio, USA
Posts: 33
Default VHF and Antenna Recommendations

Interesting.....on the Icom web page it even says "you can control all functions except DSC from the Command Mic". Glad you told me so I can investigate a little further. Still seems to be what I am looking for. Says you can also use it as an intercom between the command mic and the main unit. Nice feature! Thanks to all for the input.
Planeguy is offline
Old 02-06-2003, 05:28 AM
  #16
Senior MemberCaptains Club Member

Join Date: Dec 2002
Location: Orlando
Posts: 3,997
Default VHF and Antenna Recommendations

quote: The overall length of the antenna has nothing to do with gain.

Is that right? Then why 9db gain for 14' antennas vs. 6db gain for 8' ones vs. 3db gain for 4 foot ones?

The overall length affects the radiation pattern, and directly affects the apparent gain over an omnidirectional pattern.

[This message was edited by Sea_Dad on 02-06-03 at 09:43 AM.]
Sea_Dad is offline
Old 02-06-2003, 06:51 AM
  #17
Senior MemberCaptains Club Member

Join Date: Feb 2001
Location: West Virginia
Posts: 3,877
Default VHF and Antenna Recommendations

Sea Dad,

I quite purposfully said "the overall" length of the antenn has nothing to do with its gain, and that is true. What has an effect on the radiation pattern is the length of the radiating element inside of the antenna. It is immaterial what the length of the fiberglass tube you stick that radiating element in is. So you could take the guts (radiating element) out of a 6dB 8-foot antenna and stick them into a 20-foot long tube. You'd then have an overall 20-foot antenna, but it would still be a 6dB antenna.

Thom

"For every complex question, there's a simple answer. And it's wrong."
(--H. L. Mencken)
Thom is offline
Old 02-06-2003, 10:35 AM
  #18
Senior MemberCaptains Club Member Admiral's Club Member
THT sponsor

Join Date: May 2002
Location: Brookhaven, LI, NY
Posts: 15,755
Default VHF and Antenna Recommendations

Planeguy,
Yea, it controls every FEATURE except DSC, but, they don't consider ON/OFF a "feature".

Birdman, Capt of
Birdman is offline
Old 02-06-2003, 11:28 AM
  #19
Senior MemberCaptains Club Member

Join Date: Dec 2002
Location: Orlando
Posts: 3,997
Default VHF and Antenna Recommendations

Thom,
I'll buy that answer. But I've never heard of that actually happening in the real world.
Sea_Dad is offline
Old 02-06-2003, 01:09 PM
  #20
Senior MemberCaptains Club Member

Join Date: Mar 2002
Location: LINDENHURST, NY
Posts: 1,775
Default VHF and Antenna Recommendations

Planeguy-
If you are still looking at a VHF, have you looked at the 502? I am not knocking the 402 by any means since I have one and it is great. I am upgrading to a 502 for the sake of having a backup in addition to my handheld.

The only reason I mention the 502 is that it has a large rotary knob for channel selection. I often found it a little challenging to hop around the various frequencies when it was a little sloppy, with the 402. I have mine mounted in the overhead e-box next to one of my chartplotters. With my meat hooks, it gets a little tight. Even using the channel selector built into the mic can cause you to skip past the frequency you are looking for. Just a thought for you to consider.

BW 23- Did you just decide on boat-fix, or did you shop around? That very same antenna is EVEN CHEAPER insurance at Bethel Marine for 66.95. And the service is good also.

"The oak tree, now mighty, was once the nut who held his ground."
