Raymarine G Series Install

Old 05-06-2008, 04:23 AM
  #1
Senior MemberCaptains Club Member
Thread Starter

Join Date: Dec 2004
Location: Bradenton, FL
Posts: 1,338
Likes: 0
Received 1 Like on 1 Post
Default Raymarine G Series Install

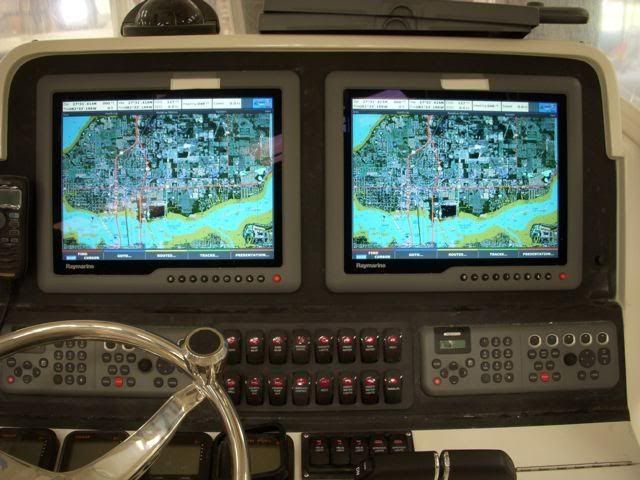

We just finished a Raymarine G Series and thought we would share a few pics. The boat was a 38 Jupiter with triple 350 Yammies.


The Raymarine monitors were very bright and easy to see in the sunlight. The keyboards allow the user to control the opposite screen so no more reaching over the driver. System boot up was very quick and the system speed was amazing. The GPM processors come with Navionics Platinum built in so the mapping was great. The system works just like an E series so it was easy to navigate thru. We added an ST70 color display up top to share the nmea data from the processors and be a stand alone temp gauge if needed.


With the triple 350 Yamaha's our autopilot of choice was the TR-1 with the new 2.1 pump. This thing was massive, super quiet and worked so well the owner was driving the boat from the autopilot 50% of the time.

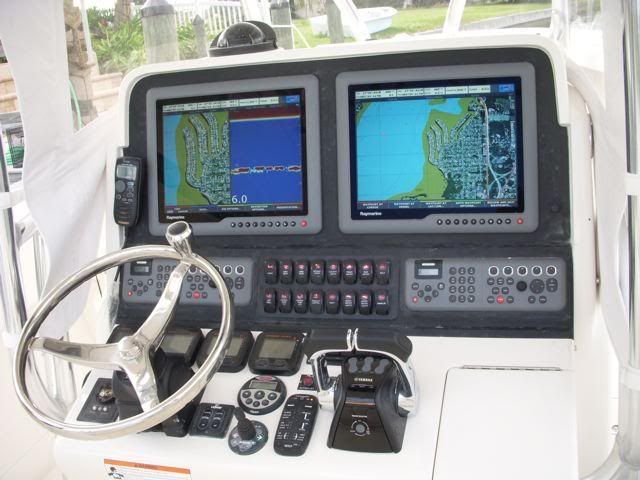

Last dash photo


A complete run down is in the photo section.
Old 05-06-2008, 08:29 AM
  #2
Junior MemberCaptains Club Member

Join Date: Apr 2006
Location:
Posts: 9
Likes: 0
Received 3 Likes on 2 Posts
Default Re: Raymarine G Series Install

Very nice work. I had a chance to play with them at a G-series training seminar and was very impressed.

which sounder and radar did you guys install? <----edit: nevermind, i just saw the other thread in the pictures section. very good job
Old 05-06-2008, 10:42 AM
  #3
Senior MemberCaptains Club Member
Thread Starter

Join Date: Dec 2004
Location: Bradenton, FL
Posts: 1,338
Likes: 0
Received 1 Like on 1 Post
Default Re: Raymarine G Series Install

Thanks duct tape. . We wanted the DSM400 but it's not avialable yet. The B260 can have the plug cut and one put on to fit the DSM400 later which is nice. Impressive system, cant wait to put it against the Furuno.
Old 05-06-2008, 10:54 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,720
Received 489 Likes on 323 Posts
Default Re: Raymarine G Series Install

Great install .... well laid out and functional. I really like the ICOM Command Mic III's.
Old 05-06-2008, 05:52 PM
  #5
Senior MemberCaptains Club Member
Thread Starter

Join Date: Dec 2004
Location: Bradenton, FL
Posts: 1,338
Likes: 0
Received 1 Like on 1 Post
Default Re: Raymarine G Series Install

Thank you bluewaterpirate
