Default How I mounted a transom transducer: easy done, no hole under WL, easy removed

Hi All,

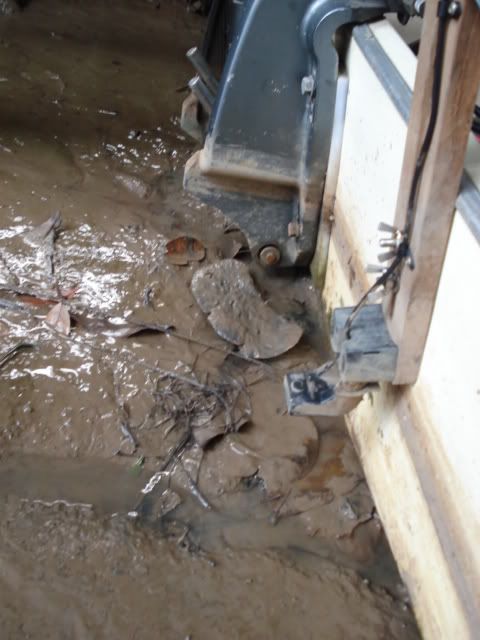

if this can suggest any idea about another possibility to fix a transom mount ducer, here are pics:




I used 2 existing holes all through transom above the WL.

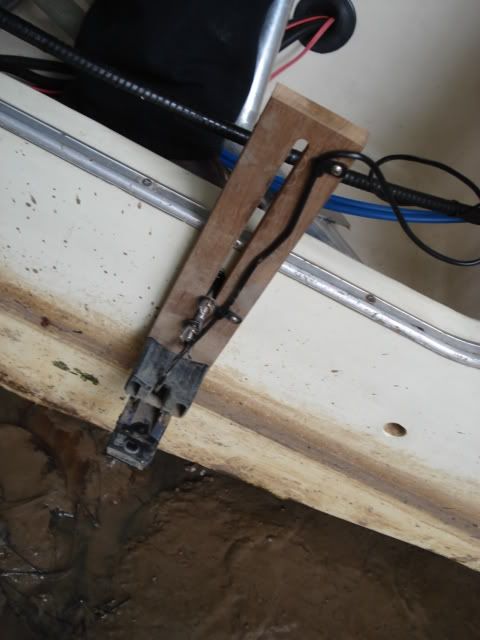

I fixed the ducer mount on the bottom of a teak plank. This plank is grooved all along and is tightened on the top of the transom via 2 bolds with butterfly hexnuts.

Except the look, I only see advantages:

- easy removable or brought upward in case of trailering, water with debris, ...

- no water infiltration in transom/boat.

-easy adjusting (up or down).

- easy cleaning.


It works up to my WOT (30 knots), and readings do not seem affected (Garmin 140, I know too basic ;? ). I looks strong enough, and at least much stronger than the ducer.

I had no choice as half the time, the boat lays in mud at low tide.

Cost? You guess. Less than a transducer, less than a transom. ;?
Old 03-23-2007, 05:39 PM
  #2
Senior MemberCaptains Club Member

Join Date: Mar 2003
Location: Port Isabel, TX
Posts: 2,050
Likes: 0
Received 0 Likes on 0 Posts
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

I had no choice as half the time, the boat lays in mud at low tide.
Lays in the mud, that is an understatement
Old 03-23-2007, 07:25 PM
  #3
Senior MemberCaptains Club Member

Join Date: May 2006
Location: SE FL
Posts: 811
Likes: 0
Received 1 Like on 1 Post
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

I've seen commercially made setups that are similar to this except they use Starboard instead of wood and used a track instead of bolts with wing nuts. Same concept though, good job.
Old 03-23-2007, 09:34 PM
  #4
Senior MemberCaptains Club Member
Thread Starter

Join Date: Oct 2006
Location: Saigon, Vietnam
Posts: 2,200
Likes: 0
Received 1 Like on 1 Post
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

Jim Z - 3/24/2007 7:25 AM

I've seen commercially made setups that are similar to this except they use Starboard instead of wood and used a track instead of bolts with wing nuts. Same concept though, good job.
Gosh I thought I created something. Sorry I haven't even seen another fish finder than mine before ;?
Old 03-23-2007, 09:44 PM
  #5
Senior MemberCaptains Club Member

Join Date: Sep 2002
Location: N. Palm Beach
Posts: 441
Received 19 Likes on 14 Posts
Default RE: How I mounted a transom transducer: easy done, no hole under WL, easy removed

Thats a great concept, Jim Z making it out of starboard makes it a better idea. Thats what makes this site so cool, you can learn sooo much
Old 03-23-2007, 09:53 PM
  #6
Senior MemberCaptains Club Member
Thread Starter

Join Date: Oct 2006
Location: Saigon, Vietnam
Posts: 2,200
Likes: 0
Received 1 Like on 1 Post
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

I have been looking for the translation of Starboard several time and could not find it. What is starboard made of? (sorry, I am not native english speaker) ;?
Old 03-23-2007, 10:10 PM
  #7
Senior MemberCaptains Club Member

Join Date: Apr 2002
Location: Virginia Beach, Va
Posts: 5,717
Received 388 Likes on 271 Posts
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

XV2PS - 3/23/2007 10:53 PM What is starboard made of?
Read about it below.

http://www.kingstarboard.com/Products/starboard.aspx
Old 03-23-2007, 11:12 PM
  #8
Senior MemberCaptains Club Member
Thread Starter

Join Date: Oct 2006
Location: Saigon, Vietnam
Posts: 2,200
Likes: 0
Received 1 Like on 1 Post
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

Thanks Mud runner (I like the name). I already contacted them for the business I am runing (high grade outdoor furniture), I think there is also some interrest there. Yes, it exists, asian based factories who buys raw materials in the US (even fabric as I currently do).

As for the boat, well, I have unlimited teak and no starboard (yet)
Old 03-24-2007, 12:43 AM
  #9
Senior MemberCaptains Club MemberPLEDGER

Join Date: Sep 2003
Location: CA & San Carlos, Mx
Posts: 23,677
Received 1,350 Likes on 853 Posts
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

The coolest idea I have had is to but it on a trim tab actuator so that its adjustable on the fly.
Old 03-24-2007, 12:46 AM
  #10
Senior MemberCaptains Club Member

Join Date: Nov 2006
Location: Florida Keys
Posts: 5,975
Likes: 0
Received 5 Likes on 5 Posts
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

XV2PS - 3/23/2007 11:12 PM

Thanks Mud runner (I like the name). I already contacted them for the business I am runing (high grade outdoor furniture), I think there is also some interrest there. Yes, it exists, asian based factories who buys raw materials in the US (even fabric as I currently do).

As for the boat, well, I have unlimited teak and no starboard (yet)
I remember your earlier post when you were looking to get a transducer or fishfinder, and you were talking about the floating crap, mud, etc. in your rivers. I thought "heh, I could tell him a thing or two about mud, floating trees, dead animals, etc." having boated in the midwest in spring in a big variety of shi**y, muddy lakes, rivers, streams, etc. But man, after those photos, I've gotta tell you, you win. I see why you were worried about the unit reading mostly crap in the water rather than fish.

That first photo is something else.
Old 03-24-2007, 01:31 AM
  #11
Senior MemberCaptains Club Member
Thread Starter

Join Date: Oct 2006
Location: Saigon, Vietnam
Posts: 2,200
Likes: 0
Received 1 Like on 1 Post
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

Oh no, this is not the water, this is just mud at low tide

But true that floating debris are a lot, but when you read the FF and it marks you fishes such as sometimes 2-3 a second right under your raft, you stress more. ;?
Old 03-24-2007, 06:58 AM
  #12
Senior MemberCaptains Club MemberPLEDGER

Join Date: Feb 2005
Location: Kent Narrows, MD
Posts: 7,144
Received 774 Likes on 366 Posts
Default Adjustable Transducer Bracket



http://www.transomliftmount.com/

Old 03-24-2007, 08:19 AM
  #13
Senior MemberCaptains Club Member
Thread Starter

Join Date: Oct 2006
Location: Saigon, Vietnam
Posts: 2,200
Likes: 0
Received 1 Like on 1 Post
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

OK, I have saved 74.99 USD plus it seems you still have to screw under the water line with this lift. ;?
Old 03-24-2007, 08:23 AM
  #14
Senior Member

Join Date: Jun 2006
Location: Groveland
Posts: 566
Likes: 0
Received 0 Likes on 0 Posts
Default Re: How I mounted a transom transducer: easy done, no hole under WL, easy removed

thats a good idea xv.

that is some mud you got there.
