Do I remove this Ducer?

Old 12-31-2020, 03:23 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2018
Location: Gloucester
Posts: 308
Received 35 Likes on 31 Posts
Default Do I remove this Ducer?

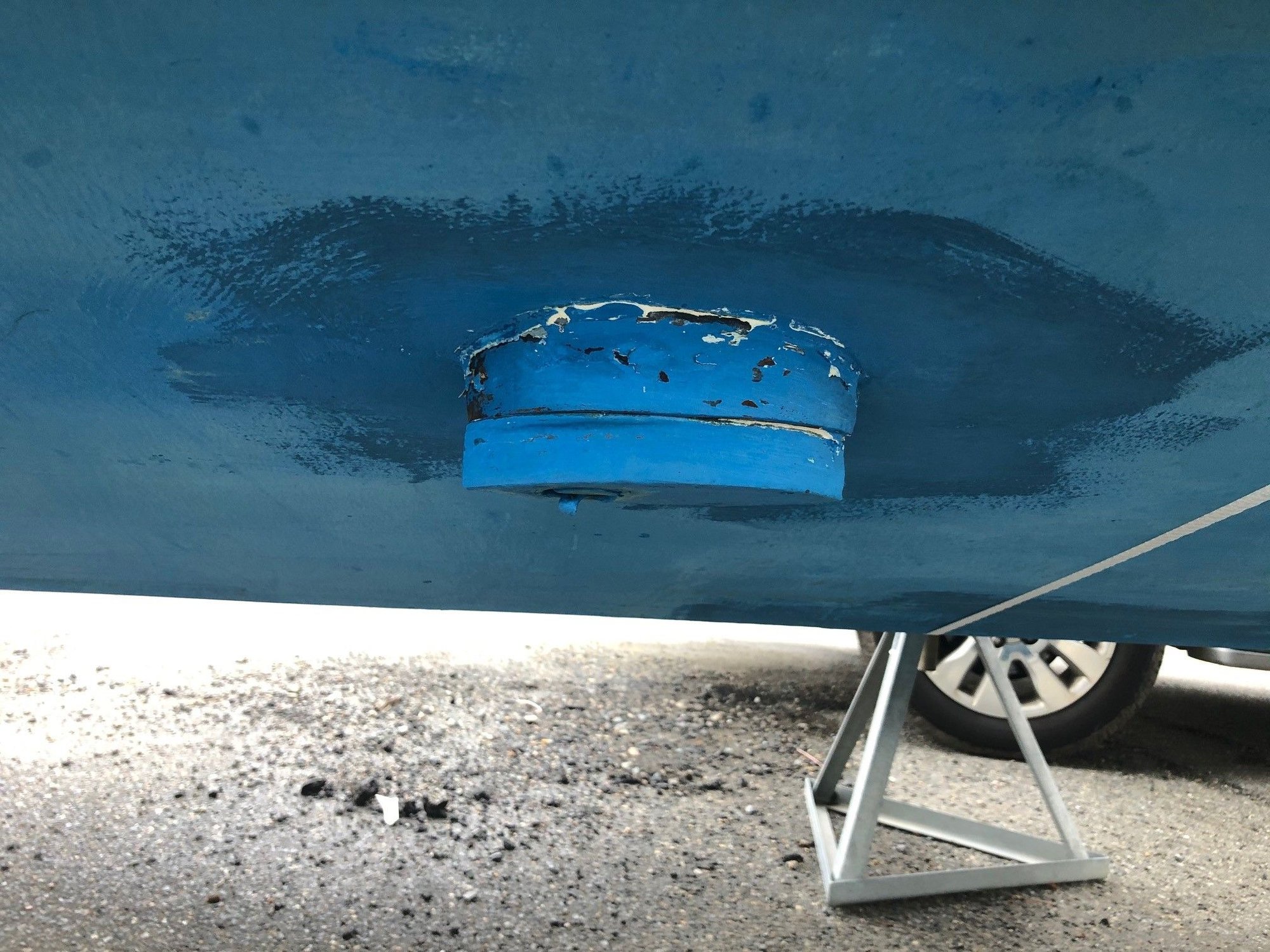

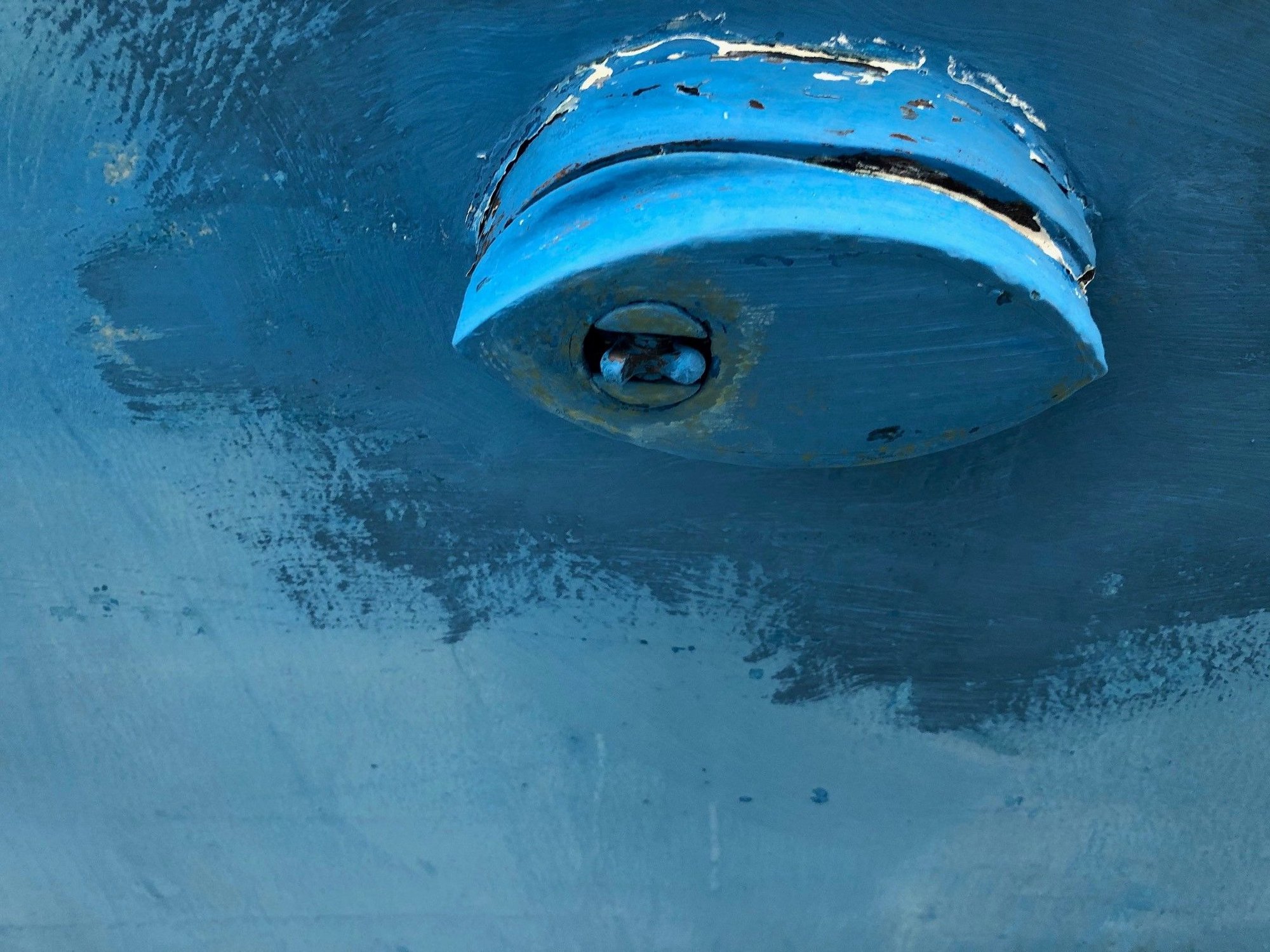

Purchased a 28 topaz and starting to think electronics. Before I get going this is an abandoned transducer that is now just 6 inched behind the stb engine intake, so not a usable location for anything.

Do I try and remove of just leave in place?

Thanks for any all help.


Old 01-01-2021, 06:24 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Sienna Plantation, TX.
Posts: 3,505
Received 1,765 Likes on 841 Posts
Default

If it's not in your way or bothering anything, why? Do a cost benefit analysis... It will cost you several hundred at least to have it removed and repaired. While you are at it, may as well prep the entire bottom. What is that repair and bottom job going to get you other than removing that ugly thing from the bottom? If it leaks and costing you considerable GPH I would give it a serious thought.
Old 01-01-2021, 02:39 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Nov 2014
Posts: 1,005
Received 160 Likes on 99 Posts
Default

Remove it and glass the hole from both sides.Pretty easy.Capt.Mike
Old 01-01-2021, 02:40 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Nov 2014
Posts: 1,005
Received 160 Likes on 99 Posts
Default

Remove it and glass the hole from both sides.Pretty easy.Capt.Mike
Old 01-01-2021, 03:11 PM
  #5
Senior MemberCaptains Club Member

Join Date: Feb 2003
Location: M.Vineyard, MA
Posts: 16,065
Received 904 Likes on 698 Posts
Default

That protruding B744V or similar T/D and doubled fairing block is creating a substantial drag at no benefit , as well as having risk of strike damage and leak. Too bad there is an intake a bit ahead ( but must be more than 6", no?) as otherwise a flush mount T/D like the B175 HW models would be a good solution to fill the hole ( made a bit larger.) (That's what I had done. Gained a little speed & economy at cruise rpm and had to use less beam-corrective trim tab and the sonar results were way better.)

If that is really not feasible, I agree with Daybreaker above.
Old 01-01-2021, 03:16 PM
  #6
Senior Member

Join Date: Apr 2010
Location: Southern California
Posts: 2,854
Received 642 Likes on 336 Posts
Default

First rule of boating, anything that is not essential to the operation of the boat should be removed.
Old 01-04-2021, 11:56 AM
  #7
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2018
Location: Gloucester
Posts: 308
Received 35 Likes on 31 Posts
Default

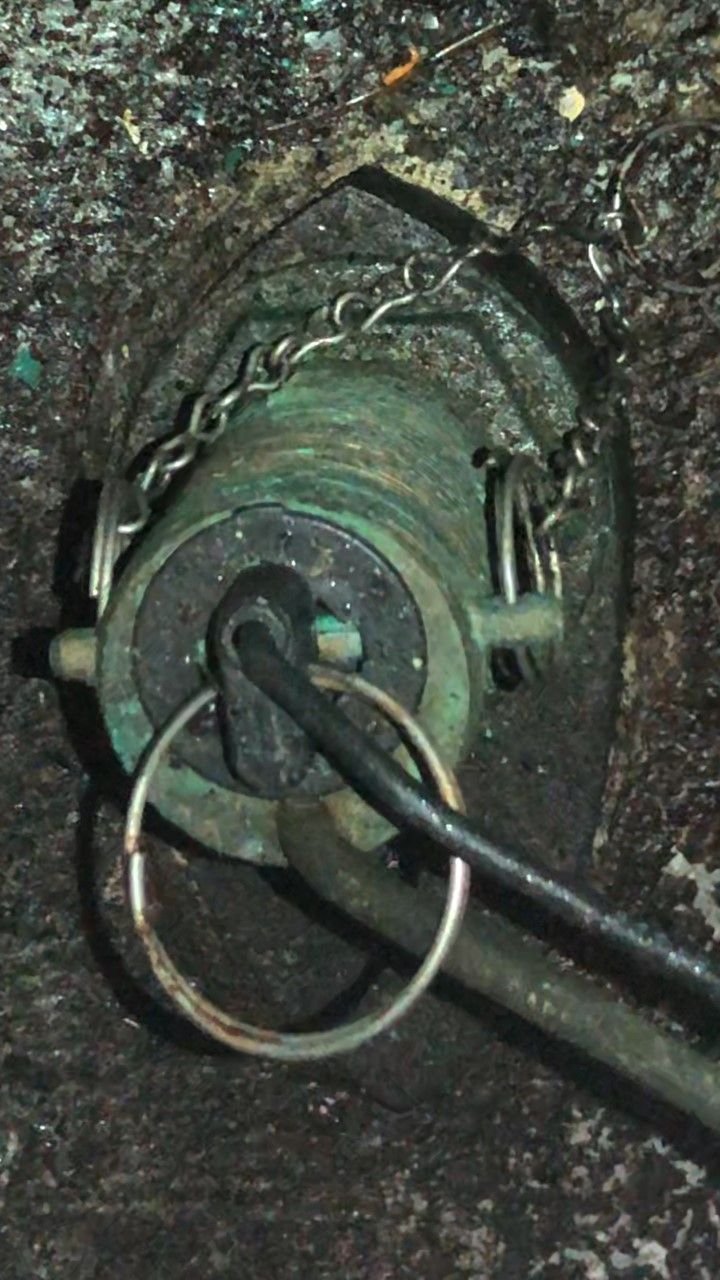

Here is the inside pic I have absolutely no access to repair this from the inside. the old transducer is below the starboard engine and just getting the pic was difficult So I guess its staying put. thanks all for help, I should have checked for access before even considering.

Old 01-04-2021, 05:37 PM
  #8
Senior MemberCaptains Club Member

Join Date: Oct 2003
Posts: 5,452
Received 441 Likes on 269 Posts
Default

Originally Posted by allrelative View Post
Here is the inside pic I have absolutely no access to repair this from the inside. the old transducer is below the starboard engine and just getting the pic was difficult So I guess its staying put. thanks all for help, I should have checked for access before even considering.
I had a 28 an it had a transducer behind the port engine in a tight space next to a string. It was had to get out due to the location of the engine mount. The best method would be to use a dremel moto tool and cut through the nut. Only one cut is needed. Cut it and use a screw driver to open it up a little, then it will screw right off and you can push the ducer through the hole. Glass it up.
