Does your Raymarine Axiom sounder output look similar?

Notices
Marine Electronics Forum

Does your Raymarine Axiom sounder output look similar?

Old 12-24-2020, 10:37 PM
  #1
Junior Member
Thread Starter

Join Date: Aug 2020
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Default Does your Raymarine Axiom sounder output look similar?

Just had an Axiom with a kit CHIRP transducer installed. Didn't get a chance to take the boat out so the screenshots are from being stationary in a slip, but the output looks strange to me...as if it was stretched. Everything is on auto. Adjusting settings/sensitivity reduced some clutter, but didn't change the screen much. Oddly, the lighter blue lines close to the bottom are being identified as fish.... but they don't look like it to me?

Name:  ykB6uGzh.jpg
Views: 198
Size:  73.2 KB

Name:  bkVFjZAh.jpg
Views: 195
Size:  146.1 KB

Anyone with Raymarine Axiom can show what your sonar (just regular not down vision or 3D) look like?
Old 12-25-2020, 01:37 AM
  #2
Admirals Club Admiral's Club Member

Join Date: Nov 2014
Posts: 1,005
Received 160 Likes on 99 Posts
Default

What do you expect to see at your slip?Looks pretty normal to me.I would adjust the gain and intensity up a little to get a slightly darker bottom return.Capt.Mike
Old 12-25-2020, 03:27 AM
  #3
Senior Member

Join Date: Aug 2016
Location: Kalbarri, WA
Posts: 807
Received 340 Likes on 186 Posts
Default

Check your ping rate/chart speed. , too. It may be set too fast, that will always "elongate" a picture, moving or stopped. You'll find it in Settings (three gear cogs) , on the drop down menu (three bars) on the top rhs of the screen. I'd go down and look at mine, but the mosquitos are murder here ATM.
Old 12-25-2020, 04:09 AM
  #4
Senior Member

Join Date: Jul 2010
Posts: 118
Likes: 0
Received 5 Likes on 5 Posts
Default Shrimp

Best pic I have is of shrimp i got into last month. All settings were auto. Notice it starts like yours then builds as i get closer to the shrimp.
Old 12-25-2020, 04:12 AM
  #5
Senior Member

Join Date: Jul 2010
Posts: 118
Likes: 0
Received 5 Likes on 5 Posts
Default Depth

Not sure why yours doesn’t show depth.
Old 12-25-2020, 09:17 AM
  #6
Junior Member
Thread Starter

Join Date: Aug 2020
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Default

Ok, I'll take a look at try to adjust the settings up. It did seem to scroll quite fast and I believe the ping rate was set at 80, maybe that was too much?

The depth is not shown because one can add or remove information to their screen. It wasn't there by default, but I did add depth, SOG, water temp to my screen.
Old 12-25-2020, 10:44 AM
  #7
Admirals Club Admiral's Club Member

Join Date: Apr 2009
Location: lbi
Posts: 117
Received 0 Likes on 0 Posts
Default Element

[img]blob:https://www.thehulltruth.com/db1dc436-f6c5-4311-b41a-a6960ad36120[/img]

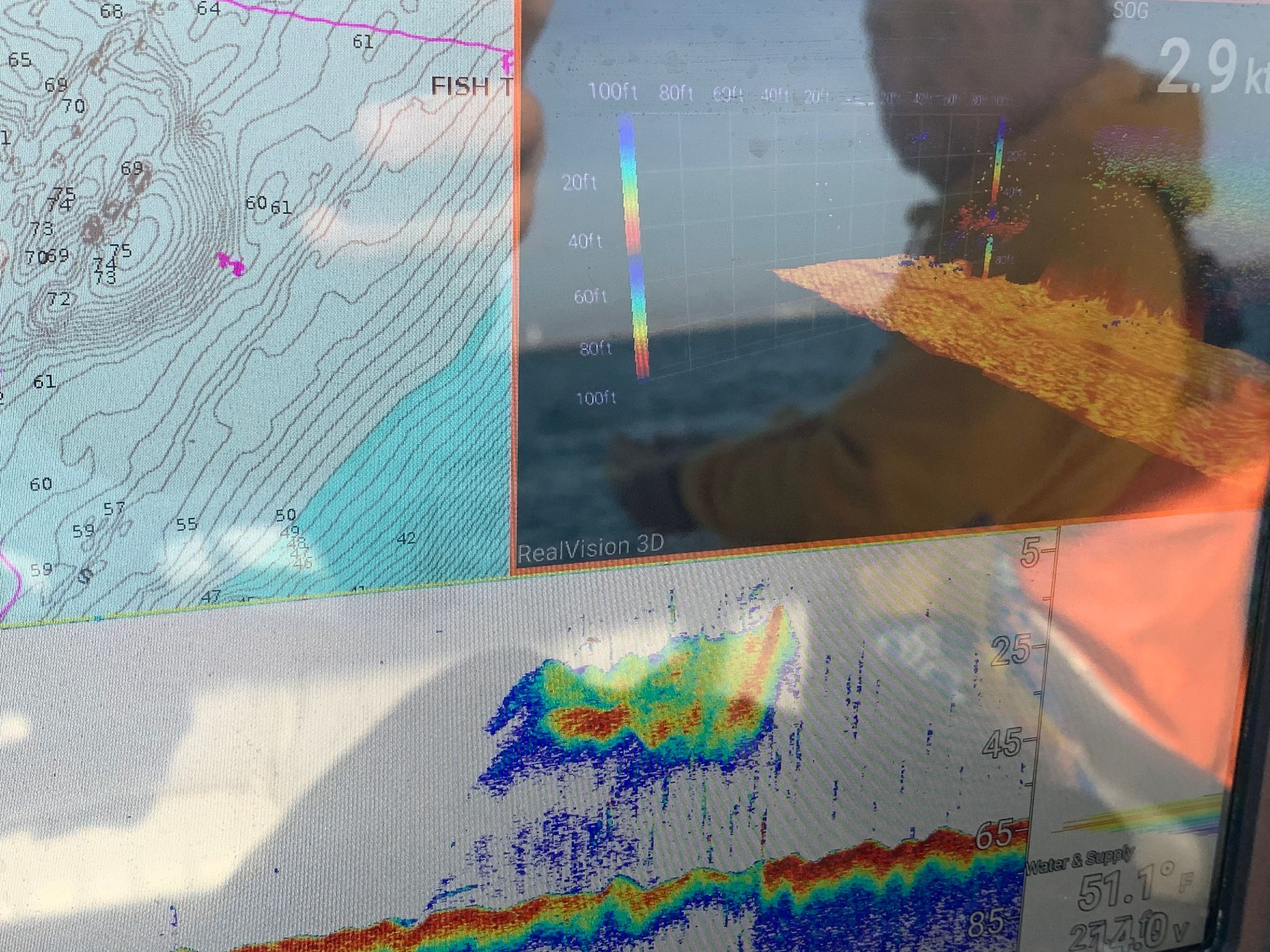

Crappy picture but pretty cool setup with 3D on the top right and white color palette on the bottom and ascope to the bottom right

Bunker school



Last edited by shawnk18; 12-25-2020 at 12:27 PM.
Old 12-25-2020, 11:01 AM
  #8
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,530
Received 446 Likes on 283 Posts
Default

It looks just fine!

Here's what mine looks like ...
3D display



Standard Chirp












Tom

Old 12-25-2020, 09:37 PM
  #9
Junior Member
Thread Starter

Join Date: Aug 2020
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Default

I think it's working. Bottom looks much better and got a nice arch for something that definitely looks like a fish to me Merry Christmas everyone!

Name:  65L7ir8h.jpg
Views: 105
Size:  103.4 KB
