Replaced old SH VHF with new SH and diff ext speaker plug

Notices
Marine Electronics Forum

Replaced old SH VHF with new SH and diff ext speaker plug

Old 10-17-2020, 07:30 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2010
Location: Ocean Ridge, FL
Posts: 2,087
Likes: 0
Received 372 Likes on 204 Posts
Default Replaced old SH VHF with new SH and diff ext speaker plug

I just replaced my old Standard Horizon eclipse with the new Standard Horizon Eclipse GX1400. It was a direct drop in size wise, but the old vhf had an external plug port in which I plugged in the Poly Planar MB-21. The new GX 1400 has a positive and negative wire for the external speaker so the poly planar MB-21 will no longer plug in. I need to keep the poly planar mb-21 because they are flush mounting into my e box. Can I cut off the plug on the poly planars and crimp?

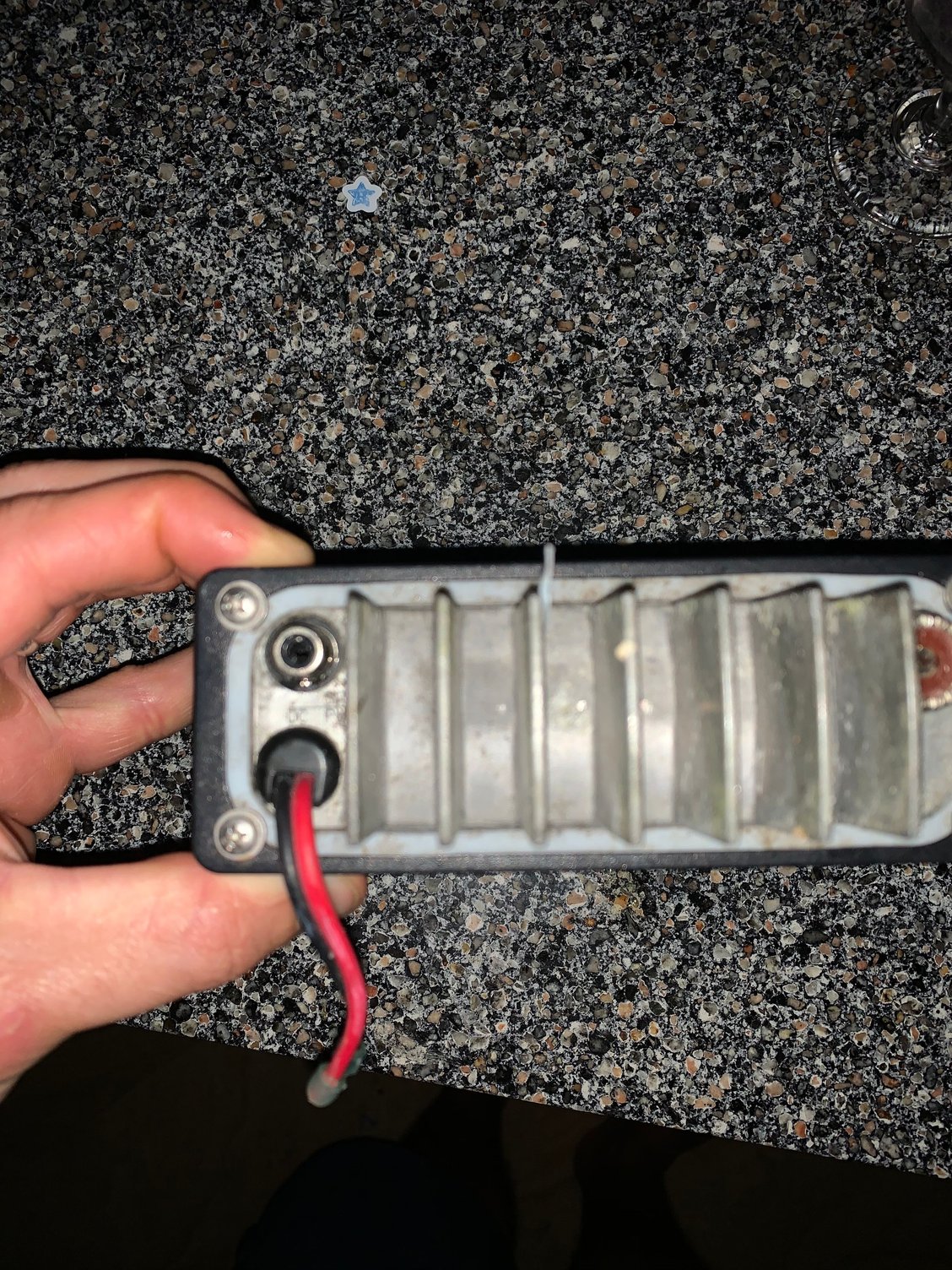

pic of old vhf back

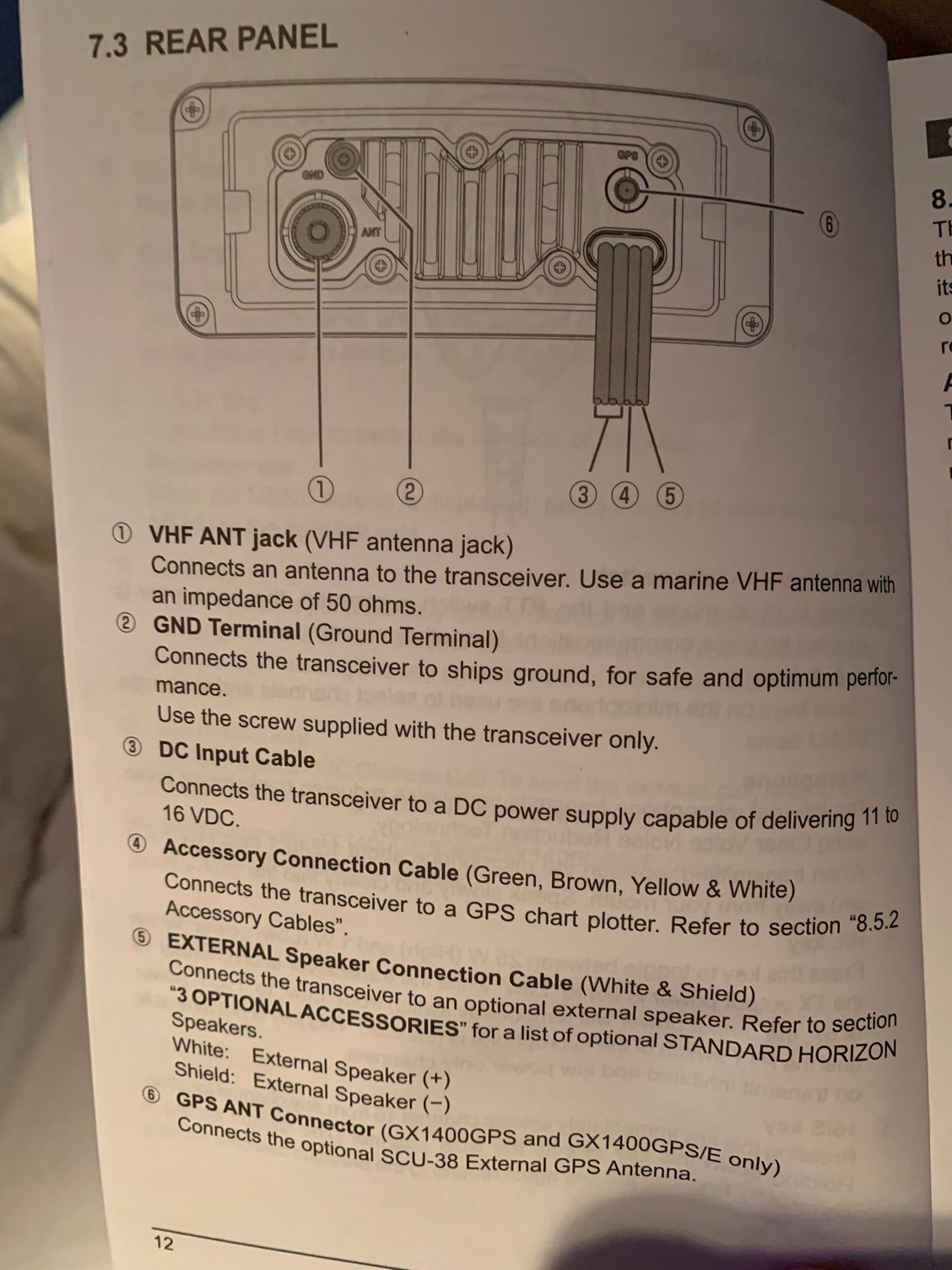

pic of new vhf back



Old 10-17-2020, 08:08 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Apr 2014
Location: Charlotte NC Area
Posts: 281
Received 46 Likes on 35 Posts
Default

Yes you could can cut there plug off and wire it direct.
Old 10-17-2020, 08:33 PM
  #3
Senior Member

Join Date: Feb 2015
Location: Kansas City
Posts: 1,178
Received 324 Likes on 154 Posts
Default

Or you could solder a female plug to the #5 wire and then plug the MB-21 into that.
Old 10-20-2020, 03:09 PM
  #4
Member

Join Date: May 2018
Posts: 61
Received 17 Likes on 11 Posts
Default

Yes, solder it. What you want is a female RCA plug for soldering. Not the chassis mount but the kind that looks like a plug. The gold plated kind is a good idea. Then you just unplug it if you want to change the external speaker.
You also have to hardwire it to your gps or that external speaker will give you an annoying loud blast after 10 minutes.
Old 10-20-2020, 06:25 PM
  #5
Senior Member

Join Date: Oct 2006
Location: LBI NJ
Posts: 2,997
Received 953 Likes on 556 Posts
Default

My piece of trash sea choice external speaker with a spare jack googan twisted/taped on has worked for over 20 years.
