Garmin user manual...lost in space

Old 10-07-2020, 12:04 AM
  #1
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Ventura, CA
Posts: 988
Received 269 Likes on 110 Posts
Default Garmin user manual...lost in space

Does one even exist?
Looking for a detailed user manual for my 1242 Xsv touch and my Fantom 18 radar.
I've done google searches, Youtube, and looked all over the Garmin website.. to no avail.

Have to say, piss poor install directions, and even poorer user directions.

BTW, radar returns on the Fantom are crap. 40 miles offshore in the pea soup fog and almost ran head on to another boat.
Chart plotter swings wildly back and forth while running which makes it hard to navigate.
I don't want to have to work this hard trying to figure out what's supposed to be such a "user friendly" system.
Perhaps if I had a detailed user manual I could figure things out.

Practically sick over my decision to choose Garmin, but have only myself to blame as I just assumed Garmin was the latest and greatest and did minimal home work.
Last 5 boats have all had RM with no issues.

I knew I was in trouble when I fired up the new Garmin radar in my driveway and the return looked like my 9 year old thru a balloon filled with red paint on the screen.
When I did the same thing 8 years ago after installing my RM HD radar, my house was perfectly outlined on the screen.

Sorry for the rant, just frustrated as hell.
Old 10-07-2020, 05:25 AM
  #2
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,434
Likes: 0
Received 403 Likes on 263 Posts
Default

Here you go ...

GPSMAP 1242 xsv Touch Manuals
Likes:
Old 10-07-2020, 05:27 AM
  #3
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,434
Likes: 0
Received 403 Likes on 263 Posts
Default

Here's the radar..

GMR Fantom 18 Manuals
Likes:
Old 10-07-2020, 05:38 AM
  #4
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,434
Likes: 0
Received 403 Likes on 263 Posts
Default

The owner's manual is embedded in your 1242xsv's software.

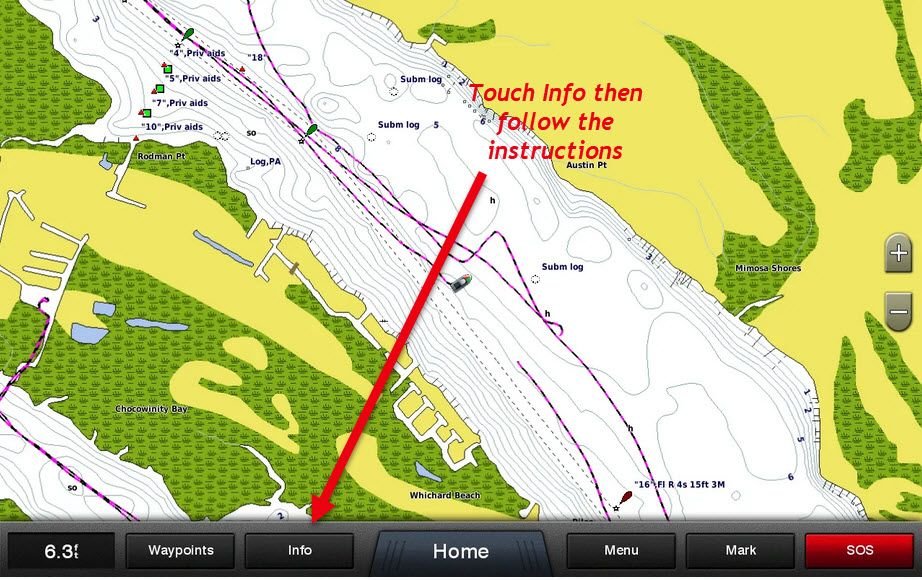

Accessing the Owner's Manuals on the Chartplotter

  1. Select Info > Owner's Manual.
  2. Select a manual.
  3. Select Open.


Tom

Last edited by bluewaterpirate; 10-07-2020 at 05:48 AM.
Old 10-07-2020, 09:24 AM
  #5
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Ventura, CA
Posts: 988
Received 269 Likes on 110 Posts
Default

Wow!
Thanks Tom!
appreciate it very much!
Old 10-07-2020, 09:51 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Nov 2007
Location: Long Island, NY
Posts: 9,203
Received 769 Likes on 499 Posts
Default

Originally Posted by westbootie View Post
BTW, radar returns on the Fantom are crap. 40 miles offshore in the pea soup fog and almost ran head on to another boat.
Chart plotter swings wildly back and forth while running which makes it hard to navigate.
The chartplotter swings and your radar is unstable because you don't have a heading sensor installed - you need a $130 Garmin SteadyCast heading sensor installed into your NMEA 2000 backbone.
Old 10-07-2020, 12:33 PM
  #7
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Ventura, CA
Posts: 988
Received 269 Likes on 110 Posts
Default

Originally Posted by LI32 View Post
The chartplotter swings and your radar is unstable because you don't have a heading sensor installed - you need a $130 Garmin SteadyCast heading sensor installed into your NMEA 2000 backbone.
I actually have the HS for the auto pilot installed. Its a 9 axis heading sensor.
I just havent installed the pump yet or messed with any of the settings. Perhaps it's not turned on?
Is the steady cast different?
I'd gladly pay $130 bucks to stop the swinging back and forth.
Between the radar and the chartplotter issues , its become a safety issue
Old 10-07-2020, 01:47 PM
  #8
Admirals Club Admiral's Club Member

Join Date: Nov 2007
Location: Long Island, NY
Posts: 9,203
Received 769 Likes on 499 Posts
Default

Originally Posted by westbootie View Post
I actually have the HS for the auto pilot installed. Its a 9 axis heading sensor.
I just havent installed the pump yet or messed with any of the settings. Perhaps it's not turned on?
The HS for the autopilot will be perfect for what you need to do. It seems like the AP is not linked to the Garmin and thus not providing the heading data to it.
Old 10-07-2020, 02:49 PM
  #9
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Ventura, CA
Posts: 988
Received 269 Likes on 110 Posts
Default

Originally Posted by LI32 View Post
The HS for the autopilot will be perfect for what you need to do. It seems like the AP is not linked to the Garmin and thus not providing the heading data to it.
hmmm...
I think its connected to the NMEA 2000 backbone and the ECU and CCU are connected and powered.
only the pump isnt installed.
maybe its not configured in
planning on doing the AP install this weekend and Ill check things out
thank you!
Old 10-07-2020, 03:31 PM
  #10
Senior Member
THT sponsor

Join Date: Aug 2011
Location: Beaufort NC
Posts: 6,151
Received 2,797 Likes on 1,303 Posts
Default

Originally Posted by westbootie View Post
hmmm...
I think its connected to the NMEA 2000 backbone and the ECU and CCU are connected and powered.
only the pump isnt installed.
maybe its not configured in
planning on doing the AP install this weekend and Ill check things out
thank you!
Exactly! The heading sensor for the pilot will not transmit heading info until it's configured during the autopilot calibration run.
Likes:
Old 10-07-2020, 04:41 PM
  #11
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Ventura, CA
Posts: 988
Received 269 Likes on 110 Posts
Default

Originally Posted by bills106 View Post
Exactly! The heading sensor for the pilot will not transmit heading info until it's configured during the autopilot calibration run.
So happy to hear you say this!
I'm asking myself this weekend, what the hell have I bought!
chartplotter was spinning around like it was possessed by the devil.

Thank you!
I've got a million more questions, especially regarding the sonar.
But one thing at a time...
Old 10-08-2020, 07:22 PM
  #12
Senior Member

Join Date: May 2006
Location: Fort Pierce,FL
Posts: 6,160
Received 1,180 Likes on 767 Posts
Default

I printed mine out I’m more of a paper guy. But even the manual doesn’t explain ever option
Old 10-08-2020, 07:50 PM
  #13
Senior MemberCaptains Club MemberPLEDGER

Join Date: Jul 2004
Location:
Posts: 8,434
Likes: 0
Received 403 Likes on 263 Posts
Default

Garmin’s simulation feature is one of the best on the market .... it lets you play with you system & learn the functionalities in your driveway or pier side.

Tom
Likes:
Old 10-08-2020, 08:05 PM
  #14
Senior MemberCaptains Club Member

Join Date: Jan 2005
Location: Asheville, NC
Posts: 6,649
Received 316 Likes on 194 Posts
Default

Originally Posted by westbootie View Post
Does one even exist?
Looking for a detailed user manual for my 1242 Xsv touch and my Fantom 18 radar.
I've done google searches, Youtube, and looked all over the Garmin website.. to no avail.

Have to say, piss poor install directions, and even poorer user directions.

BTW, radar returns on the Fantom are crap. 40 miles offshore in the pea soup fog and almost ran head on to another boat.
Chart plotter swings wildly back and forth while running which makes it hard to navigate.
I don't want to have to work this hard trying to figure out what's supposed to be such a "user friendly" system.
Perhaps if I had a detailed user manual I could figure things out.

Practically sick over my decision to choose Garmin, but have only myself to blame as I just assumed Garmin was the latest and greatest and did minimal home work.
Last 5 boats have all had RM with no issues.

I knew I was in trouble when I fired up the new Garmin radar in my driveway and the return looked like my 9 year old thru a balloon filled with red paint on the screen.
When I did the same thing 8 years ago after installing my RM HD radar, my house was perfectly outlined on the screen.

Sorry for the rant, just frustrated as hell.
I don't think you are going to get a plug and play system these days. You have to do your part and understand the system and tweek it.
Likes:
Old 10-08-2020, 09:40 PM
  #15
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Ventura, CA
Posts: 988
Received 269 Likes on 110 Posts
Default

Originally Posted by barrell View Post
I printed mine out I’m more of a paper guy. But even the manual doesn’t explain ever option
I agree.
im appreciative of the links that Tom provided, but wish they were more detailed with illustrations/ pictures
