B175L screenshots 1,000’ +

Old 08-17-2020, 09:05 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2014
Location: Galveston
Posts: 762
Received 130 Likes on 73 Posts
Default B175L screenshots 1,000’ +

Anyone got any screen shots that you wanna post up? Looking specifically for a b175L out in the deep stuff. 800’-1,000’ and deeper, mainly interested in the detail it can show out deep. Either deep dropping or swording, does it show bait that deep, paint the bottom easy, etc, or any other details you’d wanna share.
Thanks

I’ve searched and didn’t find much for showing out in the deeper water.
Old 08-17-2020, 09:12 AM
  #2
Senior Member

Join Date: Jan 2011
Location: Kill Devil Hills
Posts: 906
Received 188 Likes on 120 Posts
Default

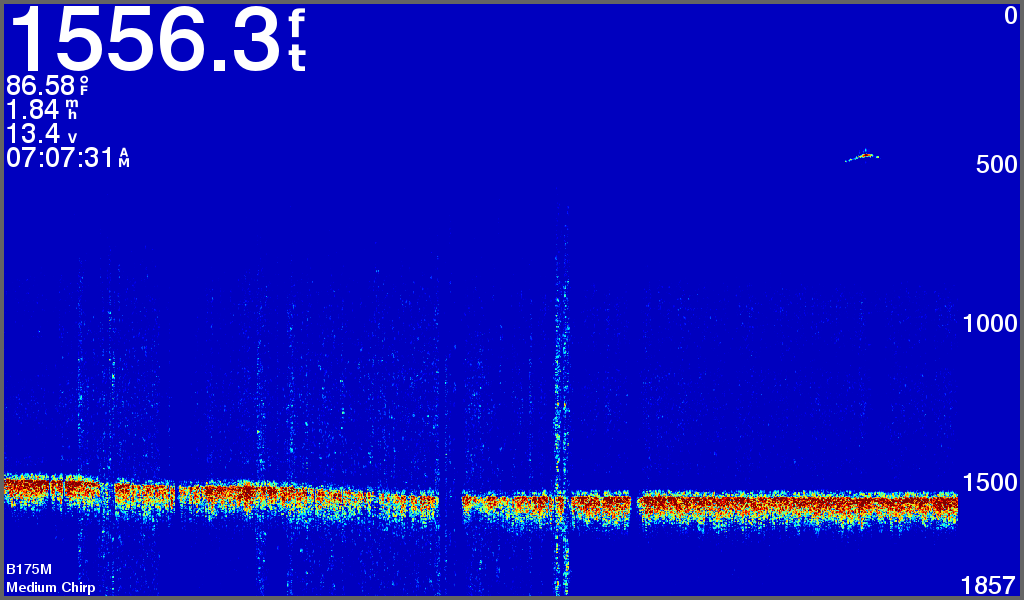

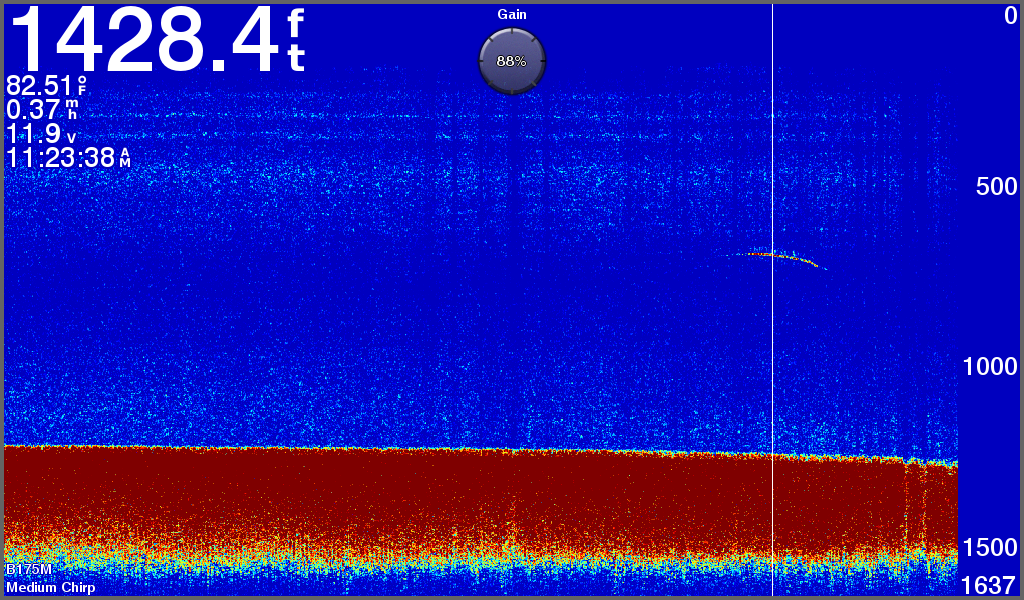

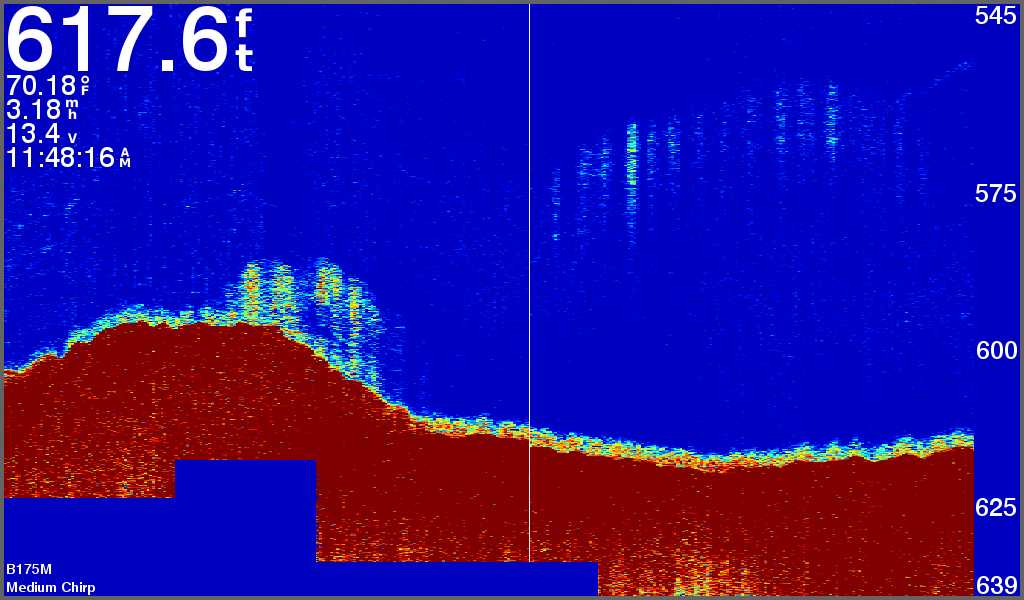

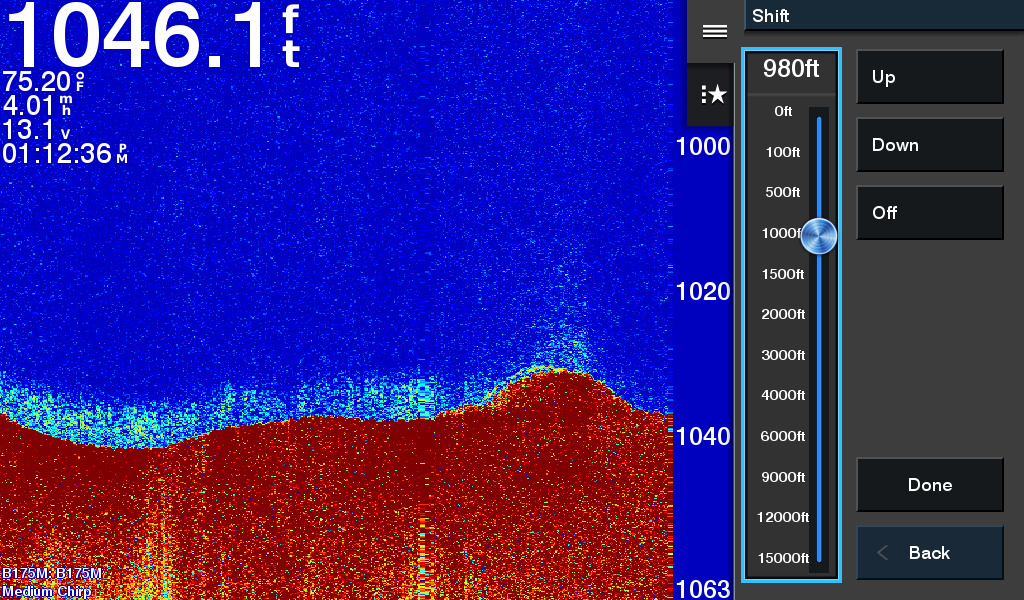

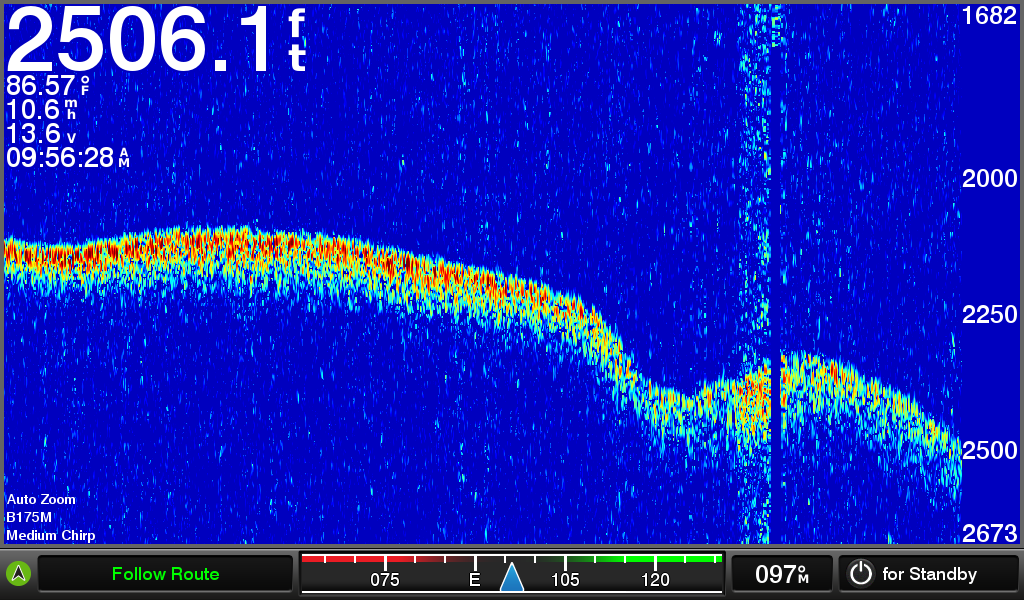

B175M pushed by NSS7 Evo2.


Likes:
Old 08-17-2020, 10:09 AM
  #3
Admirals Club Admiral's Club Member
THT sponsor
Marine Advertiser

Join Date: Oct 2009
Posts: 23,476
Likes: 0
Received 1,623 Likes on 864 Posts
Default

Name:  VkwYcK.jpg
Views: 507
Size:  226.2 KB

From a members previous post...



.


Last edited by semperfifishing; 08-18-2020 at 09:02 AM.
Likes:
Old 08-17-2020, 01:03 PM
  #4
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2014
Location: Galveston
Posts: 762
Received 130 Likes on 73 Posts
Default

That’s good stuff Gil. Those are what I’m looking for. Trying to decide on either the b175L, save space and be functional or go with the r111LM and install a battery size ducer in the bilge but see everything I want to out in the deep stuff. Either would be hooked up to a s5100. We have a B175hw on the boat now but want something for deeper waters.
Old 08-18-2020, 07:18 AM
  #5
Member

Join Date: Oct 2014
Location: Highlands, NJ
Posts: 95
Received 1 Like on 1 Post
Default


Nice Mark at 800 ft lower left. Also on right side , bait and Pilot whales diving at 200 to 800 ft B175L
Old 08-18-2020, 10:43 AM
  #6
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Location: Destin
Posts: 1,351
Received 391 Likes on 215 Posts
Default

Originally Posted by WestEnd1 View Post
That’s good stuff Gil. Those are what I’m looking for. Trying to decide on either the b175L, save space and be functional or go with the r111LM and install a battery size ducer in the bilge but see everything I want to out in the deep stuff. Either would be hooked up to a s5100. We have a B175hw on the boat now but want something for deeper waters.
I would get the R111LM.. i have the B175M now with a GSD26, its great! but I want better detail, deeper.. Here's some screenshots..








Likes:
Old 08-18-2020, 01:52 PM
  #7
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Sep 2014
Location: Galveston
Posts: 762
Received 130 Likes on 73 Posts
Default

Originally Posted by kyle_howie View Post
I would get the R111LM.. i have the B175M now with a GSD26, its great! but I want better detail, deeper.. Here's some screenshots..







those look pretty good. Definitely leaning heavy towards to the r111. Do it once and be done, we have space in bilge. Just trying to see if there’s a good 2nd place option work looking at. That 2nd shot is impressive, Did y’all hook it?
Old 08-18-2020, 02:44 PM
  #8
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Location: Destin
Posts: 1,351
Received 391 Likes on 215 Posts
Default

Originally Posted by WestEnd1 View Post
those look pretty good. Definitely leaning heavy towards to the r111. Do it once and be done, we have space in bilge. Just trying to see if there’s a good 2nd place option work looking at. That 2nd shot is impressive, Did y’all hook it?
we did not 😭 it was the biggest sword mark we’ve seen yet
Old 08-19-2020, 05:07 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Jan 2008
Location: S. Florida
Posts: 6,430
Received 1,799 Likes on 895 Posts
Default


That’s a pm265lh driven by a BSM-2.
Likes:
Old 08-19-2020, 05:19 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Location: Destin
Posts: 1,351
Received 391 Likes on 215 Posts
Default

One thing i wish garmin could eliminate is the fuzzy return on the bottom couple feet that is actually nothing. It’s almost always there and not present on the simrad units
Old 08-19-2020, 05:45 PM
  #11
Admirals Club Admiral's Club Member

Join Date: May 2010
Location: Puerto Rico
Posts: 1,183
Received 83 Likes on 24 Posts
Default
