Poe NVR Camera system on offshore boat

Old 11-07-2019, 09:53 AM
  #1
Senior Member
Thread Starter

Join Date: Jul 2006
Location: Point Pleasant,NJ
Posts: 127
Likes: 0
Received 7 Likes on 4 Posts
Default Poe NVR Camera system on offshore boat

Looking to put a NVR camera system on my 35 Bertram to tape fishing and traveling to the canyons. My question is will the Nvr recorder hold up in the cabin with the vibrations and the waves ?
Old 11-07-2019, 10:11 AM
  #2
Senior Member

Join Date: Nov 2017
Posts: 865
Likes: 0
Received 601 Likes on 331 Posts
Default

Contemporary electronics are all solid-state, so I wouldn't expect much problems (other than from humid salty air) if you isolate it from the hull vibrations a bit: e.g. put it on some foam.

But do make sure it has an SSD in it and not a rotating-platter hard drive. *Those* don't like shocks.
Old 11-07-2019, 10:19 AM
  #3
Senior Member
Thread Starter

Join Date: Jul 2006
Location: Point Pleasant,NJ
Posts: 127
Likes: 0
Received 7 Likes on 4 Posts
Default

Thanks
Old 11-07-2019, 10:21 AM
  #4
Senior Member

Join Date: Jul 2013
Posts: 1,400
Received 184 Likes on 94 Posts
Default

WIFI Networked GoPro cameras
Old 11-07-2019, 11:28 AM
  #5
Senior Member
Thread Starter

Join Date: Jul 2006
Location: Point Pleasant,NJ
Posts: 127
Likes: 0
Received 7 Likes on 4 Posts
Default

Go pro cameras are great for short period videos or for about 4-5 hrs straight. Otherwise you need to use hard wired plugs and change out sd cards all day . I want to mount 4 cameras in different locations to tape when we leave the dock at 330 am and return at 700 pm.
Old 11-09-2019, 05:24 AM
  #6
Senior MemberCaptains Club Member

Join Date: Jan 2003
Location: Brooklyn, N.Y. USA
Posts: 299
Likes: 0
Received 0 Likes on 0 Posts
Default

I have been running 3 cameras and a XVR on my boat for about 5 years now with no trouble. Be aware that most POE cameras will need to be powered from a POE switch or from the NVR itself that has POE ports built in. Both the POE switch and NVR require 110 volts to operate. If you want the system to run off of your 12 volt system on the boat you will need to use a different setup unless you run your generator while on the water. My cameras can be powered via POE or 12 volts and my XVR is a 12 volt model that can handle IP, CVI or TVI cameras.
Old 11-09-2019, 06:00 AM
  #7
dev
Admirals Club Admiral's Club Member

dev's Avatar

Join Date: Mar 2017
Location: St. Pete
Posts: 762
Received 1,020 Likes on 461 Posts
Default

Originally Posted by Seacurity View Post
I have been running 3 cameras and a XVR on my boat for about 5 years now with no trouble. Be aware that most POE cameras will need to be powered from a POE switch or from the NVR itself that has POE ports built in. Both the POE switch and NVR require 110 volts to operate. If you want the system to run off of your 12 volt system on the boat you will need to use a different setup unless you run your generator while on the water. My cameras can be powered via POE or 12 volts and my XVR is a 12 volt model that can handle IP, CVI or TVI cameras.

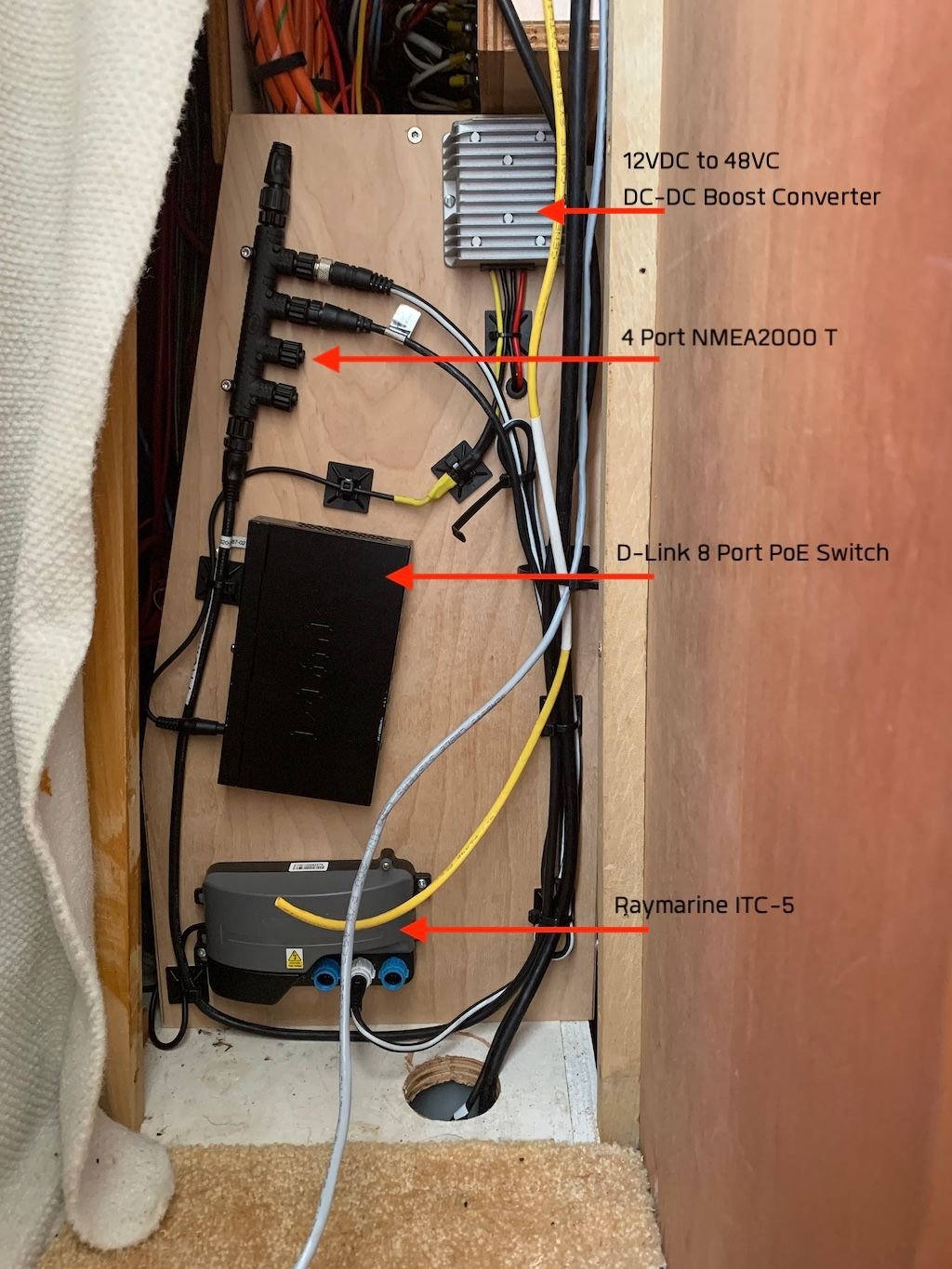

Not true. I run PoE cameras on my boat using a 12V-48V DC-DC converter. I have also built mobile and solar surveillance setups with PoE devices using the same concept. Pic shows one example of a DC-DC convertor powering a D-Link PoE switch.

NVRs are not all solid state (referring to a different post above), the hard drives are still mechanical. Go for something with a WD Purple drive.

Also, FWIW, I don't use the traditional PoE NVRs in my marine setups, but use ruggedized PCs and a standard VMS.

Old 11-09-2019, 07:47 AM
  #8
Senior MemberCaptains Club Member

Join Date: Jan 2003
Location: Brooklyn, N.Y. USA
Posts: 299
Likes: 0
Received 0 Likes on 0 Posts
Default

Did not know that a 12v to 48v DC to DC device was available, good to know thanks.
Old 11-09-2019, 08:41 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Jan 2007
Posts: 15,192
Received 2,216 Likes on 1,620 Posts
Default

Originally Posted by Drako View Post
Contemporary electronics are all solid-state, so I wouldn't expect much problems (other than from humid salty air) if you isolate it from the hull vibrations a bit: e.g. put it on some foam.

But do make sure it has an SSD in it and not a rotating-platter hard drive. *Those* don't like shocks.
incorrect

NVRs are 99% of the time mechanical, drives like WD Purple

solid state has limitations to read-write, they will eventually no longer be able to operate after too many reads+writes, hence why they are not recommended to be used in surveillance systems

to answer OP's question: i'd use a gopro or cheap dashcam even

unless you really want security cameras on your boat there is no point to permanently mount cameras and install a NVR
Old 11-09-2019, 01:19 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Aug 2009
Posts: 12,469
Likes: 0
Received 309 Likes on 212 Posts
Default

The guy just said he wants to record all day with 4 cameras. Dont mess with moving em, turning go pros on and off, not knowing if they're recording or not etc. I also like this idea... Only downfall I see is probably the wiring of it.
Old 11-27-2019, 09:40 AM
  #11
Admirals Club Admiral's Club Member

Join Date: Aug 2009
Posts: 12,469
Likes: 0
Received 309 Likes on 212 Posts
Default

I've been looking into this a bit. I see they have some rv cam systems with screens and everything. Seems like they would possibly do what the op wants.
Amazon Amazon

Personally I want to find a system I can use with a tablet or some type of Android display as I also want to use the
SiOnyx Aurora Sport Night Vision Camera SiOnyx Aurora Sport Night Vision Camera
.
Old 11-28-2019, 07:09 PM
  #12
Senior Member

Join Date: Dec 2008
Location: New Jersey
Posts: 264
Likes: 0
Received 10 Likes on 9 Posts
Default

Look at GOST or Seatronx for marine-grade video systems built exactly for what you are looking for. Both work well.
Old 12-02-2019, 02:02 PM
  #13
Admirals Club Admiral's Club Member

Join Date: Aug 2009
Posts: 12,469
Likes: 0
Received 309 Likes on 212 Posts
Default

I went ahead and bit the bullet on a custom system spec'ed by me. 2 x 1080p 60fps cams and a colorvu "nightcolor" cam for the front. Will need to find a monitor and a small cpu. Probably be at $1200 bucks. Could probably have gotten it done for less if I did not care about 1080p/60fps but handling that resolution and that framerate is pretty cpu intensive.
Old 12-02-2019, 10:42 PM
  #14
Senior Member

Join Date: Apr 2015
Posts: 1,092
Likes: 0
Received 274 Likes on 171 Posts
Default

If you have Garmin screes, the VIRB cameras connect seamlessly to the screens so you can control the camera.
