1242xsv touch w/GT51TM

Old 05-11-2019, 04:05 PM
  #1
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default 1242xsv touch w/GT51TM

Not sure but something doesnít seem right with image? I havenít gone out to deeper water to see but this is from my canal and also in my slip. The Sideview image keeps zooming in and out and only shows blue image. The others show a very blurry bottom as opposed to sharp image. Also depth shows negative but it reality was about 4-5í of bottom under boat?
Any thoughts on what it could be causing this?
Old 05-11-2019, 04:23 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Apr 2016
Posts: 115
Received 9 Likes on 5 Posts
Default

No image to view
Old 05-11-2019, 04:31 PM
  #3
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default Images



Not sure why no images?
Old 05-11-2019, 04:36 PM
  #4
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default

#2
Old 05-11-2019, 04:36 PM
  #5
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default

Iíll have to try an upload from desktop. Sorry
Old 05-11-2019, 04:40 PM
  #6
Admirals Club Admiral's Club Member

Join Date: Apr 2016
Posts: 115
Received 9 Likes on 5 Posts
Default

Were you underway or just sitting there?

Iím wondering if the transducer is connected properly. I would check the connections and be sure all of the frequencies are set to default to start. I have never seen one show negative.


Old 05-11-2019, 05:14 PM
  #7
Admirals Club Admiral's Club Member

Join Date: Jul 2014
Location: Stapleton, AL
Posts: 3,288
Received 1,319 Likes on 707 Posts
Default

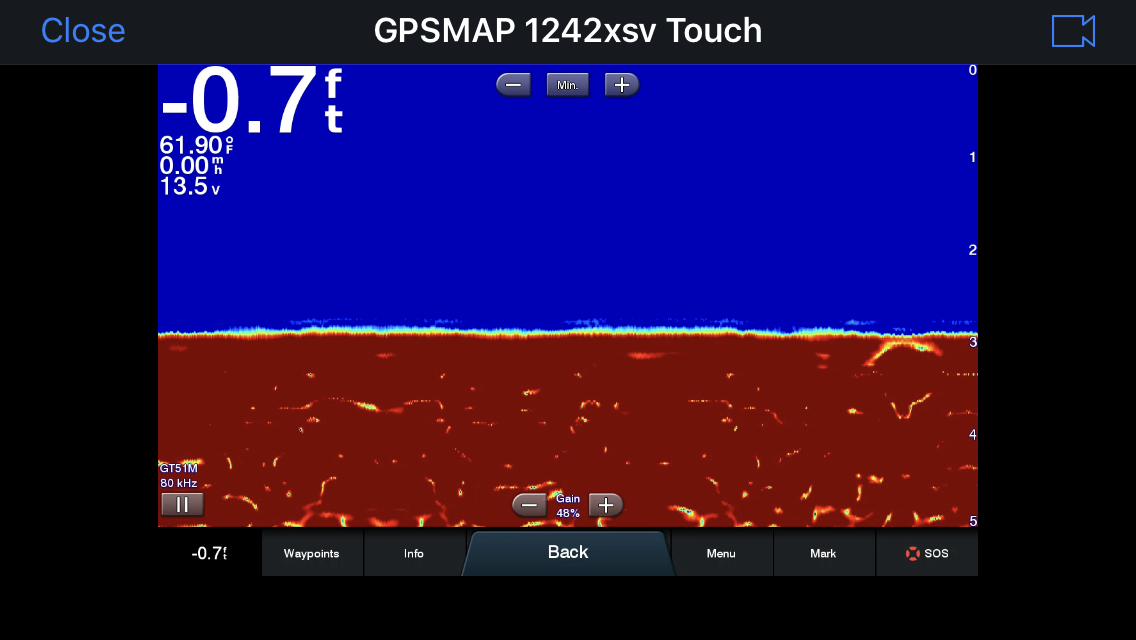

For starters I would take it off of manual range. Looks like its showing 2.9ft deep on the image but not in the top left corner. Mine acts weird in very shallow water. Get out in 10ft or more and try again. Make sure everything is in Auto.
Old 05-11-2019, 08:44 PM
  #8
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default




Old 05-12-2019, 06:37 AM
  #9
Member

Join Date: Jul 2016
Posts: 42
Likes: 0
Received 8 Likes on 5 Posts
Default

Sub'd - Having almost the exact same problem with the same setup, installed mine a couple weeks ago.
Old 05-12-2019, 06:52 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Feb 2005
Location: Central Florida
Posts: 1,335
Received 184 Likes on 100 Posts
Default

Check the keel offset. If it is set deep it is going to show a negative in shallow water.
Old 05-12-2019, 02:35 PM
  #11
Senior MemberCaptains Club MemberPLEDGER

Join Date: Oct 2002
Location: mass/Point Judith, RI dockage
Posts: 11,909
Received 470 Likes on 275 Posts
Default

Is this a rorschach test? I see a walrus and a cat in the first pic.
Old 05-12-2019, 08:08 PM
  #12
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default

Originally Posted by gerg View Post
Is this a rorschach test? I see a walrus and a cat in the first pic.
That was one of my concerns. For some reason it seems like a distorted image versus a sharp/crisp image. I guess before I can trouble shoot or think something is wrong I have to get boat into deeper water. I only was able to get boat ramp and go few hundred yards to my slip. I donít think I went deeper than 6 feet during that ride. I just donít ever remember any of my images like that. Iíll probably get boat out this week.
Old 05-13-2019, 04:01 AM
  #13
Senior MemberCaptains Club MemberPLEDGER

Join Date: Oct 2002
Location: mass/Point Judith, RI dockage
Posts: 11,909
Received 470 Likes on 275 Posts
Default

Originally Posted by rjtfd View Post


That was one of my concerns. For some reason it seems like a distorted image versus a sharp/crisp image. I guess before I can trouble shoot or think something is wrong I have to get boat into deeper water. I only was able to get boat ramp and go few hundred yards to my slip. I donít think I went deeper than 6 feet during that ride. I just donít ever remember any of my images like that. Iíll probably get boat out this week.
If you are talking about the orange section, that's bottom,. I was being facetious. The dark area above is the water column. Don't worry about the orange section, though it can tell you if it's hard or sandy. The arches down there in other pictures may be fish very close to the bottom in deppressions smaller than your cone angle covers, so they appear to be below the bottom in some places.

The first ppicture is normal for water with nothing in it.
Old 05-13-2019, 06:31 AM
  #14
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default

Originally Posted by gerg View Post
If you are talking about the orange section, that's bottom,. I was being facetious. The dark area above is the water column. Don't worry about the orange section, though it can tell you if it's hard or sandy. The arches down there in other pictures may be fish very close to the bottom in deppressions smaller than your cone angle covers, so they appear to be below the bottom in some places.

The first ppicture is normal for water with nothing in it.
yes I was talking about the orange part. But understand it wasnít very deep. I doubt there was any fish there just yet. What has me concerned was the Sideview image which I canít post cause I took a video of it. But it kept zooming in and out and never showed any bottom just blue lines on both sides of center.
I guess Iím beating a dead horse until I can get out too deeper water and see if it all self corrects. Maybe for some reason settings were changed from last season? I removed unit over winter and had it in my house.
Thanks
Old 05-13-2019, 06:32 AM
  #15
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default Screen shot

Old 05-13-2019, 06:54 AM
  #16
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Location: Destin
Posts: 1,369
Received 402 Likes on 223 Posts
Default

show us a picture of how the transducer is mounted
Old 05-13-2019, 06:56 AM
  #17
Admirals Club Admiral's Club Member

Join Date: Jul 2014
Location: Stapleton, AL
Posts: 3,288
Received 1,319 Likes on 707 Posts
Default

Yeah somethings hosed up. Even your first pictures of the bottom don't look right to me. The bottom looks very weird. I have the same transducer and a 1042xsv non touch.

Did it work perfectly before or has it always looked like this.
Old 05-13-2019, 08:05 AM
  #18
Senior MemberCaptains Club MemberPLEDGER

Join Date: Oct 2002
Location: mass/Point Judith, RI dockage
Posts: 11,909
Received 470 Likes on 275 Posts
Default

There are two different modes shown below. The second picture is clear vu, and the bottom is totally normal for that image at that depth. The third is traditional chirp as is the first.

The orange/red is bottom, and you shouldn't concerned. Note that clear vu is very good at picking up structure, but not so good at fish. Traditional chirp is good at fish but not detailed structure (like boats or brush). Different tech for different uses.

Ignore the area below the bottom line.




=rjtfd;12517636]

Old 05-13-2019, 08:34 AM
  #19
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default

Originally Posted by mdees88 View Post
Yeah somethings hosed up. Even your first pictures of the bottom don't look right to me. The bottom looks very weird. I have the same transducer and a 1042xsv non touch.

Did it work perfectly before or has it always looked like this.
worked perfectly before. Pulled boat in December and everything was fine. Put boat in two weeks ago and this is what it shows.
Transducer mounted lowest point center of keel. Nothing changed from the fall.
Old 05-13-2019, 08:38 AM
  #20
Senior Member
Thread Starter

Join Date: Feb 2006
Location: Staten Island,N.Y.
Posts: 510
Received 11 Likes on 10 Posts
Default

Originally Posted by gerg View Post
There are two different modes shown below. The second picture is clear vu, and the bottom is totally normal for that image at that depth. The third is traditional chirp as is the first.

The orange/red is bottom, and you shouldn't concerned. Note that clear vu is very good at picking up structure, but not so good at fish. Traditional chirp is good at fish but not detailed structure (like boats or brush). Different tech for different uses.

Ignore the area below the bottom line.
I get the orange/red bottom as itís the creek getting to my boat and itís very soft and muddy but what concerns me is the image of Sideview bouncing back and forth. Itís on Auto and when I adjust with a range it switches automatically back to auto.
