Did my helm/electronics over

Old 05-10-2019, 08:26 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2008
Location: Miller Place NY
Posts: 388
Received 204 Likes on 125 Posts
Default Did my helm/electronics over

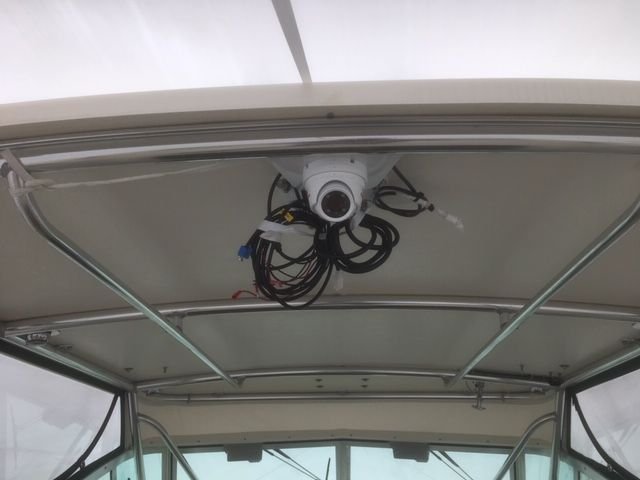

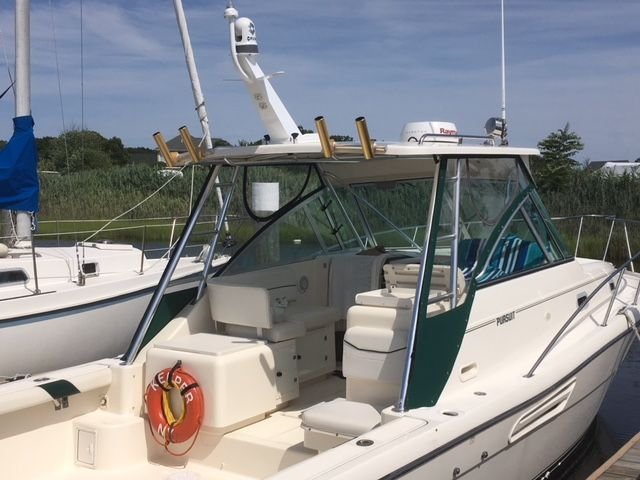

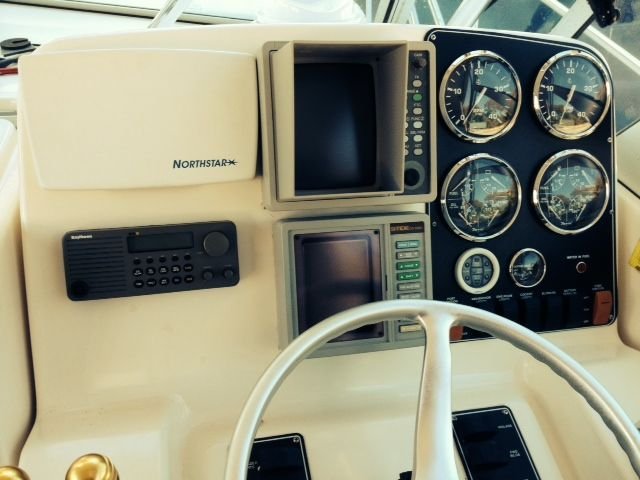

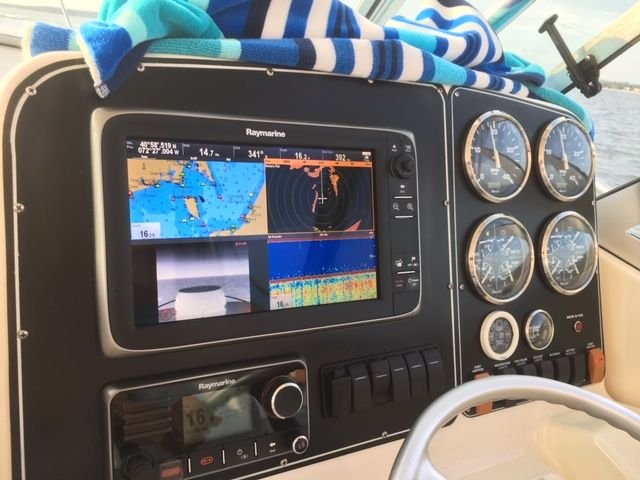

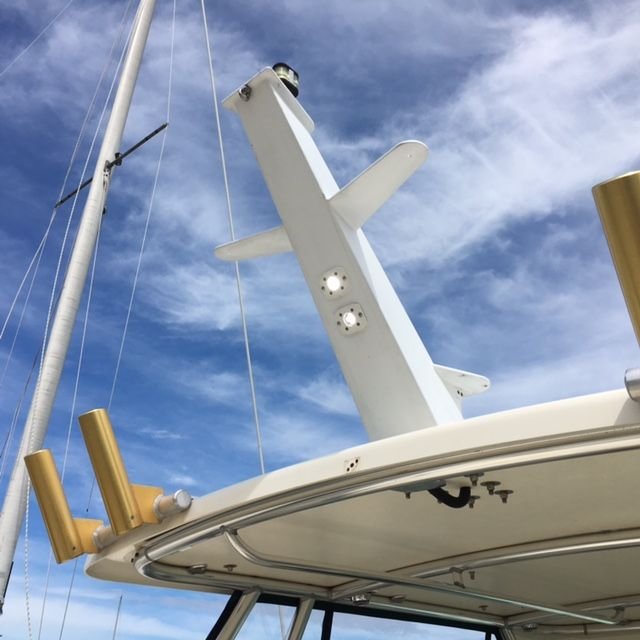

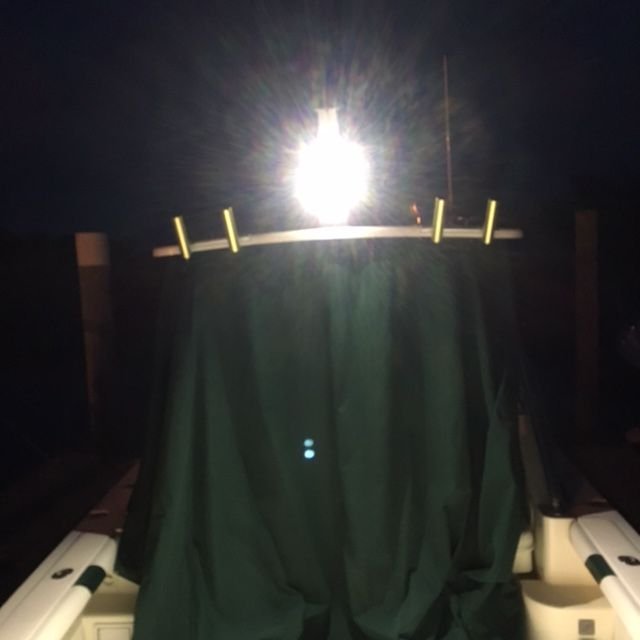

I have done this over the past 5 years as I could afford it and had time. I made the new dash cover out of aluminum and painted it to match the engine gauge panel. I installed a new Quantum radar, a Ray C127 and new Ray 60 VHF. I also added an M232 Flir to the mast and just put an eyeball cam under the hardtop looking aft. Before I put on the FLIR I added two RIGID LEDs to the back of the mast, one is a flood and one is a spot. Just have to hook that up after the engines go back in, soon.









Likes:
davidwademarine, DOUGNASH, Fish'nFool, jheiii, jwelk, SERoadKing, Vantaredoc and 2 others liked this post. (Show less...)
Old 05-11-2019, 05:01 AM
  #2
Senior MemberCaptains Club Member

Join Date: Jul 2002
Location: NE North Carolina
Posts: 2,094
Received 709 Likes on 408 Posts
Default

Looks nice!
Old 05-11-2019, 06:27 AM
  #3
Admirals Club Admiral's Club Member

Fish'nFool's Avatar

Join Date: Mar 2009
Location: Anywhere but here...
Posts: 26,070
Received 3,212 Likes on 1,717 Posts
Default

What a difference!
Old 05-11-2019, 06:39 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Jul 2011
Location: Boca Raton
Posts: 2,652
Received 1,088 Likes on 601 Posts
Default

Nicely done looks original!
Old 05-11-2019, 06:46 AM
  #5
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2008
Location: Miller Place NY
Posts: 388
Received 204 Likes on 125 Posts
Default

Thanks everyone.
Old 05-12-2019, 05:44 AM
  #6
Senior Member

Join Date: Mar 2016
Location: DMV
Posts: 817
Received 557 Likes on 237 Posts
Default

Sweet! I like all the analog guages next to the new digital stuff. Very cool.
Old 05-16-2019, 11:34 PM
  #7
Member

Join Date: May 2016
Posts: 71
Received 1 Like on 1 Post
Default

How did you do the stripe around the panel? That's great attention to detail.
Old 05-17-2019, 05:04 PM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2008
Location: Miller Place NY
Posts: 388
Received 204 Likes on 125 Posts
Default

Originally Posted by rheinskipper View Post
How did you do the stripe around the panel? That's great attention to detail.
I took automotive pinstripe tape and placed it around the panel where I wanted it. Then I used masking tape on both sides of that and removed the pinstripe tape and painted where that was. Then pulled the masking tape. I had to do a few touch ups because it went under the tape in a few spots. I also used an exacto knife to get the corners right.
Old 05-17-2019, 07:01 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Apr 2016
Posts: 230
Received 41 Likes on 30 Posts
Default

Looks awesome! I'm always about function and wish I had the patience to do such a clean finish like yours! My gelcoat work isn't exactly the best. 😁
Likes:
Old 05-19-2019, 03:55 AM
  #10
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Feb 2008
Location: Miller Place NY
Posts: 388
Received 204 Likes on 125 Posts
Default

Originally Posted by mth180 View Post
Looks awesome! I'm always about function and wish I had the patience to do such a clean finish like yours! My gelcoat work isn't exactly the best. 😁
Thanks. I use MarineTex on little cracks or screw holes and then wet sand it down. It may not match the color perfectly but it gets nice and smooth and you really can't see the difference.
Old 05-19-2019, 07:07 AM
  #11
Senior Member

Join Date: Jun 2015
Location: Miami/Coral Gables, Key Colony Beach (Islamorada, Abaco, GHC, Lucaya)
Posts: 1,643
Received 808 Likes on 448 Posts
Default

Cool way to have spreader lights mounted and nice to have both spot and flood. Under your Raymarine you’ve got some new switches. Where were the previous switches before the upgrade or are those for all new electronic items such as the lights?
