Advice on getting this off

Reply

Old 08-07-2018, 02:20 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2016
Posts: 168
Default Advice on getting this off

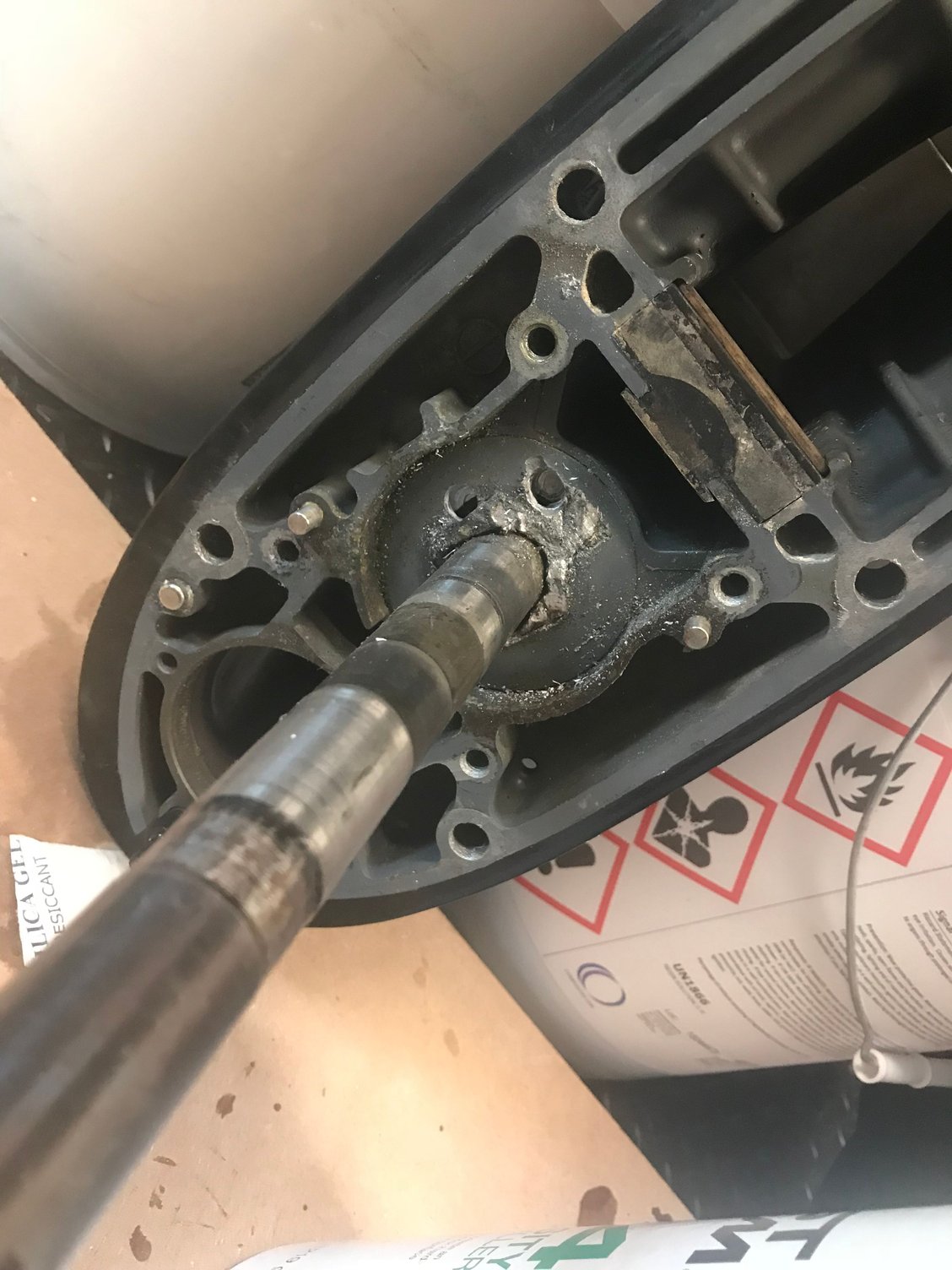

how do you take off the drive shaft seal /holder on a df175 lower unit? The nut part was corroded and broke. I tried other methods with no luck. Any advice is appreciated.
PaulMummolo is offline
Reply With Quote
Old 08-07-2018, 04:30 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Jun 2012
Location: Indialantic,Fl/ Keys
Posts: 303
Default

Maybe one of these?

https://marinetechtools.com/professi...ower-unit.html
karma74 is offline
Reply With Quote
Old 08-08-2018, 04:35 PM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2016
Posts: 168
Default

This unscrews and is not pulled with a puller.
PaulMummolo is offline
Reply With Quote
Old 08-08-2018, 05:28 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 8,063
Default

Drill a couple of equally spaced holes and use an adjustable spanner wrench, after soaking the perimeter w/PB Blaster or Kroil. Maybe include a couple pf prayers for good measure. Good luck.
Cobia 217 is offline
Reply With Quote
Old 08-08-2018, 05:39 PM
  #5
Senior Member

Join Date: Jun 2018
Location: Nc
Posts: 100
Default

Never dealt with this before. My advice from other pain in the _ss nuts is to...soak with PB Blaster overnight if u can. Take a cold chisel and a hammer and tap it like you are gonna unscrew it. Doesnt look like you could get vice grips on it or a pipe wrench. Hopefully it breaks loose with the chisel and hammer love. If not maybe a little heat from a torch? Emphasis on a LITTLE. Things move differently at 180 vs 80 degrees.
Cobia 217 likes this.
GoneNdoneit is offline
Reply With Quote
Old 08-09-2018, 11:59 AM
  #6
Senior Member

Join Date: Sep 2014
Location: Jacksonville, FL
Posts: 134
Default

LPowers is offline
Reply With Quote
Old 08-09-2018, 12:10 PM
  #7
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 8,063
Default

Originally Posted by LPowers View Post
This is how he'll do it the next time.
Cobia 217 is offline
Reply With Quote
Old 08-09-2018, 12:27 PM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Oct 2016
Posts: 168
Default

I tried that first. The hex part was slightly corroded and pitted. It quickly broke when trying to take it off. I have the service manual.
PaulMummolo is offline
Reply With Quote
Old 08-09-2018, 12:32 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 8,063
Default

Originally Posted by PaulMummolo View Post
I tried that first. The hex part was slightly corroded and pitted. It quickly broke when trying to take it off. I have the service manual.
If you don't go the spanner route, you might try backing it out the way goneNdoneit said, but use the holes to your advantage. Insert either a hardwood dowel or a steel alignment pin tightly into one of the holes and tap it counterclockwise. Hopefully it'll move.
Cobia 217 is offline
Reply With Quote
