2003 Contender 31 Fuel tank replacement

Old 04-17-2019, 07:51 AM
  #41
Admirals Club Admiral's Club Member

Join Date: Jul 2009
Location: The Floaters
Posts: 6,164
Default

Maybe they are getting caught up because no one wants to do their tanks in the summer.
Miss Trial is offline
Old 04-27-2019, 01:05 PM
  #42
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: Galveston
Posts: 596
Default

Updates?
WestEnd1 is offline
Old 04-28-2019, 01:02 AM
  #43
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Apr 2019
Location: Pascagoula, Ms
Posts: 18
Default

Originally Posted by WestEnd1 View Post
Updates?
soon. Been slammed with a bunch of work along with this tank job. Just got my account statement from the parts house in today. Did right at $5k in parts last month just for the other stuff I had to work on. Might have to find and hire a good hand to fill
the gaps for me while I’m at the refinery working my shifts as an operator.
Duvalls Marine is offline
Old 04-28-2019, 06:58 AM
  #44
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: Galveston
Posts: 596
Default

Roger that. Would like to see how you’re putting in the new fuel fills, vent hoses and fuel lines. Trying to figure out what’s the easiest way for that
WestEnd1 is offline
Old 04-28-2019, 10:28 PM
  #45
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Apr 2019
Location: Pascagoula, Ms
Posts: 18
Default

Originally Posted by WestEnd1 View Post
Roger that. Would like to see how you’re putting in the new fuel fills, vent hoses and fuel lines. Trying to figure out what’s the easiest way for that

top down. I install the hose and clamps on the fitting and feed it through the cap down. Kicker is you notch the hole just enough in one spot for the clamp nut to slide through. Also use good quality fittings and you’ll have more than enough flange to cover the notch you cut
WestEnd1 likes this.
Duvalls Marine is offline
Old 04-29-2019, 07:18 AM
  #46
Senior Member

Join Date: Jul 2005
Posts: 5,457
Default

while you're at a light grey deck with black caulk looks pretty nice.
ono loco is offline
Old 05-22-2019, 08:57 PM
  #47
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Apr 2019
Location: Pascagoula, Ms
Posts: 18
Default

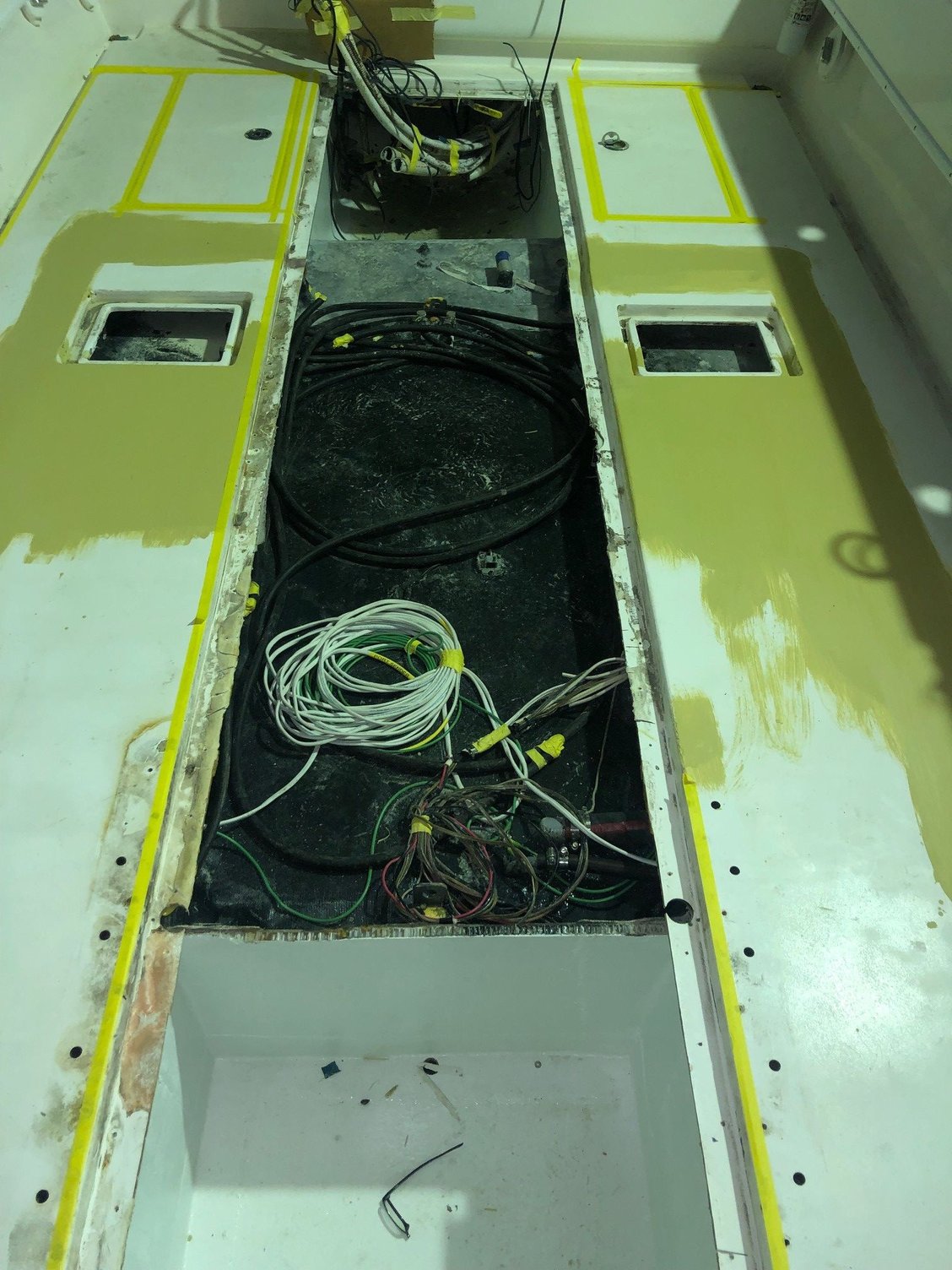

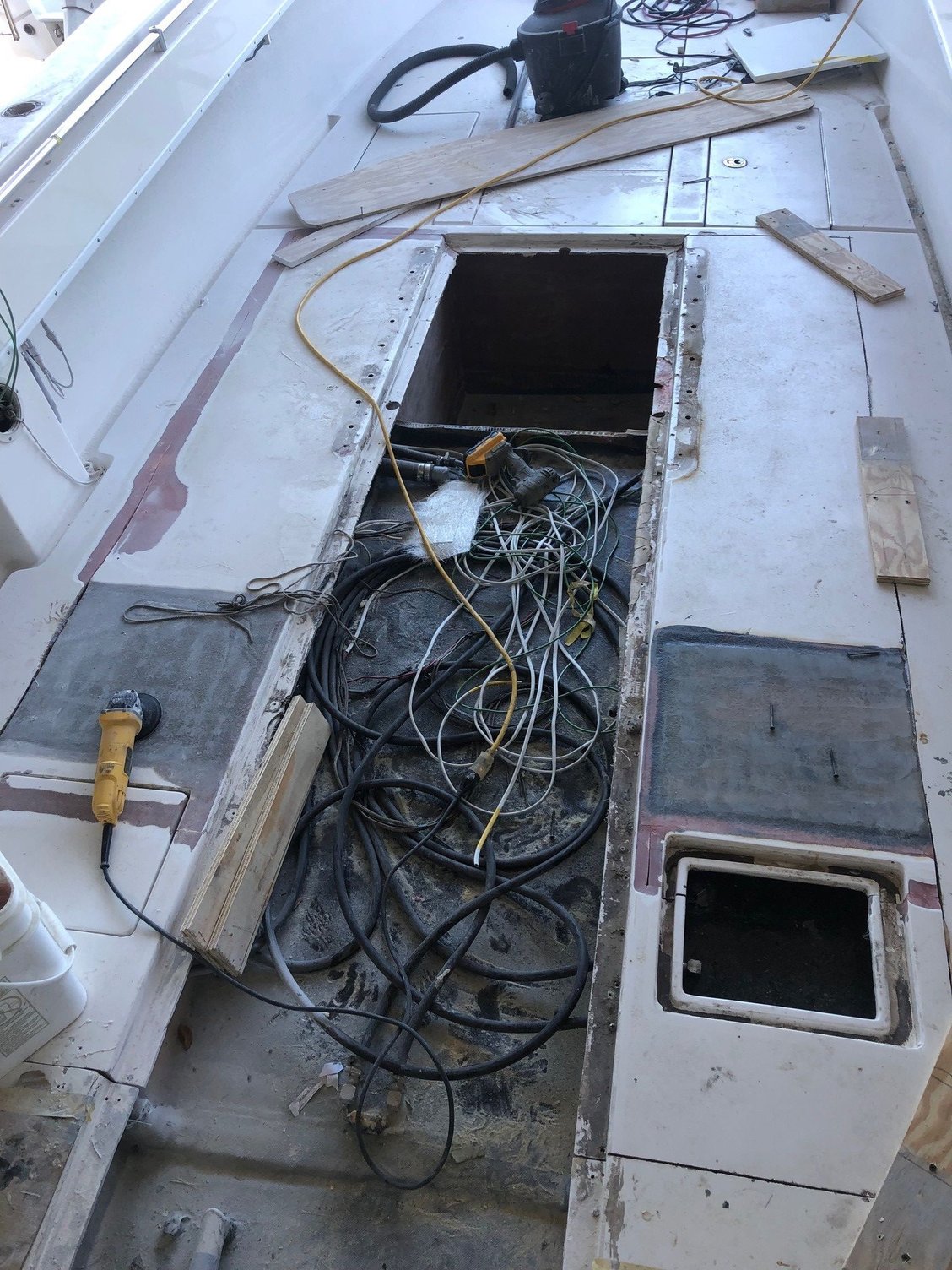

Its been awhile since i've posted. I've been busy with the refinery and piles of other boat work on top of this tank job. So here is some updates

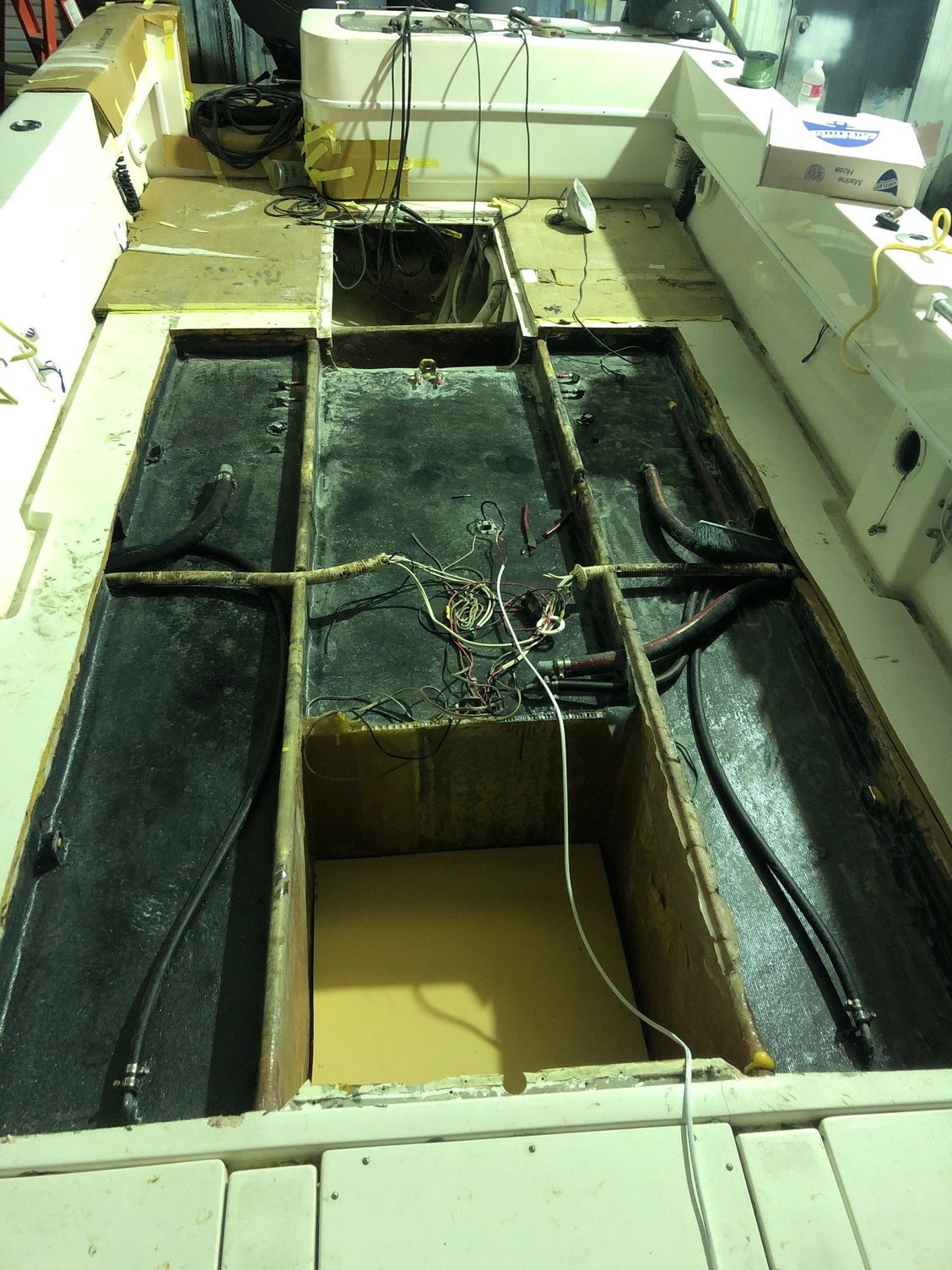

- Tanks glassed in with epoxy resin.
-Bulk cut flush so water can run off into bilge
-All fuel lines and sending unit wires installed along with tank grounds

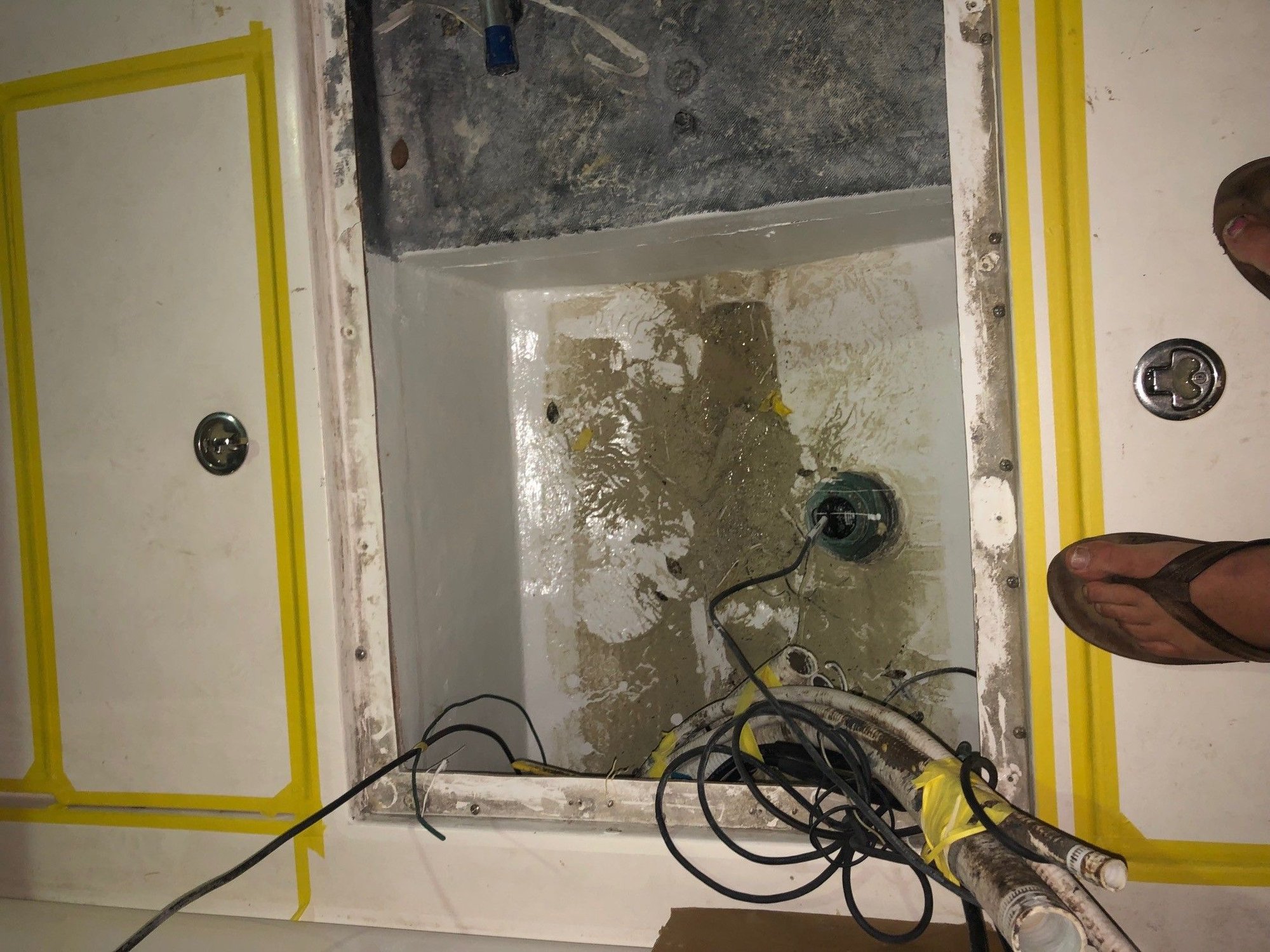

Bilge sanded and repainted with gloss white urethane Sherwin Williams acrolon

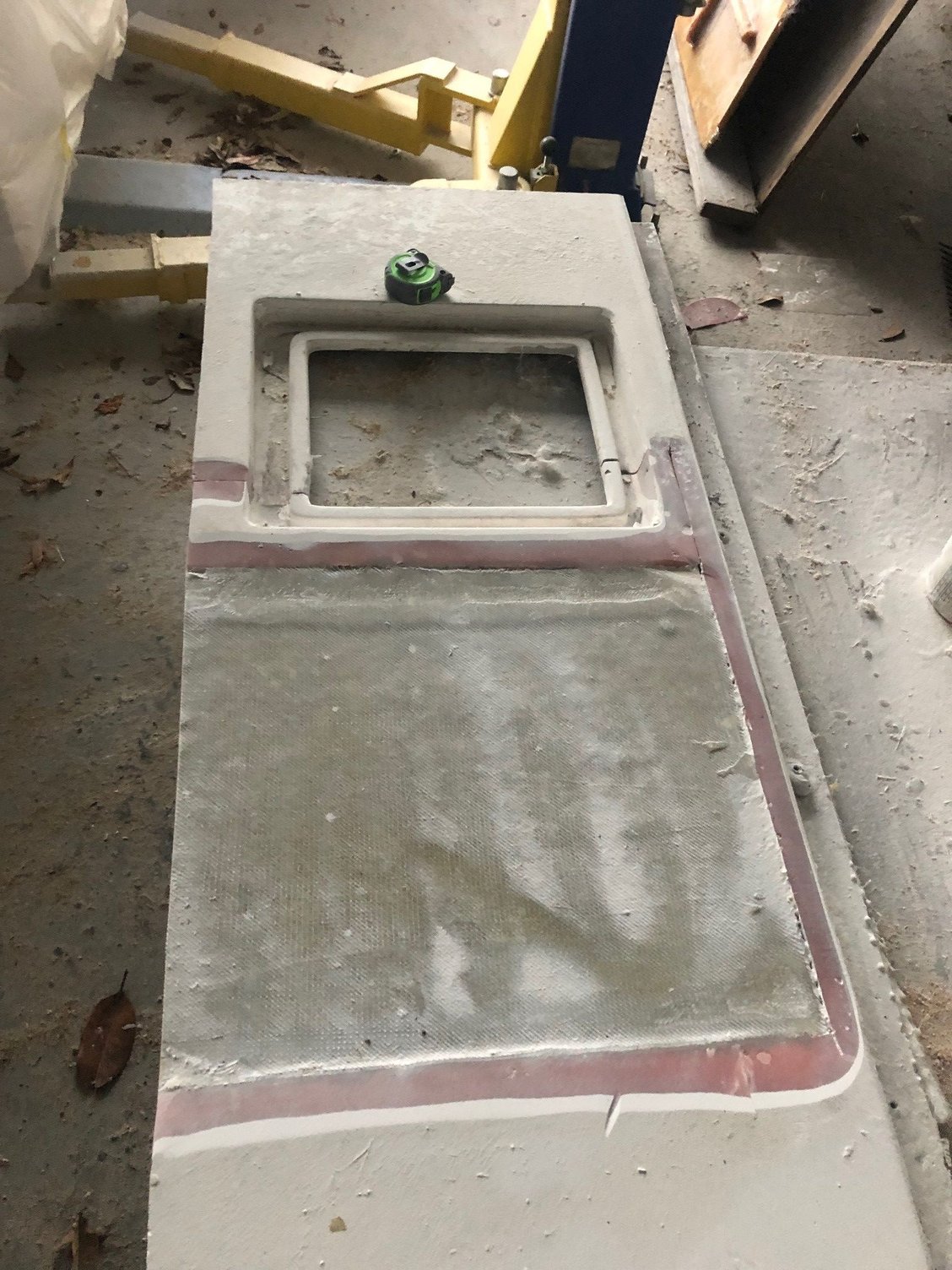

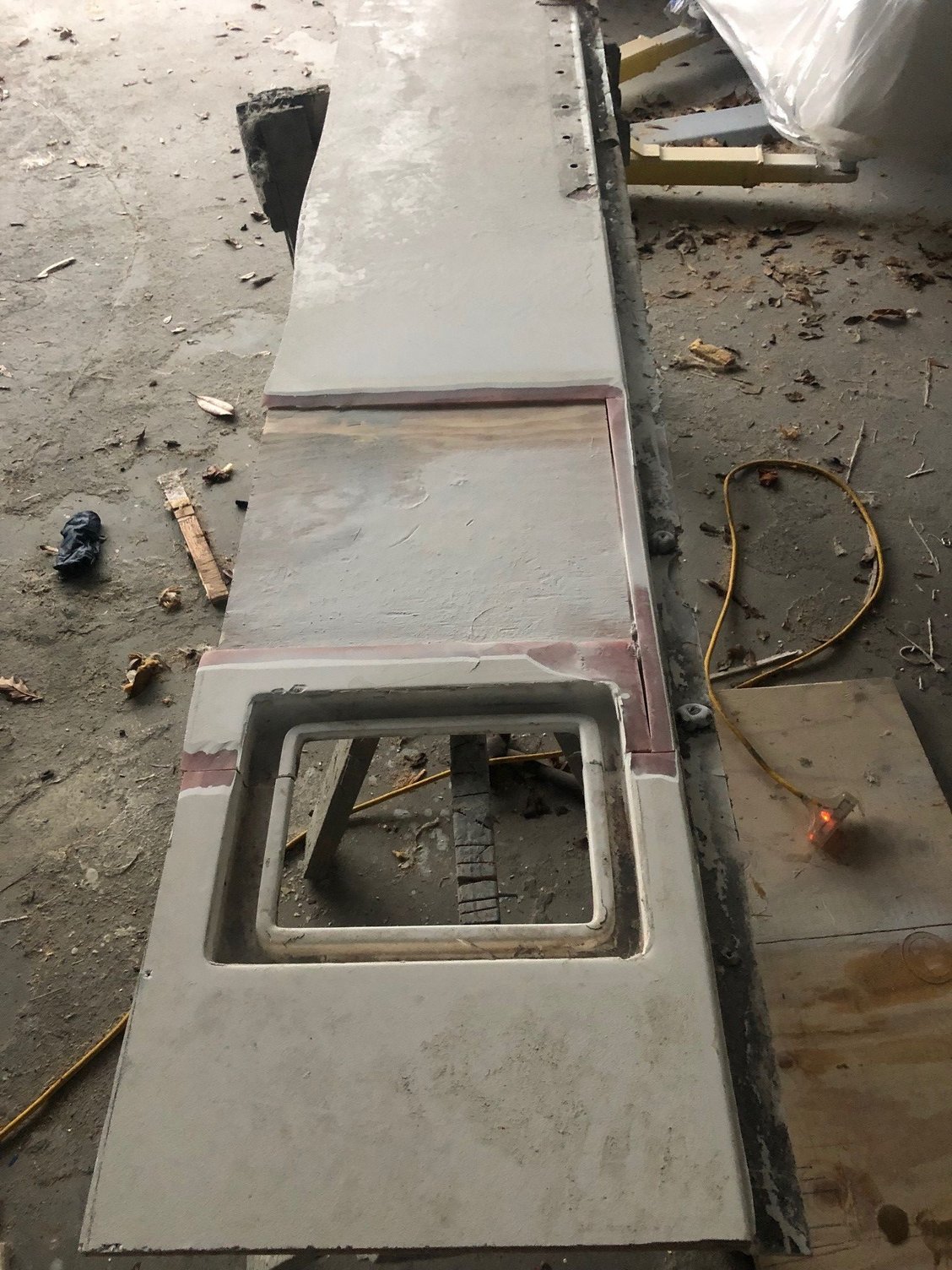

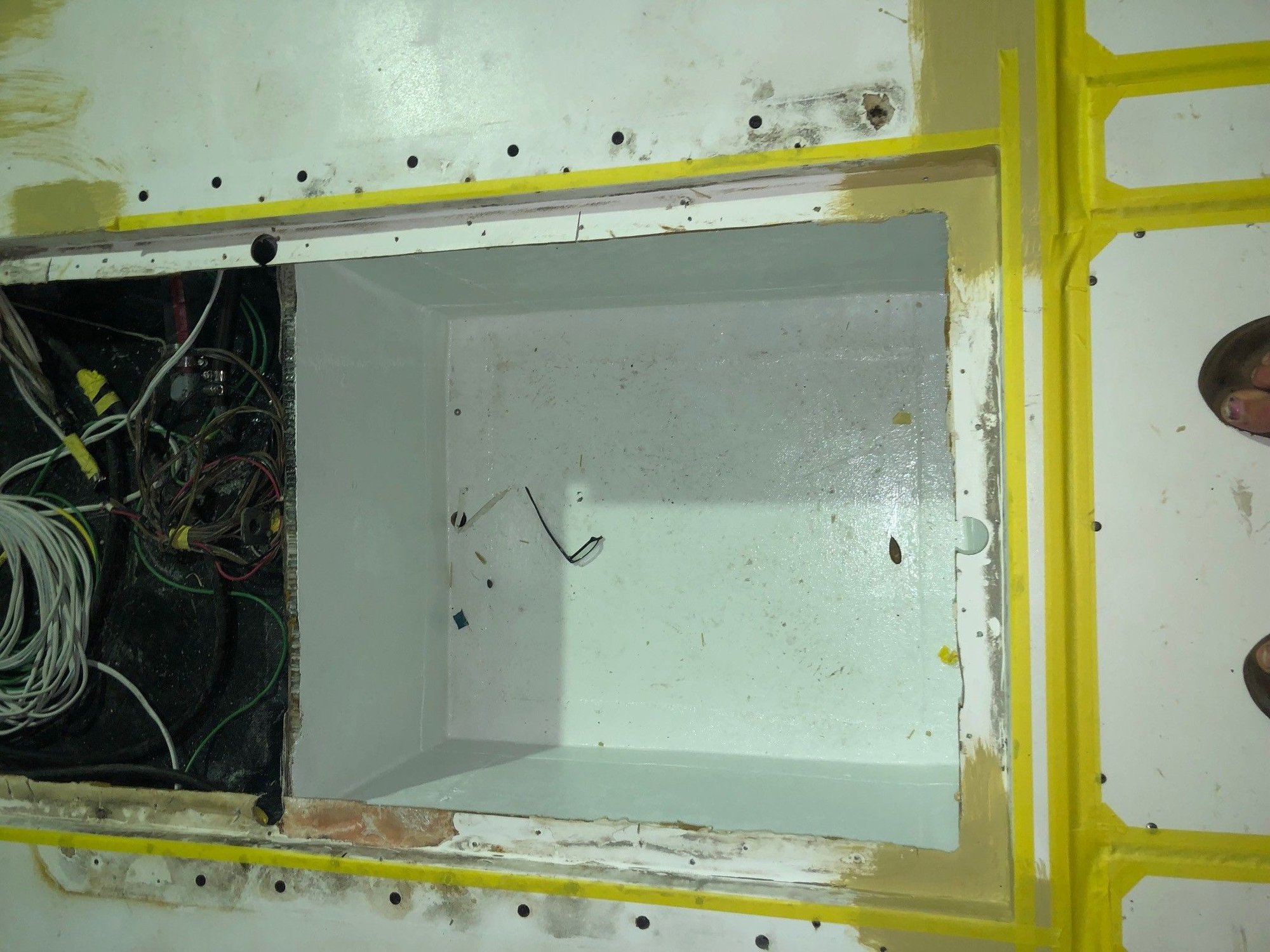

-Under console access floor glassed in and painted also
Cut access holes in deck down to just cover senders

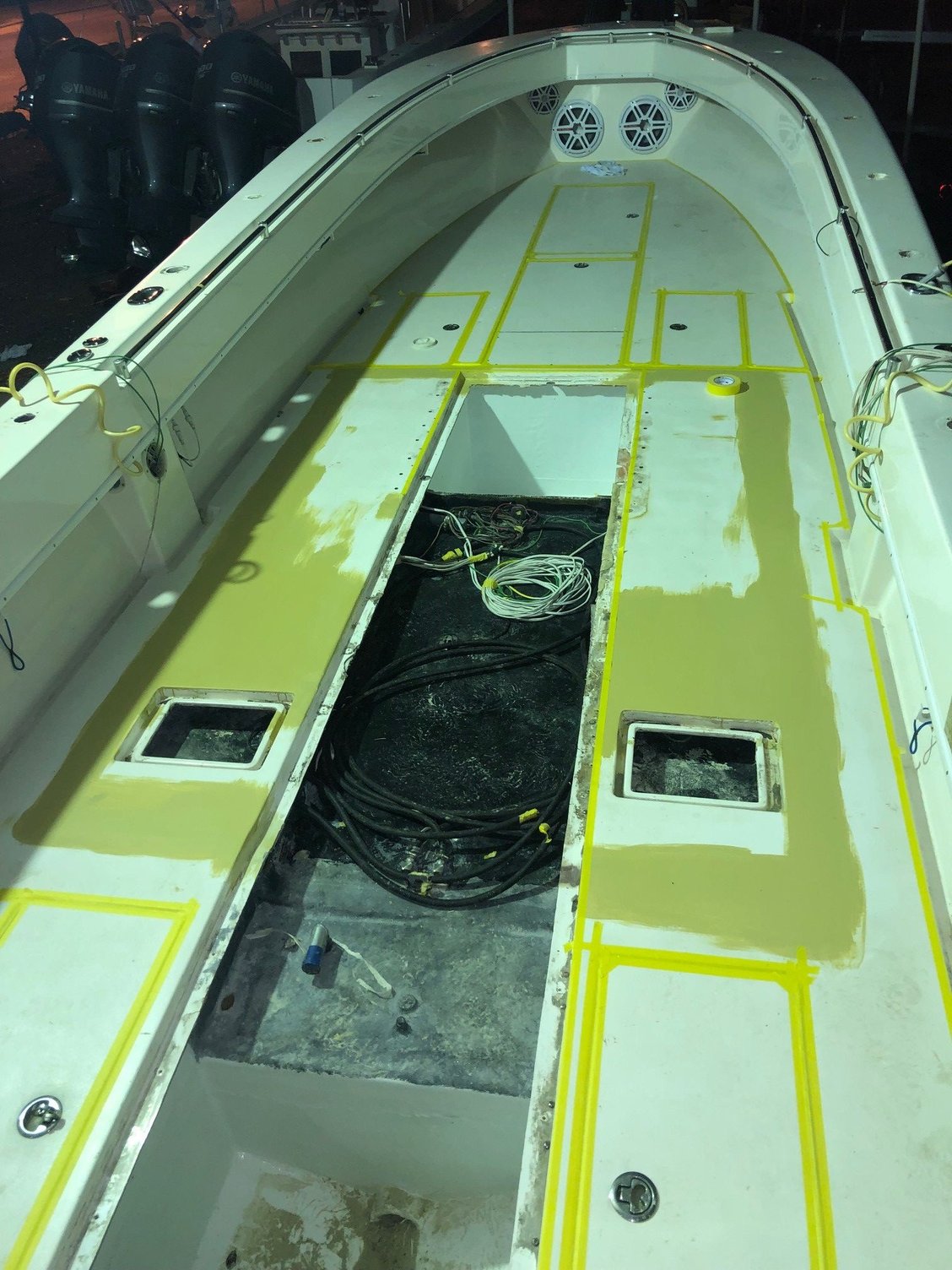

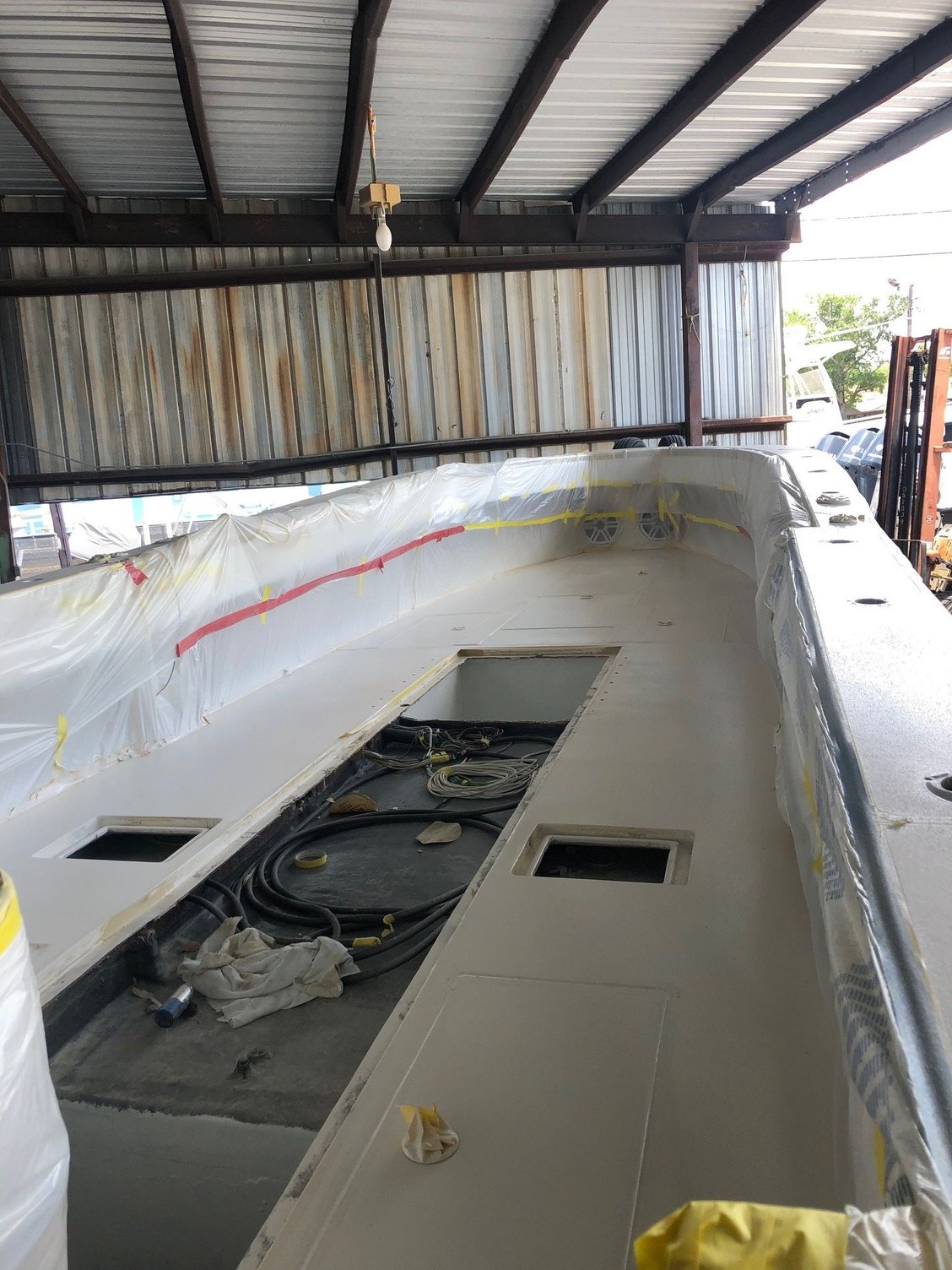

Decks glassed in and fared out. New nonskid on cap and deck complete.
Few days worth of plumbing and pump installation and she'









s ready for rewiring
WestEnd1 and Dufrsp31 like this.
Duvalls Marine is offline
Old 05-23-2019, 07:28 PM
  #48
Admirals Club Admiral's Club Member

Join Date: Sep 2014
Location: Galveston
Posts: 596
Default

Badass to see the progress. We are doing much of the same stuff, our tanks should be here next week.
Keep the updates coming when you can
WestEnd1 is offline
Old 05-26-2019, 08:28 PM
  #49
Senior MemberCaptains Club Member

Join Date: Feb 2001
Location: Ocean Springs MS
Posts: 370
Default

That looks like good work!

I worked the FCC at that refinery for 17 years, I'm familiar with the shift work.
rsnapper is offline
Old 06-16-2019, 04:47 PM
  #50
Senior MemberCaptains Club Member

Join Date: Aug 2006
Location: New Port Richey, Fl
Posts: 2,109
Default

Would love to see the progress, thanks
jets is offline
Old 06-16-2019, 06:22 PM
  #51
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Apr 2019
Location: Pascagoula, Ms
Posts: 18
Default



1
jets, C BISHOP, Miss Trial and 2 others like this.
Duvalls Marine is offline
