Default Generator Interlock

I recently bought a portable generator in case a hurricane knocks out power. The plan is to run a small window unit A/C in the master bedroom, the fridge, and a couple of fans/lights. I've done some reading online and the most cost effective way to power the house is to have an interlock kit installed that allows the generator to feed the panel but requires the main breaker from the grid be turned off before you can turn on the breakers for the generator.

I had an electrician come out to give me a quote on installing an interlock kit and receptacle but he said it's not to code so he can't do it. He said the only way he can do it is to install a manual transfer switch and a separate panel that's the fed from the transfer switch, which is really pricey. He couldn't tell me where the code says it's not allowed and I haven't been able to find anything online that says it can't be setup this way, just that a interlock of some sort is required so the grid isn't back-fed. Has anyone in the state successfully had an electrician set it up this way or can point me to the code that days it's not appropriate?
Old 09-09-2020, 10:18 AM
  #2
Senior Member

Join Date: Sep 2013
Location: UsA
Posts: 1,642
Received 401 Likes on 265 Posts
Default

It's either DIY or call the county, ask if it's to code and do it the right way. If the county says code would allow this, call another electrician.
Old 09-09-2020, 11:18 AM
  #3
Admirals Club Admiral's Club Member

Join Date: Jul 2016
Location: Bradenton, FL
Posts: 2,058
Received 778 Likes on 431 Posts
Default

I just used an external connector, like this:
Amazon Amazon
and ran to a dedicated outlet in the house. My generator has 2x 15A 110V and 1x 20A 220V. So I used three of the power inlet boxes like this:
  • One outdoor inlet connecting one of the generator's 110V 15A outlets to a dedicated outlet in the house.
  • Another outdoor inlet connecting the generator's other 110V 15A outlet to a second dedicated outlet in the house.
  • A third outdoor inlet connecting the generator's 220V 20A outlet to two 110V 10A outlets in the house.

Now I can connect all the generator outputs to the house using three cables and pull the full available current. I also used a couple of these single transfer switches on the well and pool pumps so our second generator can run either of those
Amazon Amazon
.
Old 09-09-2020, 11:26 AM
  #4
Admirals Club Admiral's Club Member

Join Date: Dec 2013
Location: Stuart Fl
Posts: 173
Likes: 0
Received 6 Likes on 5 Posts
Default

I had the transfer switch put in by another electrician as the first said he could do the interlock like you mentioned, but when it came down to it it was not up to code. the transfer switch was pricey but its done right and when we move it's another selling point.
Old 09-09-2020, 11:27 AM
  #5
Admirals Club Admiral's Club Member

Join Date: Jul 2016
Location: Bradenton, FL
Posts: 2,058
Received 778 Likes on 431 Posts
Default

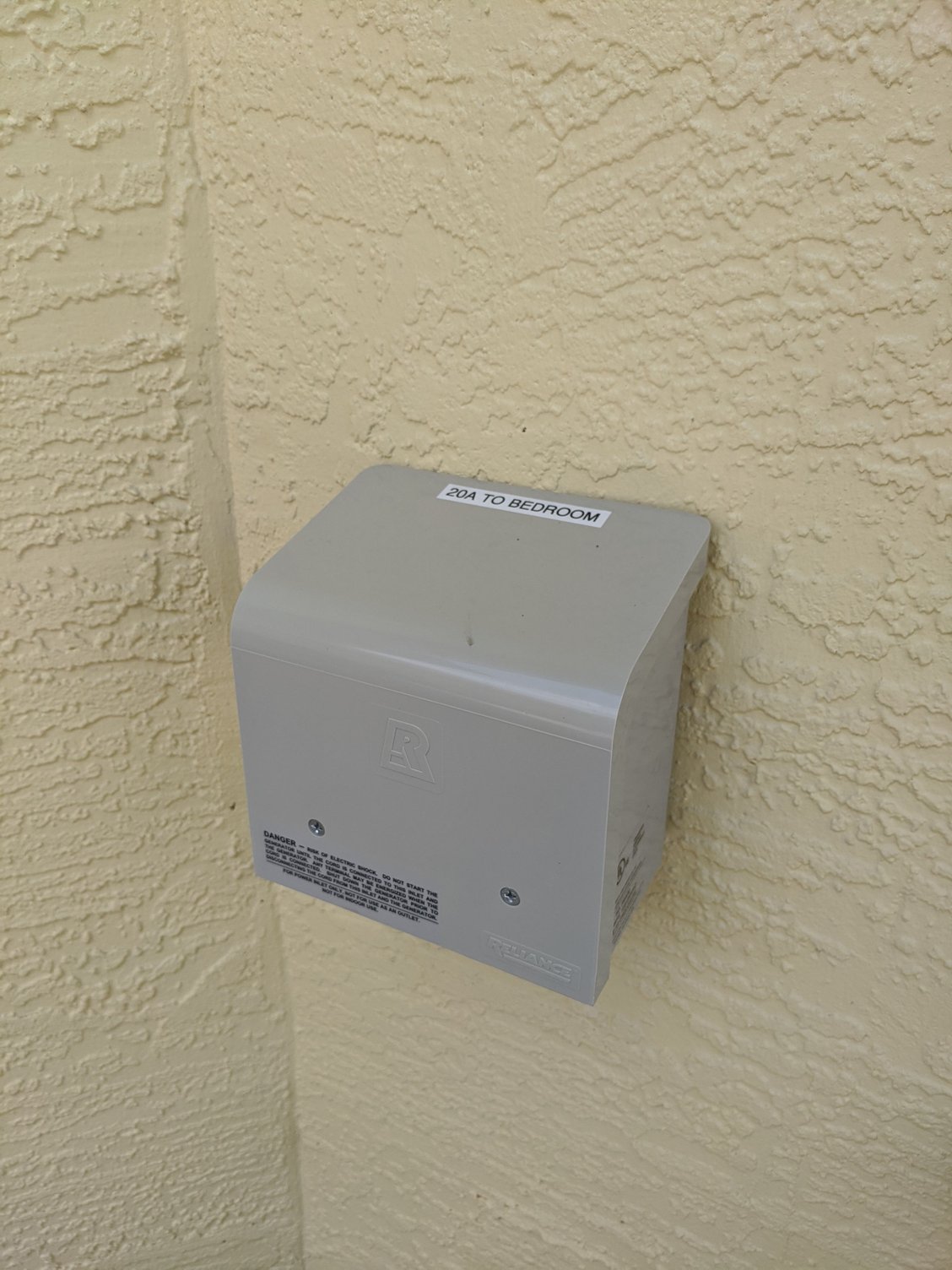

Here you go: how it looks outside, and how it looks on the opposite side of that wall. I just drilled a hole through the exterior wall and ran Romex through 1/2" conduit from outside to inside, then added a dedicated outlet right alongside the normal power outlet. The grey one just goes through the wall to the generator connector outside and I can just plug in whatever I need right there. I have one in the bedroom for lights and a portable AC unit, two in the kitchen for fridge, microwave etc. and one on the utility room (for the beer fridge!!!!).



Old 09-09-2020, 02:12 PM
  #6
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Location: Cleveland
Posts: 969
Received 181 Likes on 146 Posts
Default

I went with the EZ Generator Switch.Its a manuel system and very easy to install.Each box controls a single circuit.Vey flexible.
Old 09-09-2020, 02:24 PM
  #7
Admirals Club Admiral's Club Member

Join Date: Jun 2018
Posts: 442
Received 364 Likes on 161 Posts
Default

I just shut off main breaker... then plug my 50amp gen plug .... into a weatherproof box Rated at 50 Amp Of course the key to the whole thing is shutting off the main breaker before doing anything.... everything is locked up in the shed.... nobody else can touch it at my house.... Im not gonna blow myself up Im just careful .... but god forbid if you forget. .
Old 09-09-2020, 03:01 PM
  #8
Admirals Club Admiral's Club Member

Join Date: Apr 2017
Location: Cleveland
Posts: 969
Received 181 Likes on 146 Posts
Default

Originally Posted by Bruce1505 View Post
I just shut off main breaker... then plug my 50amp gen plug .... into a weatherproof box Rated at 50 Amp Of course the key to the whole thing is shutting off the main breaker before doing anything.... everything is locked up in the shed.... nobody else can touch it at my house.... Im not gonna blow myself up Im just careful .... but god forbid if you forget. .
Lol, you definitely don't want to back feed the grid,right about that.If and when they find you the games will begin.
Old 09-09-2020, 06:40 PM
  #9
Senior Member

Join Date: Sep 2005
Location: Orlando, Fl
Posts: 222
Likes: 0
Received 37 Likes on 31 Posts
Default

The interlock is allowed. Code requires that the two circuits must be prevented from being energized at the same time. Tell him to go back and read the book instead of listening to someone tell him it’s not. Hint: do the panel manufacturers make a U L listed accessory that is not code compliant?
Likes:
Old 09-10-2020, 06:51 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Jun 2016
Location: Tesqueeta, FL
Posts: 39
Likes: 0
Received 29 Likes on 10 Posts
Default

Pro Tran Reliance transfer switch with 6 circuits can be purchased for under $300. The install is straightforward and DIY with basic electrical knowledge. There are several videos online. You don't have to worry about interlock and backfeed, you just fire up the generator, plug it in, and flip the circuit switches you want to use. Mine is wired for 6 different zones in the house but I really only need it to run 2 refrigerators and power to the master bedroom. You can install a separate genset plug outside but I chose to install mine on the wall next to the main house breaker panel and snake the cord under the corner of the garage door.
Likes:
Old 09-10-2020, 07:49 AM
  #11
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 25,177
Received 5,386 Likes on 3,444 Posts
Default

Backfeeding works, but is dangerous as hell if not properly done. Run an extension cord?
Old 09-10-2020, 07:57 AM
  #12
Admirals Club Admiral's Club Member

Join Date: Jun 2009
Location: Vero Beach, FL
Posts: 7,311
Received 1,471 Likes on 773 Posts
Default

I had a separate subpanel installed with an interlocking main breaker and moved selected circuits to it. It's powered off the main panel normally. In the event of power failure, I just plug in the genset, start and then throw the interlocked breaker.
Freezers, fridges, modems, computers, selected TV's and lights are powered.
Old 09-10-2020, 08:05 AM
  #13
mgd
Senior Member Admiral's Club Member

Join Date: Nov 2003
Location: Florida
Posts: 856
Received 191 Likes on 125 Posts
Default

I just had this done. Electrician put in a whole new main panel w the dual breakers and lock out and then the box w the plug from the the generator.
Was about 1400 including parts and took him about 4 hrs.
I used to back feed too but decided to go the safe route
Old 09-10-2020, 01:33 PM
  #14
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2009
Location: Bradenton, FL
Posts: 360
Received 168 Likes on 82 Posts
Default

Several other local electricians all say the interlock kit is fine and that they install them all the time. Not sure why the first guy that came out said he couldn't do it. Maybe the company he works for has a policy not to install them and push the more expensive transfer switch?
Old 09-10-2020, 01:39 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Dec 2011
Location: SW Florida
Posts: 7,875
Received 1,110 Likes on 733 Posts
Default

Originally Posted by RHartline View Post
The interlock is allowed. Code requires that the two circuits must be prevented from being energized at the same time. Tell him to go back and read the book instead of listening to someone tell him its not. Hint: do the panel manufacturers make a U L listed accessory that is not code compliant?
^^^^^^^
This
A listed interlock for your panel is legal in the Fla electrical code and a local yokel can not over ride that. They need to get an exception to the unified code past the Florida Building Commission
Old 09-10-2020, 10:11 PM
  #16
Admirals Club Admiral's Club Member

Join Date: Jun 2016
Location: Tesqueeta, FL
Posts: 39
Likes: 0
Received 29 Likes on 10 Posts
Default

Originally Posted by JP11283 View Post
Several other local electricians all say the interlock kit is fine and that they install them all the time. Not sure why the first guy that came out said he couldn't do it. Maybe the company he works for has a policy not to install them and push the more expensive transfer switch?
Can somebody educate me on the difference? I did some research and settled on a ProTran transfer switch. About $310 for everything and installed myself in under 2 hours. Seems much cheaper than an electrician and safer. I was accounting for the fact that I have a 6250 portable genset and only want to run a few circuits and burn minimal gas...Im guessing I could get 12 hours or more per 7.5 gallon tank at around 50% power. Im not trying to power the entire house. So what would be better about the interlock?
Old 09-11-2020, 08:16 AM
  #17
Admirals Club Admiral's Club Member

Join Date: Mar 2009
Location: Port St. Lucie, FL
Posts: 662
Received 127 Likes on 89 Posts
Default

Interlock works great for me. It's simple, inexpensive and safe. I can power any circuit(s) in my house within my generator's capacity.
Old 09-11-2020, 09:37 AM
  #18
Senior Member

Join Date: Feb 2019
Location: Citrus County, Fl.
Posts: 552
Received 610 Likes on 302 Posts
Default

Originally Posted by K-dawg View Post
Interlock works great for me. It's simple, inexpensive and safe. I can power any circuit(s) in my house within my generator's capacity.
Exactly.

Like


Old 09-12-2020, 07:17 PM
  #19
Senior Member

Join Date: Sep 2005
Location: Orlando, Fl
Posts: 222
Likes: 0
Received 37 Likes on 31 Posts
Default

The advantage of the interlock is that you can power any circuit if you really want to. A transfer switch will limit you to the number of circuits in the transfer switch. The limitation as to which circuits when is the size of your generator. For example, you can turn everything else off and, if you have the right size generator, turn on your hot water heater. Heat up a tank of water, then turn it off and other things back on. The tank will hold the water hot for hours. The limitation is the generator size but you can switch loads around to whatever your need may be at the time.
Old 09-12-2020, 07:30 PM
  #20
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jul 2009
Location: Bradenton, FL
Posts: 360
Received 168 Likes on 82 Posts
Default

Originally Posted by RHartline View Post
The advantage of the interlock is that you can power any circuit if you really want to. A transfer switch will limit you to the number of circuits in the transfer switch. The limitation as to which circuits when is the size of your generator. For example, you can turn everything else off and, if you have the right size generator, turn on your hot water heater. Heat up a tank of water, then turn it off and other things back on. The tank will hold the water hot for hours. The limitation is the generator size but you can switch loads around to whatever your need may be at the time.
That's the other reason I wanted an interlock, besides the price.
