I like those old wood downeast lobster boats - So I built one

Notices

I like those old wood downeast lobster boats - So I built one

Old 02-12-2018, 04:52 PM
  #1
Senior Member
Thread Starter

Join Date: Aug 2007
Location: L,I. N.Y
Posts: 857
Received 1,366 Likes on 654 Posts
Default I like those old wood downeast lobster boats - So I built one

Well kinda...I don't have access to a yard or much of the equipment to build a real one, so I decided a model in 3/4" scale will have to do. I decided to start by following the a small booklet I saw online called ironically, "The Lobster Boat" by Steve Rogers.
Its got great pictures and a pretty clear step by step process of building a mold on which you construct the boat using planks over ribs.

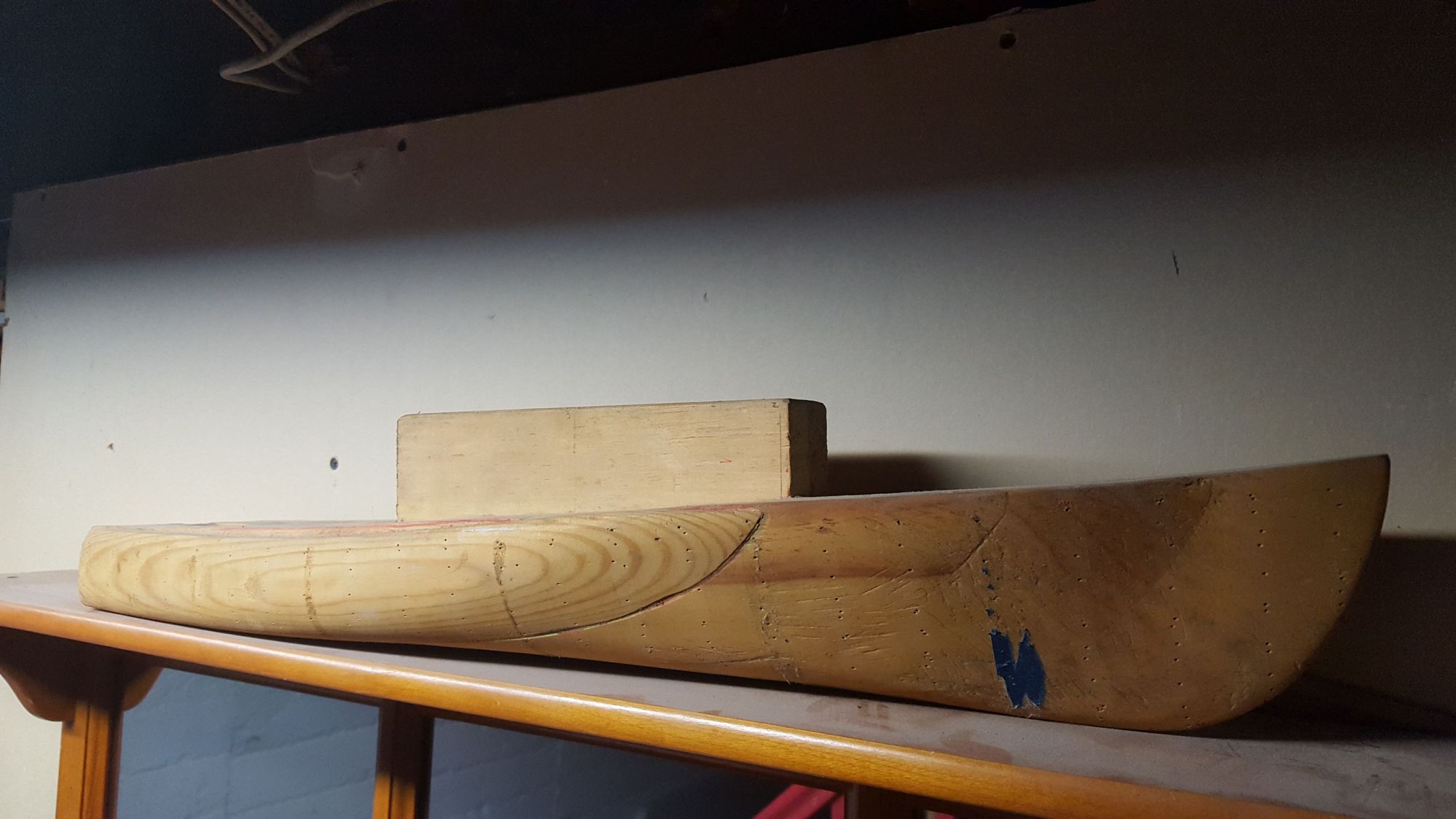

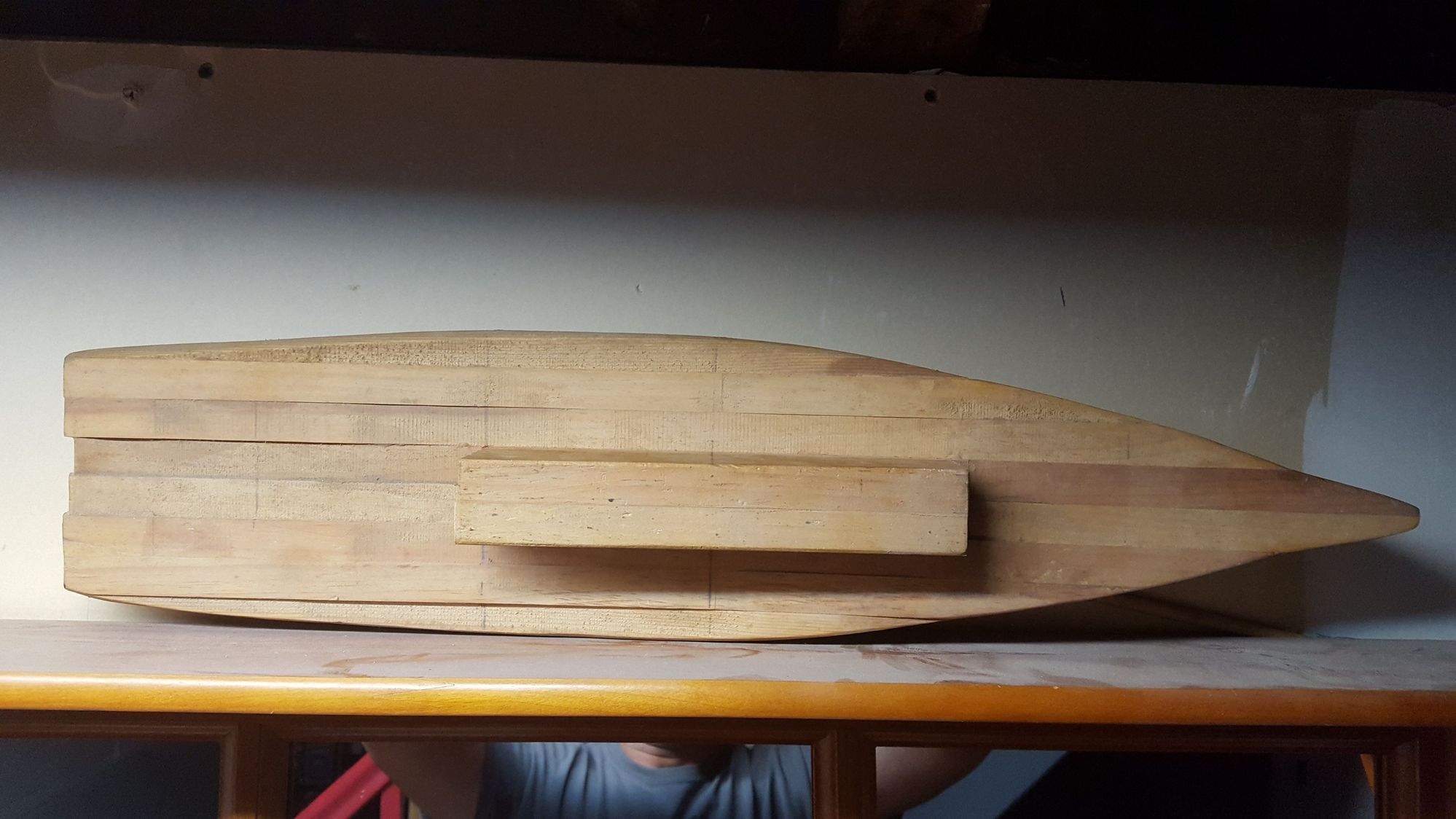

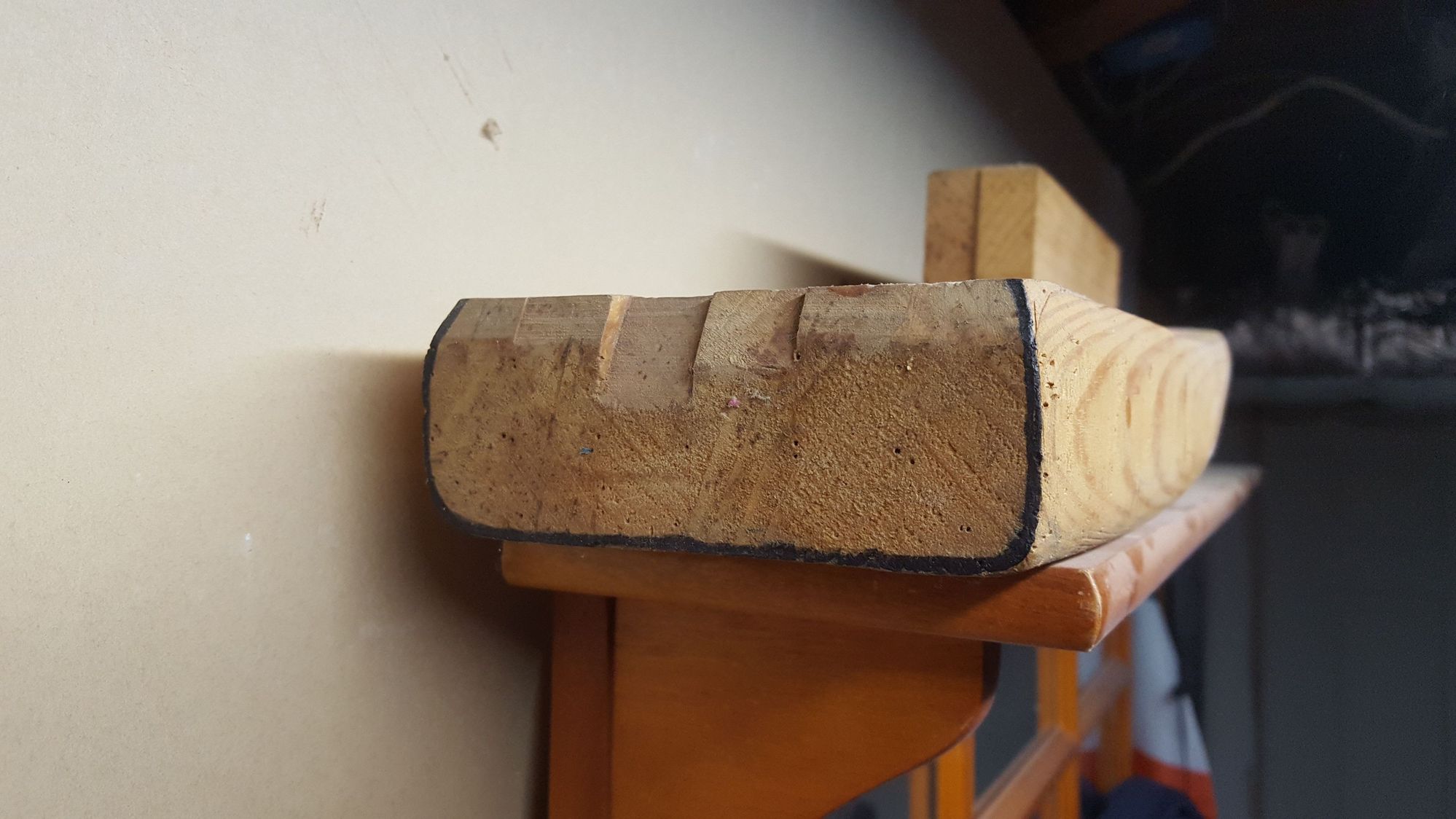

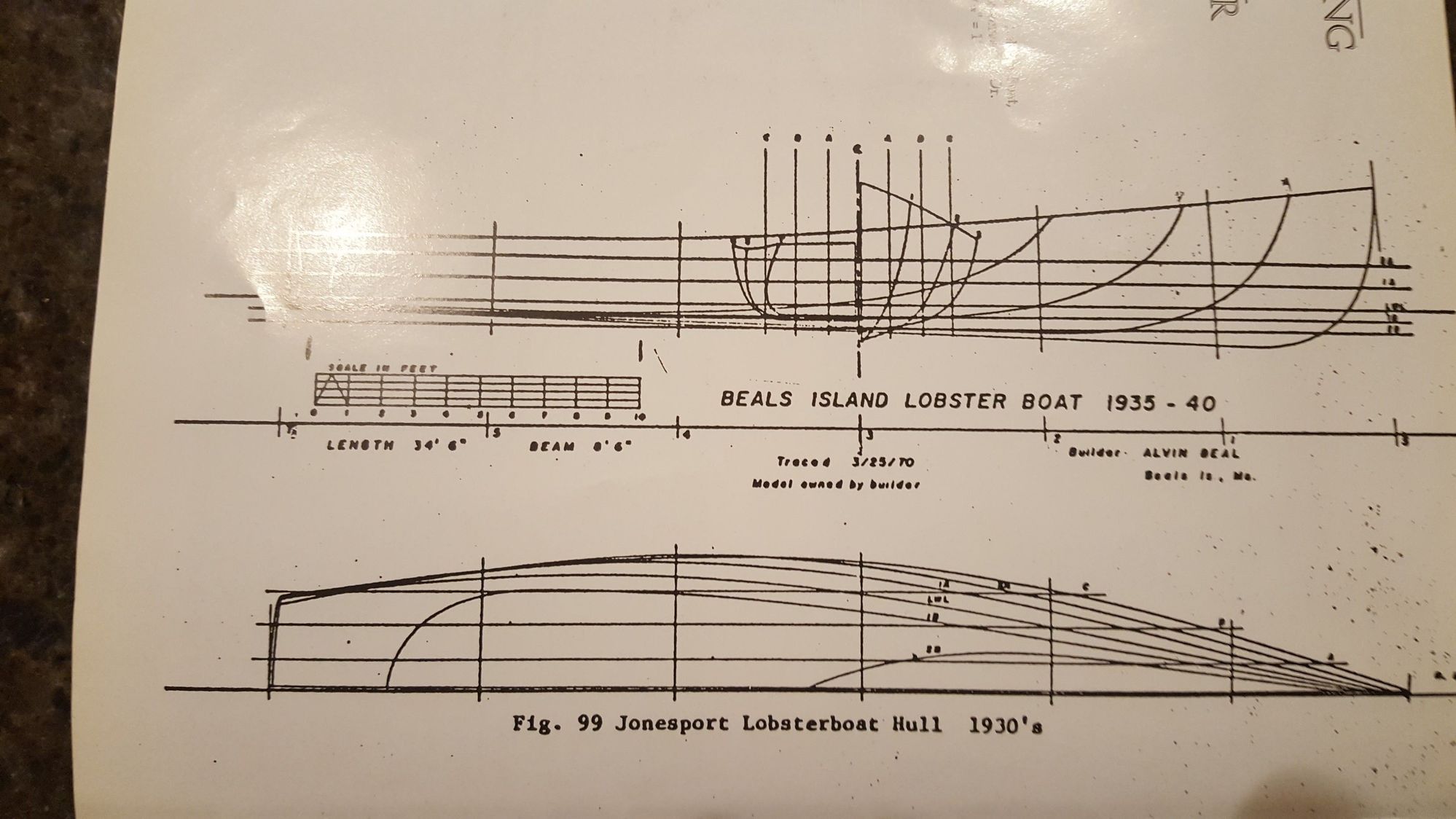

This is the mold - and the corresponding drawings for the hull






Old 02-12-2018, 05:14 PM
  #2
Senior Member
Thread Starter

Join Date: Aug 2007
Location: L,I. N.Y
Posts: 857
Received 1,366 Likes on 654 Posts
Default

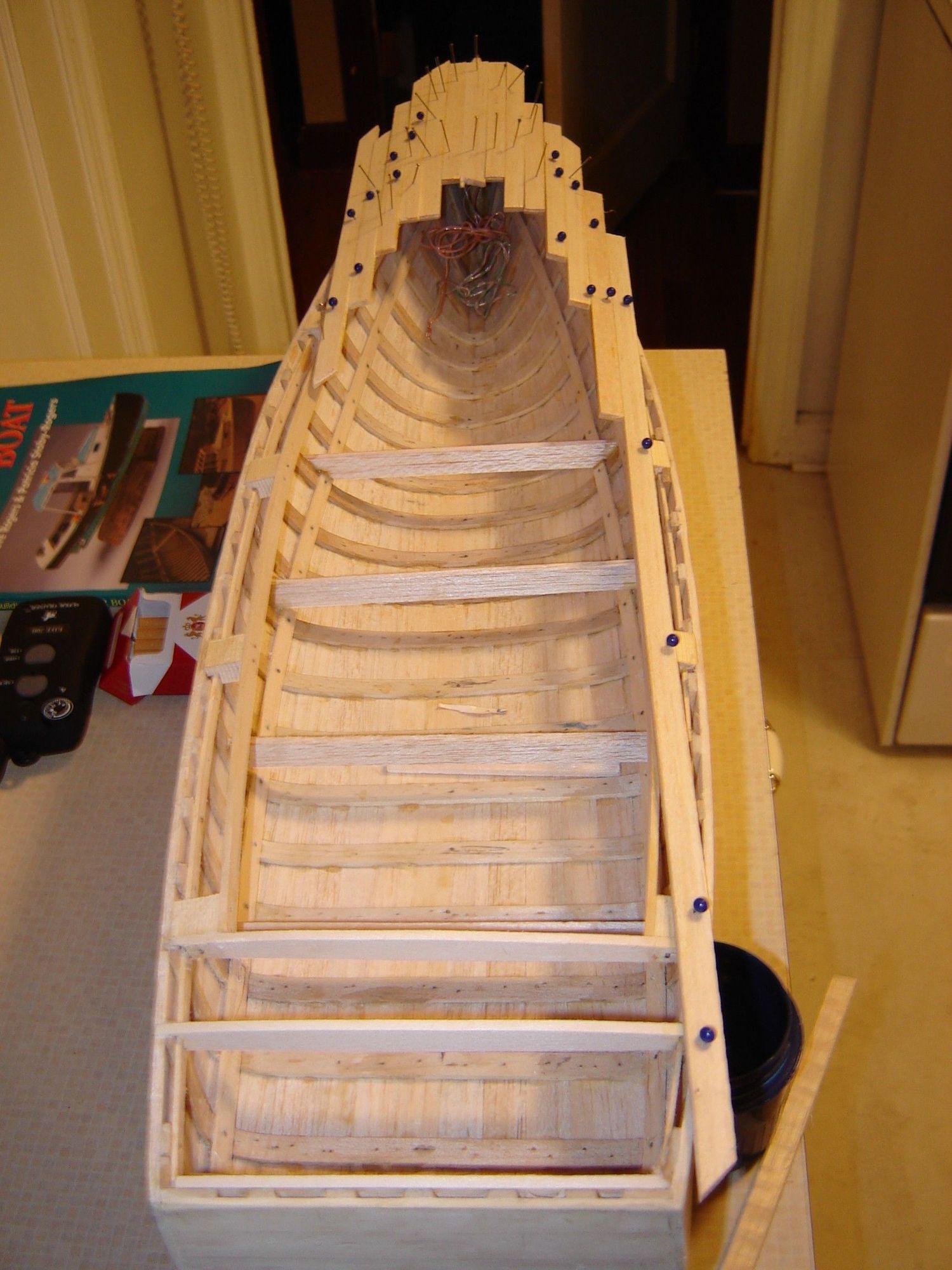

- somehow I didnt take a pic of the mold fully ribbed, so here is the planking over the ribs already started
After nailing the ammonia soaked ribs to the mold and letting it dry for a couple of days the process of gluing and nailing the planks to the ribs begin - BUT the trick is to remove the nails from the ribs you are covering before nailing the planks. Those nails will also be removed because eventually you will need to remove the mold from inside the hull







Last edited by GetReel; 02-12-2018 at 06:04 PM.
Old 02-12-2018, 06:37 PM
  #3
Senior Member

Join Date: Dec 2014
Location: Daphne, AL
Posts: 349
Likes: 0
Received 66 Likes on 43 Posts
Default

Originally Posted by GetReel View Post
- somehow I didnt take a pic of the mold fully ribbed, so here is the planking over the ribs already started
After nailing the ammonia soaked ribs to the mold and letting it dry for a couple of days the process of gluing and nailing the planks to the ribs begin - BUT the trick is to remove the nails from the ribs you are covering before nailing the planks. Those nails will also be removed because eventually you will need to remove the mold from inside the hull






Nice!
Old 02-12-2018, 07:02 PM
  #4
Senior Member
Thread Starter

Join Date: Aug 2007
Location: L,I. N.Y
Posts: 857
Received 1,366 Likes on 654 Posts
Default

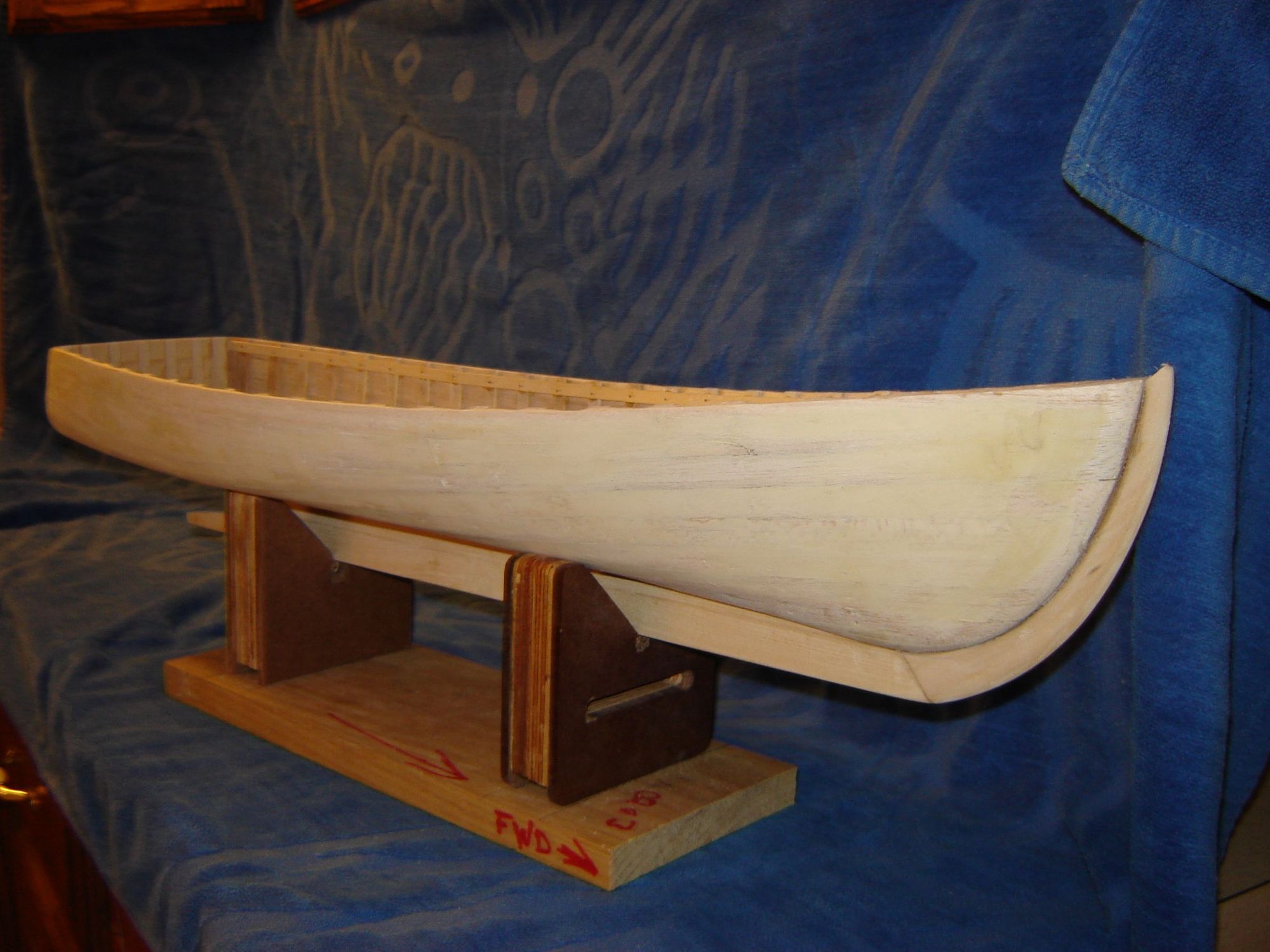

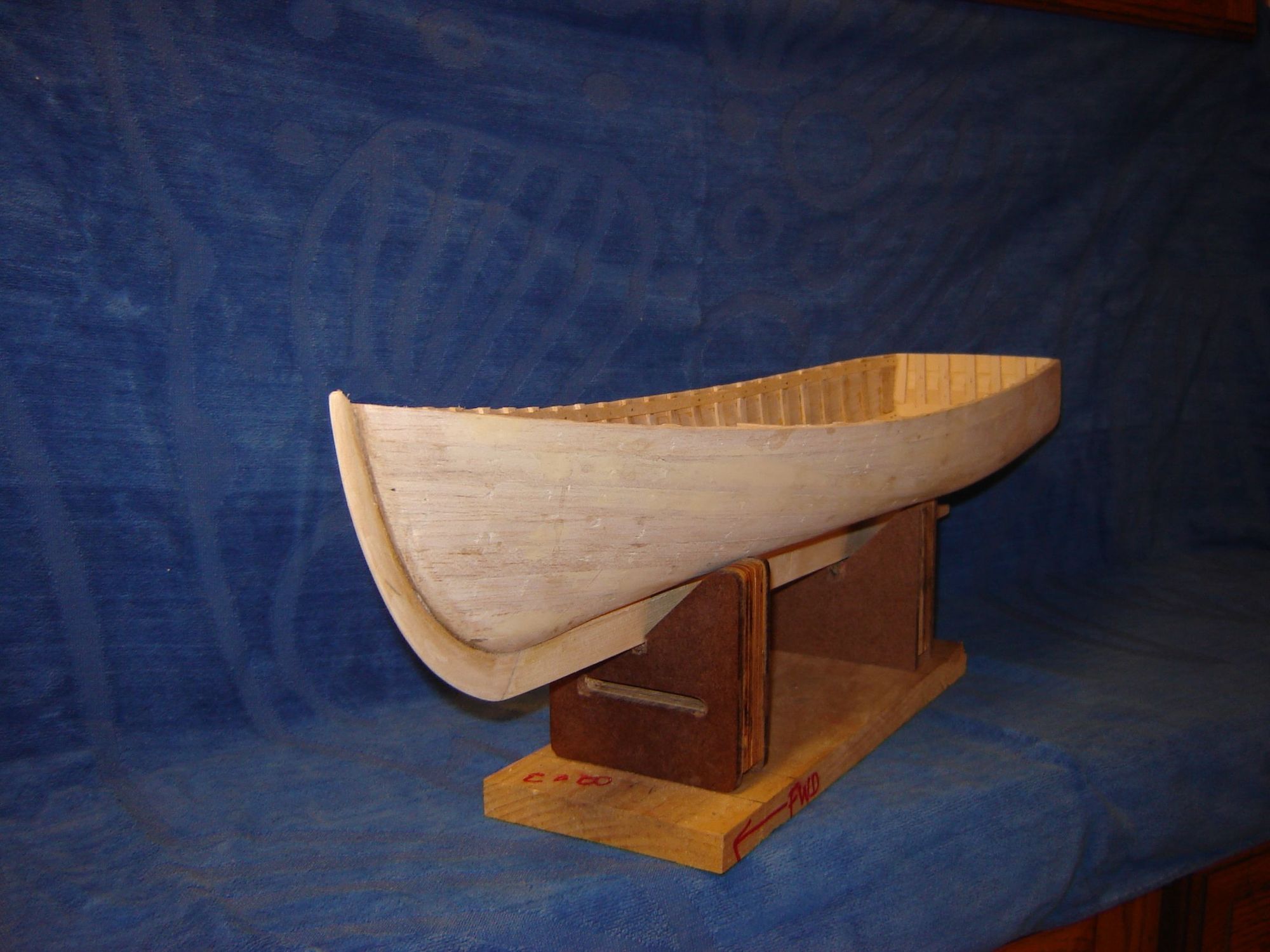

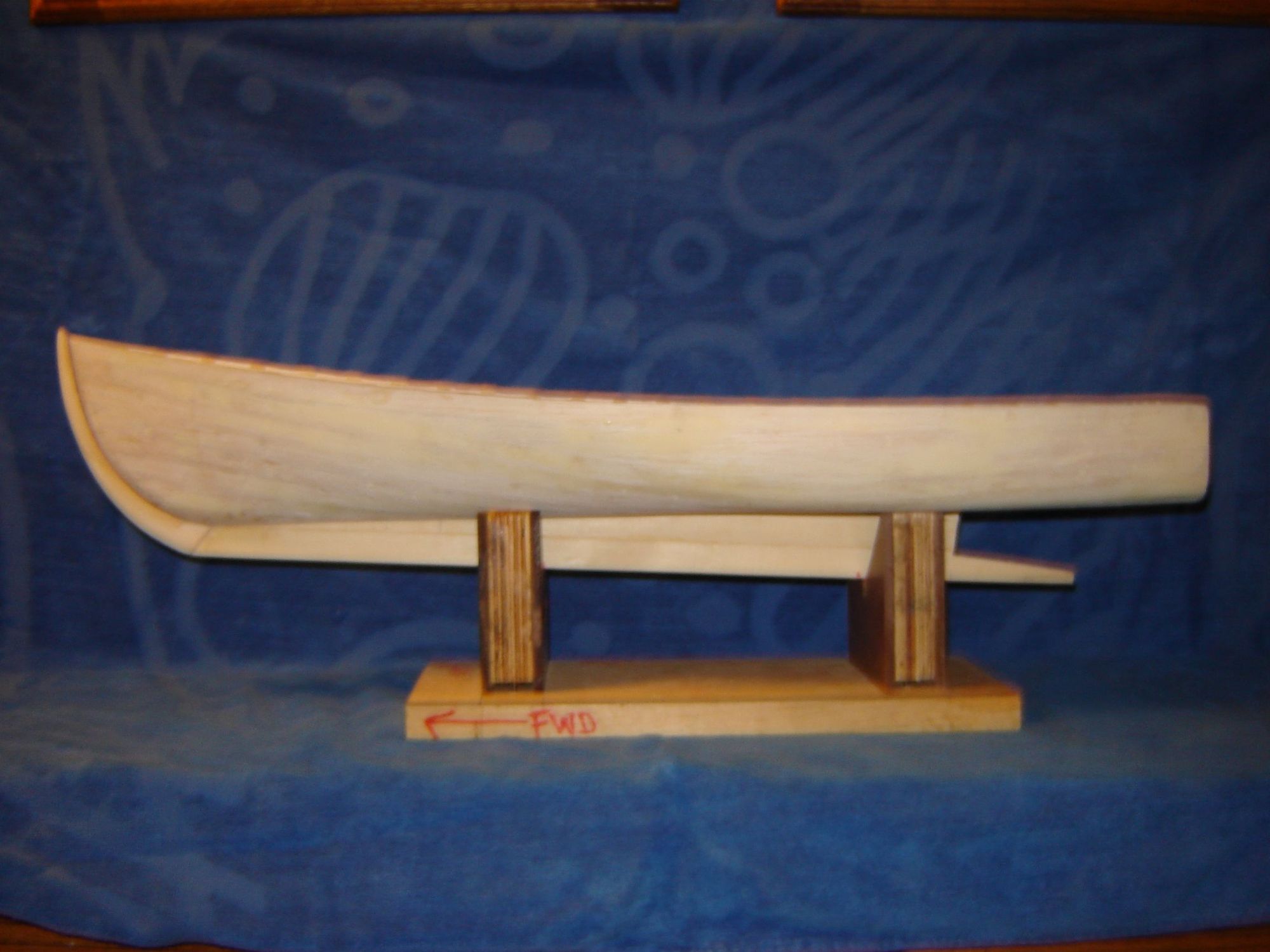

with a little luck and patience you are able to remove the hull from the mold, providing you took all the tiny little nails out as you laid out your planks






Old 02-12-2018, 07:06 PM
  #5
Senior MemberCaptains Club Member

Join Date: Mar 2007
Location: pascagoula,ms
Posts: 9,506
Received 1,987 Likes on 986 Posts
Default

Nice
Old 02-13-2018, 05:09 AM
  #6
Senior MemberPLEDGERPLEDGERCaptains Club Member

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,372
Received 2,007 Likes on 990 Posts
Default

Very cool.
Old 02-13-2018, 05:53 AM
  #7
Senior Member

Join Date: Dec 2012
Posts: 343
Likes: 0
Received 34 Likes on 23 Posts
Default

Awesome !
Old 02-13-2018, 06:02 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Aug 2010
Location: New Hampshire
Posts: 5,237
Received 1,220 Likes on 625 Posts
Default

Beautiful. Nice job.
Old 02-13-2018, 06:04 AM
  #9
Admirals Club Admiral's Club Member

Join Date: Jun 2014
Location: South Carolina
Posts: 127
Likes: 0
Received 25 Likes on 17 Posts
Default

Thats awesome!
Old 02-13-2018, 06:39 AM
  #10
Junior Member

Join Date: Jul 2017
Location: Tifton, Ga Steinhatchee, Fl
Posts: 12
Received 6 Likes on 5 Posts
Default

Nice work!
Old 02-13-2018, 06:55 AM
  #11
Admirals Club Admiral's Club Member

Join Date: Sep 2015
Location: Richmond, Va
Posts: 426
Received 87 Likes on 56 Posts
Default

sub'd
Old 02-13-2018, 06:57 AM
  #12
Senior Member

Join Date: Nov 2015
Location: se Florida
Posts: 899
Likes: 0
Received 2,435 Likes on 980 Posts
Default

looks tippy
Old 02-13-2018, 07:07 AM
  #13
Senior Member

Lprizman's Avatar

Join Date: May 2009
Location: Rhode island
Posts: 7,177
Received 4,849 Likes on 2,151 Posts
Default

No rod holders?!?
I'd add a bracket with arch.



Somebody else here made some smaller versions here also...trying to remember whk
Old 02-13-2018, 07:08 AM
  #14
Senior Member

Join Date: Jan 2012
Posts: 131
Likes: 0
Received 488 Likes on 261 Posts
Default

Looks "tacky" LOL.

But seriously, how do you remove the tacks?
Old 02-13-2018, 07:12 AM
  #15
Senior Member

Join Date: Jun 2017
Posts: 368
Received 621 Likes on 284 Posts
Default

This looks fun! Cool work!
Old 02-13-2018, 07:32 AM
  #16
Senior Member

Join Date: Jan 2012
Posts: 131
Likes: 0
Received 488 Likes on 261 Posts
Default

Old 02-13-2018, 07:45 AM
  #17
Senior Member

Join Date: Feb 2009
Location: Beaufort NC
Posts: 480
Likes: 0
Received 127 Likes on 60 Posts
Default

Coming along very nice. Look forward to the progress! Here's one I did of a skipjack using Rosie Parks plans, from scratch down to the frames and handmade wheel. It's priceless to me, been offered up to $3K ten years ago...said no.

Keep up the work, mine was a 1yr+ project...it will be an heirloom one day!!! Nice to see this 'build project'!
Attached Images
Old 02-13-2018, 08:11 AM
  #18
Senior Member
Thread Starter

Join Date: Aug 2007
Location: L,I. N.Y
Posts: 857
Received 1,366 Likes on 654 Posts
Default

Originally Posted by Fish Haid View Post
Looks "tacky" LOL.

But seriously, how do you remove the tacks?
with a tiny pair of pliers..and carefully..

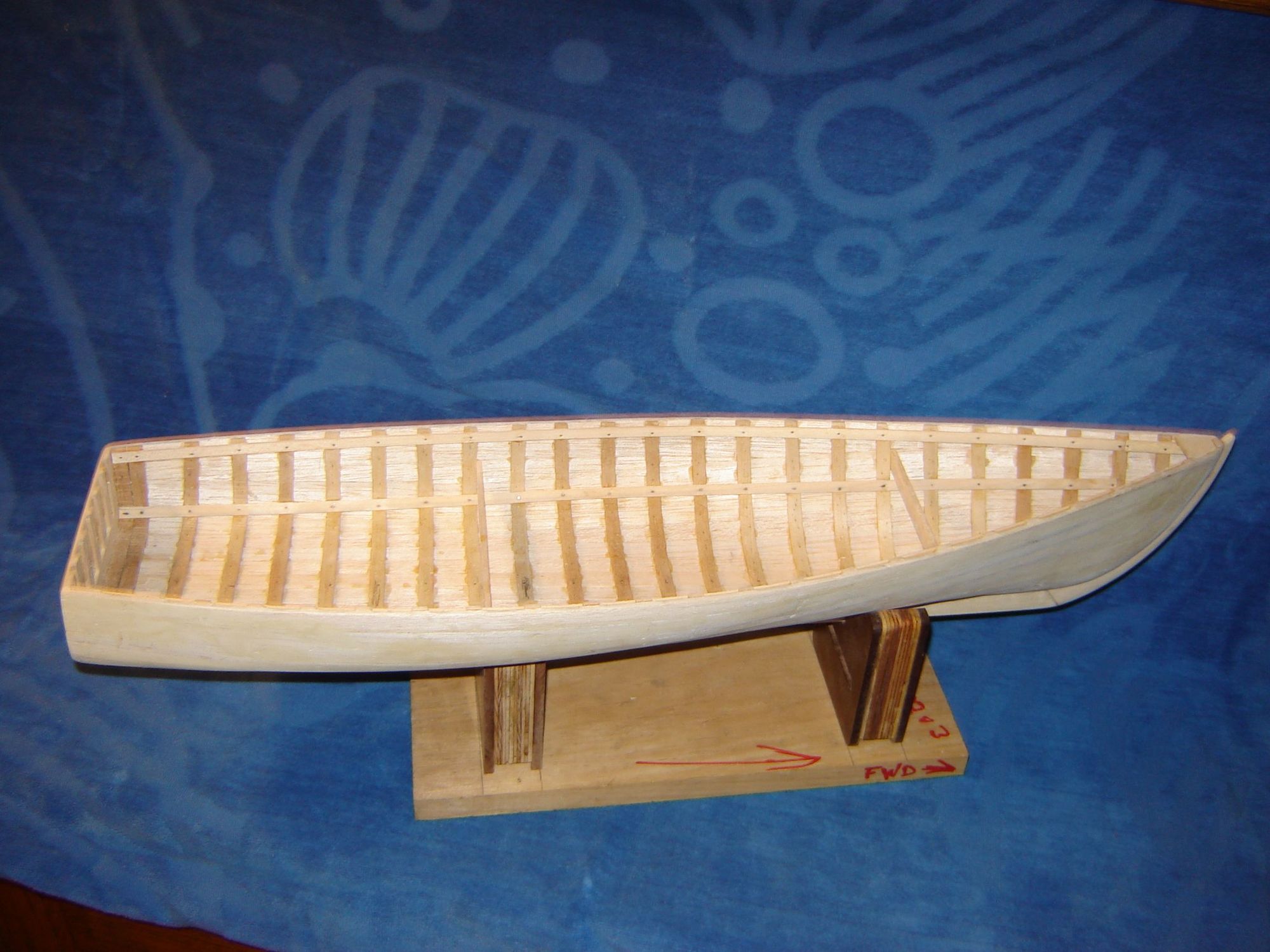

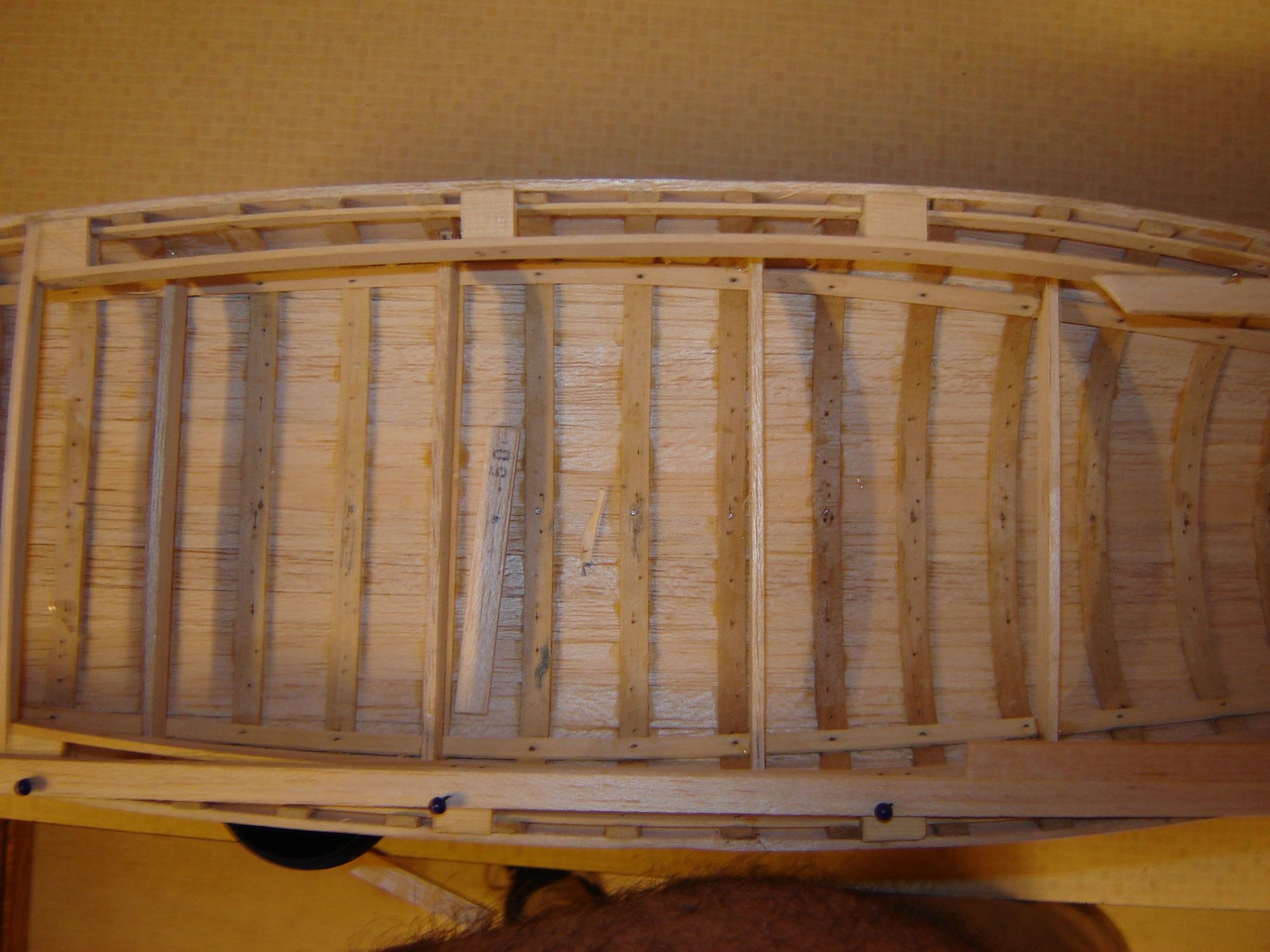

Now that we have the hull out of the mold its time to start adding some combing and bulkheads (correct me if my terminology is wrong) to the inside of the hull for strength, and for a place to secure the deck






Old 02-13-2018, 08:44 AM
  #19
Senior Member

Join Date: Aug 2015
Posts: 243
Likes: 0
Received 120 Likes on 64 Posts
Default

Stringers run fore and aft and bulkheads athwartship. Coaming is the piece that rims the cockpit keeping water on the deck from draining into it. Beautiful work. Doesn't get more Downeast than a Jonesporter.

Last edited by Hops143; 02-13-2018 at 09:15 AM.
Old 02-13-2018, 08:50 AM
  #20
Admirals Club Admiral's Club Member

spraynet 1's Avatar

Join Date: Sep 2005
Location: Sanford, FL
Posts: 7,482
Received 2,619 Likes on 1,236 Posts
Default

Wonderfull job, with much patience.
Can you elaborate about the use of alcohol to bend the wood?
