Default Bullet Question **Pics**

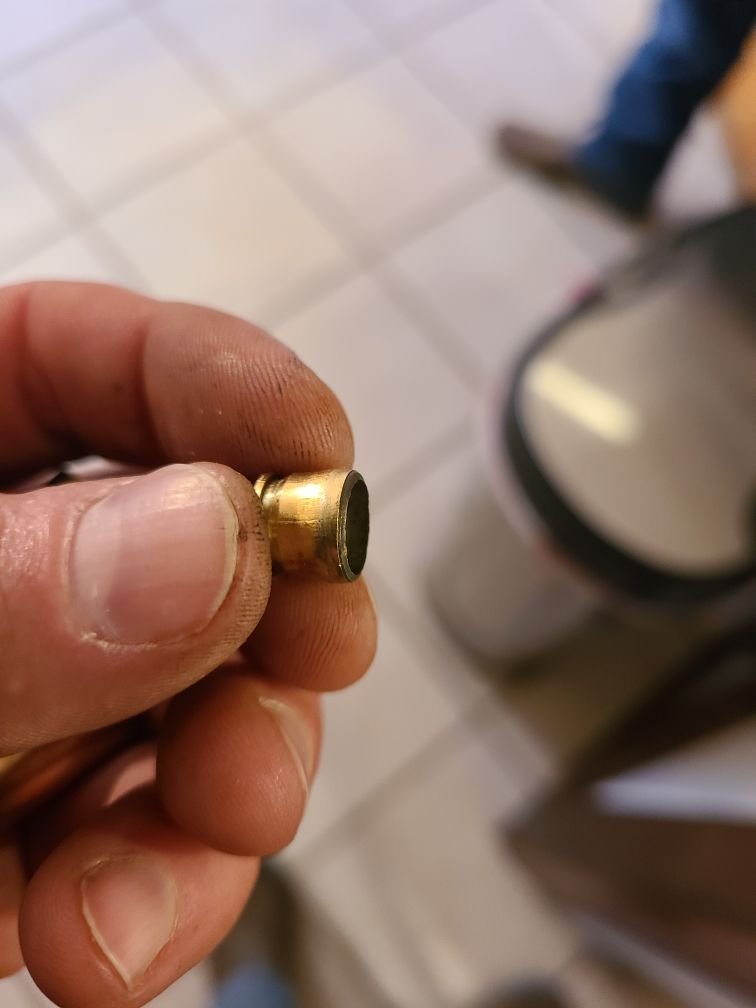

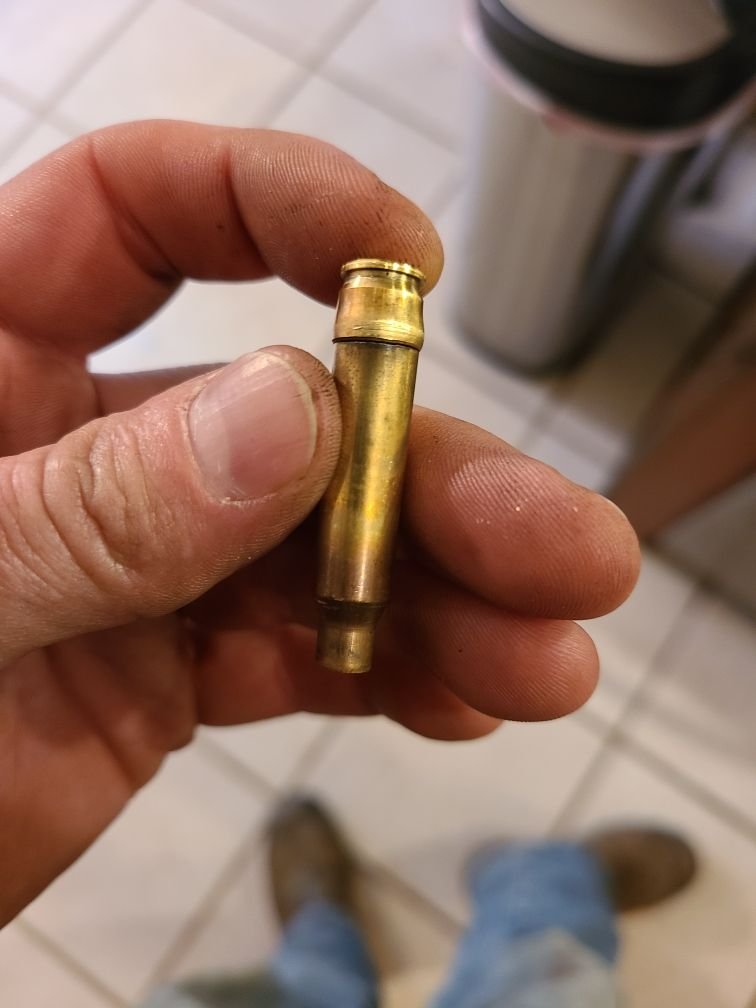

A buddy of mine built an AR15 recently and bought a Bear Creek fully assembled upper receiver & BCG.
The first round didn’t eject, so he shot another and same situation...switched ammo brands and a third one did the same thing.
I advised him its not safe to shoot, and to email Bear Creek first thing Monday morning with pictures.
Can someone explain what causes this?








Old 04-02-2021, 05:19 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Nov 2008
Location: Somewhere in the middle of Michigan
Posts: 10,576
Likes: 0
Received 1,333 Likes on 714 Posts
Default

Did he clean out the barrel and chamber before firing the first rounds? Did he inspect the chamber for burrs? It looks like the spent casing is hanging up in the chamber and the extractor is ripping off the bottom part of the spent casing. No excuse for that in a new firearm.

I suppose I should ask what kind of ammuition he is using.

Last edited by yarcraft91; 04-02-2021 at 05:24 PM.
Old 04-02-2021, 05:20 PM
  #3
Senior Member

Join Date: Sep 2015
Location: Perrysburg, OH (transplanted Texan)
Posts: 308
Received 210 Likes on 108 Posts
Default

Are all 3 bullets cut/broken in the same place? One possible issue may be that the rifle is chambered only for .223 and he was shooting 5.56 which has higher pressures. You can shoot .223 in a rifle chambered for 5.56, but not the other way around, unless rated for both calibers.
Old 04-02-2021, 05:25 PM
  #4
Senior Member

Join Date: Jul 2012
Posts: 1,817
Received 531 Likes on 332 Posts
Default

300 blackout? Any stampings on the barrel? Wrong barrel?
Old 04-02-2021, 05:25 PM
  #5
Admirals Club Admiral's Club Member
Thread Starter

Join Date: May 2018
Posts: 506
Received 306 Likes on 122 Posts
Default

Originally Posted by Retiredearly View Post
Are all 3 bullets cut/broken in the same place? One possible issue may be that the rifle is chambered only for .223 and he was shooting 5.56 which has higher pressures. You can shoot .223 in a rifle chambered for 5.56, but not the other way around, unless rated for both calibers.
I asked this question, and the casing says 5.56
and Barrel says 5.56 NATO
Old 04-02-2021, 05:28 PM
  #6
Admirals Club Admiral's Club Member

Join Date: Mar 2013
Location: Holden Beach, North Carolina
Posts: 3,463
Received 987 Likes on 555 Posts
Default

Gas tube all lined up and not pinched? Iv seen failure to eject from miss aligned gas tubes.
Old 04-02-2021, 05:30 PM
  #7
Admirals Club Admiral's Club Member
Thread Starter

Join Date: May 2018
Posts: 506
Received 306 Likes on 122 Posts
Default

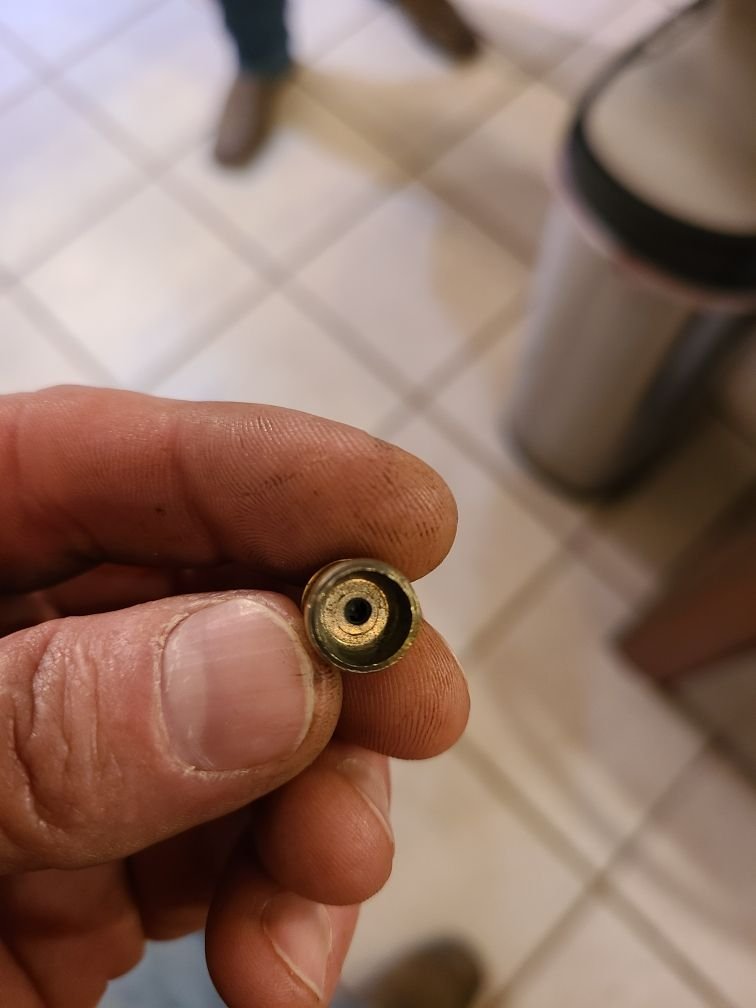

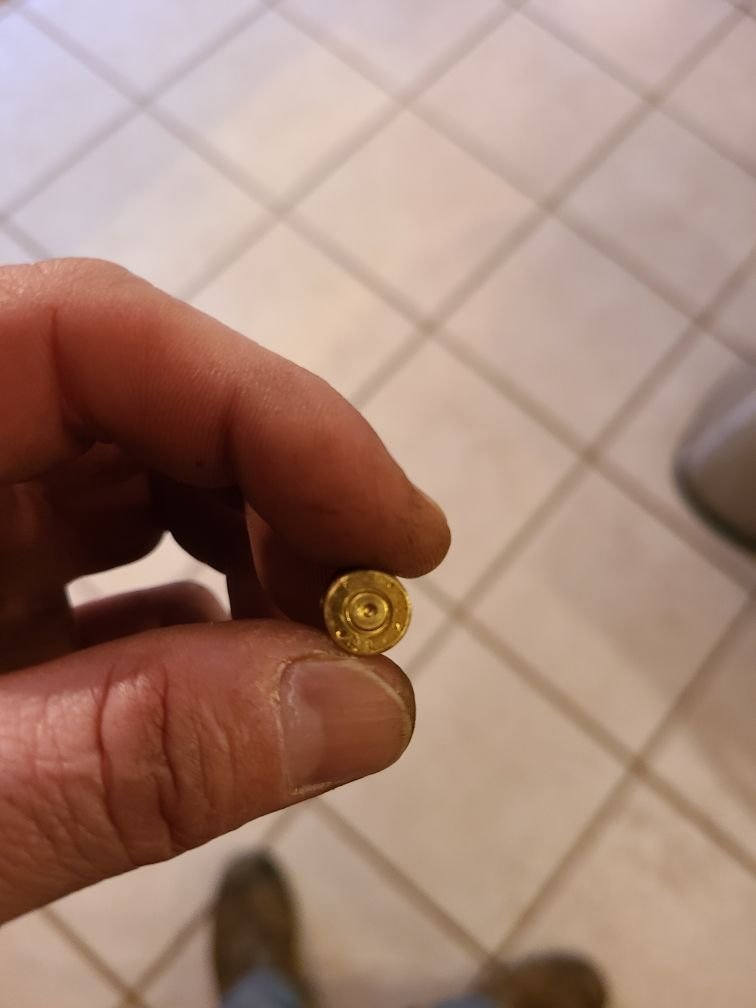

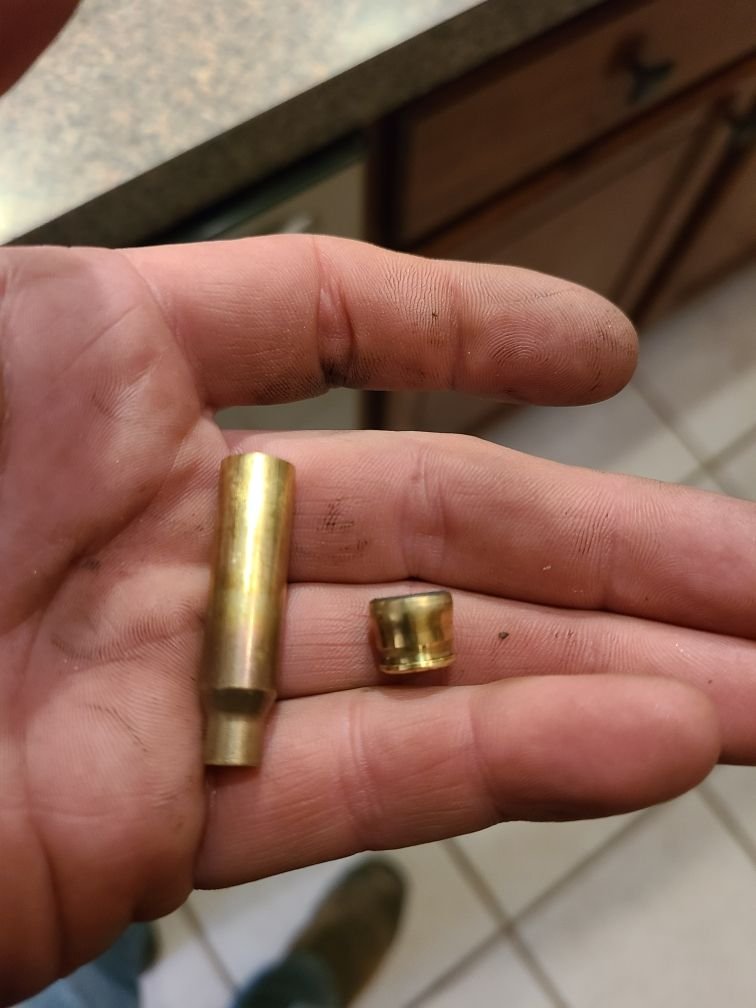

Here’s the other casings


Old 04-02-2021, 05:31 PM
  #8
Admirals Club Admiral's Club Member

Join Date: Nov 2008
Location: Somewhere in the middle of Michigan
Posts: 10,576
Likes: 0
Received 1,333 Likes on 714 Posts
Default

Odd. The casing is pulling apart like an overcharged belted cartride, but the 5.56 NATO is not a belted cartridge.

His rifle may have a defective chamber.
Old 04-02-2021, 05:39 PM
  #9
Senior Member

Join Date: Oct 2018
Location: Southern NJ
Posts: 447
Received 645 Likes on 277 Posts
Default

All cases bulged and sheared in the same spot. Only guess I have is that the cartridge isn't going all the way into battery and the pressure inside the cartridge is expanding the back end and the chamber is acting like a shear and cutting off the cartridge.

Does a round slide in and out of the chamber easily without the bolt pushing it in?

For it to fire in that position, the firing pin would need to be stuck in the extended position.
Old 04-02-2021, 05:51 PM
  #10
Admirals Club Admiral's Club Member

Join Date: Nov 2008
Location: Somewhere in the middle of Michigan
Posts: 10,576
Likes: 0
Received 1,333 Likes on 714 Posts
Default

Originally Posted by maintenanceguy View Post
All cases bulged and sheared in the same spot. Only guess I have is that the cartridge isn't going all the way into battery and the pressure inside the cartridge is expanding the back end and the chamber is acting like a shear and cutting off the cartridge.

Does a round slide in and out of the chamber easily without the bolt pushing it in?

For it to fire in that position, the firing pin would need to be stuck in the extended position.
If that's what is happening, that is a dangerous situation.
Old 04-02-2021, 06:10 PM
  #11
Senior Member

Join Date: Jul 2013
Location: N.E. Tennessee
Posts: 512
Received 479 Likes on 207 Posts
Default

Pull the upper from the lower. Ensure that a round will fully seat and drop back out.
With the upper removed from the lower, see if the BCG will fully seat and then extract a round.
Lastly look at the chamber.

What is happening there is messed up. I've assembled MANY ARs and have never had this occur.
Old 04-02-2021, 06:36 PM
  #12
Senior MemberCaptains Club Member

Join Date: Jan 2005
Location: Cape Cod
Posts: 12,882
Received 1,783 Likes on 838 Posts
Default

bad chamberreturn it
Old 04-02-2021, 06:47 PM
  #13
Senior Member

Join Date: Oct 2015
Posts: 1,075
Likes: 0
Received 256 Likes on 118 Posts
Default

could be a number of things..... many already mentioned.

could be excessive headspace when locked. - check with go/no-go/field gauge or a full headspace gauge set....

to me - that looks like its either failing to lock properly, or the gas system is unlocking it early - either is a proper 'smith or factory test/fix.


could also be faulty reloading practices (assuming these are reloads... but it doesnt really look like it to me)
Old 04-02-2021, 07:26 PM
  #14
Senior Member

Join Date: Sep 2020
Location: SoFla
Posts: 106
Received 79 Likes on 44 Posts
Default

Out of battery detonation. There’s no way those cases were fully seated when they went off. If they were fully seated when fired then the gun unlocked prematurely while there was still way too much pressure inside the bore.
He’s lucky he didn’t blow his gun and himself up.
Old 04-03-2021, 03:54 AM
  #15
Admirals Club Admiral's Club Member

Join Date: Oct 2019
Posts: 127
Received 13 Likes on 11 Posts
Default

One of two problems. Headspace or chamber geometry issue causing the rear portion of the case to be in-supported. Second, the charge mass or formulation could be too high for the mass of the projectile creating too much peak pressures to rupture the case.

Only times I see this is over 100kpsi. It could be reused brass that is already fatigued but who knows. High pressure test for 5.56mm is what 85kpsi?

Call the ammo manufacturer.
Old 04-03-2021, 04:27 AM
  #16
Admirals Club Admiral's Club Member

Join Date: Sep 2015
Location: North Carolina !
Posts: 1,110
Received 543 Likes on 245 Posts
Default

This is why I buy quality in whatever i'm buying, not bargain basement, sorry.
Old 04-03-2021, 04:38 AM
  #17
Senior Member

Join Date: Aug 2007
Location: L,I. N.Y
Posts: 852
Received 1,363 Likes on 652 Posts
Default

Originally Posted by Hemi_Hammer View Post
Here’s the other casings


Ho-Lee-Fuk - DO NOT SHOOT !! Return upper ASAP
Old 04-03-2021, 04:47 AM
  #18
Junior Member

Join Date: Dec 2016
Posts: 24
Received 5 Likes on 5 Posts
Default

OOB discharge like 7.62Kolectr said. No way the bolt was locking up on that rifle. Verily lucky it didn't destroy something.
Old 04-03-2021, 06:05 AM
  #19
Senior MemberPLEDGERPLEDGERCaptains Club Member

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,372
Received 2,007 Likes on 990 Posts
Default

I am certain I would have stopped shooting the first time I saw a case like the ones pictured above. Where did the fired bullets land? Did they hit the target as expected?
Old 04-03-2021, 06:43 AM
  #20
Senior Member

Join Date: Apr 2014
Location: Florida
Posts: 8,097
Received 4,324 Likes on 2,215 Posts
Default

Originally Posted by GetReel View Post
Ho-Lee-Fuk - DO NOT SHOOT !! Return upper ASAP
This^^^^^^^

It would have gotten to do that one time for me.

Who cares what caused it or trying to figure it out.

Maybe look down the barrel and see whats happening.
