Install mantle on rock fireplace?

Notices

Install mantle on rock fireplace?

Old 11-16-2020, 06:23 PM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Posts: 895
Received 105 Likes on 51 Posts
Default Install mantle on rock fireplace?

Seems THT always has a wide array of experts, so Ill throw this out and see if anyone has suggestions. Bought a new house, love the fireplace, would like a mantle. Bought a walnut 72x4x7-9 1/2 wide mantle, thought trick would be drill holes (rock or mortar?) install 1 rods, and scribe the wood to fit. Called 3 different contractors, first said he would just grind rocks down and drill rods into the wood frame(?). Its a fireplace, dont think they would ever use wood (cbs home) and looks like block with rock front. I asked if we would need to tent, or shield for dust and response is nah, no worries. 2nd contractor says build full tent with plastic, grind rock, mount rods into the rocks. 3rd says build tent, grind rocks, and mount rods into mortar. So, any experts here that can chime in? I am trying to pay, and use a licensed carpenter/contractor, so Im not being cheap, I just want it right.


Old 11-16-2020, 08:10 PM
  #2
Member

Join Date: Sep 2016
Posts: 83
Likes: 0
Received 188 Likes on 99 Posts
Default

Not an expert but redid our fireplace after my house flooded by Harvey. We were able to use real wood beam mounted to the wood studs because the wall was open. Unless you are willing to undergo major surgery on that wall and risk mismatched mortar you are probably going to be limited to a hollow beam. If that is "modern" construction those rocks are only an inch or so thick. Behind it will be wood studs, maybe some sheetrock and lath with the rocks basically glued on with mortar.
Old 11-16-2020, 08:41 PM
  #3
Admirals ClubCaptains Club Member Admiral's Club Member

Join Date: Oct 2002
Location: anderson, sc
Posts: 19,406
Received 1,468 Likes on 850 Posts
Default

I installed one on ours but it was while we were building it, one of my best friends did the rock work and installed 4 long heavy threaded screws (he said the threads would help hold better ) . We used liquid nails on it

Ours was a actually an old timber from an old barn. Buddy of mine gave me a very nice planed timber that was perfect and this “old POS” timber that you can actually see birdshot in it and even looks like it was hand chopped or shaped when it was cut . I worked for several hours on the “perfect” timber (sanding , staining, sanding, staining, sealing, sanding sealing etc). The Old POS timber I slapped a coat of stating on it and couple coats of sealer.

Guess which one looked “perfect” when it was done

Our fireplace is basically cultured stone over cement board with wire lathe and it was easy since new construction

Is yours solid rock(looks like it ). I would CAREFULLY drill holes and set thread rods in there ( we used 4 for mine) and then use liquid nails and slide the mantle on them.

Ours has been rock solid for 20 yrs
Old 11-16-2020, 10:34 PM
  #4
Admirals Club Admiral's Club Member

Join Date: Sep 2019
Location: NE FL
Posts: 706
Received 514 Likes on 256 Posts
Default

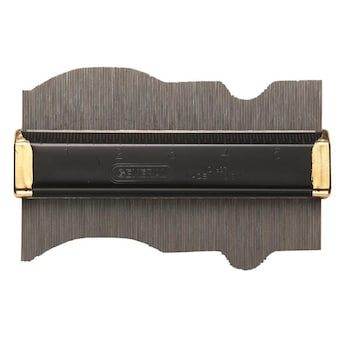

Id go with your plan but build a hollow mantle. Use a scribing tool or a contour gauge to map out the rock and cut out the profile with a coping saw or a grinder. You can inset a 4X4 to the edge of the deepest cut and run the threaded rod into that.





Old 11-17-2020, 05:53 AM
  #5
Senior MemberCaptains Club Member

Join Date: Jan 2003
Location: Houston,Tx,U.S.A
Posts: 11,775
Received 858 Likes on 461 Posts
Default

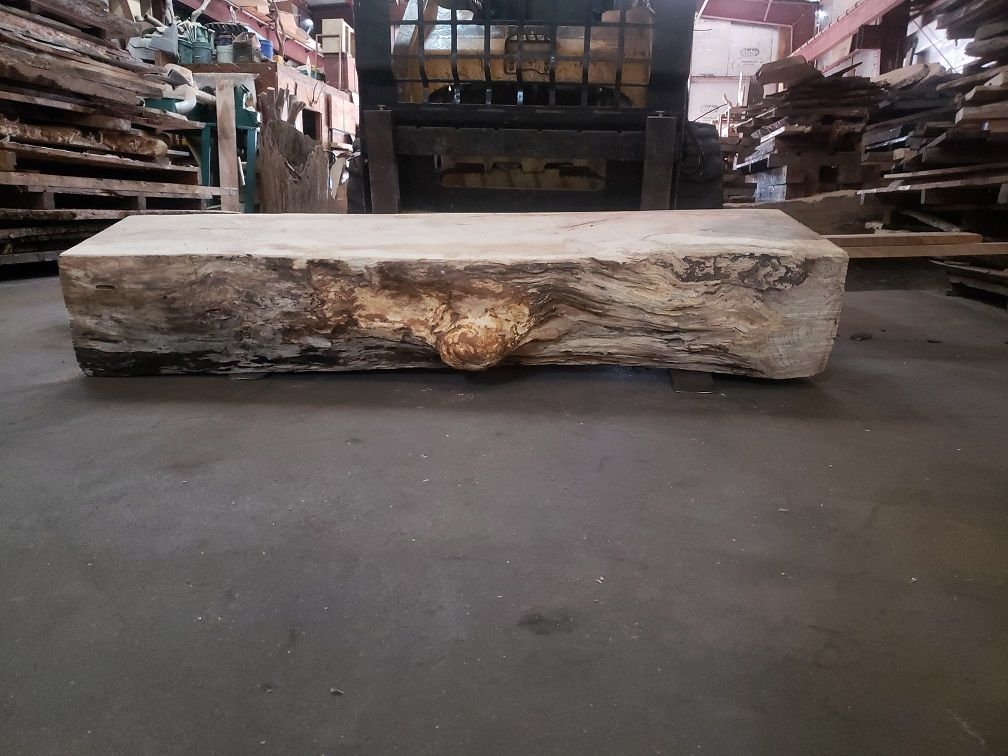

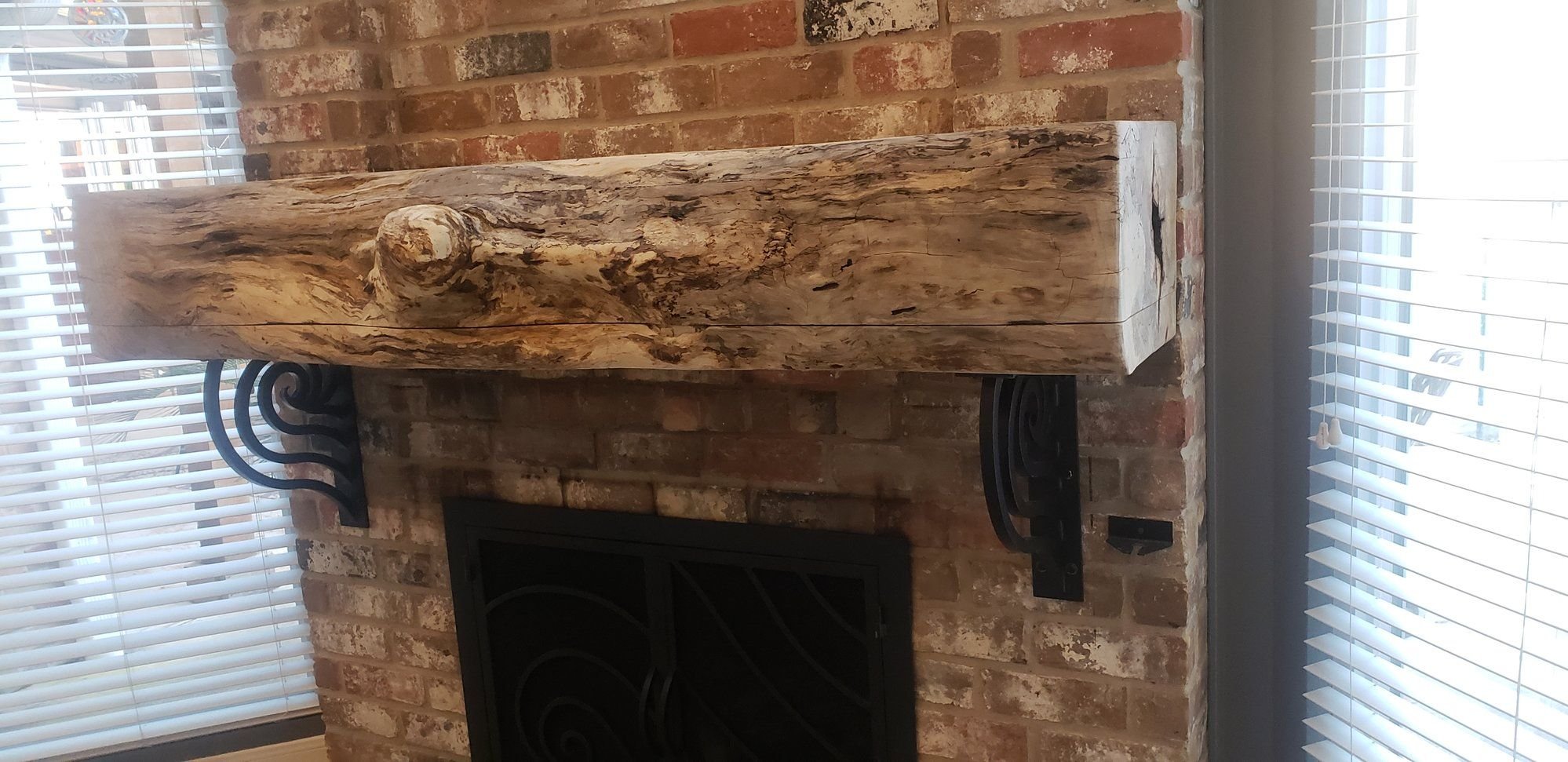

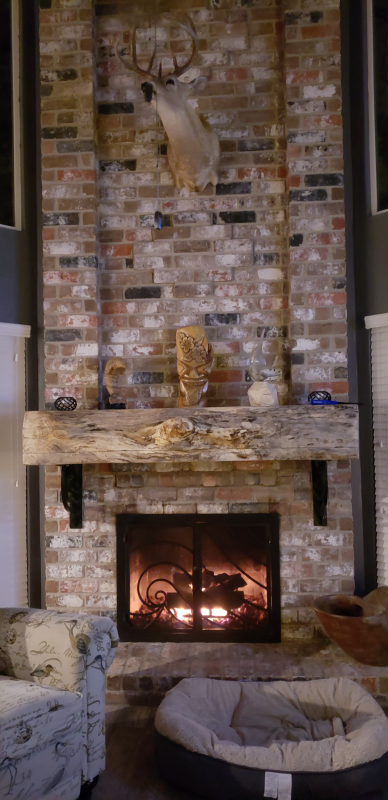

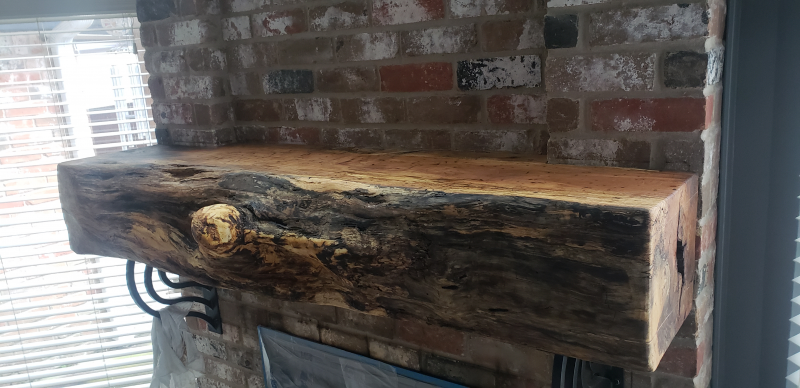

I made and installed this Pecan on our fireplace 2 years ago, ours is just straight brick however I used the brick and hollowed the mantel for support. On yours you need to layout the area that your mantel will fit into and the grind the stone as flat and flush as possible. Your looking at a dusty mess.

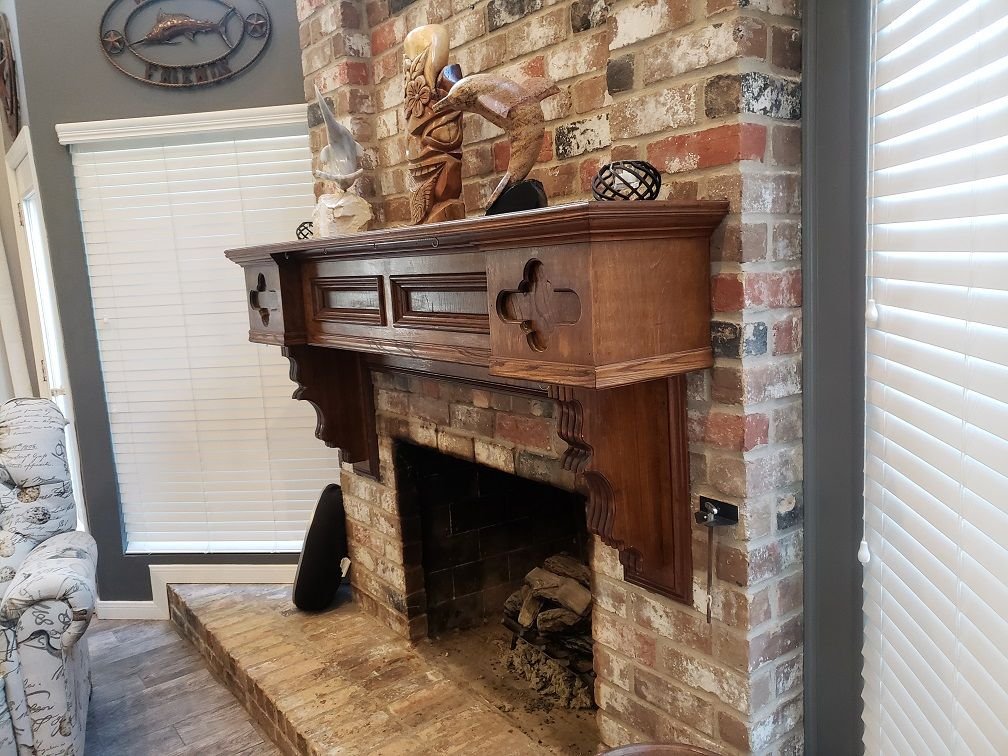

Old mantel





Old 11-17-2020, 06:30 AM
  #6
Senior Member

Join Date: Jul 2007
Location: SWFL
Posts: 2,754
Received 472 Likes on 273 Posts
Default

The masons are suggesting the grinder route because that's in their skillset. I've done rock work, and I'm a carpenter/furniture builder. From my perspective, I'd drill to install metal rods, and I'd scribe the mantle to the stone. It's only necessary to have the visual edges of the mantle scribed, and undercut the thickness so you don't have to fuss with fitting it.
Old 11-17-2020, 06:51 AM
  #7
Senior Member

Join Date: Mar 2009
Posts: 2,191
Likes: 0
Received 573 Likes on 366 Posts
Default

Originally Posted by phillyg View Post
The masons are suggesting the grinder route because that's in their skillset. I've done rock work, and I'm a carpenter/furniture builder. From my perspective, I'd drill to install metal rods, and I'd scribe the mantle to the stone. It's only necessary to have the visual edges of the mantle scribed, and undercut the thickness so you don't have to fuss with fitting it.
This. Using a table saw or even a circular saw remove 3-4" from the back of the mantle leaving 3/4" at sides and top and bottom. Then the scribe to fit will mean trimming that 3/4" area to fit. I can't imagine what a mess grinding that stone would be.

I am sure it is not real stone, but if it is then what I just said x 1000.
Old 11-17-2020, 08:47 AM
  #8
Senior Member

Join Date: Nov 2003
Location: Raleigh/MHC
Posts: 1,652
Received 14 Likes on 10 Posts
Default

Originally Posted by phillyg View Post
The masons are suggesting the grinder route because that's in their skillset. I've done rock work, and I'm a carpenter/furniture builder. From my perspective, I'd drill to install metal rods, and I'd scribe the mantle to the stone. It's only necessary to have the visual edges of the mantle scribed, and undercut the thickness so you don't have to fuss with fitting it.
This!!!!!
Old 11-17-2020, 09:42 AM
  #9
Senior MemberCaptains Club Member

Join Date: Jan 2003
Location: Houston,Tx,U.S.A
Posts: 11,775
Received 858 Likes on 461 Posts
Default

How many of you caught this part.

Bought a walnut 72”x4”x7-9 1/2 wide mantle


That is not a heck of a lot of wood left with you start scribing. Some of those rocks look to stick out 3"-4"
Old 11-17-2020, 09:59 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Feb 2014
Posts: 65
Received 118 Likes on 24 Posts
Default

This is the way to do it. You need a carpenter not a mason.


Originally Posted by phillyg View Post
The masons are suggesting the grinder route because that's in their skillset. I've done rock work, and I'm a carpenter/furniture builder. From my perspective, I'd drill to install metal rods, and I'd scribe the mantle to the stone. It's only necessary to have the visual edges of the mantle scribed, and undercut the thickness so you don't have to fuss with fitting it.
Old 11-17-2020, 10:11 AM
  #11
Senior MemberCaptains Club Member

Garett's Avatar

Join Date: Feb 2003
Posts: 24,745
Likes: 0
Received 1,137 Likes on 640 Posts
Default

I do rock sculpture work, to grind the rock surface that size, that length to something that is somewhat flat is going to tent plus. The dust you'll create will be equivalent to a fog so thick you can't see the hand in front of your face at arms length. So you'll need large cfm intake to match the large cfm exhaust.
Old 11-17-2020, 11:43 AM
  #12
Senior Member

Join Date: Jan 2006
Location: Sunny florida
Posts: 25,252
Received 5,409 Likes on 3,460 Posts
Default

Cut the rock back to the substrate, pad out the cut as necessary, install mantel. Prefab fireplaces are often wood framed, and the stone is glued to the recommended substrate.
Old 11-17-2020, 11:46 AM
  #13
Senior MemberCaptains Club Member

Join Date: Mar 2002
Location: Cozumel mostly, and Denton, Texas
Posts: 4,058
Received 1,171 Likes on 531 Posts
Default

Unless you are in love with that rock I'd remove it all and go with real stone or something more colorful and bright. Maybe the picture isn't doing the rock justice?
Old 11-17-2020, 11:53 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Nov 2013
Location: Kent Island, MD
Posts: 562
Received 965 Likes on 599 Posts
Default

One thing that could be done is to take a flat board the same length and height as the mantle, drill your structural inserts into the framing, etc, behind the stone veneer, place the board face for mounting your mantle at the desired height, use some Tap-cons to mount the loose backboard to the stone, use some washers as spacers to hold the board face parallel to the wall and level. Use modeling clay to seal the bottom and ends of the board to fill any gaps so it's "watertight", fill the gap between the irregular stone and the back of the board with non-shrink grout. After the Grout cures, remove the Tap-cons and board, you will have a flat surface to mount the mantle, plus not lose any mantle depth.

Just a thought I have done this in a few occasions with the mantles we manufacture.
Old 11-17-2020, 12:13 PM
  #15
Admirals Club Admiral's Club Member

Join Date: Nov 2009
Location: Tarpon Springs, FL
Posts: 8,435
Received 4,006 Likes on 2,265 Posts
Default

We're doing this right now and fortunately the mantle is being installed before the rocks go on. I think it's going to be a mess trying to mount one on that rock.
Old 11-17-2020, 04:59 PM
  #16
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Posts: 895
Received 105 Likes on 51 Posts
Default

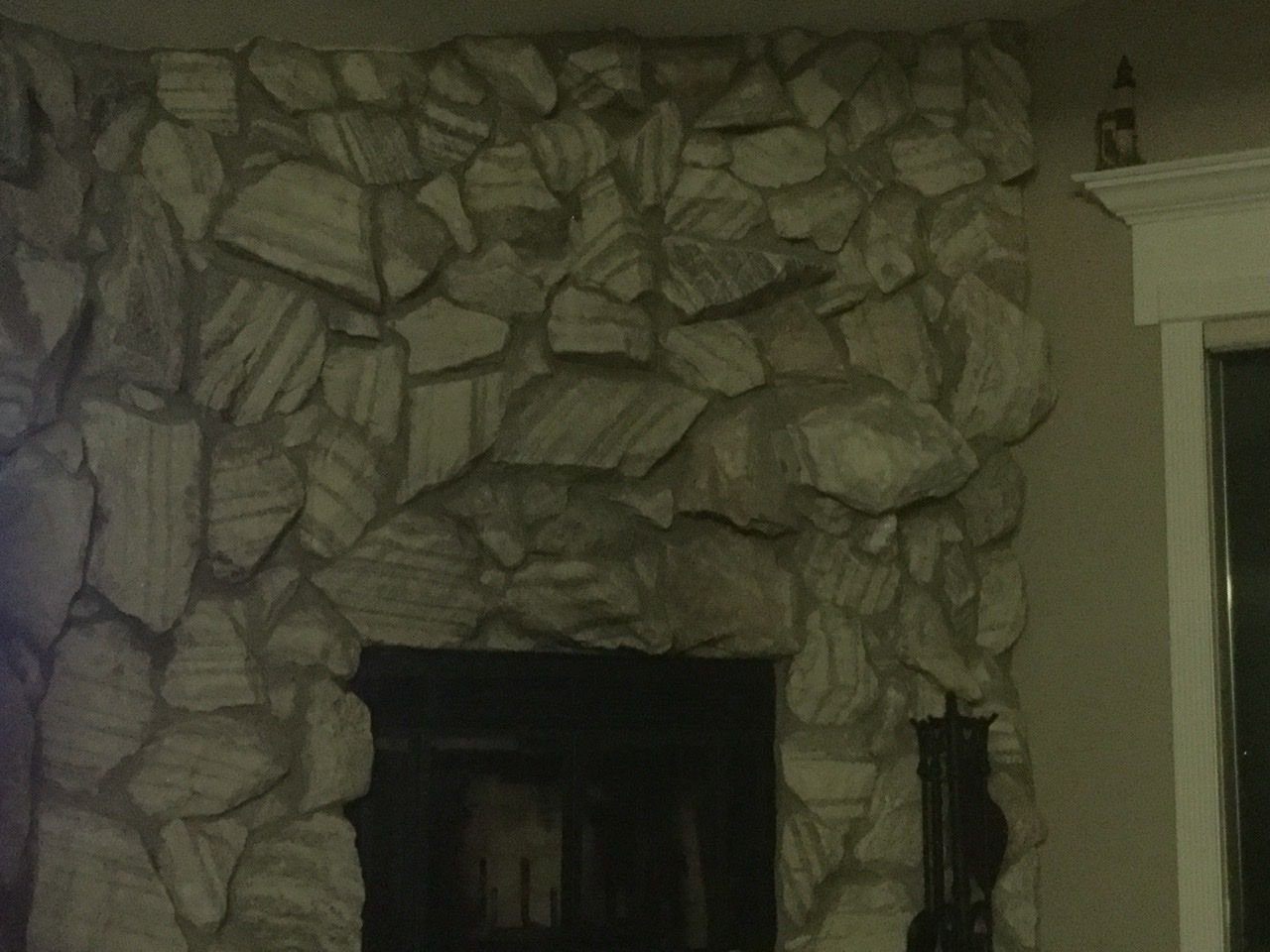

So, the pic doesn’t do it justice, I’ll retake one tonight. The rocks are real, and the one rock to right side, about what I think is mantle height, is about 8” out from the other pieces. I love the looks of it, and I’m sure it was pricey, I just want it right. Let me retake and see what you all think. If I scribe the wood, I would be down to about 2” of mantle left on the right side with the big, obtrusive rock
Old 11-17-2020, 05:06 PM
  #17
Senior Member

Join Date: Nov 2015
Location: se Florida
Posts: 897
Likes: 0
Received 2,434 Likes on 979 Posts
Default

Sorry op, but that stone work is ugly. I would tear it down and replace it and incorporate your mantle.
Old 11-17-2020, 05:27 PM
  #18
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Posts: 895
Received 105 Likes on 51 Posts
Default


Old 11-17-2020, 05:28 PM
  #19
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Posts: 895
Received 105 Likes on 51 Posts
Default


Old 11-17-2020, 05:29 PM
  #20
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Mar 2011
Posts: 895
Received 105 Likes on 51 Posts
Default
