School me on building a concrete slab on sandy soil

Notices

School me on building a concrete slab on sandy soil

Old 11-28-2020, 07:25 PM
  #81
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

Originally Posted by Boataholic View Post
Sounds like you nailed it. I would add a coat of acrylic "cure n seal" with at least 30% solids. Apply soon after last troweling pass
Explain ... what does this do?
Old 11-29-2020, 03:09 AM
  #82
Senior Member

Join Date: Apr 2014
Location: Atlanta / Islamorada
Posts: 1,867
Received 520 Likes on 319 Posts
Default

Originally Posted by Tireless View Post
Explain ... what does this do?
A curing compound keeps the moisture in the slab so it can cure properly. If you don’t do this you can also wet cure it by keeping it continuously moist at least first 7 days.
Old 11-29-2020, 03:15 AM
  #83
Senior Member

Join Date: Apr 2014
Location: Atlanta / Islamorada
Posts: 1,867
Received 520 Likes on 319 Posts
Default

Get more info on fiber. There are two types - micro and macro. When you say structural it likely infers macro but you need to confirm. Also need to know how much per yard. Minimum is usually 4lbs/yd of macro. Make sure finishers are comfortable with fiber or your slab will be furry although you can burn off any on surface with torch.
Old 11-29-2020, 04:58 AM
  #84
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

^ Thanks.
Old 11-29-2020, 05:03 AM
  #85
Senior Member

Join Date: May 2013
Location: Port St Joe & Tallahassee, FL
Posts: 200
Received 147 Likes on 78 Posts
Default

Just started a custom home about a mile from the coast in NW Florida. Sandy soil required an engineered slab. Lots of footers and rebar.


Old 11-29-2020, 07:42 AM
  #86
Admirals Club Admiral's Club Member

Join Date: Apr 2011
Posts: 2,705
Received 1,191 Likes on 623 Posts
Default


5-1/2” slab 4000psi concrete. 12” perimeter with re bar.
Old 11-29-2020, 10:22 AM
  #87
Senior Member

Join Date: Feb 2011
Location: texas coast
Posts: 1,215
Received 111 Likes on 61 Posts
Default

Originally Posted by Resinhead View Post
Just started a custom home about a mile from the coast in NW Florida. Sandy soil required an engineered slab. Lots of footers and rebar.

This is how it's done on much of the Texas coast ... as though you turned a large ice tray upside down in the sand ... works pretty good if bulkheads and retaining walls are kept up ... there are many 50+ year old homes around here that've been through multiple hurricanes and are none the worse for wear ...
Old 12-07-2020, 03:25 PM
  #88
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

It got real today. I appreciate all of the advice.



.


Old 12-30-2020, 12:45 PM
  #89
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

UPDATE ....... done! Thank you for all of your input.

.

Old 12-30-2020, 01:23 PM
  #90
Senior Member

Join Date: Jun 2007
Location: Spring Hill, FL
Posts: 7,746
Received 897 Likes on 460 Posts
Default

When they say 4” slab, they end up between 3-3-1/2” at best. If you do the prep you can be sure that it is at least 4” or better and your footers ar at least the size on plans. Just understand that your concrete guy will end up ordering about a truck short of finishing the job! After poured and finished cut relief lines about every 10-12’ just about 1/4” deep. If/when it cracks it will happen here.
Old 12-30-2020, 01:27 PM
  #91
Senior Member

Join Date: Jan 2019
Posts: 364
Received 403 Likes on 205 Posts
Default

Looks good!
Old 12-30-2020, 02:15 PM
  #92
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

Originally Posted by TheRealMacGyver View Post
When they say 4” slab, they end up between 3-3-1/2” at best. If you do the prep you can be sure that it is at least 4” or better and your footers ar at least the size on plans. Just understand that your concrete guy will end up ordering about a truck short of finishing the job! After poured and finished cut relief lines about every 10-12’ just about 1/4” deep. If/when it cracks it will happen here.
Lol ..... you nailed what ALMOST happened. I was overseeing the entire project. I went with a 6 inch slab and apron. The crew was ready to pour at 5 inches .... I wasn't. Their estimate of the yards required to make the apron was off by 1.5 yards....I corrected that. I made certain they cut relief lines the morning after the pour. The project wound up requiring two crews. The second crew's work product was far better than crew #1.
Old 12-30-2020, 03:47 PM
  #93
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Marblehead, Ohio
Posts: 10,193
Received 2,223 Likes on 1,151 Posts
Default

Originally Posted by TheRealMacGyver View Post
When they say 4” slab, they end up between 3-3-1/2” at best. If you do the prep you can be sure that it is at least 4” or better and your footers ar at least the size on plans. Just understand that your concrete guy will end up ordering about a truck short of finishing the job! After poured and finished cut relief lines about every 10-12’ just about 1/4” deep. If/when it cracks it will happen here.
Sorry MacGyver but joints should be 1/5th of the depth of the slab. 1/4" won't do diddly. 4" slab- 3/4" deep 5", 1" deep.
Old 12-30-2020, 03:53 PM
  #94
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

Originally Posted by Boataholic View Post
Sorry MacGyver but joints should be 1/5th of the depth of the slab. 1/4" won't do diddly. 4" slab- 3/4" deep 5", 1" deep.
I assumed he meant 25% of the slabs depth.
Old 12-30-2020, 05:38 PM
  #95
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Marblehead, Ohio
Posts: 10,193
Received 2,223 Likes on 1,151 Posts
Default

Originally Posted by Tireless View Post
I assumed he meant 25% of the slabs depth.
Maybe but 1/4" doesn't mean 1/4 of slab depth.

Looks like they did a good job. Congrats!
Old 12-30-2020, 06:09 PM
  #96
Senior Member

Join Date: Jun 2007
Location: Spring Hill, FL
Posts: 7,746
Received 897 Likes on 460 Posts
Default

Originally Posted by Boataholic View Post
Sorry MacGyver but joints should be 1/5th of the depth of the slab. 1/4" won't do diddly. 4" slab- 3/4" deep 5", 1" deep.
you are probably right, but my 4” slab I did about 1/4” cuts and have no cracks other than on those reliefs. Mine was done in 2015 and is a 28’x30’ foundation.
Old 01-25-2021, 03:33 PM
  #97
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

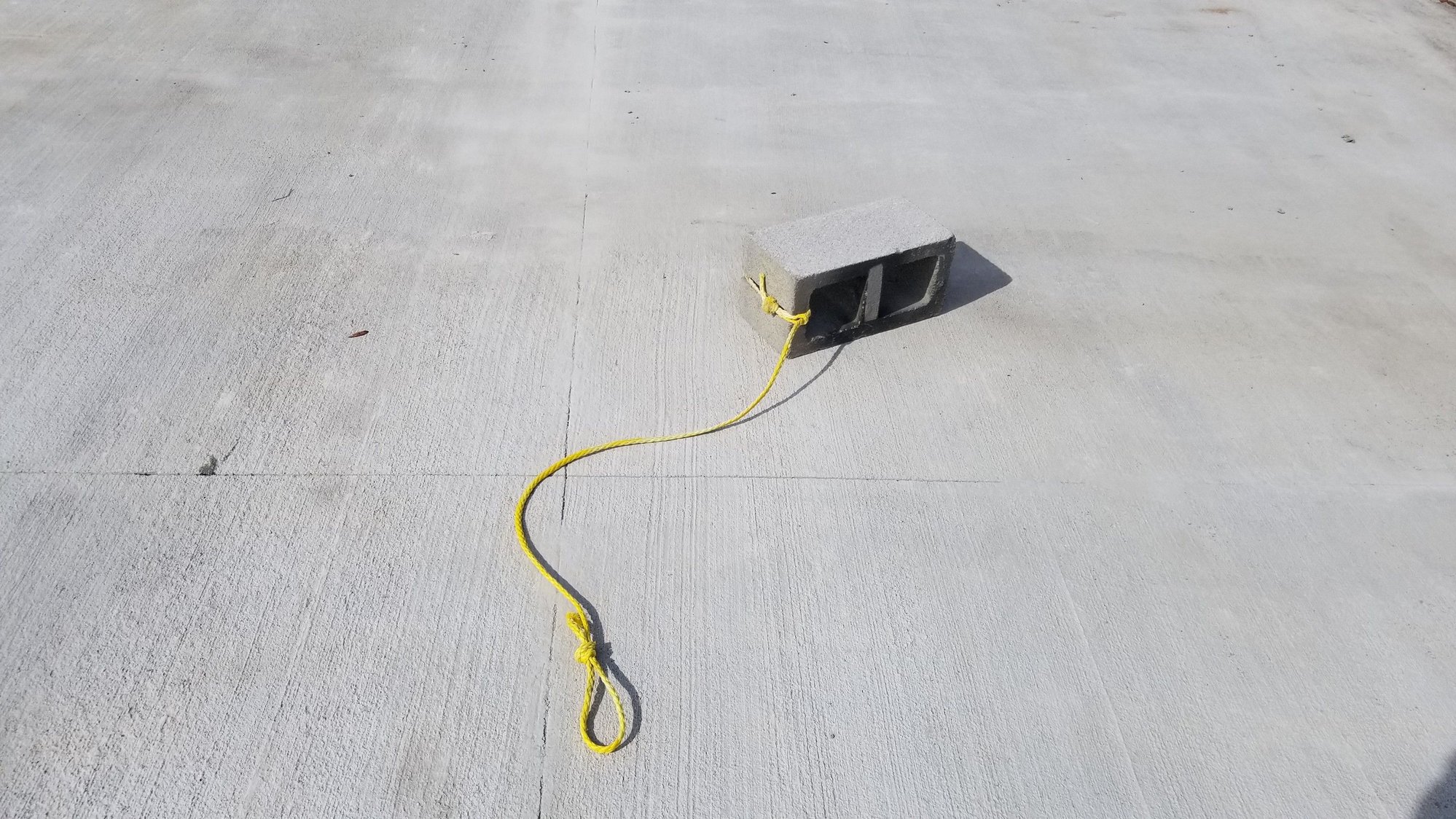

While waiting for the building to arrive, I decided the lightly brushed slab needed a sanding job before it is closed in. I grabbed a three ought sanding block and started walking. I noticed a change in the surface. Will rinse and repeat tomorrow.


.

Old 01-25-2021, 03:51 PM
  #98
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Marblehead, Ohio
Posts: 10,193
Received 2,223 Likes on 1,151 Posts
Default

Originally Posted by tireless View Post
while waiting for the building to arrive, i decided the lightly brushed slab needed a sanding job before it is closed in. I grabbed a three ought sanding block and started walking. I noticed a change in the surface. Will rinse and repeat tomorrow.


.
wtf???
Old 01-25-2021, 06:34 PM
  #99
Senior MemberPLEDGERPLEDGERCaptains Club Member
Thread Starter

Join Date: Sep 2004
Location: ATL & SAV
Posts: 12,371
Received 2,007 Likes on 990 Posts
Default

Originally Posted by Boataholic View Post
wtf???
Drag the block on the pad, knocking down the weak edges on the virgin broom finish ridges. Better to do it now and have it wash away before the building is closed in. When I was done with the first pass a decent amount of cement dust was evident. Rain tomorrow will wash it away.
