Default Do you like cool neat stuff?

In my little venture of glass blowing there are many different paths which one can take within the classification of "Lampworking" but regardless of What the artist / fabricator ends up sculpting, in general, it's all pretty much the same principles and techniques with a few exceptions.
These partiular processes are called 1: Fuming and 2: Wrapped and Raked. I'll go into the process following.

Below is a piece of Borosilicate tubing, 26mm x 2.5mm which has been fumed with pure silver and gold in addition to having a blast coat of silver shot into the exterior surfaced which were then fused into the tubing.
Side Note: When fuming, Silver has to be applied first as a "primer" base coat before any additional layers of different metallurgic fuming may occur.

The silver fume result in a golden surface tone while gold results in the silver hues. A combined mixture of silver and gold along with certain processing methods will result in iridescent colors and hues.
When the tubing or rod is fumed and brought to certain temps whether it be an oxidizing, neutral or carburizing (reducing) flame, the end result will vary accordingly.

After the tubing was "Fumed & Silver Blasted" 2mm Boro glass rods were stenciled in rings then entire length of tubing.
The rods were then applied perpendicularly to the initial rods fused into the tubing.
The rods sure 2 purposes; 1) They preserve the fuming on the exterior of the surface. Unprotected by additional boro glass would allow the color to be burned out if put into the incorrect flame. 2) Aesthetic appearances and design.

The Wrap & Rake process requires the tubing to be a certain degree of Amber hot, the piece has to then be place into the path of a controlled pencil flame (yes the operator controls everything) and the rods have to be stenciled to the exterior of the tubing.

Once these 2 process have taken place it's time to RAGE! Crank up that 6K degree bench burner and get to working some glass.

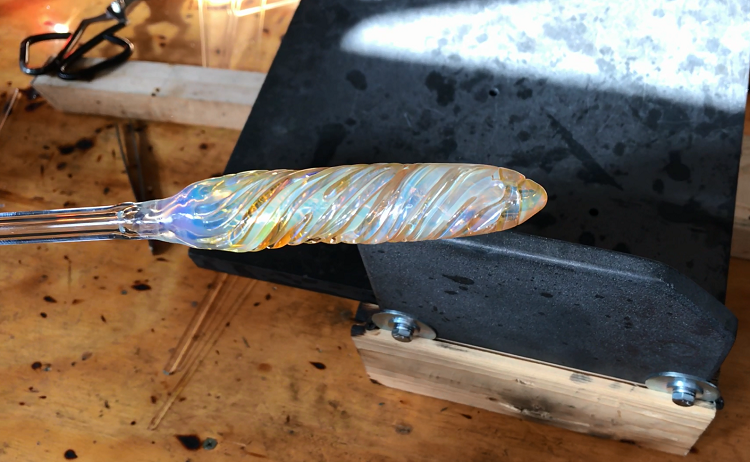

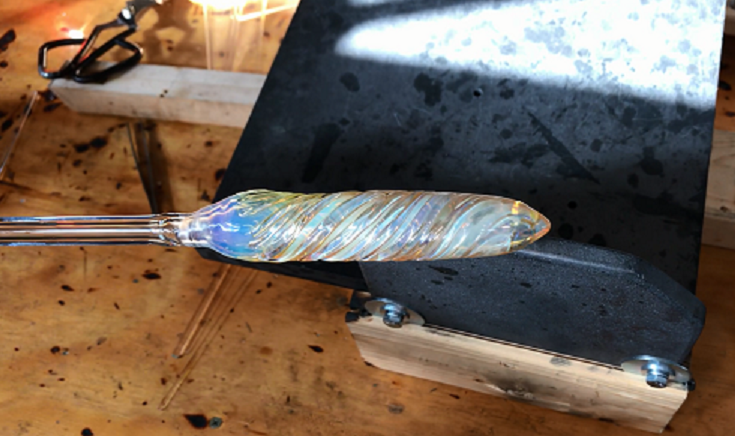

This particular piece pictured is fused, gathered and twisted.
The only limitations are the ones within your minds.

Have any questions? Ask away and I'll try to answer without too much science or lecturers.

Almost forgot, What is it for??? lol
Anything you wish to fabricate out of it. Something of this nature would be worked and added where an aesthetic appearance and design was dictated by a customer. All those little add on cost, $$$$ and take hours upon hours to produce.

Then the piece(s) have to go through a 5 hrs annealing process and allowed to cool another 12-24 hrs depending on how thick he finish piece(s) are.





Last edited by Riptied; 09-14-2020 at 01:10 PM.
Old 09-14-2020, 01:18 PM
  #2
Admirals Club Admiral's Club Member

spraynet 1's Avatar

Join Date: Sep 2005
Location: Sanford, FL
Posts: 7,449
Received 2,613 Likes on 1,231 Posts
Default

Very cool indeed, thanks for the education.
Old 09-14-2020, 01:22 PM
  #3
Senior Member

Join Date: Jan 2012
Posts: 123
Likes: 0
Received 488 Likes on 261 Posts
Default

Or, you can start with colored glass. But, that would be easier and cheaper.
Old 09-14-2020, 01:48 PM
  #4
Senior Member
Thread Starter

Join Date: Aug 2015
Location: BFE
Posts: 2,964
Received 1,072 Likes on 637 Posts
Default

Originally Posted by Fish Haid View Post
Or, you can start with colored glass. But, that would be easier and cheaper.
gOOD LUCK WITH THAT. nEVER eVER hAppEning!

You don't get wrapped and raked precious metal fumed and impregnated boro tubing from "colored" glass.

You know the old saying, You get what you pay for.
Old 09-14-2020, 02:09 PM
  #5
Senior MemberCaptains Club Member

Join Date: Jul 2006
Location: S.E. Michigan
Posts: 1,144
Likes: 0
Received 278 Likes on 142 Posts
Default

I have no idea what you said . But it does look good!
Old 09-14-2020, 02:12 PM
  #6
Senior Member

Join Date: Jun 2007
Posts: 816
Received 585 Likes on 260 Posts
Default

That's a huge one-hitter.
Old 09-14-2020, 02:15 PM
  #7
Senior Member
Thread Starter

Join Date: Aug 2015
Location: BFE
Posts: 2,964
Received 1,072 Likes on 637 Posts
Default

Originally Posted by spraynet 1 View Post
Very cool indeed, thanks for the education.
My pleasure and your welcome.

As a kid I always found stuff like this and science very interesting. Got me in trouble as a kid a few times. Wait, not me, that was..........

Dad started it all.
He was a Dr. (RIP) and bough us REAL chemistry sets from back in the good old days. You would go to jail for possession these sets today. Blew up a few of the bedrooms dragging my chem set around hiding and playing mad scientist.
Old 11-03-2020, 03:54 PM
  #8
Senior Member
Thread Starter

Join Date: Aug 2015
Location: BFE
Posts: 2,964
Received 1,072 Likes on 637 Posts
Default

Been playing with my bench burner and torches lately practicing my applications and processes. R&D, researching and discovering. lol

Fine tuning my flame sciences and fuming techniques.
Stringer stroking and placement will come naturally with another 1000 hrs. or so. No, it's not that bad unless you never master flame chemistry or have the shakes.






Old 11-03-2020, 04:05 PM
  #9
Admirals Club Admiral's Club Member

Join Date: Feb 2018
Location: South Carolina
Posts: 171
Received 33 Likes on 25 Posts
Default

Riptied, where are you based out of? I took a glassblowing class a few weeks ago in Arizona and it was genuinely one of the cooler things I have done. Being a chemist, I was very curious in the colors and transition metal chemistry of the dyes/coloring agents, and the guy teaching the class happened to know every answer. I had no idea copper was used in so many different colors.
Old 11-03-2020, 04:19 PM
  #10
Senior Member
Thread Starter

Join Date: Aug 2015
Location: BFE
Posts: 2,964
Received 1,072 Likes on 637 Posts
Default

Central West Florida.

I started laying out the plans and ordering accordingly for my studio about 6+ months ago. Built an O2 concentrator/generator system along with other essential evils.
No prior training or guidance what so ever and only had the burner and torches fired up for may 4+ months? Self trained.

It's a learning process to say the least.

And which one of you all thought I was the village idiot???
Old 11-03-2020, 04:21 PM
  #11
Admirals Club Admiral's Club Member

Join Date: Feb 2018
Location: South Carolina
Posts: 171
Received 33 Likes on 25 Posts
Default

Good deal, that is cool hobby to have. Best of luck with it and keep us posted as you progress
Old 11-03-2020, 04:27 PM
  #12
Senior Member
Thread Starter

Join Date: Aug 2015
Location: BFE
Posts: 2,964
Received 1,072 Likes on 637 Posts
Default

Have some special custom glass itself I came up with that is blown out on a blow pipe / punty.
Sorry, no pic releases of such at this time. R&D stage. Shssh

More eye candy.
Just some junk boro tubing I was playing with.

Old 11-03-2020, 04:30 PM
  #13
Senior MemberCaptains Club Member

Join Date: Jul 2004
Location: South East Pa
Posts: 9,603
Received 1,012 Likes on 540 Posts
Default

Nice! I did a large amount of glass blowing at East Falls Glassworks in Philly. It gets to be a real expensive hobby after a while




Old 11-03-2020, 04:43 PM
  #14
Senior Member
Thread Starter

Join Date: Aug 2015
Location: BFE
Posts: 2,964
Received 1,072 Likes on 637 Posts
Default

Originally Posted by FASTFJR View Post
Nice! I did a large amount of glass blowing at East Falls Glassworks in Philly. It gets to be a real expensive hobby after a while
Cool, nice work there.

That's an understatement! And people think boating is expensive.
It's more than just a hobby for me, path variation in life.
Old 11-03-2020, 05:33 PM
  #15
REZ
Senior Member

REZ's Avatar

Join Date: Aug 2002
Location: LBI & PA.
Posts: 1,867
Received 127 Likes on 78 Posts
Default

Cool stuff. There was a place in West Chester I would stop in and watch them make all kinds of glass things.
Old 11-03-2020, 06:28 PM
  #16
Senior MemberCaptains Club Member

Join Date: Jul 2004
Location: South East Pa
Posts: 9,603
Received 1,012 Likes on 540 Posts
Default

Originally Posted by Riptied View Post
Cool, nice work there.

That's an understatement! And people think boating is expensive.
It's more than just a hobby for me, path variation in life.

Old 11-03-2020, 07:32 PM
  #17
Junior Member

Join Date: Oct 2005
Location:
Posts: 14
Likes: 0
Received 9 Likes on 6 Posts
Talking

Originally Posted by Riptied View Post
Have some special custom glass itself I came up with that is blown out on a blow pipe / punty.
Sorry, no pic releases of such at this time. R&D stage. Shssh

More eye candy.
Just some junk boro tubing I was playing with.

Supposed to be pretty good money in glass marital aids

But beautiful work
Old 11-03-2020, 07:44 PM
  #18
Admirals Club Admiral's Club Member

Join Date: Jul 2005
Location: Arcata Ca
Posts: 967
Likes: 0
Received 39 Likes on 29 Posts
Default

Using any Silver nitrate in glass work???-I do in salt kiln fuming in ceramics.
Old 11-03-2020, 07:47 PM
  #19
Member

Join Date: May 2013
Location: Port St Joe & Tallahassee, FL
Posts: 97
Received 109 Likes on 59 Posts
Default

Originally Posted by superjag View Post
That's a huge one-hitter.

IN!
Old 11-03-2020, 08:07 PM
  #20
Senior Member

Join Date: Aug 2014
Location: Saunderstown / Pt Judith, RI
Posts: 2,269
Received 1,190 Likes on 668 Posts
Default

Can you make a pipe?

no, seriously.
