Irrigation System Water Pressure...135psi Too Much?

Notices

Irrigation System Water Pressure...135psi Too Much?

Old 07-24-2020, 08:05 PM
  #1
PSW
Senior MemberCaptains Club Member
Thread Starter

Join Date: Feb 2005
Posts: 2,693
Received 215 Likes on 96 Posts
Default Irrigation System Water Pressure...135psi Too Much?

Moved last fall and when I went to turn on gate valve in shop for the first time this week to irrigation system I found several issues and had to immediately turn off the water to sprinkler main. In first 25 feet of main line leaving shop I had 3 repairs total. Fix one find another. System doesn't appear to have any leaks now and 3 very large holes have been filled and raked over. I still have a few heads I want to move and of the 14 zones I only plan on using maybe 4 or 5 zones moving forward. I believe the mature hedges and shrubs will be fine surviving our short summers in the PNW. During the repairs we tested the water pressure to irrigation system as it left the shop and it was 135 psi. The water as it feeds the house as a PRV and I also have a PRV in shop for interior supply. But No PRV for irrigation system. Will I continue to have issues with leaks and schedule 40 PVC not being able to handle the pressure or with 14 zones is this the kind of pressure needed to operate such a large system? Thanks for the input. My hope is if I blow it out each winter I am ok to leave as is because the current layout of pipes in my shop doesn't leave much room in design to fit a PRV valve without a lot of headache.
Old 07-24-2020, 09:42 PM
  #2
Senior Member

Join Date: Aug 2009
Location: N E Florida
Posts: 1,698
Likes: 0
Received 295 Likes on 182 Posts
Default

What is the source of the water supply?
That seems really excessive!
With the numerous motorhomes I have owned I always used a pressure regulator (IIRC 45 psi) when hooking to shore water.
My well is set at 60 psi for my home.
Old 07-24-2020, 10:02 PM
  #3
Admirals Club Admiral's Club Member

Join Date: Sep 2010
Posts: 296
Received 12 Likes on 8 Posts
Default

Too high, will damage valves. Needs regulator.
Old 07-24-2020, 10:59 PM
  #4
Senior Member

Join Date: Jun 2016
Location: SWFL
Posts: 417
Received 209 Likes on 93 Posts
Default

Waaaay to high. You will blow out joints and sprinkler heads over time..
Old 07-24-2020, 11:05 PM
  #5
Admirals Club Admiral's Club Member

Join Date: Jun 2015
Location: Pittsford, NY & Oak Island, NC
Posts: 721
Received 259 Likes on 131 Posts
Default

“Normal” municipal water pressures are between 90 and 100 psi. While house hold pressure is usually about 60 psi.
Old 07-24-2020, 11:30 PM
  #6
Senior MemberCaptains Club Member

Join Date: Jun 2005
Location: Miami, Fl.
Posts: 3,564
Received 2,059 Likes on 959 Posts
Default

Wow, y'all have high domestic pressures.
You may blow a seal.
Maybe it was just some ice cream.
Old 07-25-2020, 12:29 AM
  #7
PSW
Senior MemberCaptains Club Member
Thread Starter

Join Date: Feb 2005
Posts: 2,693
Received 215 Likes on 96 Posts
Default

I was borrowing a gauge when I measured. Going to get my own tomorrow and test a few spots. If it is in fact135 I will leave off until I get a PRV in system. I knew it was high for a home and not a chance on a boat but was hoping that for a irrigation system it may have been acceptable.
Old 07-25-2020, 08:22 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Jun 2014
Location: Anderson SC
Posts: 4,101
Received 1,238 Likes on 647 Posts
Default

Originally Posted by SeaCat22 View Post
Wow, y'all have high domestic pressures.
You may blow a seal.
Maybe it was just some ice cream.
I remember that joke... A classic.
Old 07-25-2020, 09:12 AM
  #9
Senior Member

Join Date: Jan 2019
Posts: 353
Received 402 Likes on 204 Posts
Default

May have been designed for 135psi. You can throttle back on the valve when it operates and see how it responds when the gauge is at lower pressures. A zone has to be operating while you do this.
Old 07-25-2020, 10:09 AM
  #10
Senior MemberCaptains Club Member

Join Date: Aug 2003
Location: Out west
Posts: 3,356
Likes: 0
Received 587 Likes on 292 Posts
Default

When I blow out my sprinklers with my air compressor I only use 60psi. That's what's recommended. Does the job nicely. Call or google the supplier of you solenoid manfacturer and start there.
Old 07-25-2020, 10:12 AM
  #11
Admirals Club Admiral's Club Member

Join Date: Jun 2009
Location: Vero Beach, FL
Posts: 7,384
Received 1,501 Likes on 793 Posts
Default

Most sprinkler heads aren't rated for 135 PSI
Old 07-25-2020, 10:20 AM
  #12
Senior Member

Join Date: Aug 2010
Posts: 317
Likes: 0
Received 16 Likes on 11 Posts
Default

Originally Posted by xlr8ngn View Post
May have been designed for 135psi. You can throttle back on the valve when it operates and see how it responds when the gauge is at lower pressures. A zone has to be operating while you do this.
This will not effect the presure only the volume,There will still be 135 psi on the system.
Old 07-25-2020, 11:54 AM
  #13
Admirals Club Admiral's Club Member

Join Date: Apr 2010
Location: Jax, FL
Posts: 2,700
Received 1,199 Likes on 584 Posts
Default

Originally Posted by jbooker9 View Post
This will not effect the presure only the volume,There will still be 135 psi on the system.
No it won't,i a zone is operating everything behind the valve will be at a lower pressure.
Old 07-25-2020, 12:53 PM
  #14
Senior Member

Join Date: Mar 2013
Location: coastal tx
Posts: 707
Likes: 0
Received 717 Likes on 444 Posts
Default

Originally Posted by acme54321 View Post
No it won't,i a zone is operating everything behind the valve will be at a lower pressure.
depends on how much the zone flows and how much the valve is closed.
if the system is designed to run multiple zones at once and has large valves there may not be enough flow with one zone on to drop the pressure
Old 07-25-2020, 03:19 PM
  #15
Senior Member

Join Date: Aug 2010
Posts: 317
Likes: 0
Received 16 Likes on 11 Posts
Default

Originally Posted by acme54321 View Post
No it won't,i a zone is operating everything behind the valve will be at a lower pressure.
Everything after the sprinkler valve is opperating at a lower pressure already. As I already stated throteling a valve, controls volume not pressure it will still be 135 at the sprinkler valves when the system is not running. If you need to control volume you would do that at the sprinkler valve not the supply.
Old 07-25-2020, 03:47 PM
  #16
Senior Member

Join Date: Dec 2010
Location: Phoenix, AZ, ex Wilmington, NC
Posts: 1,147
Likes: 0
Received 102 Likes on 54 Posts
Default

You might want to check the pressure in your house, too. That's awful high.
Old 07-25-2020, 03:51 PM
  #17
Senior Member

Join Date: Aug 2010
Posts: 317
Likes: 0
Received 16 Likes on 11 Posts
Default

Really a PRV should be installed. Your sprinkler valves are probably rated at 150 psi and your at 137 now. If that is the gate valve for the system I highly doubt you are running 2 zones at once.
Old 07-25-2020, 08:36 PM
  #18
PSW
Senior MemberCaptains Club Member
Thread Starter

Join Date: Feb 2005
Posts: 2,693
Received 215 Likes on 96 Posts
Default

Originally Posted by colecaz View Post
You might want to check the pressure in your house, too. That's awful high.
The house has a dedicated PRV. The shop also has a PRV. Why they didn't install a PRV for irrigation is tough to figure out. I bought a psi gauge this morning and tested several places. I have two exterior hose bibs and the irrigation system at full pressure of 130 to 135. Everything else is set at 80psi. I ran the sprinklers today and I think the valves are taking the load and reducing to sprinkler heads and they actually run pretty nice other than a few heads needing to be moved. The system would definately benefit from reduced pressure but I am hoping to be able to run it for a while until I can line up a plumber.

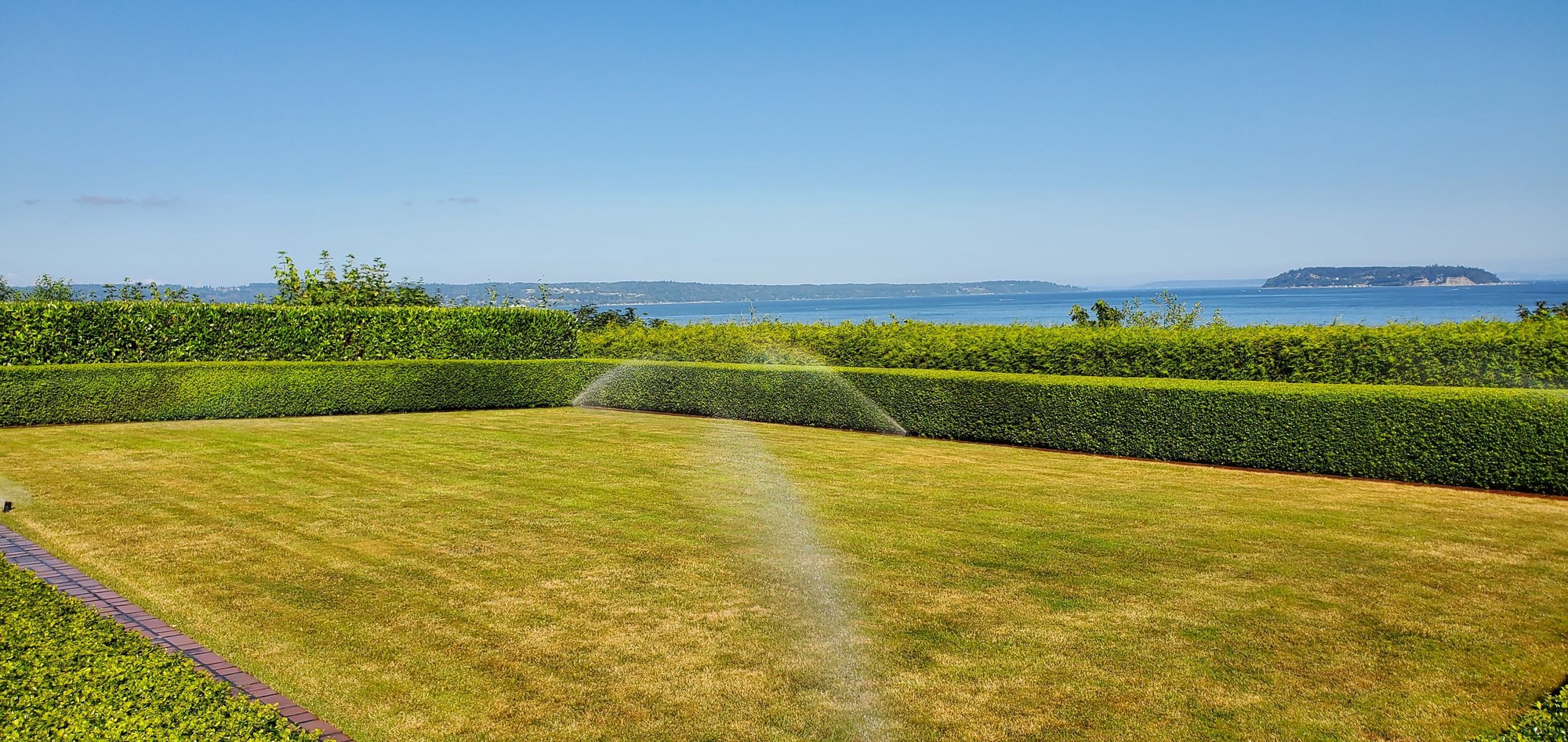

Primary Zone

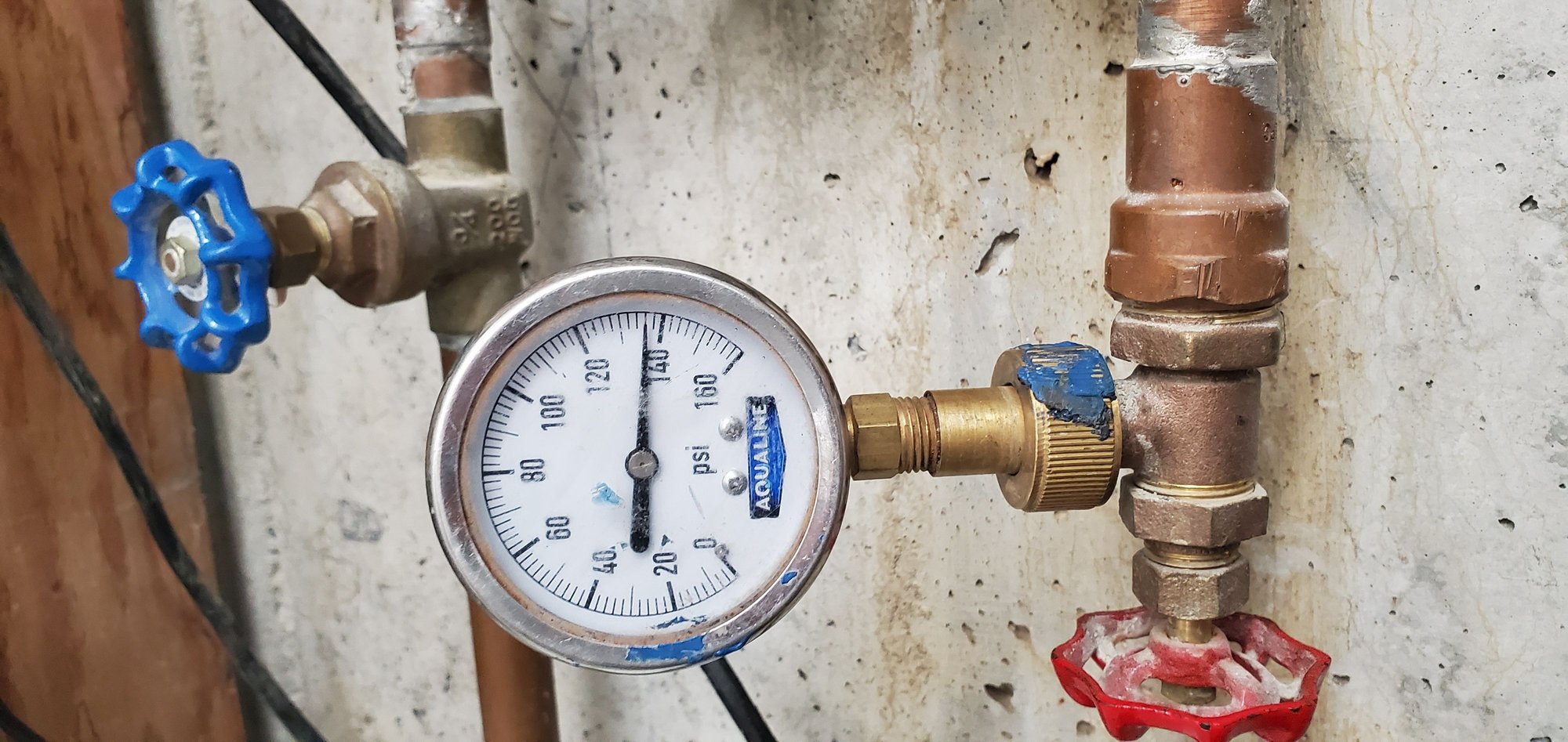

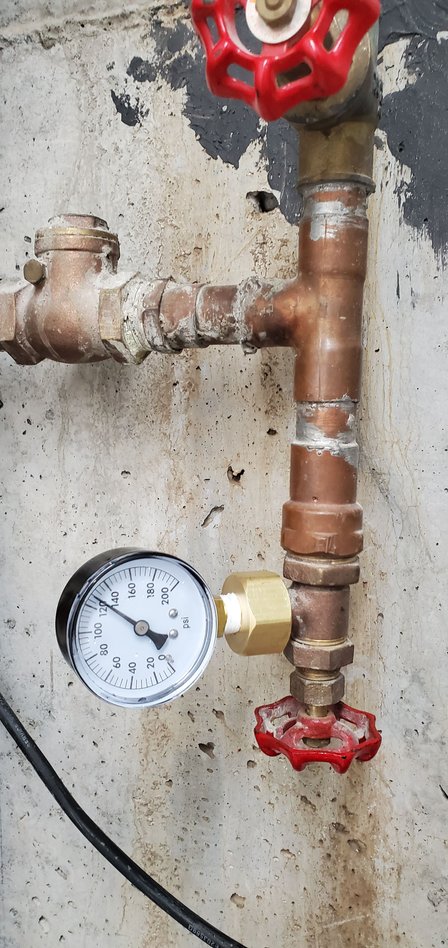

Sprinkler System blowout pressure check valve

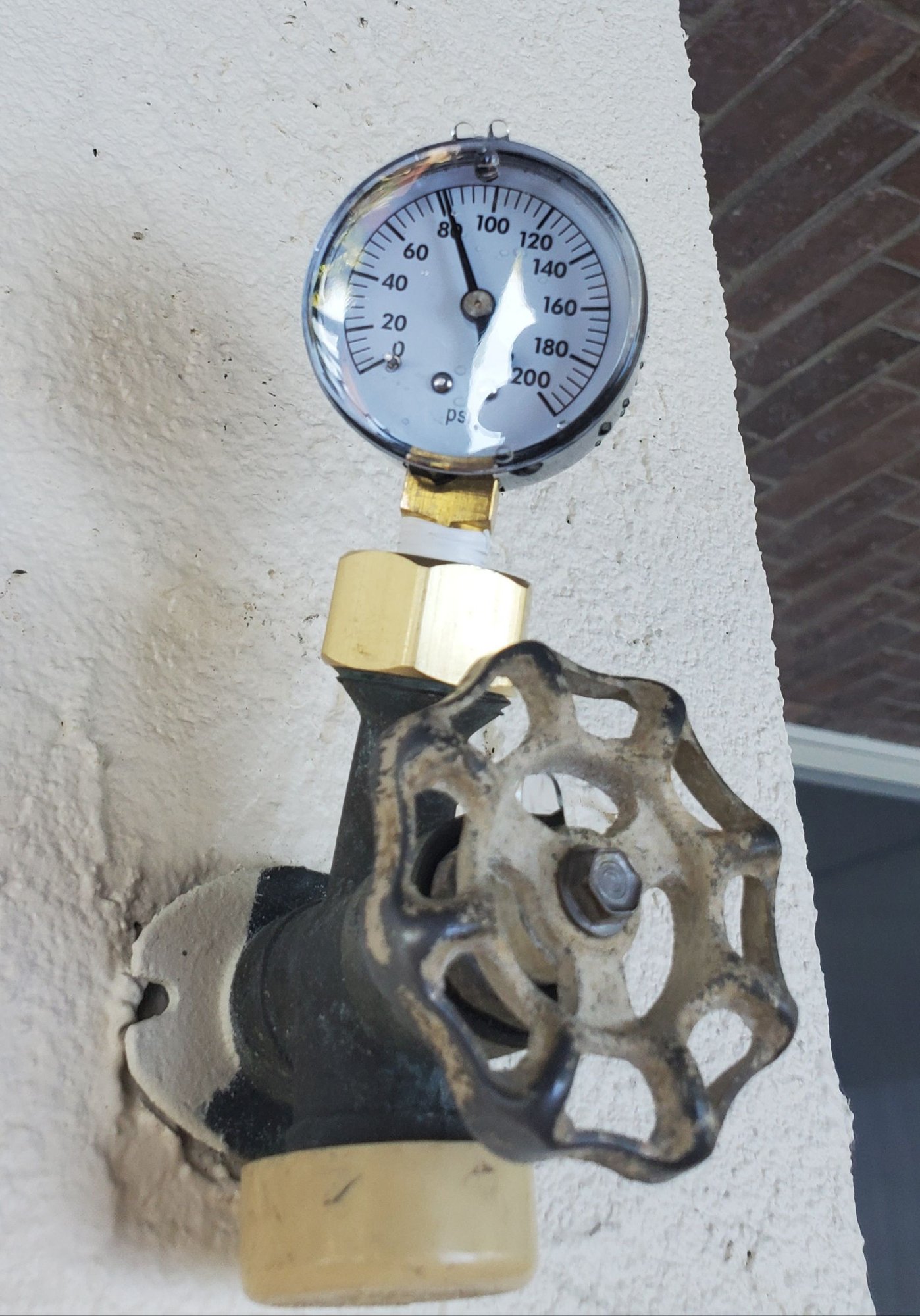

House Pressure

Last edited by PSW; 07-25-2020 at 08:53 PM.
Old 07-25-2020, 09:33 PM
  #19
Senior Member

Join Date: Aug 2010
Posts: 317
Likes: 0
Received 16 Likes on 11 Posts
Default

You can run it for awhile like it is, your valves should be rated at 150 psi and the pipe around 2 times that. Unfortunately the glue joints are the week points on irigation systems.
Old 07-26-2020, 04:02 AM
  #20
Admirals Club Admiral's Club Member

Join Date: Feb 2013
Location: NC
Posts: 653
Received 173 Likes on 103 Posts
Default

It is a little high but it will be fine. We run some larger commercial systems at 120+, biggest thing to look for is misting at the heads. if it's putting out a mist in the air your just wasting that water as it's not falling to the ground. We don't know but the system could have pressure compensating heads which will operate at 45 psi
