Advice Needed - Fiberglass Issue

Notices

Advice Needed - Fiberglass Issue

Old 06-22-2020, 08:52 AM
  #1
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default Advice Needed - Fiberglass Issue

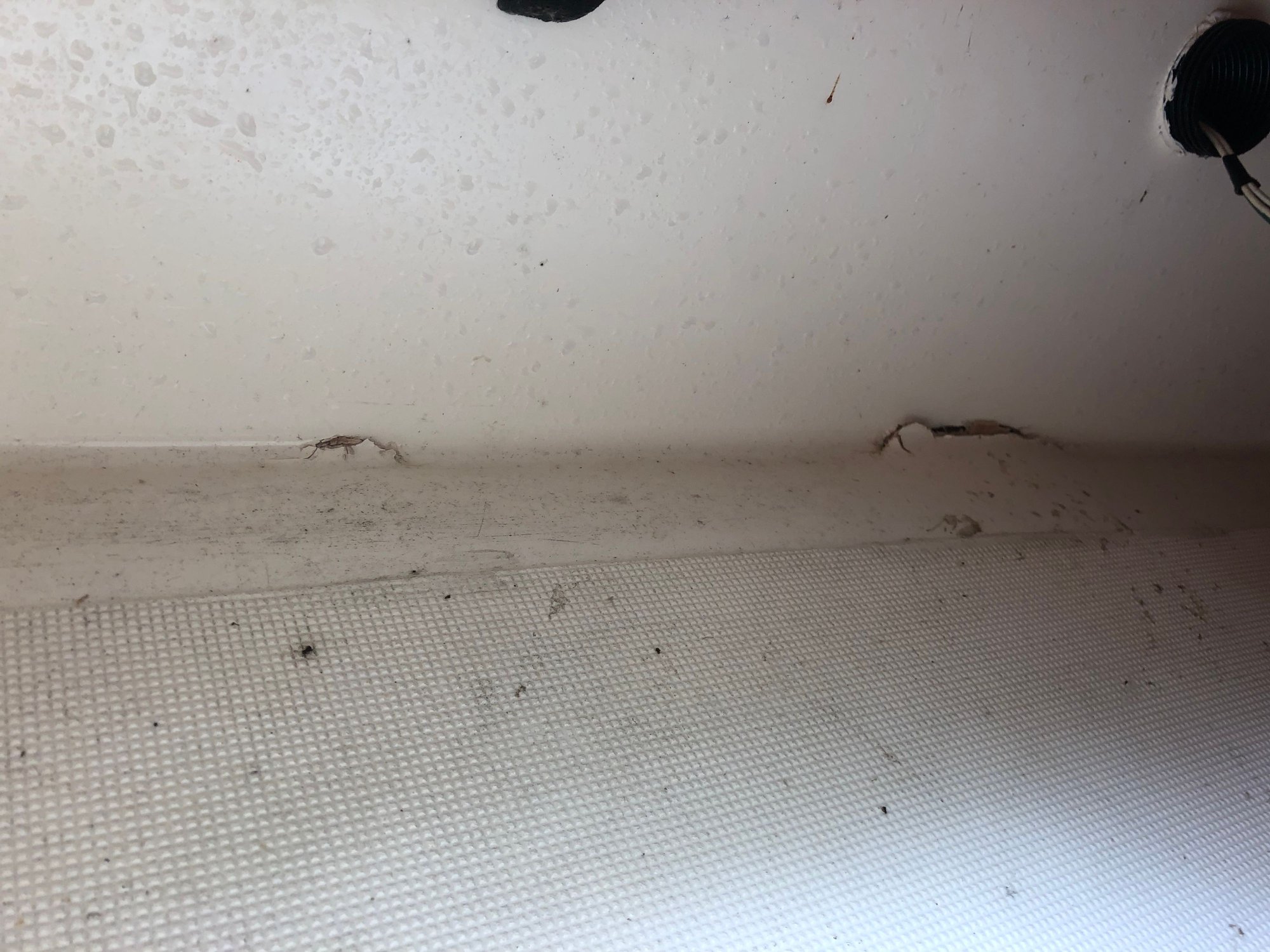

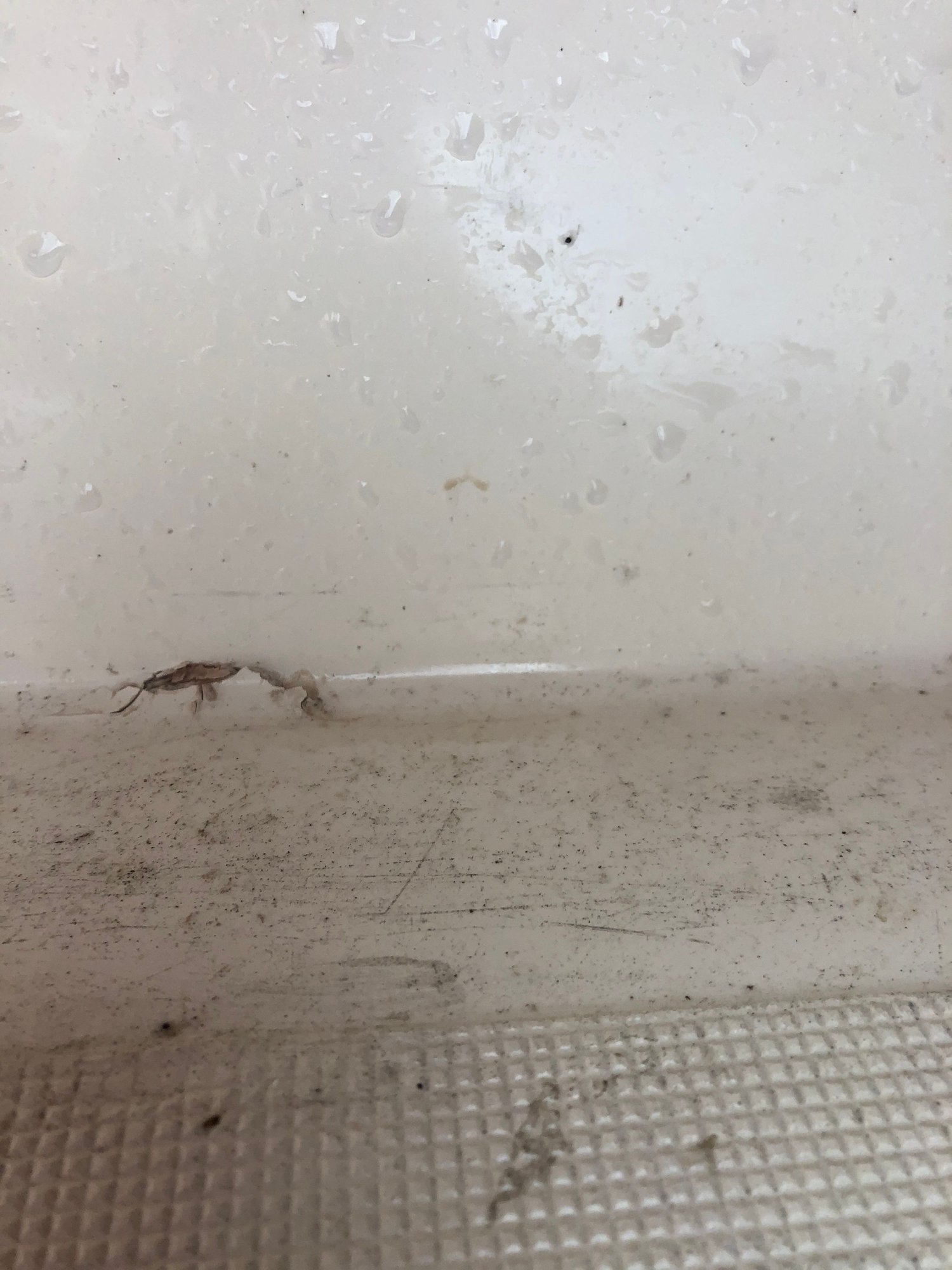

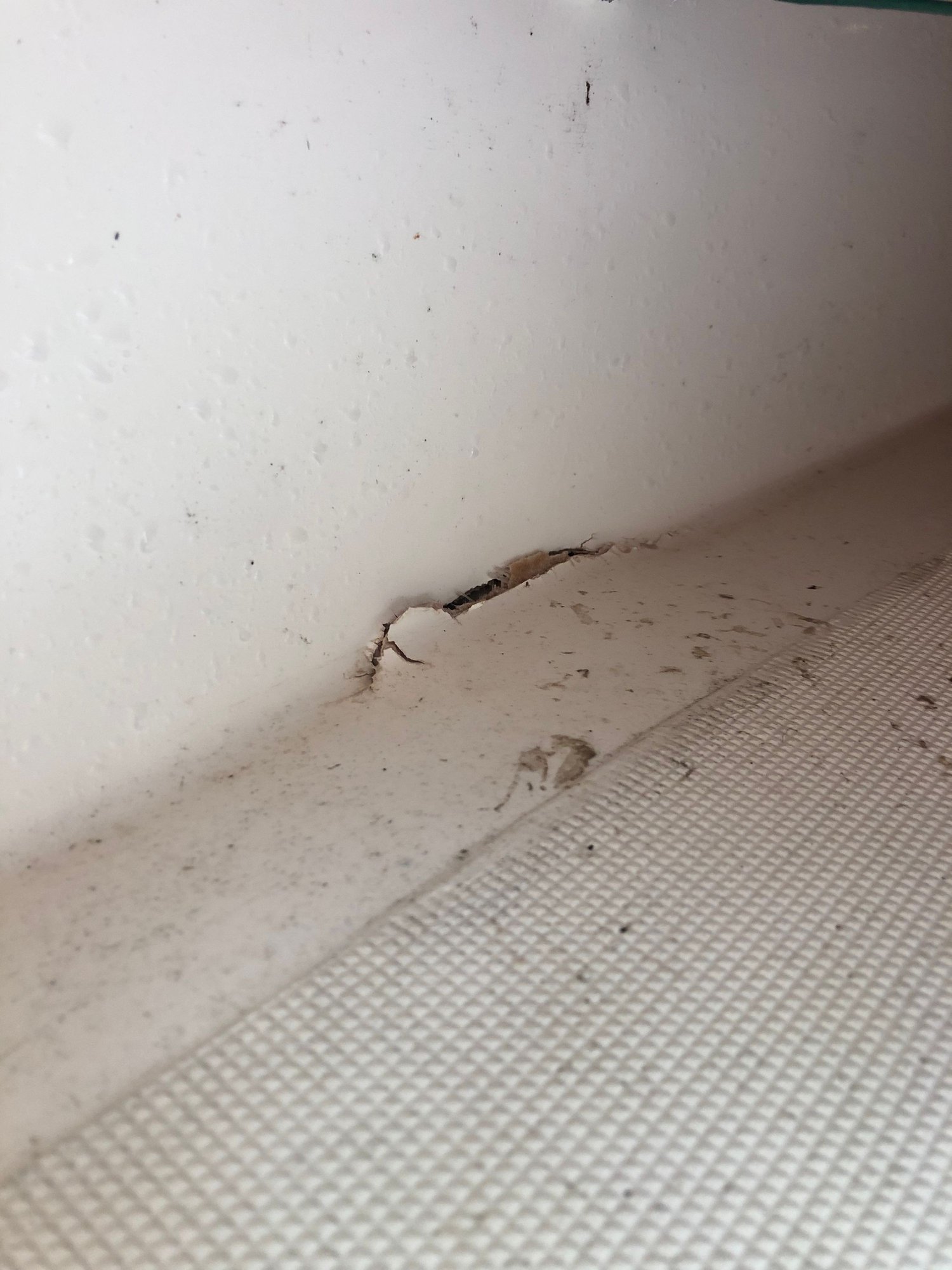

While cleaning the boat today I discovered two small areas that are somewhat concerning inside the deck storage locker. Boat is in great shape otherwise, just not sure what caused these and what additional damage I may NOT be able to see. They likely occurred taking a boat wake poorly. Not sure what, if any, next steps I should be taking here. Thanks...




Old 06-22-2020, 09:01 AM
  #2
Senior Member

Join Date: Nov 2015
Location: se Florida
Posts: 899
Likes: 0
Received 2,435 Likes on 980 Posts
Default

Looks like it might be caused by something heavy bouncing around in there.
Old 06-22-2020, 09:08 AM
  #3
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default

Originally Posted by bugnut View Post
Looks like it might be caused by something heavy bouncing around in there.
Hmm, hadn't considered that as an option. I typically don't really have anything heavy in there, but anything is possible and I like this option far better than others I've considered.
Old 06-22-2020, 09:12 AM
  #4
Senior Member

Join Date: Mar 2014
Location: Treasure Coast
Posts: 1,149
Received 679 Likes on 224 Posts
Default

Looks like an easy fix. Grind it down to glass, shoot some epoxy into the crack and then throw some glass over top. Sand it, prime it, paint it, use it.
Old 06-22-2020, 09:36 AM
  #5
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default

Originally Posted by cronced View Post
Looks like an easy fix. Grind it down to glass, shoot some epoxy into the crack and then throw some glass over top. Sand it, prime it, paint it, use it.
Glad to hear this! I have no experience working with any of this stuff, will have to do some homework see if I can figure it out. Thanks!
Old 06-22-2020, 09:54 AM
  #6
Senior MemberCaptains Club Member

Join Date: Dec 2007
Posts: 15,748
Likes: 0
Received 653 Likes on 359 Posts
Default

Are there any marks or signs of impact on the hull outside? That would make it a much bigger deal...
Old 06-22-2020, 10:06 AM
  #7
Senior Member

Join Date: Feb 2007
Location: North Palm Beach, FL
Posts: 8,516
Likes: 0
Received 1,359 Likes on 737 Posts
Default

Those appear to be broken from the outside in. Best guess would be that there is some structure (bulkhead, frame, stiffener) under the box that was pushed up at some point, ref. Your hard wake comment. Or, it could be the box is loose and has settled on a couple of hard points. The glass looks pretty thin and may only be a little chopped mat rather than biax or woven roving.

I'd be looking at the hull for signs of stress and/or failure for the first scenario and separation of the box from the underside of the deck in the second.
Old 06-22-2020, 10:13 AM
  #8
Senior Member

Join Date: Jan 2012
Posts: 130
Likes: 0
Received 488 Likes on 261 Posts
Default

I would poke around and inspect closely to determine if they are isolated areas, or part of bigger under-laying damage. Like, do they connect under the surface? If not, then a quick patch should be OK.
Old 06-22-2020, 12:34 PM
  #9
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default

Originally Posted by bamaboy473 View Post
Are there any marks or signs of impact on the hull outside? That would make it a much bigger deal...
No marks, stress cracks or anything obvious showing on the side or hull of the boat. These two spots are the only visible issues.
Old 06-22-2020, 12:36 PM
  #10
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default

Originally Posted by Fish Haid View Post
I would poke around and inspect closely to determine if they are isolated areas, or part of bigger under-laying damage. Like, do they connect under the surface? If not, then a quick patch should be OK.
I haven't found a way to inspect under the box yet. I need to see if I can shine a light or something in any of the access ports but due to the location I'm not optimistic that I'll be able to see into that area.
Old 06-22-2020, 12:38 PM
  #11
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default

Originally Posted by Fish Haid View Post
I would poke around and inspect closely to determine if they are isolated areas, or part of bigger under-laying damage. Like, do they connect under the surface? If not, then a quick patch should be OK.
So far no way to look inside. I emailed the manufacturer for their opinion and info on the area, we'll see if they get back to me. Thanks..
Old 06-22-2020, 03:00 PM
  #12
Senior MemberCaptains Club Member

Join Date: Aug 2003
Location: Out west
Posts: 3,363
Likes: 0
Received 590 Likes on 294 Posts
Default

Originally Posted by cronced View Post
Looks like an easy fix. Grind it down to glass, shoot some epoxy into the crack and then throw some glass over top. Sand it, prime it, paint it, use it.
The above answer is the fix. A simpler version is to grind down to glass/dry or dry wood, then fill with 5200. Level it off before it sets. Sand if its rough, and live the the cosmetic change of a couple repair spots. A structural problem will start cracking anyway. I doubt your problem is structural, so fixing with 5200 after proper preparation is a simple and inexpensive alternative to above.
Old 06-22-2020, 06:35 PM
  #13
Senior Member

Join Date: Jul 2013
Location: N.E. Tennessee
Posts: 505
Received 479 Likes on 207 Posts
Default

IMHO, it looks like they didn't glass the sides to the floor very well.
I'd grind down to glass on the floor and the side. 3 to 4 inches.
I'd mix some cut glass and cabosil with epoxy and push it through the exposed holes to make a fillet.
I'd then epoxy a couple of layers of glass along the entire area.
Finally hit it with some gelcoat.

Not cheap by any means and this is coming from someone who built a boat from the hull back up the deck a few years back.
Old 06-22-2020, 06:47 PM
  #14
Admirals Club Admiral's Club Member
THT sponsor

williamwallus's Avatar

Join Date: Jun 2014
Location: SWFL, Midwest
Posts: 3,465
Received 800 Likes on 443 Posts
Default

That's not from taking a wake. Looks like something smashed into it.
Old 06-23-2020, 03:44 AM
  #15
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 579
Received 53 Likes on 36 Posts
Default

Originally Posted by williamwallus View Post
That's not from taking a wake. Looks like something smashed into it.
I spent more time poking around near it, trying to see under it and am starting to come around to this conclusion. No idea what I'd have had in there that could have done that, maybe some beach chairs, but the whole floor feels rock solid in that area. The wall is less solid but by no means would I call it "flimsy" either. I also went back under the boat and really looked at the hull and side of the boat, again, both areas are solid as can be, no scratches, dents or anything to indicate an impact.

I'll start looking into repairing it on my own, it'll take some research but considering where this is located it offers the opportunity to mess around with glass repair and gel coat in spot that can afford to look less than stellar if I don't get it quite right. Appreciate the all the replies!
Old 06-23-2020, 05:05 AM
  #16
Senior Member

Join Date: Oct 2010
Location: Bradenton FL
Posts: 2,291
Received 822 Likes on 372 Posts
Default
