Before I destroy this with oxy acetylene

Notices

Before I destroy this with oxy acetylene

Old 12-07-2019, 11:07 AM
  #1
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default Before I destroy this with oxy acetylene

Could be perhaps the dumbest "how to" question ever.

This is a heavy duty hinge holding a spare tire mount across the rear of a truck. Son wants to take it off and just keep the spare in the bed.
Simple Picture: a single hinge with the bolt shown acting as the lynch pin. Want to take the assembly (held on with bolt) off. Nut is off the bottom. No problem.
  • Bolt will just spin.
    • Easily, with fingers
  • Will not be pounded out.
    • 4lb hammer (on nut) - no threads are damaged
  • 3-ton floor jack
    • Trying to "press" the bolt out the top.
    • Jack will lift the entire vehicle. Bolt does not move
  • Bolt does not appear to be bent in any way
  • I've thought . . . hmmm, must be a keyway in there.
    • Made small turns on the nut with taps to drive the bolt up.
    • No success.
What is preventing this bolt from just pulling right out, letting me take the assembly off?

Old 12-07-2019, 11:17 AM
  #2
Junior Member

Join Date: Dec 2015
Location: Ohio ~ The I'm outa here state
Posts: 48
Likes: 0
Received 509 Likes on 319 Posts
Default

Could be keyed & only loosen up if mount is swung all the way open or another position so it can't fall off while driving if the nut comes off

Open it up all the way & give it a try
Old 12-07-2019, 11:24 AM
  #3
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Northern Neck, VA
Posts: 5,857
Received 2,274 Likes on 1,126 Posts
Default

Whatever it’s threaded into is spinning inside. Can you try turning with wrench while putting pressure up like with pliers or little prybar
Old 12-07-2019, 11:31 AM
  #4
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default

Originally Posted by loverofshells View Post
Could be keyed & only loosen up if mount is swung all the way open or another position so it can't fall off while driving if the nut comes off

Open it up all the way & give it a try
Good one . . . I have tried that too; but now I'm thinking I need to attempt many different positions.
Old 12-07-2019, 11:32 AM
  #5
Junior Member

Join Date: Dec 2015
Location: Ohio ~ The I'm outa here state
Posts: 48
Likes: 0
Received 509 Likes on 319 Posts
Default

How is the tire mount "mounted" ?

A pic from a little further away would help
Old 12-07-2019, 11:33 AM
  #6
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default

Originally Posted by rocksandblues View Post
Whatever it’s threaded into is spinning inside. Can you try turning with wrench while putting pressure up like with pliers or little prybar
That was my first thought: spinning on a polyurethane bushing. I spun it with pressure from the floor jack . . . no joy.
Old 12-07-2019, 11:33 AM
  #7
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default

Originally Posted by loverofshells View Post
How is the tire mount "mounted" ?

A pic from a little further away would help
Stand bye. Another pic on the way.
Old 12-07-2019, 11:34 AM
  #8
Admirals Club Admiral's Club Member

Join Date: Jun 2016
Location: Kent Island, MD
Posts: 318
Likes: 0
Received 388 Likes on 232 Posts
Default

Can’t you remove the whole assembly? Why would you want the bracket still hanging there? What make/model is the bracket? Check their website for a manual?
Old 12-07-2019, 11:37 AM
  #9
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default

Here's the back. Hinge (only one) is lower right.


Old 12-07-2019, 11:38 AM
  #10
Admirals Club Admiral's Club Member

Join Date: Jan 2014
Posts: 3,310
Received 3,542 Likes on 2,033 Posts
Default

Tough one .
Favorite thread title of the year though .
Old 12-07-2019, 11:39 AM
  #11
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default

Originally Posted by KIMDer View Post
Can’t you remove the whole assembly? Why would you want the bracket still hanging there? What make/model is the bracket? Check their website for a manual?
The spare tire "gate" is its own assembly. It's attached to a broader assembly of rock crawler frame. It's a great setup, but the kid doesn't want all the stuff hanging off the back; I don't blame him.
Old 12-07-2019, 11:42 AM
  #12
Senior MemberCaptains Club Member

Join Date: Dec 2003
Location: Northern Neck, VA
Posts: 5,857
Received 2,274 Likes on 1,126 Posts
Default

Originally Posted by SalmonDaze View Post
That was my first thought: spinning on a polyurethane bushing. I spun it with pressure from the floor jack . . . no joy.
my .02 is what ever bushing it’s threaded into is spinning. Understood on the pressure. It must be fused or corroded together

drill a hole into the side and try to “pin” the bushing then unscrew?? Maybe
Old 12-07-2019, 11:43 AM
  #13
Senior Member

Join Date: Jul 2016
Posts: 716
Received 1,116 Likes on 523 Posts
Default

if you do not care about the hinge anymore drill a hole where the circle is and see if you can stick something in there to hold what might be inside there that the bolt is threaded into them unscrew the bolt



Old 12-07-2019, 11:49 AM
  #14
Senior Member

Lprizman's Avatar

Join Date: May 2009
Location: RI
Posts: 6,291
Received 4,453 Likes on 1,972 Posts
Default

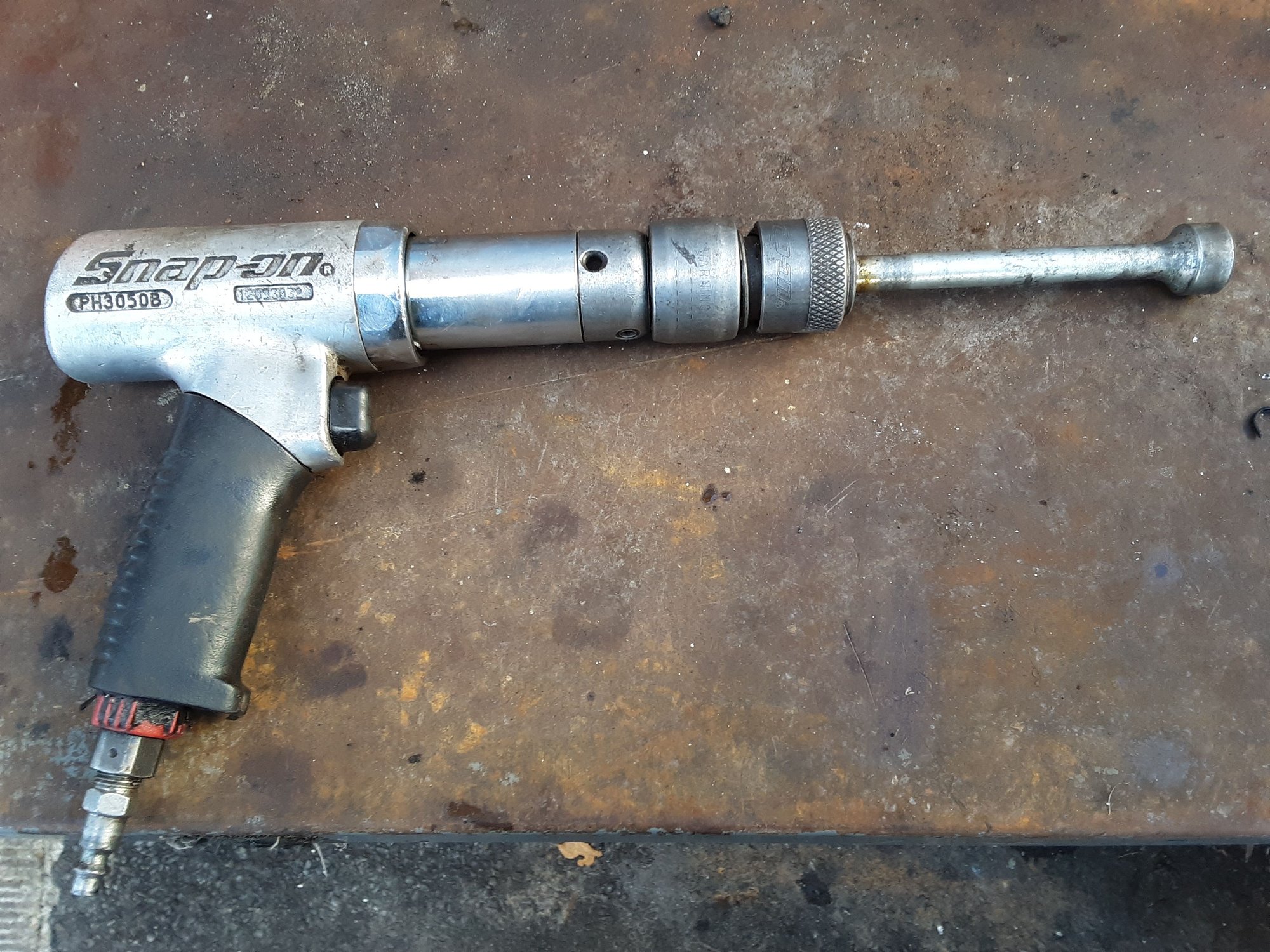

Muffler gun it out
if you have one like mine

Old 12-07-2019, 12:00 PM
  #15
Senior Member

Join Date: Sep 2016
Location: Alaska
Posts: 521
Received 293 Likes on 159 Posts
Default

I'm with Insider, drill a 1/2" hole and see what's inside.
If no joy fire up the torch.
Old 12-07-2019, 12:05 PM
  #16
Senior Member

Join Date: Aug 2009
Location: Bright Side of the Moon
Posts: 3,592
Received 676 Likes on 381 Posts
Default

Originally Posted by Lprizman View Post
Muffler gun it out
if you have one like mine
Was thinking if it can't be pushed up put the nut back on and try and bring it back down to break it free.
Old 12-07-2019, 12:05 PM
  #17
jwb
Senior MemberCaptains Club Member

Join Date: Nov 2004
Location: connecticut
Posts: 1,749
Likes: 0
Received 92 Likes on 58 Posts
Default

Cut thru bushing and bolt just inside either side inside of the "C" bracket with a 5" cutoff wheel. Entire assembly can be reassembled later with a new bushing and bolt.
Old 12-07-2019, 12:08 PM
  #18
Senior Member
Thread Starter

Join Date: Sep 2010
Location: Providing for grubers
Posts: 3,691
Received 773 Likes on 385 Posts
Default

Originally Posted by jwb View Post
Cut thru bushing and bolt just inside either side inside of the "C" bracket with a 5" cutoff wheel. Entire assembly can be reassembled later with a new bushing and bolt.
Angle grinder is ready to go. And this is where things are headed. Stand by.
Old 12-07-2019, 12:10 PM
  #19
Senior MemberCaptains Club Member

Join Date: Sep 2005
Location: s.w. florida
Posts: 4,197
Received 268 Likes on 103 Posts
Default

Job for the win.
Old 12-07-2019, 12:30 PM
  #20
Senior Member

Join Date: Feb 2018
Posts: 257
Received 192 Likes on 84 Posts
Default

Put the jack under the bolt, jack it up, put a socket or piece of pipe over the head of the bolt and pound it down.
