Default Carpentry help

My daughter just moved into a new to her house and asked me to build a gate for her deck to keep her dogs contained and to keep my future granddaughter from escaping. Opening is 36' wide and approx. 36" tall. My initial thought was to build it from PT 1x4's w/balusters to match the existing railings and hinge it on the left (in the pic) so it swings inward. I don't want to over build it and have it sag as it ages but it needs to be sturdy enough to contain a well-behaved 75 lb. Airedale. Open to any and all suggestions.


Old 11-07-2019, 06:50 PM
  #2
Admirals Club Admiral's Club Member

Join Date: Jun 2016
Location: Kent Island, MD
Posts: 333
Received 388 Likes on 232 Posts
Default

I built one when my kids were little. I think your idea is probably fine. I did a 2x4 frame with lattice in the middle because i had it lying around. It was heavy though with the 2x4.
Old 11-07-2019, 06:54 PM
  #3
Senior Member

Join Date: Mar 2013
Posts: 586
Likes: 0
Received 711 Likes on 439 Posts
Default

keeping a dog inside a 3 foot gate could be problematic.
I had a Black and Tan hound years ago that would go over a 6 ft picket fence all day long
Old 11-07-2019, 06:58 PM
  #4
Member

Join Date: Aug 2016
Location: ZEBULON NC
Posts: 58
Likes: 0
Received 81 Likes on 41 Posts
Default

I use a small cable with a turn buckle to keep the gate from sagging. Goes diagonal from top hinge side to bottom latch side .
Old 11-07-2019, 07:09 PM
  #5
Senior Member

Join Date: Jul 2014
Posts: 2,387
Likes: 0
Received 1,642 Likes on 964 Posts
Default

Just get one of those plastic gates for keeping kids from going up stairs. You'll just be taking it off again in a few years anyway.

Congrats on granddaughter.

Last edited by raystein; 11-07-2019 at 07:16 PM.
Old 11-07-2019, 07:25 PM
  #6
Admirals Club Admiral's Club Member

Join Date: Dec 2009
Location: Lake Jackson, texas
Posts: 501
Received 217 Likes on 124 Posts
Default

I would probably use cedar or cypress. Much lighter and doesn’t warp near as bad as pt pine , unless you can find some kiln dried after treated.
Old 11-07-2019, 07:25 PM
  #7
Senior MemberCaptains Club Member

Garett's Avatar

Join Date: Feb 2003
Posts: 24,380
Likes: 0
Received 1,094 Likes on 610 Posts
Default

I wouldn't hinge it at all. I would have your gate on a roller (leading lower corner) and have it slide back and forth from the right. That way the gate takes up basically zero space and you don't have to step back to open it, just slide it. Make a small channel on the left side for the gate to fit into when closed, this will secure the gate and keep it aligned when closed.
Old 11-07-2019, 07:29 PM
  #8
Admirals Club Admiral's Club Member
Thread Starter

Join Date: Aug 2013
Location: Fairhaven, MA
Posts: 9,148
Received 1,212 Likes on 743 Posts
Default

Originally Posted by The Bermudian View Post
I use a small cable with a turn buckle to keep the gate from sagging. Goes diagonal from top hinge side to bottom latch side .
x2 That was part of the original plan if I used heavier lumber.
Old 11-07-2019, 07:33 PM
  #9
Member

Join Date: Jul 2018
Location: Anchorage, AK
Posts: 77
Likes: 0
Received 86 Likes on 64 Posts
Default

Originally Posted by Cobia 217 View Post
My daughter just moved into a new to her house and asked me to build a gate for her deck to keep her dogs contained and to keep my future granddaughter from escaping. Opening is 36' wide and approx. 36" tall. My initial thought was to build it from PT 1x4's w/balusters to match the existing railings and hinge it on the left (in the pic) so it swings inward. I don't want to over build it and have it sag as it ages but it needs to be sturdy enough to contain a well-behaved 75 lb. Airedale. Open to any and all suggestions.
I did something similar for our dogs. I used 2x4 top and bottom and connected with 1x1 balusters, matching the railing. I would recommend something similar with your application, match the look of the railing (2x3 on the bottom?) except leave out the top hand rail. At my house, I did not have to add a diagonal. We have similar gates at the family river house to keep little kids from going down to the river, and we did need to add a diagonal there. You can always add one later, and I like the idea of the cable mentioned above. I used a cable and turnbuckle to fix some out of plumb fence posts and it worked well.

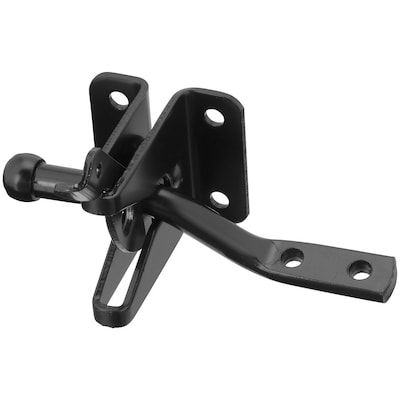

Another suggestion: I made our gates swing in, and added a second gate latch, so I can latch it open.



Also consider using a spring loaded hinge for one of the hinges if you want it to be self closing.
Old 11-07-2019, 07:39 PM
  #10
Senior Member

Join Date: Jun 2007
Location: Spring Hill, FL
Posts: 7,736
Received 894 Likes on 458 Posts
Default

Or just get one of these and make life simple:

Amazon Gate Amazon Gate
Old 11-07-2019, 07:42 PM
  #11
Admirals Club Admiral's Club Member

Join Date: Jun 2016
Location: Kent Island, MD
Posts: 333
Received 388 Likes on 232 Posts
Default

Originally Posted by Little_Giant View Post

Another suggestion: I made our gates swing in, and added a second gate latch, so I can latch it open.



.
I did this as well. Worked great. I also like Garrett idea of a slider.
Old 11-07-2019, 07:43 PM
  #12
Admirals Club Admiral's Club Member

Join Date: Jun 2013
Location: North Palm Beach
Posts: 1,560
Likes: 0
Received 191 Likes on 105 Posts
Default

Anything hinged and made out of wood is going to sag. cables and diagonals help but it’s always sagging.

Slider is the way to go if wood is the material of choice, or get a light aluminum frame welded up clad and hinge.
Old 11-07-2019, 07:48 PM
  #13
Senior Member

Join Date: Oct 2007
Posts: 9,992
Likes: 0
Received 1,725 Likes on 845 Posts
Default

Originally Posted by Garett View Post
I wouldn't hinge it at all. I would have your gate on a roller (leading lower corner) and have it slide back and forth from the right. That way the gate takes up basically zero space and you don't have to step back to open it, just slide it. Make a small channel on the left side for the gate to fit into when closed, this will secure the gate and keep it aligned when closed.
this. Roller gate
Old 11-08-2019, 05:38 AM
  #14
Admirals Club Admiral's Club Member

Join Date: Dec 2001
Location: South West, Fl
Posts: 554
Likes: 0
Received 27 Likes on 18 Posts
Default

metal gate........would look better also will add some punch to a regular wood deck
Old 11-08-2019, 07:10 AM
  #15
Senior MemberCaptains Club Member

Join Date: Jul 2006
Location: RI
Posts: 6,722
Received 1,036 Likes on 572 Posts
Default

I would be looking at something along the lines of this:

https://www.amazon.com/Carlson-Pet-Products-460-Walk-Thru/dp/B00X04J85Q/ref=asc_df_B00X04J85Q/?tag=hyprod-20&linkCode=df0&hvadid=167152134657&hvpos=1o4&hvnetw=g&hvrand=91356625086468552&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9002215&hvtargid=pla-310443865617&psc=1 https://www.amazon.com/Carlson-Pet-Products-460-Walk-Thru/dp/B00X04J85Q/ref=asc_df_B00X04J85Q/?tag=hyprod-20&linkCode=df0&hvadid=167152134657&hvpos=1o4&hvnetw=g&hvrand=91356625086468552&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9002215&hvtargid=pla-310443865617&psc=1
Old 11-08-2019, 07:29 AM
  #16
Senior Member

Join Date: Feb 2018
Location: VA
Posts: 419
Received 290 Likes on 204 Posts
Default

Originally Posted by Garett View Post
I wouldn't hinge it at all. I would have your gate on a roller (leading lower corner) and have it slide back and forth from the right. That way the gate takes up basically zero space and you don't have to step back to open it, just slide it. Make a small channel on the left side for the gate to fit into when closed, this will secure the gate and keep it aligned when closed.
I did one similar.

Made a track of sorts with 2x 1x4 . Top and bottom rail. Sort of like a pocket door. Be creative. I didnt want the swing gate.
Old 11-08-2019, 07:41 AM
  #17
Senior Member

Join Date: Aug 2009
Location: Bright Side of the Moon
Posts: 3,593
Received 677 Likes on 381 Posts
Default

Originally Posted by TheRealMacGyver View Post
Or just get one of these and make life simple:

Amazon Gate
I like this idea, I built a cedar gate for my deck and the little one hung on it and split the corner post. We use these inside, they are easily removed if you don't want them in your way for something.
Amazon Amazon
Old 11-08-2019, 07:44 AM
  #18
Senior MemberCaptains Club Member

Join Date: Jan 2007
Location: Tampa Florida
Posts: 5,670
Received 2,787 Likes on 1,580 Posts
Default

any gate that sags, does not have the proper bracing/support built in to the gate! cable on a turn buckle would make a big difference!
Old 11-08-2019, 08:04 AM
  #19
Admirals Club Admiral's Club Member

Join Date: Jun 2016
Location: Kent Island, MD
Posts: 333
Received 388 Likes on 232 Posts
Default

Originally Posted by BACKTOTHESEA View Post
I would be looking at something along the lines of this:

https://www.amazon.com/Carlson-Pet-P...43865617&psc=1
This isn’t secure enough to have at the top of steps with a toddler involved. If you go there prefab route get one that is made for top of stairs application. These appear to be pressure secured, which is fine for a dog or ground level applications, but not stairs
Old 11-08-2019, 08:04 AM
  #20
Senior MemberCaptains Club Member

Garett's Avatar

Join Date: Feb 2003
Posts: 24,380
Likes: 0
Received 1,094 Likes on 610 Posts
Default

Any wooden gate regardless of if it swings on hinges is pron to sagging whereas a sliding gate that is supported by the rollers/ track is not pron to sagging, A sagging gate is a structural issue and not a design issue. Hinged or slider is a design issue.
